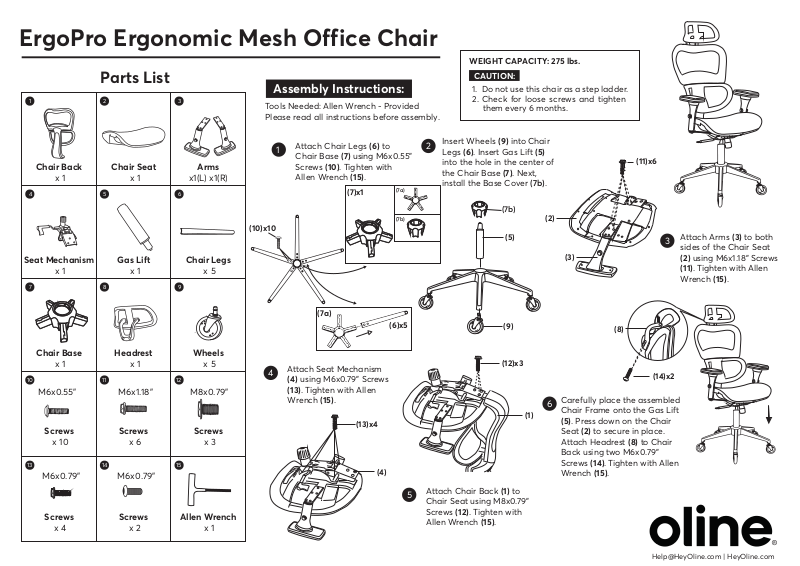

ErgoPro Ergonomic Mesh Office Chair
Parts List
Assembly Instructions:
1
2
3
Tools Needed: Allen Wrench - Provided
Please read all instructions before assembly.
WEIGHT CAPACITY: 275 lbs.
CAUTION:
1. Do not use this chair as a step ladder.
2. Check for loose screws and tighten
them every 6 months.
Chair Back
x 1
4
Seat Mechanism
x 1
7
Chair Base
x 1
10
Screws
x 10
13
M6x0.79"
Screws
x 4
Chair Seat
x 1
5
Gas Lift
x 1
8
Headrest
x 1
11 12
M6x1.18"M6x0.55”
Screws
x 6
14 15
M6x0.79"
Screws
x 2
Arms
x1(L) x1(R)
6
Chair Legs
x 5
9
Wheels
x 5
M8x0.79"
Screws
x 3
Allen Wrench
x 1
(10)x10
Attach Chair Legs (6) to
1
Chair Base (7) using M6x0.55”
Screws (10). Tighten with
Allen Wrench (15).
(7)x1
(7a)
Attach Seat Mechanism
4
(4) using M6x0.79" Screws
(13). Tighten with Allen
Wrench (15).
(13)x4
(4)
(7a)
(7b)
(6)x5
Insert Wheels (9) into Chair
2
Legs (6). Insert Gas Lift (5)
into the hole in the center of
the Chair Base (7). Next,
install the Base Cover (7b).
Attach Chair Back (1) to
5
Chair Seat using M8x0.79"
Screws (12). Tighten with
Allen Wrench (15).
(7b)
(5)
(9)
(12)x3
(1)
(11)x6
(2)
(3)
(8)
Carefully place the assembled
6
Chair Frame onto the Gas Lift
(5). Press down on the Chair
Seat (2) to secure in place.
Attach Headrest (8) to Chair
Back using two M6x0.79"
Screws (14). Tighten with Allen
Wrench (15).
Attach Arms (3) to both
3
sides of the Chair Seat
(2) using M6x1.18" Screws
(11). Tighten with Allen
Wrench (15).
(14)x2
