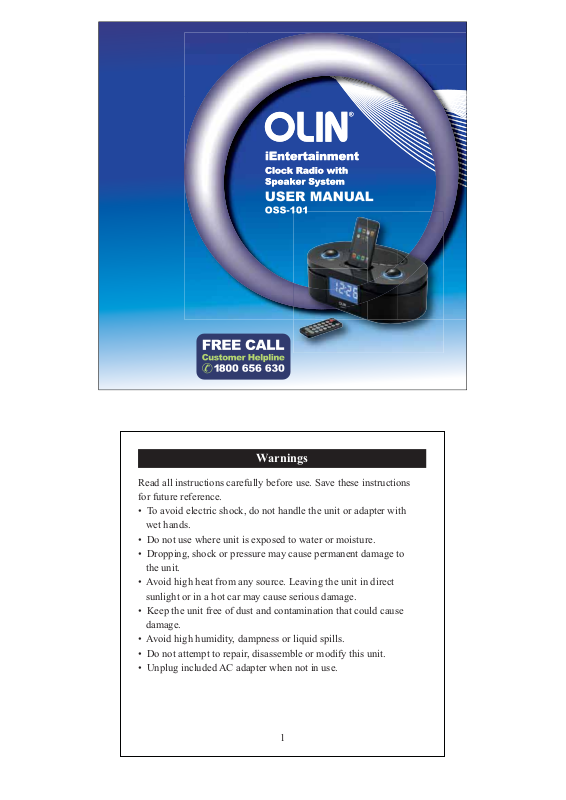

Olin OSS-101 User Manual
Warnings
Read all instructions carefully before use. Save these instructions
for future reference.
• To avoid electric shock, do not handle the unit or adapter with
wet hands.
• Do not use where unit is exposed to water or moisture.
• Dropping, shock or pressure may cause permanent damage to
the unit.
• Avoid high heat from any source. Leaving the unit in direct
sunlight or in a hot car may cause serious damage.
• Keep the unit free of dust and contamination that could cause
damage.
• Avoid high humidity, dampness or liquid spills.
• Do not attempt to repair, disassemble or modify this unit.
• Unplug included AC adapter when not in use.
1
Features
• Charges and plays all compatible iPod models.
• Built-in digital AM/FM tuner.
• Audio-In for playing MP3, CD or other audio sources.
• Alarm clock features dimmable LCD and Snooze/Nap
functions.
• Wake up to iPod tunes, the FM radio or a buzzer alarm.
• Comes with full-function IR remote control.
• Holds settings during a power outage
(requires 2 AA batteries).
2
Supplied Accessories
• Certified AC/DC adaptor
• Dock adaptors (for different iPod types)
• 3.5mm Jack LINE-IN cable
• Remote Control
• AM antenna
• Quick Guide
• User Manual
• Warranty Card
3
Control Panel
9
10
11
12
13 14
Pigtail
15
3
16
Dock connector
12
4
8
7
6
5
4
DC 15V
17
Controls (see Control Panel)
1. Power/ Tuner/Clock Set
• switches the system on or go to standby mode
• deactivates the sleep or nap function
• adjusts clock/alarm time
• adjusts radio tunes
2. Dock Connector
• Connector for iPod
3. Snooze / Nap
• switches off the alarm for a 9 minute period
• activates/deactivates Nap function in standby mode
4. Volume/Treble/Bass Adjust
• adjusts the sound level
• adjusts the Treble or Bass level
• presses to select Treble or Bass
5. Audio Mode
• selects different play modes between iPod and aux
• starts/pauses playback in the iPod/aux mode
• stops playback in the iPod/aux mode
5
