Olin DVBT-17, DVBT-100B User Manual

Contents

Contents

GENERAL INFORMATION

INSTALLATION

P1

P6

P8

MAIN MENU

Main Features
For your Safety
Unpacking
General Operation
RCU
Front Panel
Rear Panel

P1
P2
P3
P3
P4
P5
P5

1. TV

2. RADIO

3. MULTIMEDIA

4. GAME

5. SETUP

6. HOT KEY

P8
P11
P12
P13
P14
P17

TROUBLESHOOTING

P19

P7

WELCOME PAGE

DVBT-17_User Manual_V1

1

GENERAL INFORMATION

GENERAL INFORMATION

This Digital Terrestrial Receiver (DTR) will take you to the new and exciting world of
Digital Television. A world of crystal clear widescreen pictures, digital sound, more
information and new services. All this and more on "Free to Air" Digital Television.

To make full use of your new DTR please take the time to familiarize yourself with the
extensive features of the unit detailed in this User's Guide.

If you need help in setting up please call your dealer or a customer service adviser.

Main Features

MPEG-2 digital & DVB-T compliant

Automatic PAL/NTSC conversion

1000 channels TV and Radio programmable

8 different favorite groups selection

Fully support to 7 days Electronic Program Guide(EPG)

256 colors On Screen Display

Channel search in automatic and manual search

Various channel editing functions(favorite, move, lock, skip, delete, find, rename and

sort)

Parental control for channels

Easy to use Menu System

Support subtitle and teletext

Automatic save for last channel

Support Logic Channel Number(LCN)

Built-in games

Plays Image & Music from USB Devices

GENERAL INFORMATION

GENERAL INFORMATION

2

For Your Safety

Be sure to turn the Receiver off and
disconnect the AC power cord before
cleaning the Receiver surface. If the
surface is dirty, wipe clean with a cloth
which has been dipped in a weak soap-and­water solution and wrung out thoroughly,
and then wipe again with a dry cloth.

Switch the receiver off whenever it remains
out of service for an extended period.

Do not touch the receiver during thunder,
since that might create electric-shock
hazards.

Do not block ventilation holes of the
Receiver so that air can circulate freely.

Do not expose the receiver un-der the
sunlight. And keep it away from the heat
source.

Keep the receiver away from flower vases,
tubs, sinks, etc., in order to avoid damaging
the equipment.

To avoid electric-shock hazards, do not
open the cabinet, refer servicing to qualified
personnel only.

When the abnormal phenomenon occur,
you should cut off the power immediately.

GENERAL INFORMATION

GENERAL INFORMATION

3

Unpacking(Optional)

General Operation

Throughout this manual you will notice that the everyday operation of the receiver is

based on a series of user friendly on screen display and menus. These menus will
help you get the most from your receiver, guiding you through installation, channel
organizing, viewing and many other functions.

All functions can be carried out using the buttons on the RCU, and some of the

functions can also be carried out using the buttons on the front panel.

The receiver is easy to use, always at your command and adaptable for future

advances.

Please be aware that new software may change the functionality of the receiver.

Should you experience any difficulties with the operation of your receiver, please

consult the relevant section of this manual, including the Problem Shooting, or

alternatively call your dealer or a customer service adviser.

Remote Control

Batteries User Manual

SCART-RCA Connector

GENERAL INFORMATION

GENERAL INFORMATION

4

RCU

The picture is only for reference,please make the object as the standard.

SLEEP Switches to sleep mode

Press once to show the MENU window

Engages Teletext mode (subject to channel
broadcasting in each region)

Page up or down in TV channel list

GENERAL INFORMATION

GENERAL INFORMATION

5

Rear Panel

Front Panel

CONNECT TO TV AND VCR

USING A SCART CABLE

POWER CABLE

ANT IN: CONNECT TO ANTENNA
LOOP: CONNECT TO ANOTHER RECEIVER

The picture is only for reference,please make the object as the standard.

CONNECT TO USB DEVICE

INSTALLATION

INSTALLATION

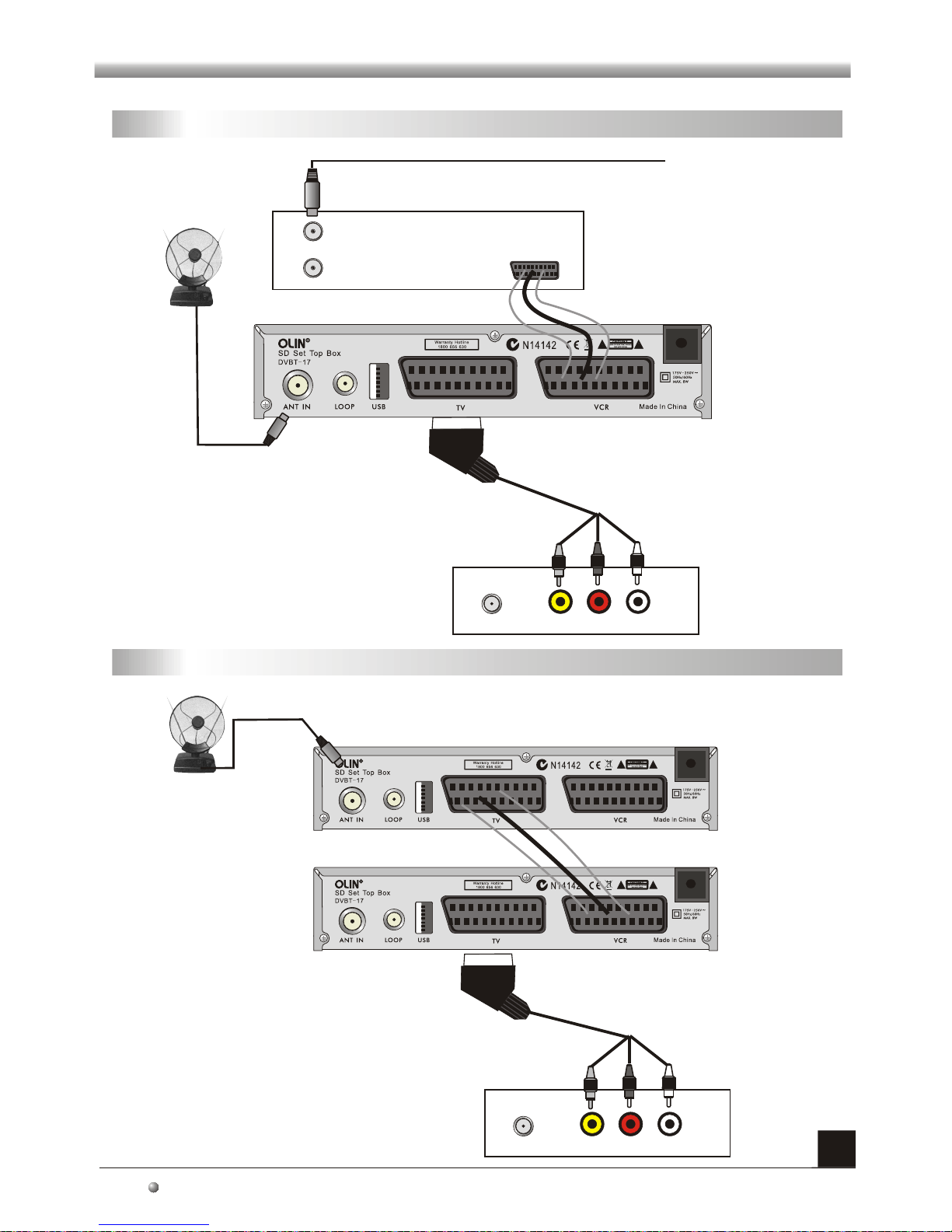

Connecting to another DTR

DTR

Another

DTR

Antenna

6

Connecting to TV using SCART support

DTR

VCR

Cable or

OFF-Air Antenna

Antenna

TV

SCART

IN FROM ANT

OUT TO ANT

IN

The picture is only for reference,please make the object as the standard.

VIDEO R L

TV

IN

VIDEO R L

7

WELCOME PAGE

WELCOME PAGE

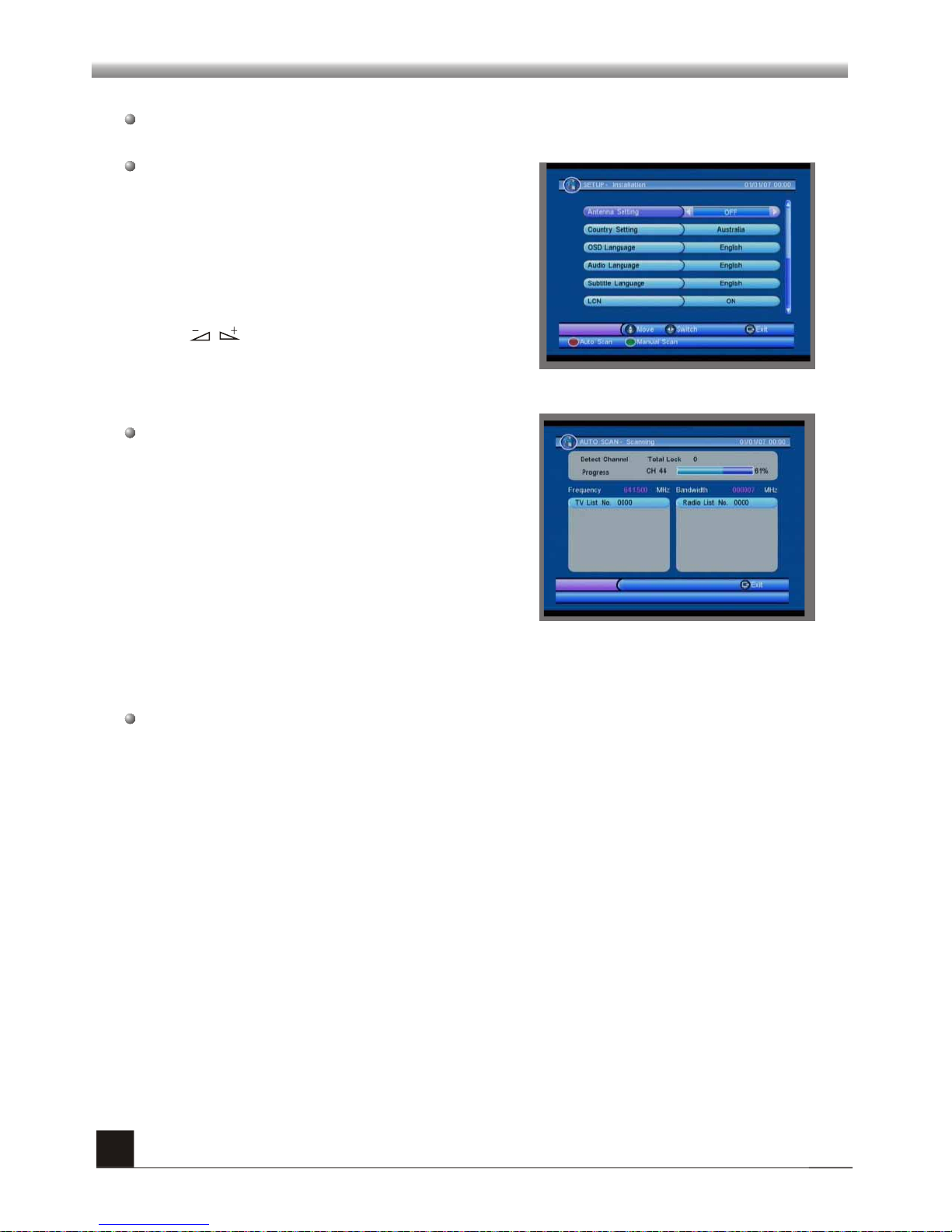

When power on first time, it will show welcome page like below.

Press keys to move highlight to choose

your choice.

Press PR+,PR- keys to move highlight to

select Antenna Setting, Country Setting,

OSD Language, Audio Language, Subtitle

Language, LCN, GMT usage, Time Zone, Set

Date and Set Time.

Press [EXIT] key to exit this menu.

Press red key to enter “ Auto Scan” menu, and

press green key to enter “Manual Scan”.

8

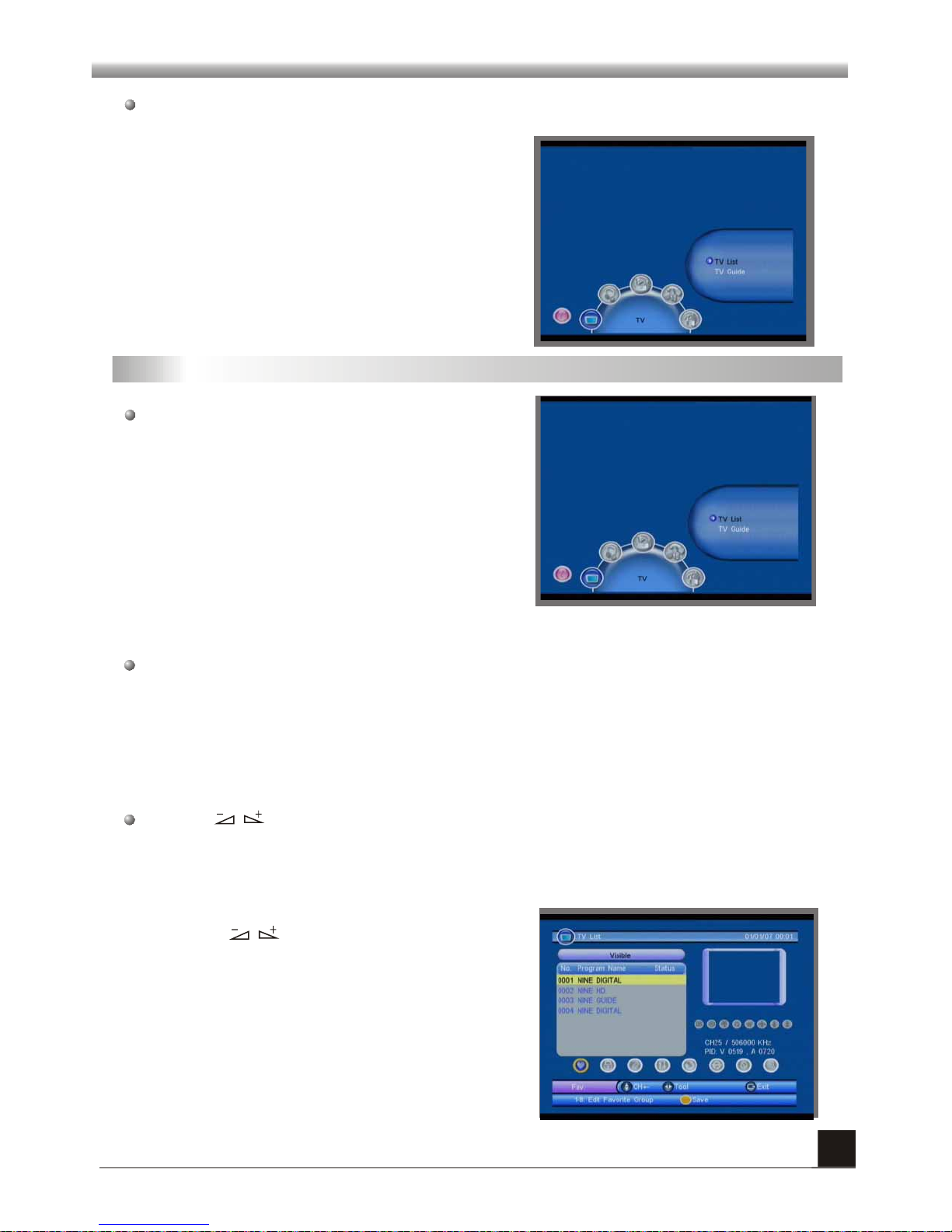

MAIN MENU

MAIN MENU

This menu consists of 5 major sub-menus as

below.

-TV

-RADIO

-MULTIMEDIA

-GAME

-SETUP

1.1 TV List

When you press [MENU] key, you can enter Main Menu.

When you enter “TV List” menu you can move highlight by pressing [Up/Down] key

and preview the highlighted program in preview window beside the channel list .

This menu has two sub-menus:

-TV List

-TV Guide

You can press [Page Up/Page Down] key to implement the Page up or Page down
function.

You can press [OK] key to enter full screen mode.

Pressing keys to carry out the corresponding functions that shows you at the
bottom of the screen.

1.1.1 Favorites

Pressing keys to select the favorites
button, and then press PR+,PR-

assign the selected channel,
press yellow key to save, or press [EXIT] key
to cancel the operation.

keys to select
the program you like, after that press number
key 1-8 on RCU to

1. TV

Remark: This is a Standard Digital STB,
therefore it does not support the HDTV
channel broadcasting.

9

MAIN MENU

MAIN MENU

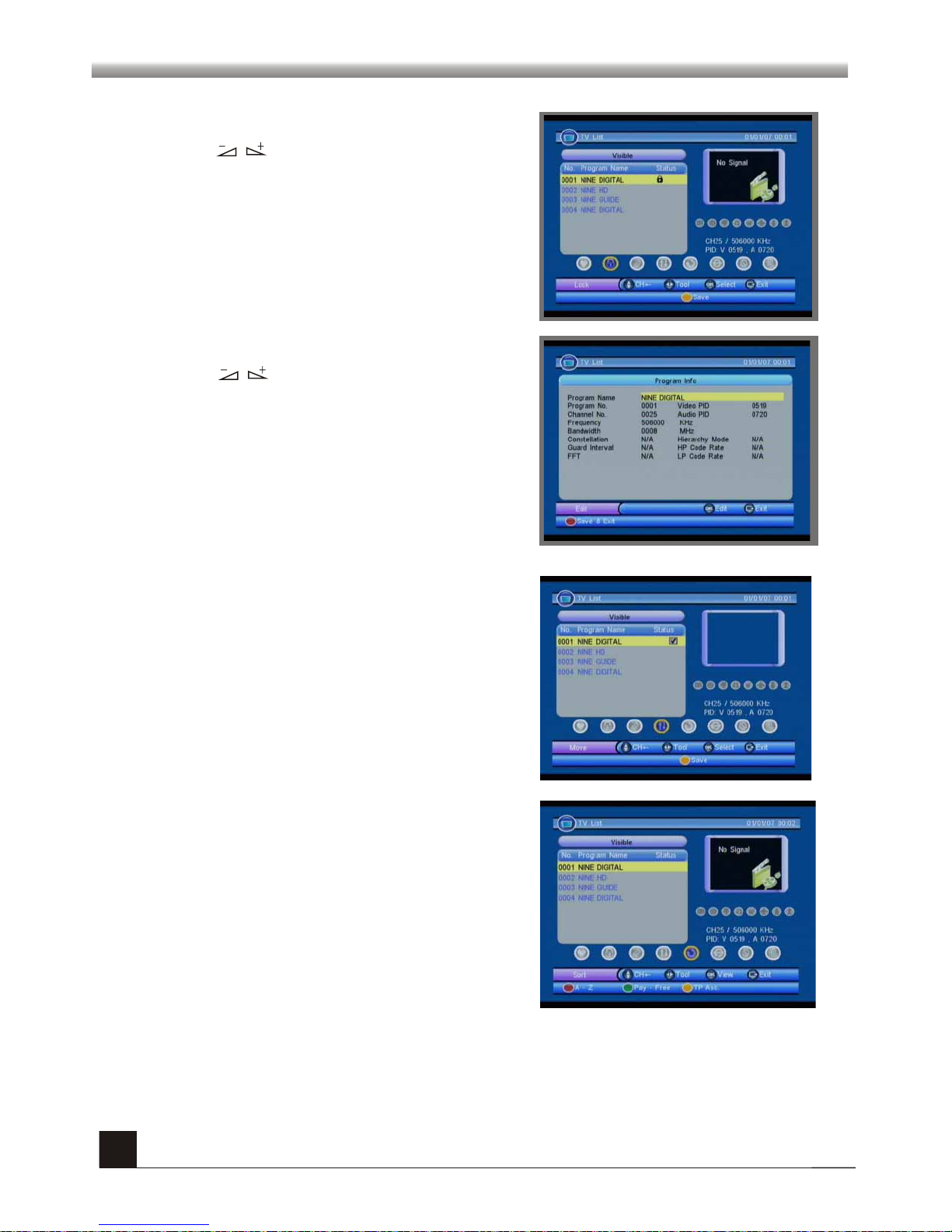

1.1.2 Lock

Pressing keys to select the Lock button,
and then press

assign the selected channel with lock mark, the
mark will be disappeared if you press OK key
again, or press [EXIT] key to cancel the operation.

PR+,PR- keys to select the

program you want, press OK key on RCU to

1.1.3 Edit

Pressing keys to select the Edit button,
press OK key to enter the window as besides,
press OK key to edit the program name , after that
you can press OK key to save and press EXIT key
to quit, then press red key to save finally and exit.

1.1.4 Move

Pressing OK key there will be a moving mark
on the right of the selected channel.
Then , you can move the selected channel to
the position where you want to place it by press
[Up /Down ] key . And press [OK ] key to confirm
your decision .

1.1.5 Sort

Name (A -Z ) : The ascending order , omitting the $
character , the number is ahead , then the
capital letter , at last the lowercase .
Name (Z -A ) : The opposite order of the above
Name (A -Z ) .
Free -Pay : All FTA programs are listed ahead ,
while all scrambled programs are listed last .

MAIN MENU

MAIN MENU

10

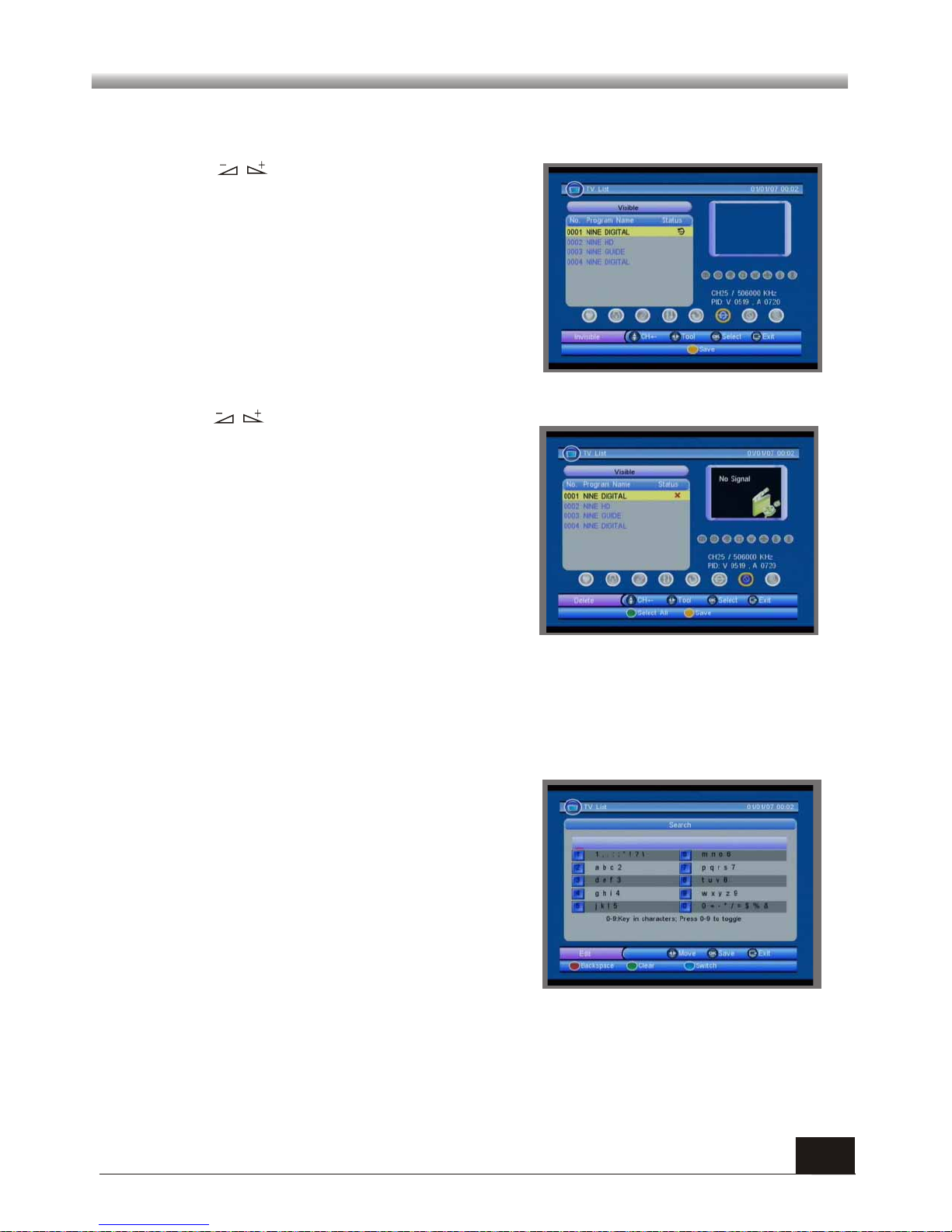

1.1.8 Search

Press blue colour key to switch between
capital letter and lower letter, press red colour
key to delete the character on the left of the
cursor, press green colour key to clear the
character on the cursor and left it as a space,
press [Left/Right] keys to move the cursor
left/right and press numeric keys (0-9) to input
characters.

1.1.6 Invisible

Pressing keys to select the Invisible button,
and then press PR+,PR-

assign the selected channel with skip mark.

keys to select the

program you want, press OK key on RCU to

The
mark will disappear if you press OK key again or
press [EXIT] key to cancel the operation.

1.1.7 Delete

Pressing keys to select the Delete button,
and then press

assign

Press green key to select all programs and
assigned them with delete mark, then press
yellow key to delete all programs .

PR+,PR- keys to select the
program you want to delete, press OK key on
RCU to the selected channel with

deleted mark. The delete mark will disappear if
you press [OK] key again. Press yellow key to
confirm your decision or [EXIT] key to cancel
the operation.

11

MAIN MENU

MAIN MENU

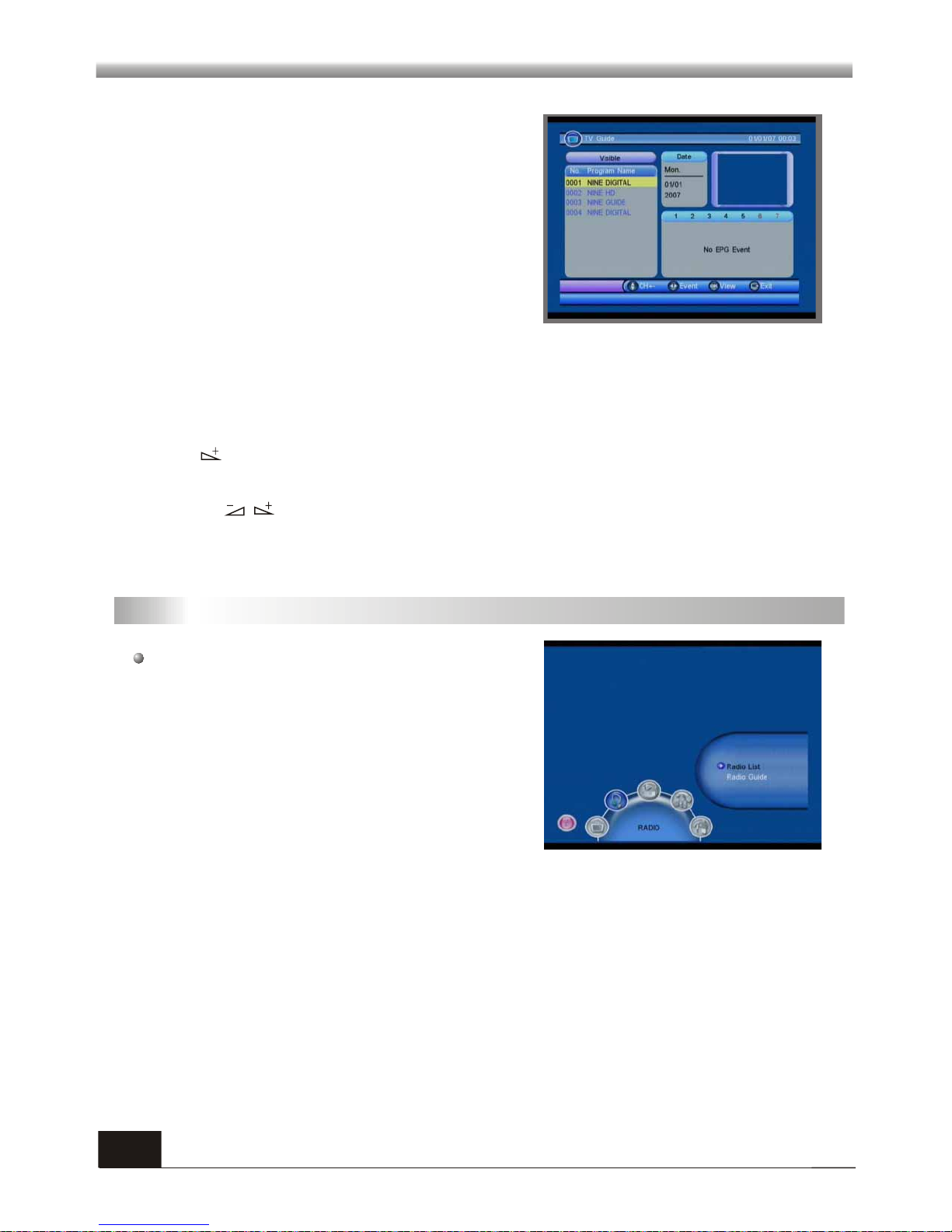

2. RADIO

This menu has two sub-menus:

-Radio List

-Radio Guide

2.1 Radio List

The operation is the same as 1.1 TV List.

2.2 Radio Guide

The operation is the same as 1.2 TV Guide.

1.2 TV Guide

TV Guide equals to one electronic program
guide, from which you can look up all the
programs in a week. The contents shown in this

window are provided by the front-end operator.

In main menu, move cursor to TV Guide item
and press OK key to enter into this window

directly.

Move PR+,PR- keys to select the desired channel in TV channel list. The recent one
week's (7 days) program guides of selected channel are displayed on the bottom

column. Up-right PIG is displaying the selected program, press OK key to view in full-

screen.

Press key to switch from the channel list column to the channel guide list

column, and press EXIT key to return to the channel list. In the booking list, press the ,

PR+,PR- keys to select from Monday to Sunday. Press OK key to view the
detail of selected program. Press red key to book the program.

12

MAIN MENU

MAIN MENU

3.2 My Music

When you enter My Music, the screen will
display as beside.

You can press PR+,PR- keys to move the
cursor and choose, press keys to control
the volume, and press OK key to select and
play the music .
Red key: Press it once to suspend, press it
again to continue playing.

Press EXIT key to quit.

Yellow key: Press it to select the playing mode among repeat all, repeating random
and repeat off.

Blue key: Fast Forward.
Green key: Stop playing the music.

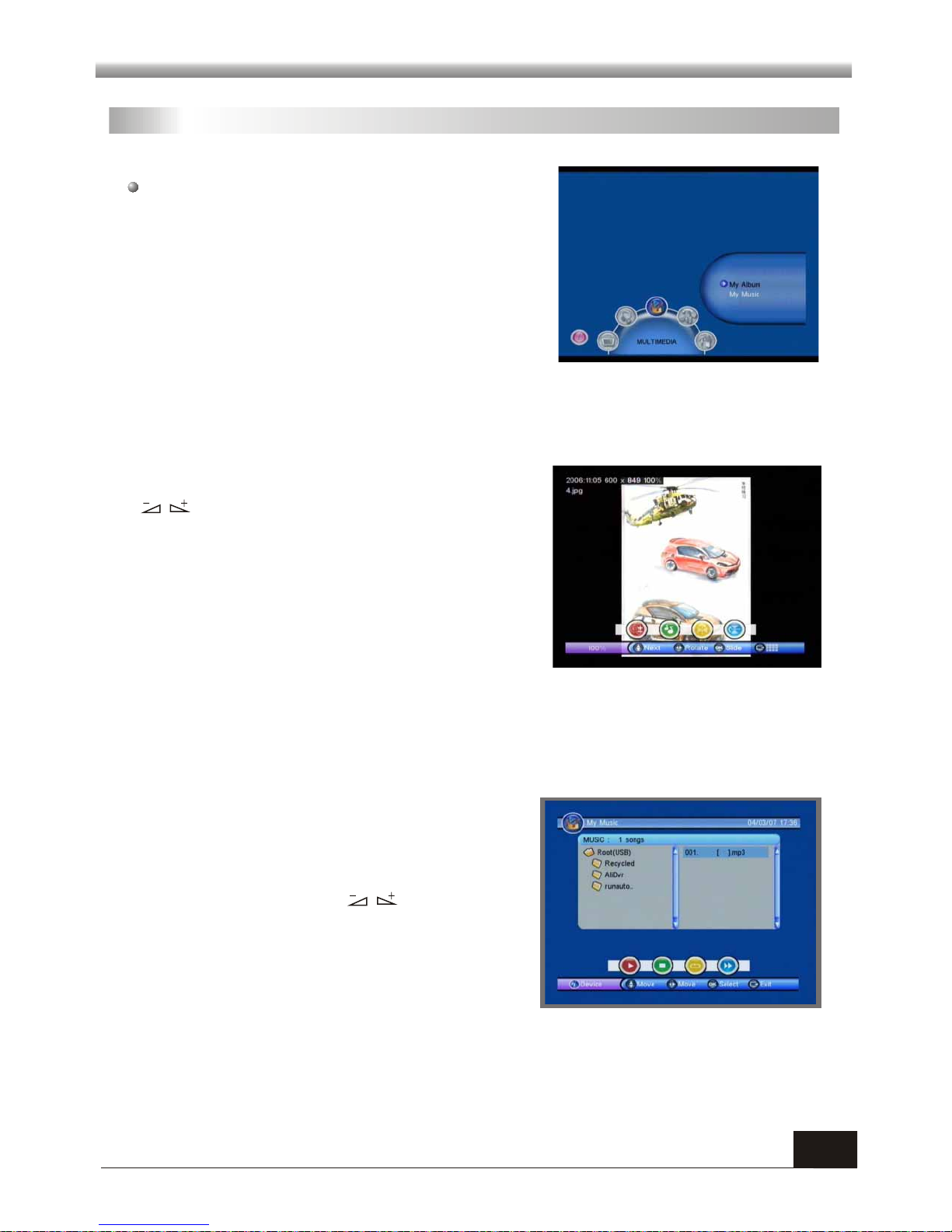

3. MULTIMEDIA

3.1 My Album

This menu has two sub-menus:

-My Album

-My Music

When you enter My Album, the screen will
display as beside.

Press PR+,PR- keys to rotate the picture, press
keys to view the next or previous picture,
press OK key to view the picture in slide mode.

Red key: Press to switch among 25%, 50%,
100%, 150% and 200%.
Green key: Press to play the music.
Yellow key: Press to mirror image in horizontal
location.
Blue key: Press to mirror image in vertical mode.

13

MAIN MENU

MAIN MENU

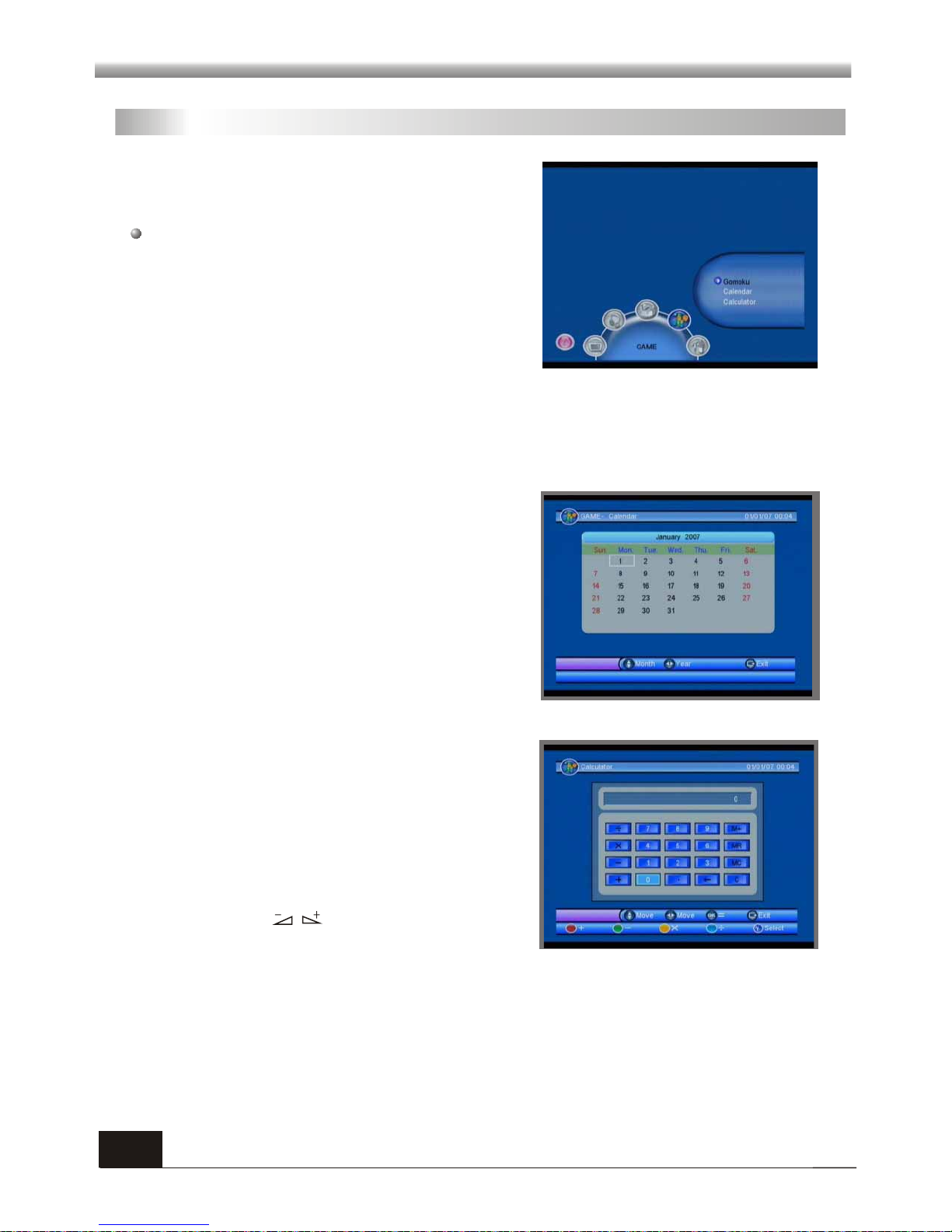

4.3 Calculator

When you enter Calculator menu, the screen
will display as beside.

Red key: Plus
Blue key: Divide
Yellow key: Multiplication
Green key: minus

Press PR+,PR-, keys to move the cursor
and select the button on calculator.
Press OK to see the calculation.
Press EXIT key to exit.

4. GAME

When you enter GAME menu like beside you
will find the receiver provides a game for you to
play.

Choose Gomoku and press [OK] key to enter.

Then you can play the game which you have chosen according to the clues on the
screen.

This menu has three sub-menus:

-Gomoku

-Calendar

-Calculator

4. 1 Gomoku

4. 2 Calendar

When you enter Calendar menu, the screen
will display as beside.

Press PR+,PR- key to select month, and press
[Right/Left] key to select year.

Press EXIT key to exit.

14

MAIN MENU

MAIN MENU

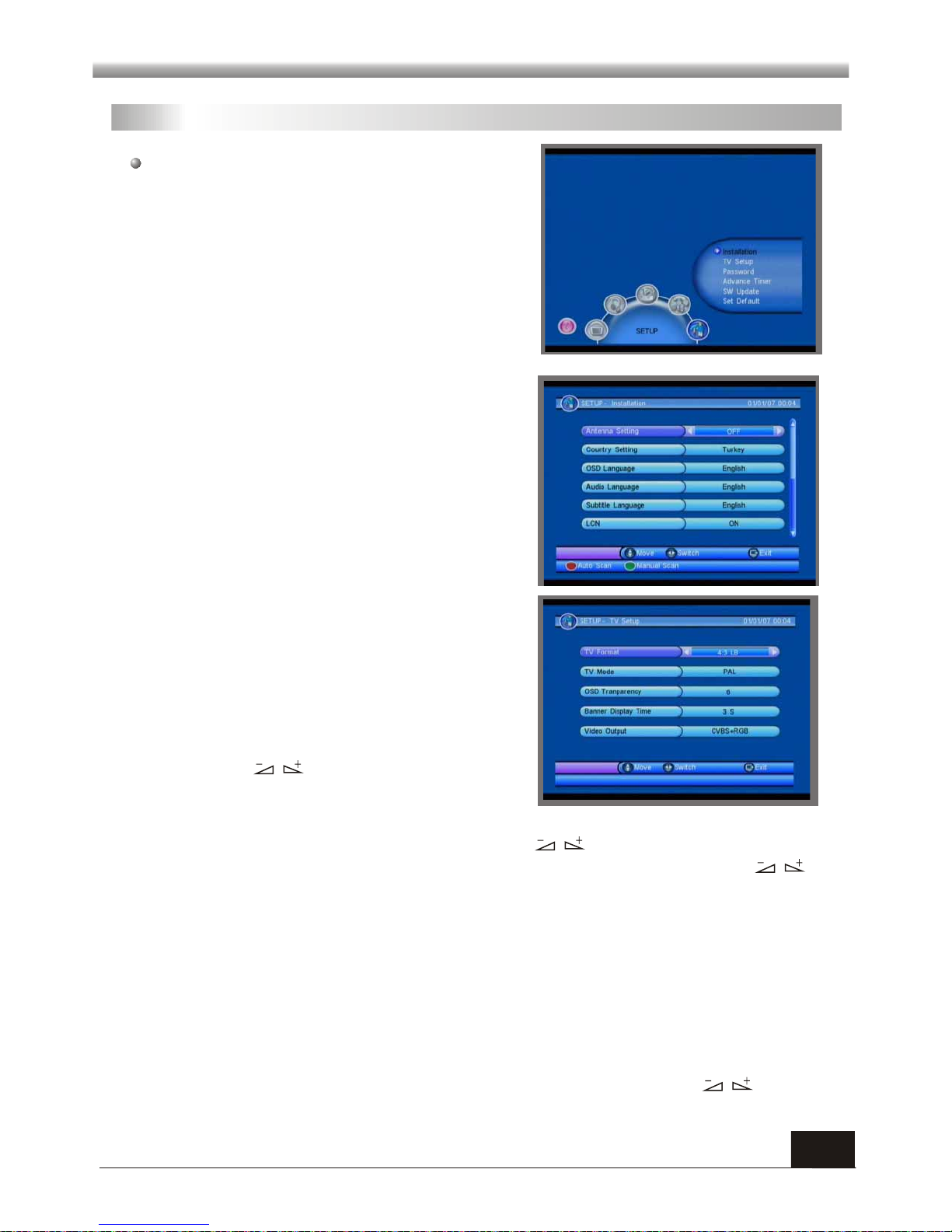

5.2 TV Setup

When you enter TV Setup, you will see the
screen as beside.

1) TV Format: TV Format is used for switching
the screen aspect ratio mode. Now we provide
several options: 4:3LB/4:3PS/16:9LB/16:9FIT.
You can press keys to select each mode
circularly.

2) TV Mode: TV Mode is used for select the screen-displaying mode. Now we provide
three mode: Auto, PAL and NTSC. You can press keys to select each mode .

3) OSD Transparency: You can set the transparency of all the menus. Press
keys to select the values. There are eight levels of the transparency, The lowest
value 1 means the most transparent, the highest value 8 means opacity.

4) Banner Display Time: When you adjust volume, Banner time can also adjust the
time for the volume bar appearing on the screen. When you switch the channels,
Banner time can adjust the time for the program information appearing on the screen.
These two items for adjustment can reduce the disturbance of the menu overlaying
while watching programs, and let you feel more convenient to watch TV.

5) Video Output: Video Output is used for switching the video output mode. Now we
provide two modes: CVBS+RGB and CVBS+S-Video. You can press keys to
choose.

5.1 Installation

In this menu, use PR+, PR- keys to highlight
the setting you want to change and press
Volume+/- keys to select the option of
highlighted setting.

5. SETUP

This menu has six sub-menus:

-Installation

-TV Setup

-Password

-Advance Timer

-SW Update

-Set Default

15

MAIN MENU

MAIN MENU

If the setting of Menu Lock is ON which means user have to input password, set OFF
means unlock. The default password is 0000.

2) Channel Edit Lock: Channel Edit Lock can set the channel which user want to lock.

4) Change Password: When you select YES, it will pop up a window asking you to

enter the old password. After input the correct password it will pop up a window
asking you to enter the new password. When you enter 4 numbers, the system will
ask for Confirm Password automatically. You should enter the password again to
confirm it.

3) Parents Lock: You can set the parent lock in this menu. You can select among No block,
Total Block, 02 to 18.

5.4 Advance Timer

When you enter the Advance Timer menu,
the screen will display as beside

Press PR+,PR- keys to select the events in
this window, and press EXIT key to exit.

Press red key to enter the edit window, Press
PR+,PR- keys to select sub-menus, and press
keys to move highlight to choose your
choice.

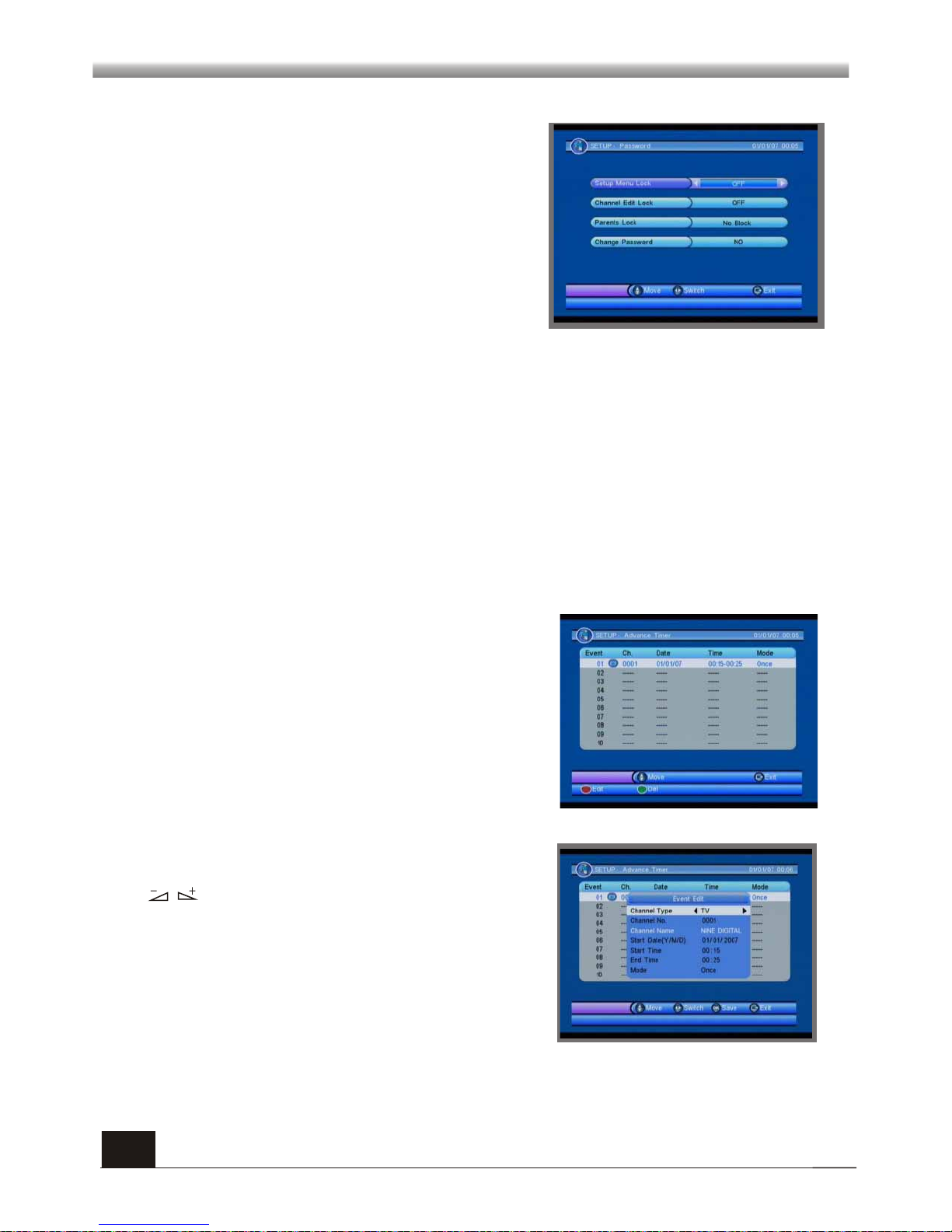

5.3 Password

In this menu, you can press PR+,PR- keys to
select sub-menus and press OK key to enter
the menu which is chosen.

When you enter the Password menu, the
screen will display as beside.

1)Setup Menu Lock: Menu Lock determining
that when user wish to enter SETUP menu,
whether have to input Password or not.

16

MAIN MENU

MAIN MENU

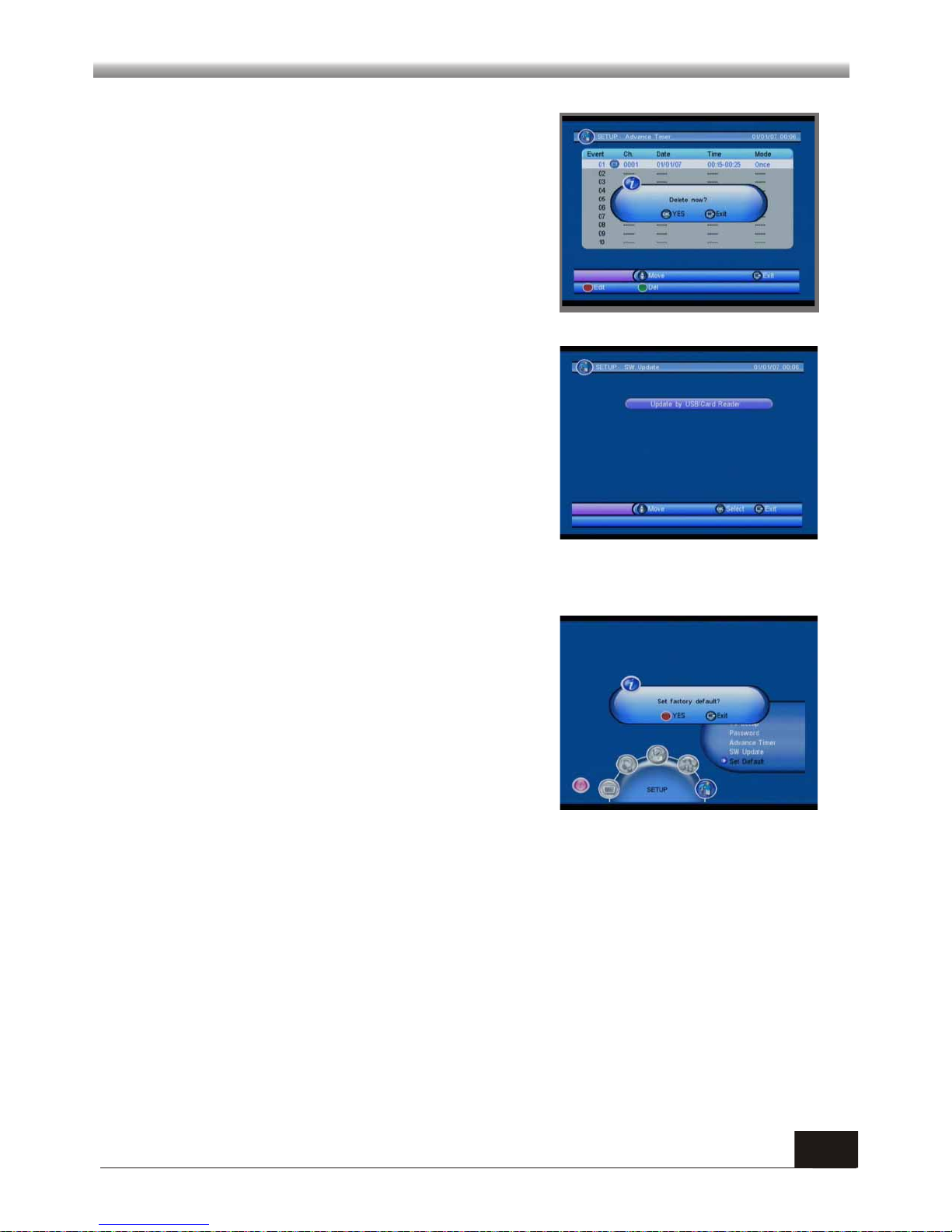

5.5 SW Update

5.6 Set Default

If you choose Yes , all the parameters of this
receiver will reset to the default value.

Note: Please use this function carefully.

When you choose the option of Set Default and
press [OK] key, there will be a dialogue ask you:
Set factory default? You will see a screen like
beside.

Press green key it will pop up a window as beside.
If you choose Yes , the event you selected will be
deleted, if you select EXIT, you will quit without
delete the event.

This function is in-built for the use of qualified
technician or vendor's customer service in
events of firmware upgrading or restoration.

Users are not recommended to upgrade the
firmware by themselves as inappropriate
operation may result in malfunction of the STB.

Please consult with qualified person or call the
help hotline.

17

MAIN MENU

MAIN MENU

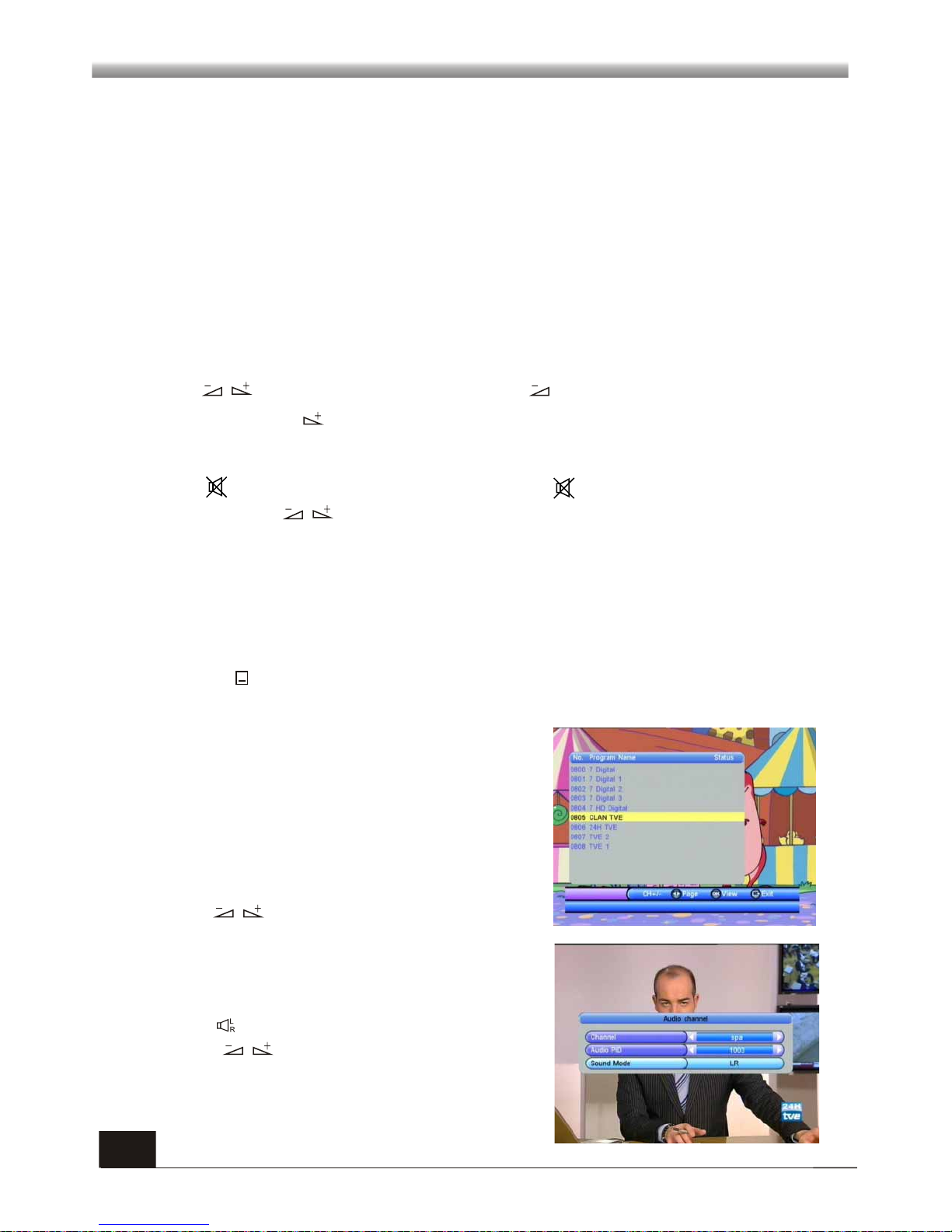

6. Hot Key

Use the numeric keys (0-9) to input the number of the desired channel.

6.1 Number

In normal mode, press TV/RADIO key to switch between TV mode and Radio mode.

6.2 TV/RADIO

Press PR+, PR- keys to change the channel up or down.

6.3 Up/Down (Channel Change)

During the viewing, you can press PAUSE key to stop the picture while the volume
continues. You can play the picture by pressing PAUSE key once again.

6.6 Pause

Press key to close the volume. You can press key once again to restore the

volume, or press keys to open the volume.

6.5 Mute

Press TXT/ keys to open the teletext and subtitle window on the screen.

6.7 Teletext

Press keys to change the volume. Press keys to decrease the volume by

step 1, while press keys to add the volume by step1.

6.4 Left/Righ (Volume+/-)

1. During the viewing or listening, press OK
key to pop up the TV program list or the Radio
program list.

2. Press PR+, PR- keys to select the channel
up or down, and then press OK key to play this
channel in full-screen.

3. Press keys to select the page.

4. Press MENU or EXIT key to close this
window.

6.8 OK

*Teletext availability is subject to channel broadcasting in each region.

1. Press keys to enter into the Audio window.

2. Press keys to select sound mode
among LL, RR and LR.

3. Press MENU or EXIT key to close this
window.

6.9 Audio

18

MAIN MENU

MAIN MENU

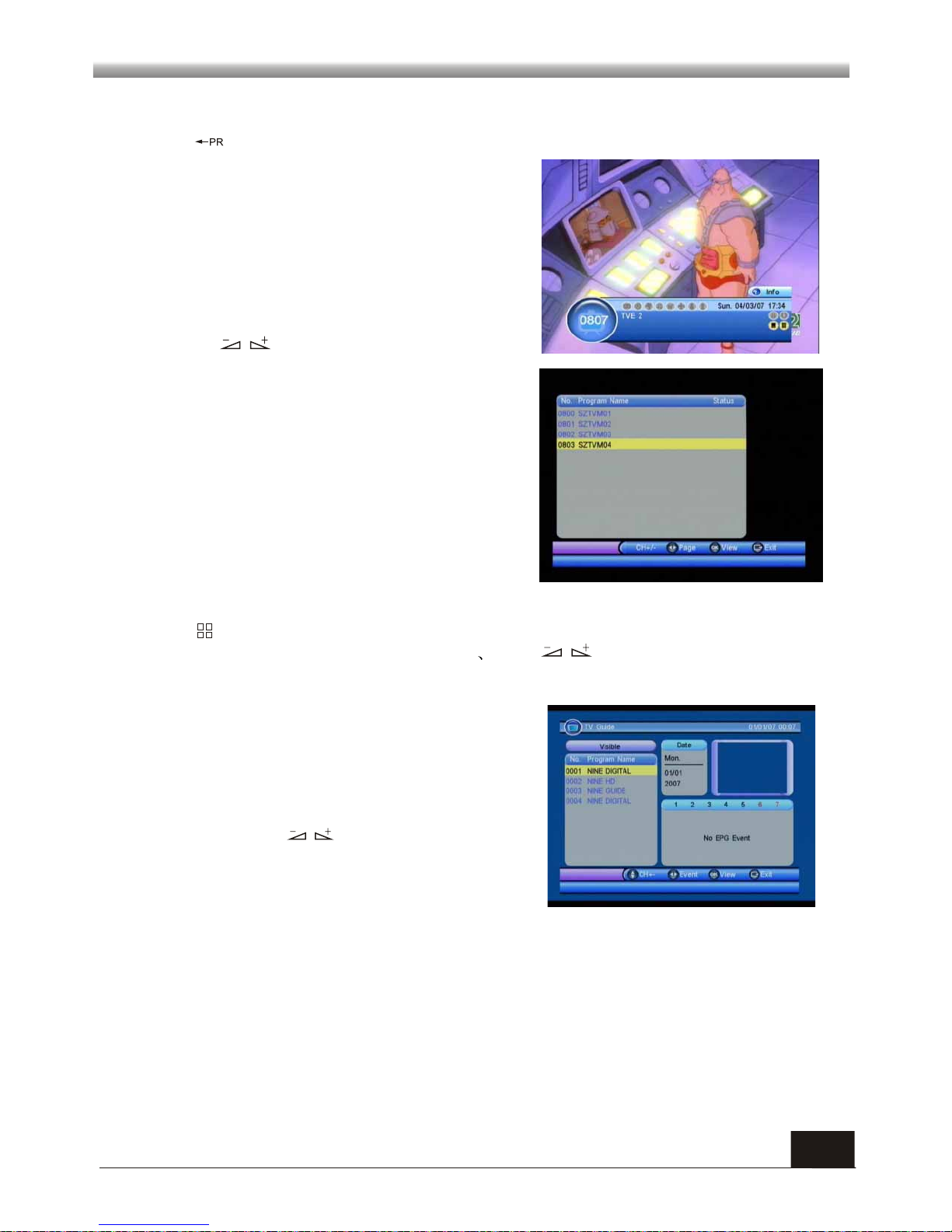

Press key to switch the current channel to the previous channel.

6.10 Recall

Press INFO key to calls up the into bar .

6.11 Info

Press to multi-picture on the screen.
If you want to select channel,use the PR+ PR-, key on the RCU to select a
cell and press ok key to enter.

6.13 Multi-picture

6.14 EPG

Press EPG key on RCU it will pop up the EPG
window on the screen as beside. You can

know information of the program in the
down- right window, and the channel list is in
left window. Press to switch between left
and right windows. Press EXIT key to close
this window.

1. Press FAV key to pop up the program
group window.

2. Press keys to select the favorite
group. Press PR+, PR- keys to select the
channel up or down. Press OK key at the
selected channel to view it in full-screen.
Press MENU or EXIT key to exit.

3. Press yellow key to enter into favorite
group window.

4. If there is no favorite channel, the FAV
and Channel button at the bottom of the
window will disappeared.

6.12 FAV

6.15 SLEEP

Press SLEEP key at the bottom of RCU, a “SLEEP OFF” bar will appear at the top of
the screen. Before the bar disappear, press “Volume UP/DOWN” keys to set the sleep
timer.

19

TROUBLESHOOTING

TROUBLESHOOTING

Problem Possible causes What to do

The display on the front
panel does not light up.

No sound or picture, but the
front panel shows red light.

Main cable is not connected.

The is in standby mode.receiver

Check that the main cable is plugged into
the power socket.

Press the standby button.

No sound or picture.

No signal or weak signal.

Check the cable connections, antenna
and other equipment connected between
the antenna and the receiver.

Bad picture / blocking
error.

Signal is too strong.

Connect a signal attenuator to the
antenna input.

Antenna noise factor too high.

Change to an antenna with lower noise
factor.

The antenna is faulty. Change the antenna.

The picture is not
displayed on the screen,
when switching on.

The system is connected by RF
leads.

Check the UHF channel fixed in your
system and tune the UHF channel
properly.

The system is connected by RF
leads and the output program of the
receiver interferes with an existing
terrestrial programs or Video signal.

Change the receiver output program to
a more suitable program, or connect the
system by SCART leads.

There is interference on
your terrestrial program
or video signal.

The RCU is not working.

Battery exhausted.

Change the batteries.

RCU is incorrectly aimed.

Aim RCU at the , or check that
nothing blocks the front panel.

receiver

Note : If you have tried all of the actions suggested above, but the problem persists, please
contact your local dealer or a customer service representative.

Copyright

This manual contains information protected by copyright law.

No part of this document may be used or reproduced in any form or by any means, or
stored in a database/retrieval system without prior written permission from us.

The information of this manual is based on the current version of the product.

We reserve the right to alter the content without prior notice.

All brand names in this manual are the property of their respective owners.
