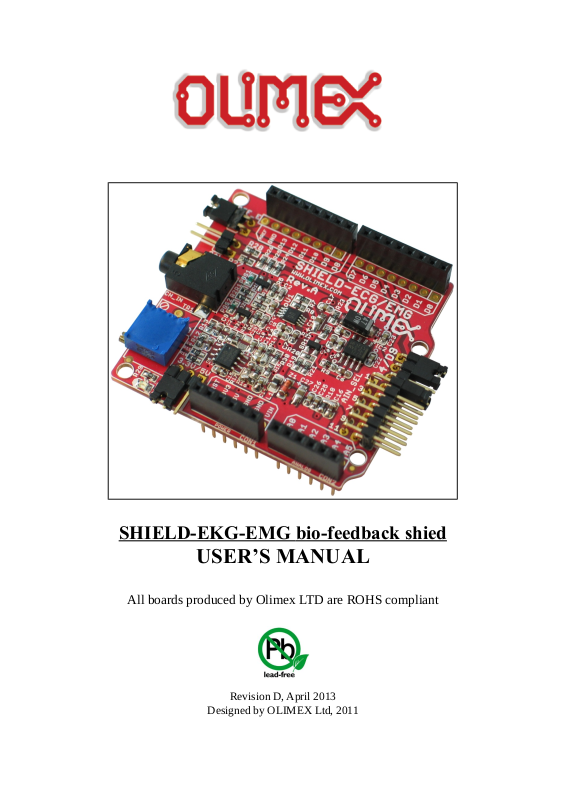

Olimex SHIELD-EKG-EMG User guide

SHIELD-EKG-EMG bio-feedback shied
USER’S MANUAL
All boards produced by Olimex LTD are ROHS compliant
Revision D, April 2013
Designed by OLIMEX Ltd, 2011
OLIMEX© 2012 SHIELD-EKG-EMG

DISCLAIMER

© 2013 Olimex Ltd. Olimex®, logo and combinations thereof, are registered trademarks of Olimex Ltd. Other product names may be trademarks of others and the rights belong to their respective owners.
The information in this document is provided in connection with Olimex products. No license, express or implied or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Olimex products.
This work is licensed under the Creative Commons Attribution-ShareAlike 3.0 Unported License. To view a copy of this license, visit http://www.creativecommons.org/licenses/by-sa/3.0/.
This hardware design by Olimex LTD is licensed under a Creative Commons Attribution-ShareAlike 3.0 Unported License.
The software is released under GPL.
It is possible that the pictures in this manual differ from the latest revision of the board.
The product described in this document is subject to continuous development and improvements. All particulars of the product and its use contained in this document are given by OLIMEX in good faith. However all warranties implied or expressed including but not limited to implied warranties of merchantability or fitness for purpose are excluded. This document is intended only to assist the reader in the use of the product. OLIMEX Ltd. shall not be liable for any loss or damage arising from the use of any information in this document or any error or omission in such information or any incorrect use of the product.
This evaluation board/kit is intended for use for engineering development, demonstration, or evaluation purposes only and is not considered by OLIMEX to be a finished end-product fit for general consumer use. Persons handling the product must have electronics training and observe good engineering practice standards. As such, the goods being provided are not intended to be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including product safety and environmental measures typically found in end products that incorporate such semiconductor components or circuit boards.
Olimex currently deals with a variety of customers for products, and therefore our arrangement with the user is not exclusive. Olimex assumes no liability for applications assistance, customer product design, software performance, or infringement of patents or services described herein.
THERE IS NO WARRANTY FOR THE DESIGN MATERIALS AND THE COMPONENTS USED TO CREATE SHIELD-EKG-EMG. THEY ARE CONSIDERED SUITABLE ONLY FOR SHIELD-EKG-EMG.
Page 2 of 20
OLIMEX© 2012 SHIELD-EKG-EMG
WARNING:
EKG DEVICE DISCLAIMER
IEC601 is a standard that specifies tests and requirements that medical devices must pass before they can be used on humans. However, none of the devices built from these designs have been tested according to these guidelines because of the costs involved. Therefore, a device based on any of these designs may not be used for medical purposes as no medical claims are made.
NOTE THAT CONNECTING A DEVICE VIA ELECTRODES TO HUMANS OR ANIMALS IS POTENTIALLY HAZARDOUS AND MAY RESULT IN ELECTRIC SHOCK AND/OR SEIZURE.
Page 3 of 20
OLIMEX© 2012 SHIELD-EKG-EMG
Table of Contents
DISCLAIMER.....................................................................................................2
SECTION 1 OVERVIEW...................................................................................5
1.1 Scope................................................................................................................................5
1.2 Features...........................................................................................................................5
1.3 Similar boards.................................................................................................................5
1.4 Organization...................................................................................................................6
SECTION 2 SETTING UP THE SHIELD-EKG-EMG...................................7
2.1 Electrostatic Warning....................................................................................................7
2.2 Requirements..................................................................................................................7
2.3 Powering up the board...................................................................................................8
2.4 Arduino/Maple/Pinguino note.......................................................................................8
SECTION 3 SHIELD-EKG-EMG BOARD DESCRIPTION.......................10
3.1 Layout (Top view):.......................................................................................................10
3.2 Layout (Bottom view):..................................................................................................11
SECTION 4 INSTALLATION EXAMPLE....................................................12
4.1 SHIELD-EKG-EMG and OLIMEXINO-328............................................................12
SECTION 5 HARDWARE...............................................................................14
5.1 Arduino shield connector.............................................................................................14
5.2 Trimmer TR1................................................................................................................14
5.3 Jumper description.......................................................................................................14
5.4 Custom electrode connection.......................................................................................16
SECTION 6 SCHEMATICS.............................................................................17
6.1 Eagle schematics...........................................................................................................17
6.2 Physical dimensions......................................................................................................19
SECTION 7 REVISION HISTORY................................................................20
7.1 Document revision........................................................................................................20
7.2 Web page of your device..............................................................................................20
7.3 Ordering info................................................................................................................20
Page 4 of 20
OLIMEX© 2012 SHIELD-EKG-EMG

SECTION 1 OVERVIEW

Thank you for choosing the SHIELD-EKG-EMG prototype board from Olimex! This document provides a User’s Guide for the Olimex SHIELD-EKG-EMG. As an overview, this chapter gives the scope of this document and lists the board’s features. The document’s organization is then detailed.

1.1 Scope

The SHIELD-EKG-EMG is an extension module for Olimex's ARDUINO compatible boards – like OLIMEXINO-328, OLIMEXINO-STM32 and PIC32-PINGUINO, among others. The shield is also compatible with ARDUINO boards including ARDUINO UNO. The board comes with mounted connectors on it.

1.2 Features

Stackable shield (pass-through headers) - up to 6 shields forming 6 channels; mounted
on top of each other and wired to A0-A6 analogue inputs
Open hardware, open software project – user have access to all design documents Calibration signal generation by D4/D9 digital output Precise trimmer potentiometer for calibration (all boards are shipped completely as-
sembled, tested and calibrated so you should not do this unless you wat to see how things work)
Input connector for passive or active electrodes Works with both 3.3V and 5V Arduino boards Available examples for Arduino, Pinguino and Maple

1.3 Similar boards

MOD-EEG-SMT - an inexpensive unit for electroencephalography (EEG) - recording of electrical activity along the scalp: https://www.olimex.com/Products/EEG/OpenEEG/EEG-
SMT/
PROTO-SHIELD - If you seek a board which follows the DUINO shield dimensions specification and offers prototype area and 2 buttons with filter capacitors and 2 LEDs. Web page of the product: https://www.olimex.com/Products/Duino/Shields/PROTO-SHIELD/
SHIELD-LOL – If you are searching for a shield with 126 LED matrix (14x9) available in 4 colors and 4 different sizes of the LEDs. Web page:
https://www.olimex.com/Products/Duino/Shields/SHIELD-LOL/
Page 5 of 20
OLIMEX© 2012 SHIELD-EKG-EMG

1.4 Organization

Each section in this document covers a separate topic, organized as follow:
-Section 1 is an overview of the board usage and features
-Section 2 provides a guide for quickly setting up the board and introduces the user to Arduino/Maple/Pinguino
-Section 3 contains the general board diagram and layout
-Section 4 show and example of setting up SHIELD-EKG-EMG with OLIMEXINO-328
-Section 5 covers the connector pinout, peripherals and jumper description
-Section 6 provides the schematics
-Section 7 contains the revision history
Page 6 of 20
OLIMEX© 2012 SHIELD-EKG-EMG

SECTION 2 SETTING UP THE SHIELD-EKG-EMG

This section helps you set up the SHIELD-EKG-EMG development board for the first time.
Please consider first the electrostatic warning to avoid damaging the board, then discover the hardware and software required to operate the board.
The procedure to power up the board is given, and a description of the default board behavior is detailed.

2.1 Electrostatic Warning

The SHIELD-EKG-EMG development board is shipped in a protective anti-static package. The board must not be exposed to high electrostatic potentials. A grounding strap or similar protective device should be worn when handling the board. Avoid touching the component pins or any other metallic element.

2.2 Requirements

In order to set up the SHIELD-EKG-EMG prototype board, the following items are required:
- SHIELD-EKG-EMG itself
- ARDUINO compatible board* (e.g. OLIMEXINO-328, OLIMEXINO-STM32, PIC32­PINGUINO)
- Electrode cable**
*The pinout for the board strictly follows the DUINO extension specification. Best choice for a board would be OLIMEXINO-328 or any DUINO board which utilizes the ATmega328 since we have working and tested examples for those MCUs, configuring them for ATmega128 would require tweaking of the code.
**The cable features three electrodes – two data electrodes (1 channel) and DLR electrode (feedback). If you use more than one SHIELD-EKG-EMG you can use cables without DLR for every shield after the first.
IMPORTANT NOTE: The electrode cables for SHIELD-EKG-EMG and MOD-EEG-SMT differ from each other.
In case you want to build a working SHIELD-EKG-EMG system without owning a DUNIO board the best choice would be our board OLIMEXINO-328. This is the web page for the board: https://www.olimex.com/Products/Duino/AVR/OLIMEXINO-328/.
Page 7 of 20
OLIMEX© 2012 SHIELD-EKG-EMG

2.3 Powering up the board

The SHIELD-EKG-EMG board is powered by the host board it is mounted on. There is the option to be powered either by 3.3V or 5.0V host board (configured easily by a jumper).
On powering the board PWR LED must become RED.

2.4 Arduino/Maple/Pinguino note

What is Arduino?
Arduino is an open-source electronics prototyping platform, designed to make the process of using electronics in multidisciplinary projects more accessible. The hardware consists of a simple open hardware design for the Arduino board with an Atmel AVR processor and on­board I/O support. The software consists of a standard programming language and the boot loader that runs on the board.
Arduino hardware is programmed using a Wiring-based language (syntax + libraries), similar to C++ with some simplifications and modifications, and a Processing-based Integrated Development Environment (IDE).
The project began in Ivrea, Italy in 2005 aiming to make a device for controlling student-built interaction design projects less expensively than other prototyping systems available at the time. As of February 2010 more than 120,000 Arduino boards had been shipped. Founders Massimo Banzi and David Cuartielles named the project after a local bar named Arduino. The name is an Italian masculine first name, meaning "strong friend". The English pronunciation is "Hardwin", a namesake of Arduino of Ivrea.
More information could be found at the creators web page http://arduino.cc/ and in the Arduino Wiki http://en.wikipedia.org/wiki/Arduino.
To make the story short - Arduino is easy for beginners who lack Electronics knowledge, but also does not restrict professionals as they can program it in C++ or mix of Arduino/C++ language. There are thousands of projects which makes it easy to startup as there is barely no field where Arduino enthusiasts to have not been already.
Arduino has inspired two other major derivatives - MAPLE and PINGUINO. Based on 8-bit AVR technology the computational power of Arduino boards is modest, this is why a team from MIT developed the MAPLE project which is based on ARM7 STM32F103RBT6 microcontroller. The board have same friendly IDE as Arduino and offers the same capabilities as hardware and software but runs the Arduino code much faster. The Maple project can be found at http://leaflabs.com
In parallel with Arduino another project was started called PINGUINO. This project chose its first implementation to be with PIC microcontrollers, as AVRs were hard to find in some parts of the world like South America so it is likely to see lot of PINGUINO developers are from
Page 8 of 20
OLIMEX© 2012 SHIELD-EKG-EMG
that part of the world. PINGUINO project founders decided to go with Python instead Java for processing language. For the moment PINGUINO is much more flexible than Arduino as it is not limited to 8bit microcontrollers. Currently the IDE, which has GCC in background, can support 8-bit PIC microcontrollers, 32bit PIC32 (MIPS) microcontrollers and ARM7/CORTEXM3 microcontrollers which makes PINGUINO very flexible because once you make your project you can migrate easily through different hardware platforms and not being bound to a single microcontroller manufacturer. The PINGUINO project can be found at: http://www.pinguino.cc.
Page 9 of 20
OLIMEX© 2012 SHIELD-EKG-EMG

SECTION 3 SHIELD-EKG-EMG BOARD DESCRIPTION

Here you get acquainted with the main parts of the board. Note the names used on the board differ from the names used to describe them. For the actual names check the SHIELD-EKG­EMG board itself.
For example: BUTTON (seen on the op view below) is named BUT; RESET is named RST; etc

3.1 Layout (Top view):

Page 10 of 20
OLIMEX© 2012 SHIELD-EKG-EMG

3.2 Layout (Bottom view):

Page 11 of 20
OLIMEX© 2012 SHIELD-EKG-EMG

SECTION 4 INSTALLATION EXAMPLE

This is a step by step example of installing SHIELD-EKG-EMG on OLIMEXINO-328 using Windows. You can refer to the tips keeping in mind that the example utilizes a board with ATmega328 MCU.

4.1 SHIELD-EKG-EMG and OLIMEXINO-328

In this example we use OLIMEXINO-328; SHIELD-EKG-EMG; USB - USBmini cable; Arduino 1.0 IDE; two external libraries for the IDE (the latest versions of TimerOnev9 and FlexiTimer2); the latest FTDI VCP drivers (2.08.14), demo code provided by us that can be downloaded from the web site and free monitoring software Electric Guru.
0. IMPORTANT! Before starting you have to prepare the OLIMEXINO-328 board by removing its wire between the R6 pads (R6 is not mounted). There is increased power consumption and a chance of electrical failure if you omit to do so. This is only for the OLIMEXINO-328 board! Don't do the modification if you lack basic electronics skills, because it is possible to damage the board.
1. Download and extract the Arduino 1.1 IDE package from the Arduino web site:
http://www.arduino.cc/
2. Download and place the two timer libraries required (TimerOne, FlexiTimer2) in \arduino-1.0\libraries by placing each of them in properly named folder (check the other libraries for reference)
http://arduino.cc/playground/Code/Timer1 http://www.pjrc.com/teensy/td_libs_MsTimer2.html
3. Download the demo project from product’s web page:
https://www.olimex.com/Products/Duino/Shields/SHIELD-EKG-EMG/
4. Download the FTDI VCP drivers: http://www.ftdichip.com/Drivers/VCP.htm
5. Set the jumpers of SHIELD-
EKG-EMG in the following way:
REF_E – closed
3.3V/5V – 5V position D4/D9 – D9 position ANI_SEL – 1 position (channel)
6. Connect the shield to the board
7.Connect OLIMEXINO-328 to the USB
8. Install the VCP FTDI drivers by going in Device Manager; right-clicking over the unrecognized device and choosing Update Driver and then pointing to the folder where you downloaded and extracted the FTDI VCP driver. Here it is advisable to go to Device Manager and from advanced settings of our
Page 12 of 20
OLIMEX© 2012 SHIELD-EKG-EMG
recognized USB Serial Port (COMx) device to set x to a free port between 1 and 4 (because the monitoring software in this example can read only from COM ports 1 to
4).
9. Start Arduino IDE 1.0 and open the provided by Olimex project ShieldEkgEmgDemo.pde
10. Set Tools -> Board -> Arduino Duemilanove w/ ATmega328 Set Tools -> Serial port -> the COM we configured our board at
11. Click Upload (→)
12. Download, install and start the software from this page:
https://www.olimex.com/Products/EEG/OpenEEG/EEG-SMT/resources/ElecGuru40.zip
13. It is advisable to adjust the settings in your ElecGuru program in Preferences-> Trace (waveform)… (depending how many channels/shields you use)
14. Choose the COM port your OLIMEXINO is connected to from Preferences -> Serial port… (Remember you have to set it to COM 1 to 4)
15. You connect the electrodes to your right arm, left arm and the DLR to your right leg
16. Start monitoring, adjust the settings until you receive an image like the one shown on the picture
Page 13 of 20
OLIMEX© 2012 SHIELD-EKG-EMG

SECTION 5 HARDWARE

You can get a good view of the hardware observing the board. All pins, connectors and jumpers are named individually.

5.1 Arduino shield connector

These connectors follow the ARDUINO specification for shield connection. The shield comes with soldered connectors making it ready for mounting on compatible board with the possibility to have another shield mounted on it.
Pin # POWER CON1 ANALOG CON2 DIGITAL CON3 DIGITAL CON4
1 RST A0 D0 D8
2 3.3V A1 D1 D9
3 5V A2 D2 D10
4 GND A3 D3 D11
5 GND A4 D4 D12
6 Vin A5 D5 D13
7 - - D6 GND
8 - - D7 AREF
6-pin and 8-pin connectors mounted (CON1, CON2 and CON3, CON4):

5.2 Trimmer TR1

Trimmer TR1 is calibrated during the factory testing. However it may be adjusted for the gain. Use at own risk.

5.3 Jumper description

The names of the jumpers on the board correspond to the bold names used below:
3.3V/5V
This jumper controls the power circuit. Whether powered by 3.3V or 5V board.
Default state is 3.3V.
Page 14 of 20
OLIMEX© 2012 SHIELD-EKG-EMG
REF_E
If you use only one shield this jumper has to be closed. If you have multiple shields the first one should be closed; the respective REF_E jumpers on every other shield above it should be open.
Default state is closed.
AIN_SEL
This jumper is responsible for which channel the current SHIELD-EKG-EMG would utilize. If you have more than one shield one of them should have AIN_SEL in position 1, the second in position 3, etc.
Default state is in position 1.
D4/D9
Controls pin D4/D9. Some processors utilize the default D9 pin so you have to switch to D4. This jumper provides easy option to do so.
Default state is D9.
CAL
CAL jumper is used for feedback of the calibration and requires additional cable.
Default state is open.
Page 15 of 20
OLIMEX© 2012 SHIELD-EKG-EMG

5.4 Custom electrode connection

To make the passive electrode yourself you need three cables, passive electrode surface and audio jack. The way the signals go for connecting the audio jack is shown below:
Note that connecting active electrode that way will probably lead to electrical shock for SHIELD-EKG-EMG. Only passive electrodes can be used with SHIELD-EKG-EMG.
Page 16 of 20
OLIMEX© 2012 PIC-P26J50

SECTION 6 SCHEMATICS

6.1 Eagle schematics

SHIELD-EKG-EMG schematic is visible for reference here. But you can find it with better resolution and stand-alone on the product’s web page:
https://www.olimex.com/Products/Duino/Shields/SHIELD-EKG-EMG/. They are located in
HARDWARE section.
The EAGLE schematic is situated on the next page for quicker reference.
Page 17 of 20
OLIMEX© 2012 SHIELD-EKG-EMG
Page 18 of 20
HR1x3(3.3V:Close;5V:Open)
HR2x6(1-2:Close)
10nF/X7R/10%
100pF/COG/5%100pF/COG/5%
100nF/X7R/10%
1uF/X5R/10%
1uF/X5R/10%
1uF/X5R/10%
1nF/X7R/10%
1uF/X5R/10%
100nF/X7R/10%
100nF/X7R/10%
100nF/X7R/10%
10nF/X7R/10%
10nF/X7R/10%
1nF/X7R/10%
1uF/X5R/10%
100nF/X7R/10%
10µF/6.3V /0805
1uF/X5R/10%
100nF/X7R/10%
10nF/X7R/10%
100nF/X7R/10%
100nF/X7R/10%
47µF/10%/6.3V/TANT(C)/ESR/0.25ohm(TR3C476K6R3C0250/1754044)
10nF/X7R/10 %
100nF/X7R/10%
10µF/6.3V /0805
NA
NA
HR1x2(Open)
SCJ325P00XG0B02G
NA(PN1X6)
NA(PN1X6)
NA(PN1X8)
NA(PN1X8)
BAV199(1156415)
BAV199(1156415)
HR1x3(D4:Open;D9:Close)
MCP607-I/SN
MCP607-I/SN
TLC277IDR
TLC277IDR
22µH/±10%/1.7ohm/80mA(LB2012T220K/8030984)
V_REF
V_REF
V_REF
V_REFV_REF V_REF
V_REF
V_REF
V_REF
V_REF
V_REF
V_REF
V_REF
PGB1 01 06 0 3M R(F 25 9 4T R-ND)PGB1 01 06 0 3M R(F 25 9 4T R-ND)
GYX-SD-TC0805SURK(RED)
2k/1%
2k/1%
2k/1%
2k/1%
NA(3.3M)
NA(3.3M)
10k/1% 10k/1%
100k/1%
1M/1%
1k/1%
100k/1%
1M/1%
56k/1% 330k/1%
3.9k/1% 10k/1%
3.9k/1%
330R
2k/1%
10k/1%
10k/1%
10k/1%
1M/1%1M/1%
100R/1%
10k/1%
10k/1%
2k/1%
0R(bo ad m oun ted) 0R(bo ad m oun ted)
2k/1%
HR1x2(Open)
AP4 31SA
20k
INA321EA
VCC A
VCCA
VCCA
VCCA
VCCA
VCCA
VCCA
BZV55C6V2
1.5V_REF 3V_REF_ADC
3V_REF_ADC
CAL_SIG
CAL_SIG
CH1 _IN+ CH1 _IN-
D4
D9
GND_CAL
V_CAL
123
3.3V/5V
12 34 56 78 910 1112
AIN_SEL
C1
C2C3
C4
C5
C6
C7
C8
C9
C10
C11
C12
C13
C14
C15
C16
C17
C18
C19
C20
C21
C22
C23
C24
C25
C26
C27
C28
C29
1 2
CAL
CH_IN
1 2 3 4 5 6
CON1
1 2 3 4 5 6
CON2
1 2 3 4 5 6 7 8
CON3
1 2 3 4 5 6 7 8
CON4
D1
D2
123
D4/D9
3
2
1
IC1A
5
6
7
IC1B
84
3
2
1
IC2A
5
6
7
IC2B
84
L1
PGS 1PGS2
PWR
R1
R2
R3
R4
R5
R6
R7 R8
R9
R10
R11
R12
R13
R14 R15
R16
R17
R18
R19
R20
R21
R22
R23
R24R25
R26
R27
R28
R29
R30 R31
R32
1
2
REF_E
SR1
1
2
3
TR1
REF
5
RG
1
SHUTDOWN
8
V+
7
V-
4
VIN+
3
VIN-
2
VOUT
6
U1
3V3 5V
A0 A1 A2 A3 A4 A5
AREF
D0 D1 D2 D3 D4 D5 D6 D7
D8 D9 D10 D11 D12 D13
GND GND
GND
RST
VIN
Z1
SHIELD-EKG-EMG revision B Designed by OLIMEX LTD. 2012 http://www.olimex.com/dev/
+
1-L
2
3-R
0R 0R
C
A
R
13
A1
160k 40kA2160k40k
A3
POW ERANA LOGDIG ITALDIG ITAL
ARDUINO: SH PLATFORM
CAL_SIG should be PWM output
Frequency is set to be approx: (10-14)Hz
Squ are wa ve Cal ibra tion Sig nal
vol tage divi der 1 :200 00
G=1+R12/(TR1+R11)
G=5,76...101
5Vp -p +/-1 0% => 250µ Vp-p +/-10%
3rd order "Besselworth" filter, fc = 40Hz.
Fc=0.16Hz
HF rejectionHigh Voltage protection
High-Pass filter
OAmp with regulated gain!
G= (R17/R 16)+1= 3.56
1 pole
Fc=0.16Hz
High-Pass filter
1 pole
G=5*( 1+R8/R7)=10
1.5V_REF_BUF
Instrumental Ampl ifier
When 5V power sup ply is used:
When 3.3 V pow er suppl y is used :
3.3V p-p + /-10% => 16 5µVp -p +/-1 0%
OLIMEX© 2012 SHIELD-EKG-EMG

6.2 Physical dimensions

As you can see below the dimensions follow the classic Arduino shield pin specification making it compatible with all Olimex Duino boards.
Note: All dimensions are in inches!
Page 19 of 20
OLIMEX© 2012 SHIELD-EKG-EMG

SECTION 7 REVISION HISTORY

7.1 Document revision

Revision Changes
Modified Pages
A Initial Creation All
B
Added important note on removing a wire at R6 pads from OLIMEXINO-328
11.12
C
Fixed error on page 7 about the LED color Added note on page 12 about possible damage due to lack of experience Changed schematic with a searchable one Various formatting adjustments
7, 12, 16
D
Changed disclaimer section to represent the open­source nature of the shield Added explanation of the cable
2, 15
E
Changed formatting of the document Updated links
All

7.2 Web page of your device

The web page you can visit for more info on your device is
https://www.olimex.com/Products/Duino/Shields/SHIELD-EKG-EMG/.
There are examples and libraries available for Arduino IDE, Pinguino IDE and Maple IDE.

7.3 Ordering info

ORDER CODES:
SHIELD-EKG-EMG - completely assembled and tested
OLIMEXINO-328 – Arduino based board with ATmega328, fully compatible with SHIELD-
EKG-EMG
How to order? You can order directly from our online shop or from any of our distributors. The list of distributors might be found here: https://www.olimex.com/Distributors.
Check our web page https://www.olimex.com/ for more info.
Page 20 of 20
Loading...
