OLIMEXINO-STM32 development board
User's manual
All boards produced by Olimex are ROHS compliant
Document revision C, October 2012
Designed by OLIMEX Ltd, 2012
Page 1 of 19
INTRODUCTION TO DUINO:
Arduino is an open-source electronics prototyping platform, designed to make the process of using
electronics in multidisciplinary projects easily accessible. The hardware consists of a simple open
hardware design for the Arduino board with an Atmel AVR processor and on-board I/O support. The
software consists of a standard programming language and the boot loader that runs on the board.
Arduino hardware is programmed using a Wiring-based language (syntax + libraries), similar to C++
with some simplifications and modifications, and a Processing-based Integrated Development
Environment (IDE).
The project began in Ivrea, Italy in 2005 aiming to make a device for controlling student-built
interaction design projects less expensively than other prototyping systems available at the time. As of
February 2010 more than 120,000 Arduino boards had been shipped. Founders Massimo Banzi and
David Cuartielles named the project after a local bar named Arduino. The name is an Italian
masculine first name, meaning "strong friend". The English pronunciation is "Hardwin", a namesake
of Arduino of Ivrea.
More information could be found at the creators web page http://arduino.cc/ and in the Arduino
Wiki http://en.wikipedia.org/wiki/Arduino
To make the story short - Arduino is easy for beginners who lack Electronics knowledge, but also does
not restrict professionals as they can program it in C++ or mix of Arduino/C++ language.
There are thousands of projects which makes it easy to startup as there is barely no field where
Arduino enthusiasts to have not been already.
Arduino has inspired two other major derivates - MAPLE and PINGUINO. Based on 8-bit AVR
technology the computational power of Arduino boards is modest, this is why a team from MIT
developed the MAPLE project which is based on ARM7 STM32F103RBT6 microcontroller. The board
has same friendly IDE as Arduino and offers the same capabilities as hardware and software but runs
the Arduino code much faster. The Maple project can be found at http://leaflabs.com
In parallel with Arduino another project was started called PINGUINO. This project chose its first
implementation to be with PIC microcontrollers, as AVRs were hard to find in some parts of the world
like South America so it is likely to see lot of PINGUINO developers are from that part of the world.
PINGUINO project founders decided to go with Python instead Java for processing language. For the
moment PINGUINO is much more flexible than Arduino as it is not limited to 8bit microcontrollers.
Currently the IDE, which has GCC in background, can support 8-bit PIC microcontrollers, 32bit PIC32
(MIPS) microcontrollers and ARM7/CORTEXM3 microcontrollers which makes PINGUINO very
flexible because once you make your project you can migrate easily through different hardware
platforms and not being bound to a single microcontroller manufacturer. The PINGUINO project can
be found at: http://www.pinguino.cc.
Page 2 of 19
BOARD FEATURES:
We entered the Arduino/MAPLE field 5 years after the design was introduced, and
this allowed us to see and resolve some of (what we consider) errors made by the
Arduino inventors :-)
We had the possibility to read current customer feedback and to implement what
they wanted to see in the original Arduino.
1. Original Arduino/MAPLE uses linear power supply, this limits the input
voltage range. We designed the power supply to accept power from 9 to 30V DC
thus making it possible to take virtually any power supply adapter on the market,
also enable application which are in industrial power supply 24VDC.
2. We carefully selected all components to work reliable in INDUSTIRAL
temperature range -25+85C so the board can be used in INDUSTIRAL applications
while the original design is to Commercial 0 - 70C operating temperature.
3. The original Arduino/MAPLE design is not very reliable for portable ap-
plications as consumes it too much power with the linear voltage regulators, we put
ULTRA LOW POWER voltage regulators and the consumption is only few microampers, which enables handheld and battery powered applications.
4. We add Li-Ion rechargable battery power supply option with BUILD-IN on
board charger, so when you attach battery it is automatically charged and kept in
this state until the other power source (USB or external adapter) is removed and it
AUTOMATICALLY will power the board - no jumpers, no switches!
5. Our board has UEXT connector which allows many existing modules like
RF, ZIGBEE, GSM, GPS to be connected.
6. Our board has SD-MMC card
7. Our board has CAN driver on board
8. Our design allows RTC - Real Time Clock.
9. We made our design noise immune.
10. We use separate voltage regulator for the Analog part, which allows the
ADC to be read correctly without the digital noise pickup.
11. Optionally if someone needs higher precision and temperature stability in
Analog reading we have provided place on the board for Aref precise source.
12. The LEDs and the BUTTONs are on the edge of the board so there is easy
access even if the boards have shields on them.
13. All components are LOWER than the connectors, so the shields do not interfere with them.
14. mini USB connector is used which is common and used in most cell phones,
so you do not have to buy other cables
15. Original Arduino design had a flaw and the connectors were not spaced at
0.1" thus making breadboarding board use impossible, to keep the compatibility we
have the same spacing but we added next to this connector on 0.1" which customer
can use with perforated boards.
Page 3 of 19
16. All signals on the connectors are printed on top and on bottom of the board,
so when you check with probe you know exactly which port you are measuring.
17. 4 mount holes make board attachment easier
ELECTROSTATIC WARNING:
The OLIMEXINO-STM32 board is shipped in protective anti-static packaging. The
board must not be subject to high electrostatic potentials. General practice for
working with static sensitive devices should be applied when working with this
board.
BOARD USE REQUIREMENTS:
Cables: You'll need mini USB cable for connecting the board to PC. For
programming - the cable you will need depends on the programmer/debugger
you use. If you use ARM-USB-TINY or ARM-USB-TINY-H, you will need USB A-B
cable, if you use ARM-USB-OCD or ARM-USB-OCD-H, you will need USB A-B
cable and RS232 cable.
Hardware: Programmer/Debugger ARM-USB-OCD, ARM-USB-OCD-H,
ARM-USB-TINY, ARM-USB-TINY-H, ARM-JTAG-COOCOX or other
compatible programming/debugging tool if you work with EW-ARM. You will
also need ARM-JTAG-20-10 adapter for programming the board since the JTAG
connector is the small one (0.05'' step).
Page 4 of 19
SCHEMATIC:
OLIMEXINO-STM32_rev_D
OLIM EX LTD B ULGA RI A
https://w ww.oli mex. com
SW-SIDE_WTCM-T R(3X4)
10uF/6.3V 100nF
100nF 100nF 100nF
4.7 uF/6.3 V
10nF
100nF NA(47pF) NA(47pF)
10pF
10pF
27pF
27pF
47uF/6.3V/TANT B
CE 100uF/35V/6.3x11mm/ RM2.5
10 0nF
82 0pF
CE 470uF/10V/6.3x11mm/RM2. 5
10 uF/6. 3V
2.2uF
2.2uF
100nF
2.2uF
10 0nF
10uF/6. 3V
10uF/6. 3V
10 nF
2.2uF
2.2uF
100nF
10nF
TB3-3.5MM
Op en
NA
NA
NA
NA
1N5819S/SS14
1N5819S/SS14
1N5819S/SS14
1N5819S/SS14
1N5819S/SS14
1N41 48/m ini -mel f
D10:Open/D4:Close
Open
PN2x8
IRLM L640 2
CL10 uH SW6 8
NA
CL470nH/0805/1.76R/250mA
GREEN(0603)
Close
YELLOW(0603)
Close
DW02R
VIN
+5V
+5V
VIN
+5V
+5V
YDJ-1136
RED(0603)
Q8.0 00M Hz/20 pF/HC-49 SM(S MD)
32768Hz/6pF
Open
15k
22k
22R
22R
1.5k
2k 2k
4.7k 4.7k 10k
Clo se
100k
100k
100k
10k
1M
0.47R
0.47R
3k/ 1%
1k /1%
2k
15k
0R(bo ad m oun ted)
120R
10k
0R(bo ad m oun ted)
NA (4.7 k)
NA( 4.7k )
10k
330R
1k
10k
1M
1k
3M
1M
SW-SIDE_WTCM-TR (3X4)
MICRO
GPH127SMT-02x05(PIN7-CUT)
DTA114YKA
STM32F103RBT6(LQFP64)
MC33063ADR(SO8)
MCP7 381 2T-4 20I/O T
MCP2551-I/SN
NA
NA
BH10R
USB-MINI
3.3V
3.3V
3.3V
3.3V3.3V 3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V3.3V
3.3V
3.3V
3.3V
3.3V_AVCC
3.3V_AVCC
3.3V_AVCC
3.3V_AVCC
MCP1 700 T-33 02E/ MB
MCP1 700 T-33 02E/M B
NA
D0(RXD2),D1(TXD2),D2,D3(LED2),D[4..6],D7(TXD1),D8(RXD1),D9,D10(#SS1),D11(MOSI1),D12(MISO1),D13(SCK1/LED1),D14(CANRX)
TRS T,T DI,TM S/S WDIO,T CK/SWCL K,T DO/SWO ,RESE T
BOOT0
BOOT0
BOOT0
D0(RXD2)
D0(RXD2)
D1(TXD2)
D1(TXD2)
D2
D2
D3(LED2)
D3(LED2)
D3(LED2)
D4
D4
D4
D5
D5
D6
D6
D7(TXD1)
D7(TXD1)
D7(TXD1)
D8(RXD1)D8(RXD1)
D8(RXD1)
D9
D9
D10(#SS1)
D1 0(#S S1)
D10(#SS1)
D11(MOSI1)
D11(MOSI1)
D11(MOSI1)
D12(MISO1)
D12(MISO1)
D12(MISO1)
D13(SCK1/LED1)
D13(SCK1/LED1)
D13(SCK1/LED1)
D13(SCK1/LED1)
D14(CANRX)
D14(CANRX)
D14(CANRX)
D15(A0)
D15(A0)
D16(A1)
D16(A1)
D17(A2)
D17(A2)
D18(A3)
D18(A3)
D19(A4)
D19(A4)
D20(A5)
D20(A5)
D21(CAN_CTRL)
D21(CAN_CTRL)
D22
D23
D23_EXT
D23_EXT
D24(CANTX)
D24(CANTX)
D24(CANTX)
D25(MMC_CS)
D25(MMC_CS)
D25(MMC_CS)
D26
D26
D27
D27
D28
D28
D29(SCL2)
D29(SCL2)
D29(SCL2)
D30(SDA2)
D30(SDA2)
D30(SDA2)
D31(#SS2)
D31(#SS2)
D32(SCK2)
D32(SCK2)
D32(SCK2)
D33(MISO2)
D33(MISO2)
D33(MISO2)
D34(MOSI2)
D34(MOSI2) D34(MOSI2)
D35
D35
D36
D36
D37
D37
DISC
DISC
RESET
RESET
RESET
RESET
RESET
TCK/SWCLK
TCK/SWCLK
TDI
TDI
TDO/SWO
TDO/SWO
TMS/SWDIO
TMS/SWDIO TRST
TRST
UEXT_#CS
UEXT_#CS
USBDM
USBDM
USBDP
USBDP
USB_P
USB_P
VBAT
VBAT
BUT
C1 C2
C3 C4 C5 C6
C7
C8 C9 C10
C11
C12
C13
C14
C15
C16
C1 7
C1 8
C19
C20
C21
C22
C23
C24
C2 5
C2 6
C2 7
C2 8
C29
C30
C31
C32
1
2
3
CAN
1 2
CA N_T
1
2
3
4
5
6
CON1
1
2
3
4
5
6
CON2
1
2
3
4
5
6
7
8
CON3
1
2
3
4
5
6
7
8
CON4
D1
D2
D3
D4
D5
D6
123
D10/D4
1 2
D23_E
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
EXT
FET1
L1
L2
L3
LED1
1 2
LED1_E
LED2
1 2
LED2_E
1
2
LIPO_BAT
3V3
3V3A
A0
A1
A2
A3
A4
A5
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
GND
GND
GNDA
RST
VIN
PWR_J
PW R_LE D
Q1
Q2
12
R-T
R1 R2
R3
R4
R5
R6 R7
R8 R9 R10
1 2
R1 0_E
R11
R12
R13
R14
R15
R16
R17
R1 8
R1 9
R20
R21
R22
R23
R24
R25
R2 6
R2 7
R28
R29
R30
R31
R32
R33
R34
R35
RST
CD/DAT3/CS
2
CLK/SCLK
5
CMD/DI
3
DAT0/DO
7
DAT1/RES
8
DAT2/RES
1
VDD
4
VSS
6
SD/MMC
1 2
3 4
5 6
7 8
9 10
SWD
T1
BOOT0
60
NRST
7
PA0-WKUP/USART2_CTS/ADC0/TIM2_CH1_ETR
14
PA1/USART2_RTS/ADC1/TIM2_CH2
15
PA2/USART2_TX/ADC2/TIM2_CH3
16
PA3/USART2_RX/ADC3/TIM2_CH4
17
PA4/SPI1_NSS/USART2_CK/ADC4
20
PA5/SPI1_SCK/ADC5
21
PA6/SPI1_MISO/ADC6/TIM3_CH1/TIM1_BKIN
22
PA7/SPI1_MOSI/ADC7/TIM3_CH2/TIM1_CH1N
23
PA8/USART1_CK/TIM1_CH1/MCO
41
PA9/USART1_TX/TIM1_CH2
42
PA10/USART1_RX/TIM1_CH3
43
PA11/USART1_CTS/CANRX/USBDM/TIM1_CH4
44
PA12/USART1_RTS/CANTX/USBDP/TIM1_ETR
45
PA13/JTMS/SWDIO
46
PA14/JTCK/SWCLK
49
PA15/JTDI/TIM2_CH1_ETR/SPI1_NSS
50
PB0/ADC8/TIM3_CH3/TIM1_CH2N
26
PB1/ADC9/TIM3_CH4/TIM1_CH3N
27
PB2/BOOT1
28
PB3/JTDO/TIM2_CH2/TRACESWO/SPI1_SCK
55
PB4/JTRST/TIM3_CH1/SPI1_MISO
56
PB5/I2C1_SMBAI/TIM3_CH2/SPI1_MOSI
57
PB6/I2C1_SCL/TIM4_CH1/USART1_TX
58
PB7/I2C1_SDA/TIM4_CH2/USART1_RX
59
PB8/TIM4_CH3/I2C1_SCL/CANRX
61
PB9/TIM4_CH4/I2C1_SDA/CANTX
62
PB10/I2C2_SCL/USART3_TX/TIM2_CH3
29
PB11/I2C2_SDA/USART3_RX/TIM2_CH4
30
PB12/SPI2_NSS/I2C2_SMBAL/USART3_CK/TIM1_BKIN
33
PB13/SPI2_SCK/USART3_CTS/TIM1_CH1N
34
PB14/SPI2_MISO/USART3_RTS/TIM1_CH2N
35
PB15/SPI2_MOSI/TIM1_CH3N
36
PC0/ADC10
8
PC1/ADC11
9
PC2/ADC12
10
PC3/ADC13
11
PC4/ADC14
24
PC5/ADC15
25
PC6/TIM3_CH1
37
PC7/TIM3_CH2
38
PC8/TIM3_CH3
39
PC9/TIM3_CH4
40
PC10/USART3_TX
51
PC11/USART3_RX
52
PC12/USART3_CK
53
PC13/ANTI_TAMP
2
PC14/OSC32_IN
3
PC15/OSC32_OUT
4
PD0/OSC_IN
5
PD1/OSC_OUT
6
PD2/TIM3_ETR
54
VBAT
1
VDD
32
VDD
48
VDD
64
VDD
19
VDDA
13
VSS
31
VSS
47
VSS
63
VSS
18
VSSA
12
U1
DC
8
FB
5
IS
7
SC
1
SE
2
TC
3
VCC
6
VSS
4
U2
CE
1
PROG
5
VBAT
3
VDD
4
VSS
2
U3
CANH
7
CANL
6
RS
8
RXD
4
TXD
1
VDD
3
VREF
5
VSS
2
U4
3
1 2
GND
VCCRESET
U5
1
2
3 4
5
6
U6
1 2
3 4
5 6
7 8
9 10
UEXT
D+
D-
GND
GND1
GND2
GND3
GND4
ID
VBUS
USB
GND
1
VIN
2
VOUT
3
VR1
GND
1
VIN
2
VOUT
3
VR2
X1-1
X1-2
9-30VDC
+
+
+
POW ERANA LOGDIG ITALDIG ITAL
STM32-MAPLE: PLATFORM & CONNECTORS
GND
0R
0R
10k
47k
BAT TER Y
CHARG ER
USB
+
-
LEDS
BUTTONS
STM32-MAPLE_PLATFORM
POWER_SUPPLY
UEXT
USB_DEVICE
Battery Charger
appr. 70 mA charge current
SD/MMC
CAN
Serial wire debug (SWD)
Extension
Designed by Olimex
WWW .OLIME X.CO M/ DE V
BOARD LAYOUT:
Page 6 of 19
POWER SUPPLY CIRCUIT:
OLIMEXINO-STM32 can take power supply from:
– external power supply (9-30) VDC.
– + 5V from USB
– 3.7 V Li-ion battery
The programmed board power consumption is about 50 mA with all peripherals
enabled.
RESET CIRCUIT:
OLIMEXINO-STM32 reset circuit includes D6 (1N4148), R28 (10kΩ), R29
(330Ω), C31 (100nF), STM32F103RBT6 pin 7 (NRST) and RESET button.
CLOCK CIRCUIT:
Quartz crystal Q1 8 MHz is connected to STM32F103RBT6 pin 5
(PD0/OSC_IN) and pin 6 (PD1/OSC_OUT).
Quartz crystal Q2 32.768 kHz is connected to STM32F103RBT6 pin 3
(PC14/OSC32_IN) and pin 4 (PC15/OSC32_OUT).
JUMPER DESCRIPTION:
Note that all jumpers on the board are SMD type. You will need to solder/unsoder/cut them
in order to reconfigure them.
LED1_E
This jumper, when is closed, enables LED1.
Default state is closed.
LED2_E
This jumper, when is closed, enables LED2.
Default state is closed.
D23_E
This jumper, when is closed, connects STM32F103RBT6 pin (PC15/OSC32_OUT) –
signal D23 to EXT pin 1, and when is opened, D23 is not connected to EXT.
Default state is opened.
R-T
This jumper, when is closed, connects TRST and RESET, and when is opened, TRST
and RESET are separated.
Page 7 of 19
Default state is opened.
CAN_T
This jumper, when is closed, CAN termination is enabled, and when is opened, CAN
termination is disabled.
Default state is opened.
D10/D4
This jumper, when is in position D10, UEXT pin 10 (UEXT_#CS) is connected to
STM32F103RBT6 pin 20 (PA4/SPI1_NSS/USART2_CK/ADC4) – signal D10, and
when is in position D4, UEXT pin 10 (UEXT_#CS) is connected to STM32F103RBT6
pin 57 (PB5/I2C1_SMBAI/TIM3_CH2/SPI1_MOSI) – signal D4. Note that P10_E's
effect also is affeced by D10/D4.
Default state is in position D4.
P10_E:
When closed the board provides 3.3V to the UEXT_CCS – UEXT pin
10.
Default state is closed.
INPUT/OUTPUT:
Status Led with name LED1 (green) connected via jumper LED1_E to
STM32F103RBT6 pin 21 (PA5/SPI1_SCK/ADC5) – signal D13(SCK/LED1).
Status Led with name LED2 (yellow) connected to STM32F103RBT6 pin 15 (PA1/USART2_RTS/ADC1/TIM2_CH2) – signal D3(LED2).
Power-on LED (red) with name PWR_LED – this LED shows that the board is power supplied.
User button with name BUT connected to STM32F103RBT6 pin 40
(PC9/TIM3_CH4) via R33 (1kΩ) and pin 60 (BOOT0) – signal BOOT0.
User button with name RST connected to STM32F103RBT6 pin 7 (NRST).
Page 8 of 19

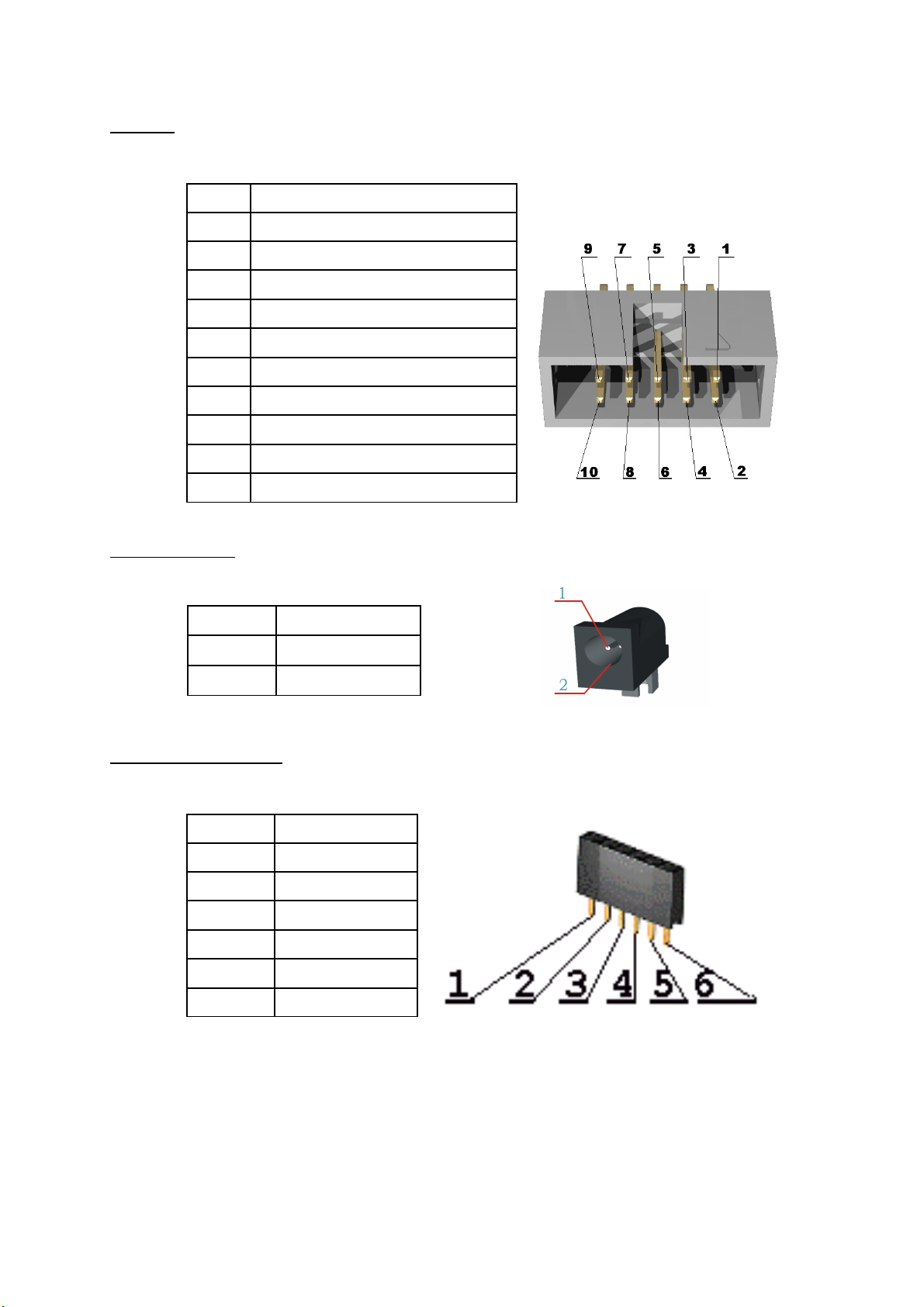

EXTERNAL CONNECTORS DESCRIPTION:
SWD:
Pin # Signal Name
1 VCC
2 TMS/SWDIO
3 GND
4 TCK/SWCLK
5 GND
6 TDO/SWO
7 Cut off
8 TDI
9 GND
10 RESET
Note that pin 7 of SWD connector is cut off.
Page 9 of 19
UEXT:
Pin # Signal Name
1 VCC
2 GND
3 D7(TXD1)
4 D8(RXD1)
5 D29(SCL2)
6 D30(SDA2)
7 D12(MISO1)
8 D11(MOSI1)
9 D13(SCK/LED1)D13(SCK1/LED1)
10 UEXT_#CS
PWR_JACK:
Pin # Signal Name
1 Power Input
2 GND
CON1 – POWER:
Pin # Signal Name
1 RESET
2 VCC (3V3)
3 VDD (3V3A)
4 GND
5 GND
6 VIN
Page 10 of 19
CON2 – ANALOG:
Pin # Signal Name
1 D15(A0)
2 D16(A1)
3 D17(A2)
4 D18(A3)
5 D19(A4)
6 D20(A5)
CON3 – DIGITAL:
Pin # Signal Name
1 D0(RXD2)
2 D1(TXD2)
3 D2
4 D3(LED2)
5 D4
6 D5
7 D6
8 D7(TXD1)
CON4 – DIGITAL:
Pin # Signal Name
1 D8(RXD1)
2 D9
3 D10(#SS1)
4 D11(MOSI1)
5 D12(MISO1)
6 D13(SCK/LED1)
D13(SCK1/LED1)
7 GND
8 D14(CANRX)
Page 11 of 19
LI_BAT:
Pin # Signal Name
1 VBAT
2 GND
USB:
Pin # Signal Name
1 +5V_USB
2 D -
3 D +
4 Not connected
5 GND
SD/MMC:
Pin # Signal Name
1 MCIDAT2
2 D25(MMC_CS)
3 D34(MOSI2)
4 MMC_PWR
5 D32(SCK2)
6 GND
7 D33(MISO2)
8 MCIDAT1
9 Not connected
10 Not connected
11 Not connected
12 Not connected
Page 12 of 19
EXT:
Pin # Signal Name Pin # Signal Name
1 D23_EXT 2 D24(CANTX)
3 D25(MMC_CS) 4 D26
5 D27 6 D28
7 D29(SCL2) 8 D30(SDA2)
9 D31(#SS2) 10 D32(SCK2)
11 D33(MISO2) 12 D34(MOSI2)
13 D35 14 D36
15 D37 16 GND
CAN:
Pin # Signal Name
1 GND
2 CANL
3 CANH
Page 13 of 19
MECHANICAL DIMENSIONS:
Page 14 of 19
AVAILABLE DEMO SOFTWARE:
- The board comes with a simple program on-board. To get more projects, examples
and ready maple libraries please visit the OLIMEXINO-STM32 page:
https://www.olimex.com/Products/Duino/STM32/OLIMEXINO-STM32/
Page 15 of 19
ORDER CODE:
OLIMEXINO-STM32 - assembled and tested board
How to order?
You can order to us directly or by any of our distributors.
Check our web https://www.olimex.com for more info.
Board revision history:
Revision Notable Changes
A - C6 (100n/0603) is changed to 4.7uF/0603.
B
- Removed the label "<c> 2011".
- Logos added: Open Hardware, Designed by OLIMEX and Made in
Bulgaria, 2011 logos
- Added divider which includes R34, R35 and C32 with aim to measure
the battery.
- All tracks which were placed close to board's edges were moved as
far as possible away from them.
- Some changes in the values of some components were made
C
- Added closed by default SMD jumpers on LED2 and R10(UEXT_CS)lines
- The table with the jumper description is now updated
- Some logos and print lines have been re-arranged
D
- Added again the PWR JACK connector for the external supply in the
board design and schematic
Page 16 of 19
Document revision history:
Revision Changes Modified Page#
A
- At first page “Copyright(c) 2011, OLIMEX
Ltd, All rights reserved” is replaces with
“Designed by OLIMEX Ltd., 2011”
- Updated schematic with board revision A
1
B
- Updated schematics with board revision B
and table
6, 11
C
- Fixed grammatical errors
- Updated schematics with board revision D
- Added board revision history
- Updated schematics
- Added new jumpers description
- Updated disclaimer
All
Page 17 of 19
DISCLAIMER
© 2012 Olimex Ltd. Olimex®, logo and combinations thereof, are registered trademarks of Olimex Ltd. Other
product names may be trademarks of others and the rights belong to their respective owners.
The information in this document is provided in connection with Olimex products. No license, express
or implied or otherwise, to any intellectual property right is granted by this document or in connection
with the sale of Olimex products.
The Hardware project is released under the Creative Commons Attribution-Share Alike 3.0 United States
License. You may reproduce it for both your own personal use, and for commercial use. You will have to
provide a link to the original creator of the project https://www.olimex.com on any documentation or
website.
You may also modify the files, but you must then release them as well under the same terms. Credit can be
attributed through a link to the creator website: https://www.olimex.com
The software is released under GPL.
It is possible that the pictures in this manual differ from the latest revision of the board.
The product described in this document is subject to continuous development and improvements. All
particulars of the product and its use contained in this document are given by OLIMEX in good faith.
However all warranties implied or expressed including but not limited to implied warranties of
merchantability or fitness for purpose are excluded. This document is intended only to assist the reader in
the use of the product. OLIMEX Ltd. shall not be liable for any loss or damage arising from the use of any
information in this document or any error or omission in such information or any incorrect use of the
product.
This evaluation board/kit is intended for use for engineering development, demonstration, or evaluation
purposes only and is not considered by OLIMEX to be a finished end-product fit for general consumer use.
Persons handling the product must have electronics training and observe good engineering practice
standards. As such, the goods being provided are not intended to be complete in terms of required design-,
marketing-, and/or manufacturing-related protective considerations, including product safety and
environmental measures typically found in end products that incorporate such semiconductor components
or circuit boards.
Olimex currently deals with a variety of customers for products, and therefore our arrangement with the
user is not exclusive. Olimex assumes no liability for applications assistance, customer product design,
software performance, or infringement of patents or services described herein.
THERE IS NO WARRANTY FOR THE DESIGN MATERIALS AND THE COMPONENTS USED TO
CREATE OLIMEXINO-STM32. THEY ARE CONSIDERED SUITABLE ONLY FOR OLIMEXINOSTM32.
Page 18 of 19
For product support, hardware information and error reports mail to: support@olimex.com. Note that we
are primarily a hardware company and our software support is limited.
Please consider reading the paragraph below about the warranty of Olimex products.
Warranty and returns:
Our boards have lifetime warranty against manufacturing defects and components.
During development work it is not unlikely that you can burn your programmer or development board.
This is normal, we also do development work and we have damaged A LOT of programmers and boards
during our daily job so we know how it works. If our board/programmer has worked fine then stopped,
please check if you didn't apply over voltage by mistake, or shorted something in your target board where
the programmer was connected etc. Sometimes boards might get damaged by ESD shock voltage or if you
spill coffee on them during your work when they are powered.
Please note that warranty do not cover problems caused by unproper use, shorts, over-voltages, ESD shock
etc.
If the board has warranty label it should be not broken. Broken labels void the warranty, same applies
for boards modified by the customer, for instance soldering additional components or removing
components - such boards will be not be a subject of our warranty.
If you are positive that the problem is due to manufacturing defect or component you can return the board
back to us for inspection.
When we receive the board we will check and if the problem is caused due to our fault and we will
repair/replace the faulty hardware free of charge, otherwise we can quote price of the repair.
Note that all shippings back and forth have to be covered by the customer. Before you ship anything back
you need to ask for RMA. When you ship back please attach to it your shipping address, phone, e-mail,
RMA# and brief description of the problem. All boards should be sent back in antistatic package and well
packed to prevent damages during the transport.
Page 19 of 19
Loading...
