CHAPTER 1 - OVERVIEW

1. Introduction to the chapter

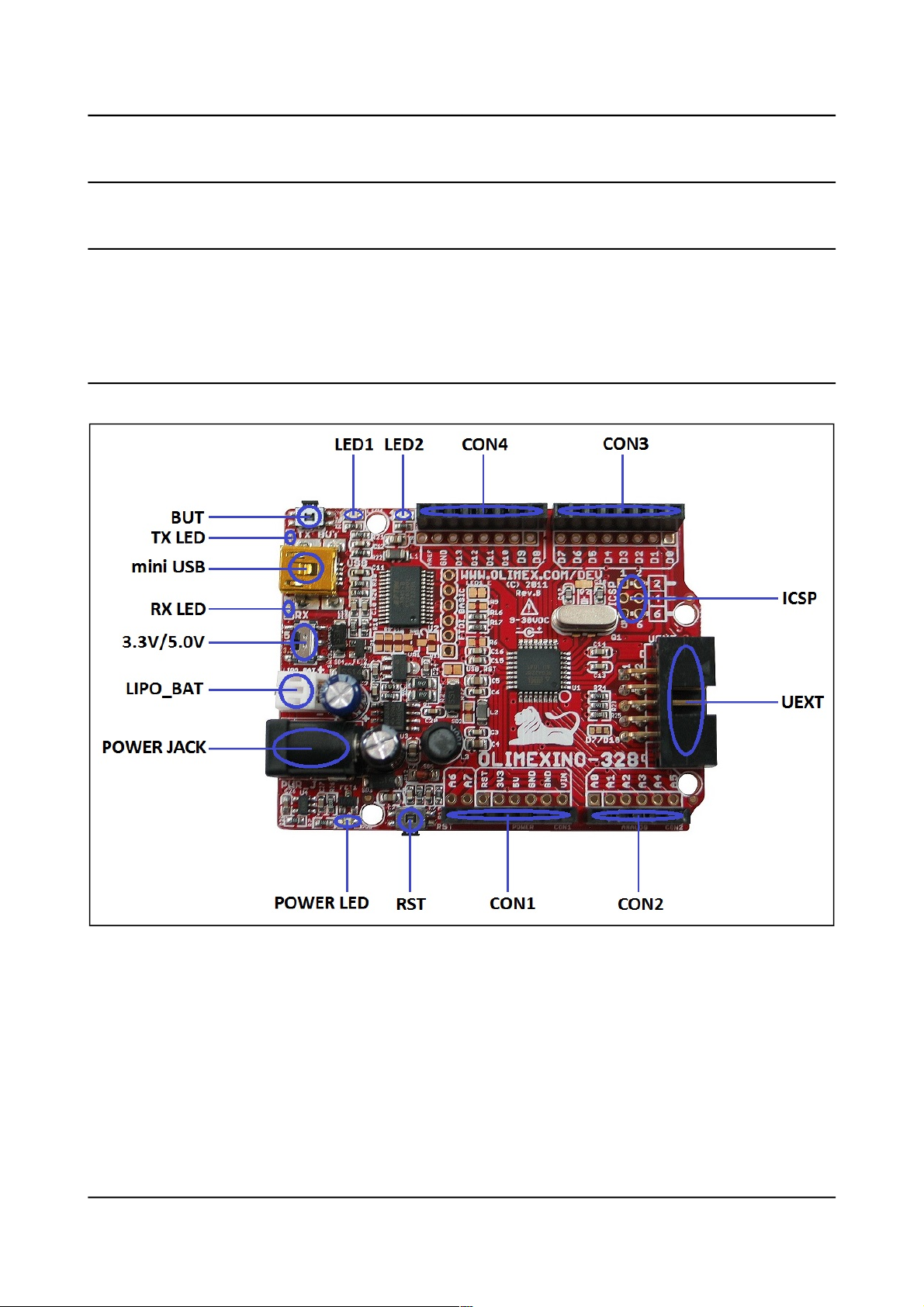

Thank you for choosing the OLIMEXINO-328 board from Olimex! This document provides a user’s guide for the Olimex Arudino-like OLIMEXINO-328. As an overview, this chapter gives the introduction to Arduino, the scope of this document and lists the features of the board. The document’s organization is then detailed.

1.1 Introduction to Arduino

Arduino is an open-source electronics prototyping platform, designed to make the process of using electronics in multidisciplinary projects more accessible. The hardware consists of a simple open design for the Arduino board with an Atmel AVR processor and on-board I/O support. The software consists of a standard programming language and the boot loader that runs on the board. Arduino hardware is programmed using a Wiring-based language (syntax + libraries), similar to C+ + with some simplifications and modifications, and a processing-based IDE.
The project began in Ivrea, Italy in 2005 to make a device for controlling student-built interaction design projects less expensively than other prototyping systems available at the time. As of February 2010 more than 120,000 Arduino boards had been shipped. Founders Massimo Banzi and David Cuartielles named the project after Arduino, a local bar. The name is an Italian masculine first name, meaning "strong friend". The English pronunciation is "Hardwin", a namesake of Arduino of Ivrea.
More information can be found at the creators web page http://arduino.cc/ and in the Arduino Wiki
http://en.wikipedia.org/wiki/Arduino. To make the story short - Arduino is easy for the beginners
with minimal Electronics knowledge, while not restricting the professionals, as they can program it in C++ or a mix of Arduino/C++ language.
There are thousands of projects which make the startup easy as there is almost no field Arduino enthusiasts have not explored already.

1.2 Improvements over the original Arduino design

We entered the Arduino field 5 years after the design was introduced, allowing us to see and skip most of the errors the Arduino inventors made. We were able to read feedback from current customers and to implement what they wanted to see in the original Arduino.
There are a number of improvements over the original Arduino design that we have implemented in OLIMEXINO-328:
1. We allowed the board to work at different frequencies with easy exchange of the quartz crystal.
2. The original Arduino used a linear power supply. This limited the input voltage range. We designed a switching power supply to accept input voltages from 9 to 30V DC, making it possible
Page 5 of 23
OLIMEX© 2013 OLIMEXINO-328 user's manual
to use virtually any power supply adapter on the market, including applications with the standard 24VDC industrial power supply.
3. We carefully selected all components to work reliably over the industrial temperature range
-25+85C so the board can be used in industrial applications (the original design was suitable for the commercial 0-70C operating temperature).
4. The original Arduino design was not good for portable applications as it dissipated too much power in the linear voltage regulators. We chose ULTRA LOW POWER voltage regulators with consumption of only few microamps to enable handheld and battery powered applications.
5. We added a Li-Ion rechargeable battery power supply option with a BUILT-IN onboard charger, so when a battery is attached it is automatically kept charged . When the other power source (USB or external adapter) is removed it will AUTOMATICALLY power the board - no jumpers, no switches!
6. Our design can work both on 3.3V and on 5V, switch-selectable.

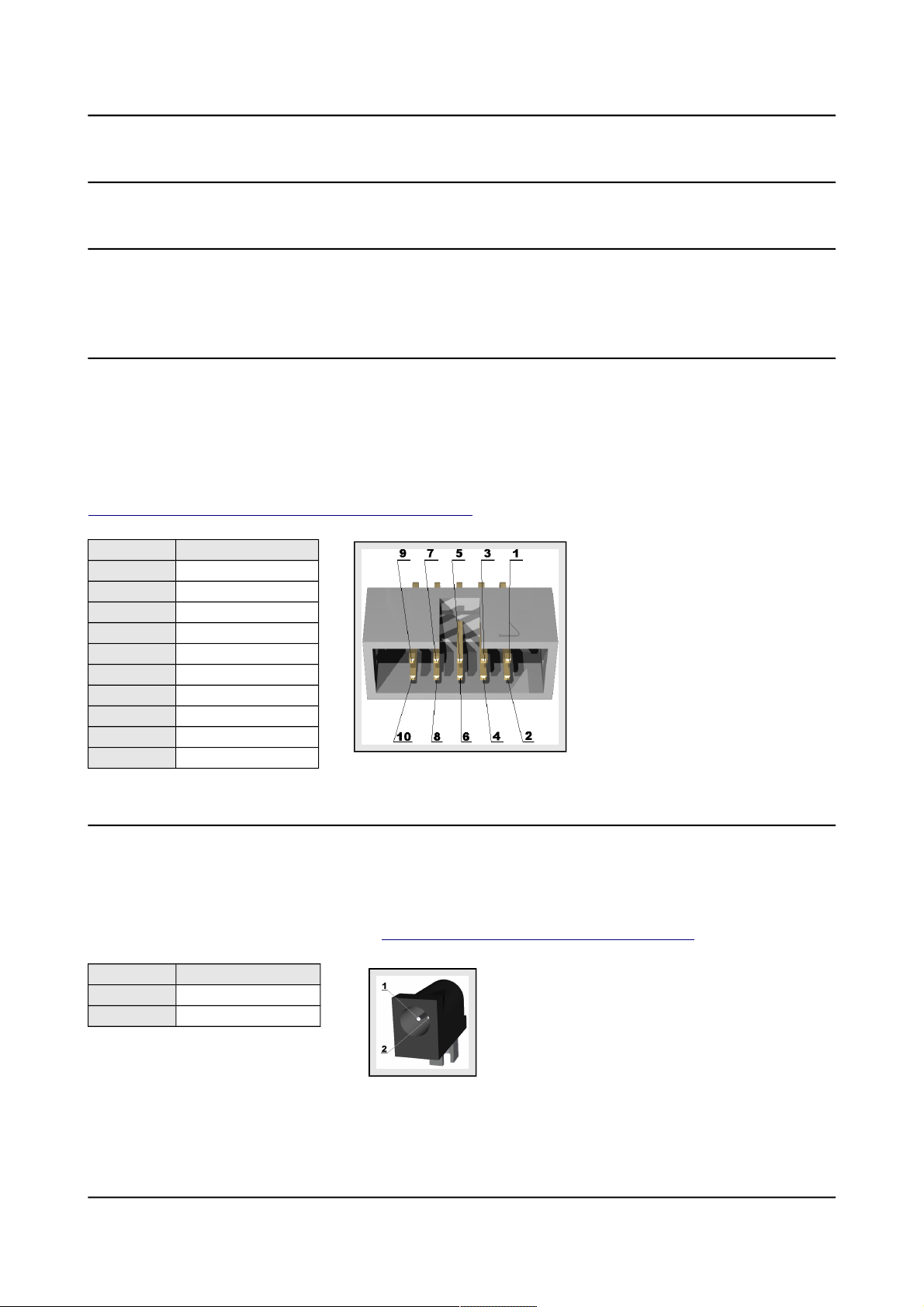

7. Our boards included the UEXT connector, allowing many existing modules like RF, ZIGBEE, GSM, and GPS to be connected. It also saves soldering to interface I2C, UART and/or SPI.
8. Our design allows a Real Time Clock (RTC).
9. We made our design noise immune in the RESET circuit. There are a number of threads on the Arduino forum for problems with the RESET when the board works with motors, since Atmel recommendations were omitted in the original design. We fixed this.
10. We used a separate voltage regulator for the Analog part, allowing the ADC to be read correctly without digital noise pickup.
11. We made provision for the optional ARef precision voltage source, for users who need higher precision and temperature stability in Analog readings.
12. We placed the LEDs and the BUTTONs on the edge of the board for easy access even if the boards have shields on them.
13. All components were placed LOWER than the connectors, so the shields do not interfere with them.
14. We used a mini USB connector which is common and used in most cell phones, so you do not have to buy other cables.
15. The original design did not space the connectors at 0.1", making perfboard use impossible. For compatibility, we used the same spacing but we added footprints next to the connectors on 0.1" which customers can use with perforated boards.
16. All signals on the connectors are printed on top and on bottom of the board, so when you check with a probe you know exactly which point you are measuring.
Page 6 of 23
OLIMEX© 2013 OLIMEXINO-328 user's manual
17. We added 4 mounting holes making board attachment easier.

1.3 Target market and purpose of the board

The board is aimed at beginners due to the fact it might be programmed without the need of third­party tools and the big Arduino community. It is also suitable for professionals due to the industrial range of operation, small form factor and wide power supply choice. The board is suitable for hand­held applications.
1.4 Hardware revision of the board used in the manual
Revision B and revision C boards and resources were used while writing this document. It is possible that all revisions used to create the document are outdated so it is recommended to download the latest sources from the web-page of OLIMEXINO-328 at the official
www.olimex.com web-site.

1.5 Document organization

Each section in this document covers a separate topic, organized as follow:
Chapter 1 is an overview of the board usage and features Chapter 2 provides a guide for setting the board Chapter 3 contains the general board diagram and layout Chapter 4 mentions the control circuitry used in OLIMEXINO-328 Chapter 5 is an explanation of the connectors, the LEDs and the jumpers position Chapter 6 contains the general board diagram and layout Chapter 7 contains the revision history, useful links and support information
