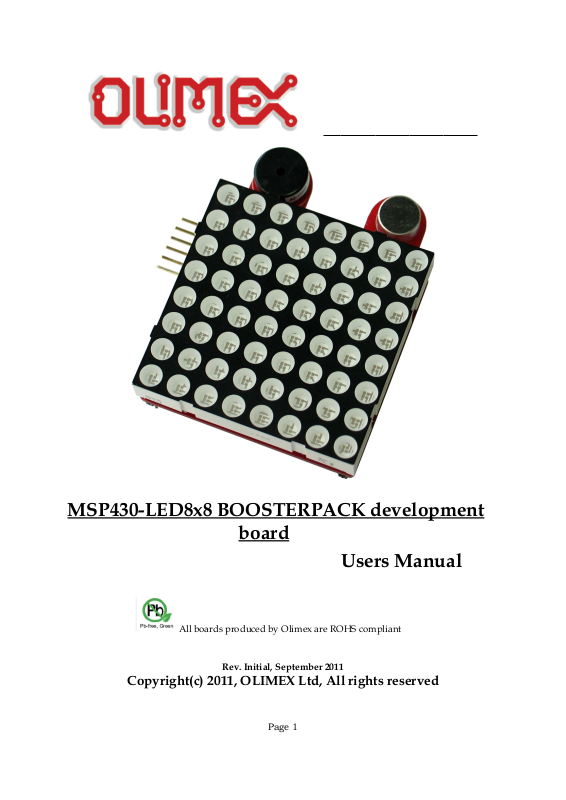

MSP430-LED8x8 BOOSTERPACK development
board
Users Manual
All boards produced by Olimex are ROHS compliant
Rev. Initial, September 2011
Copyright(c) 2011, OLIMEX Ltd, All rights reserved
Page 1
INTRODUCTION
MSP430-LED8x8 BOOSTERPACK is development board for MSP430-EXP430G2
LaunchPad from Texas Instruments. MSP430-LED8x8 BOOSTERPACK has 8x8 LED
MATRIX, at which can be visualized captions or pictures. If you want to visualize
longer captions, you can extend the board by connecting several MOD-LED8x8
boards to it. The board has also microphone for detecting sounds and buzzer for
playing sounds.
BOARD FEATURES
- LED MATRIX 8x8 51x51mm
- BUZZER
- Microphone
- Extension connector
- MSP430_LAUNCHPAD connectors for connecting to MSP-EXP430G2 board
- PCB: FR-4, 1.5 mm (0,062"), solder mask, silkscreen component print
- Dimensions: 65.75x 51.00mm ( 2.59x 2.01")
ELECTROSTATIC WARNING
The MSP430-LED8x8 BOOSTERPACK board is shipped in protective anti-static
packaging. The board must not be subject to high electrostatic potentials. General
practice for working with static sensitive devices should be applied when working
with this board.
BOARD USE REQUIREMENTS
Hardware: MSP430 LaunchPad (MSP-EXP430G2) from Texas Instruments; MOD-
LED8x8
Page 2
SCHEMATIC
Page 3
PB1 240
1u F
47uF/6.3V/TANT
1u F
10 0 nF
10 0 nF
10 n F
HR 1x5
GN D
GN D
GN D
GN D
GN D
74 HC5 95/ SM D
UL N20 03A D/SO 16
74 HC5 9 5/ SM D
HN 1x1 0 HN 1x1 0
AMF-0 97A 44 -NBA B( mic ro pho ne)
3V 3
3V 3
3V 3
3V 3
3V 3
3V 3
3V 3
3V 3
22 R
22 R
4.7k /5 %
22 0 R
47 k
10 0 k
DTC 114 YK A
A_ IN
A_ IN
BU Z_ PIN 1
BUZ_P IN 1
BU Z_ PIN 2
BU Z_ PIN 2
R1R1R2R2R3R3R4R4R5R5R6R6R7R7R8
R8
RO W1
RO W1
RO W2
RO W2
RO W3
RO W3
RO W4
RO W4
RO W5
RO W5
RO W6
RO W6
RO W7
RO W7
RO W8
RO W8
SR _D AT A_ IN
SR _D AT A_ IN
SR _D AT A_ O UT
SR _D ATA_ O UT
SR _L ATCH
SR _L ATCH
SR _L ATCH
SR _L ATCH
SR_S CK
SR _S CK
SR _S CK
SR _S CK
BU ZZE R
C1
C2
C3
C4
C5
C6
12345
EXT
G13GND
8
QA15QB1QC2QD3QE
4QF5QG6QH7
QH*
9
RCK
12
SCK11SCL
10
SER
14
VCC
16
IC1
CD+
9
GND
8
I11I22I33I44I55I66I7
7
O116O215O314O413O512O611O7
10
IC 2
G13GND
8
QA15QB1QC2QD3QE
4QF5QG6QH7
QH*
9
RCK
12
SCK11SCL
10
SER
14
VCC
16
IC3
123456789
10
J1
123456789
10
J2
1122334455667788991010111112
12
1313141415151616171718181919202021212222232324
24
LED_MATRIX
8x8GYxM-1588ASRD
+
P+
-
P-
MIC
R- MA T1
R- MA T2
R1
R2
R3
R4
T1
MSP430-LED BOOSTERPACK
Re v. B
CO PYRIGH T( C) 2 011 , OL IMEX Lt d.
http :// ww w .o lime x.co m/de v
+
R1R2R3
R4
R1R2R3
R4
10k
47 k
MIC & BUZZER
MSP430_LAUNCHPAD EXT_CON
1
10
11
20

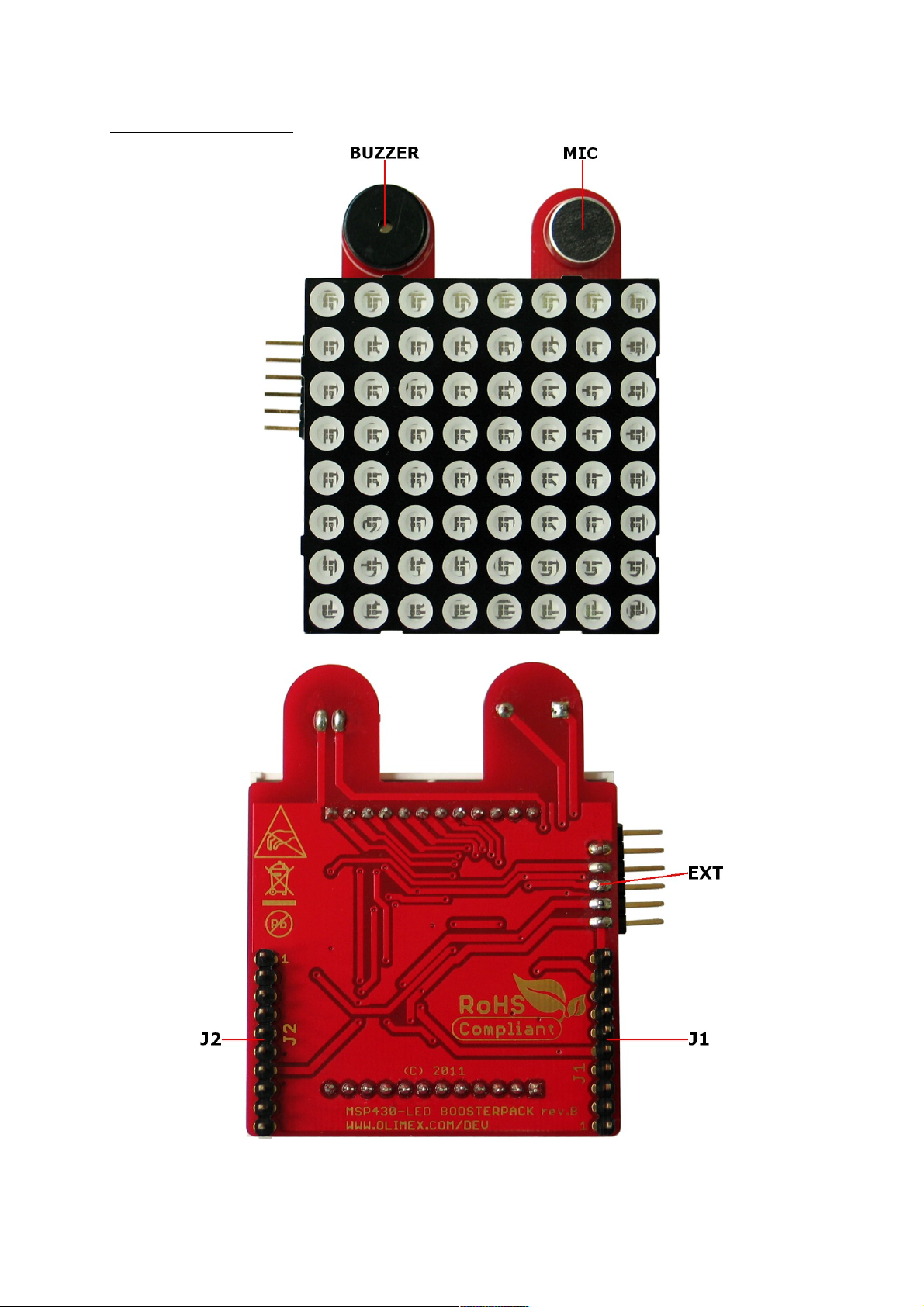

BOARD LAYOUT
Page 4
POWER SUPPLY CIRCUIT
MSP430-LED8x8 BOOSTERPACK can take power from MSP-EXP430G2 via J1
connector pin 10 (VCC) and J2 connector pin 1 (GND).
The board power consumption is: about 90 mA with all peripherals running at full
speed.
JUMPER DESCRIPTION
There are no jumpers on this board.
Input/Output
LED MATRIX 8x8 51x51mm
BUZZER – connected to J1 connector pins 7 (BUZ_PIN2) and 8 (BUZ_PIN1).
CONNECTOR DESCRIPTIONS
J1
Pin # Signal Name
1 Not Connected
2 Not Connected
3 Not Connected
4 SR_SCK
5 SR_LATCH
6 Not Connected
7 BUZ_PIN2
8 BUZ_PIN1
9 A_IN
10 VCC
Page 5

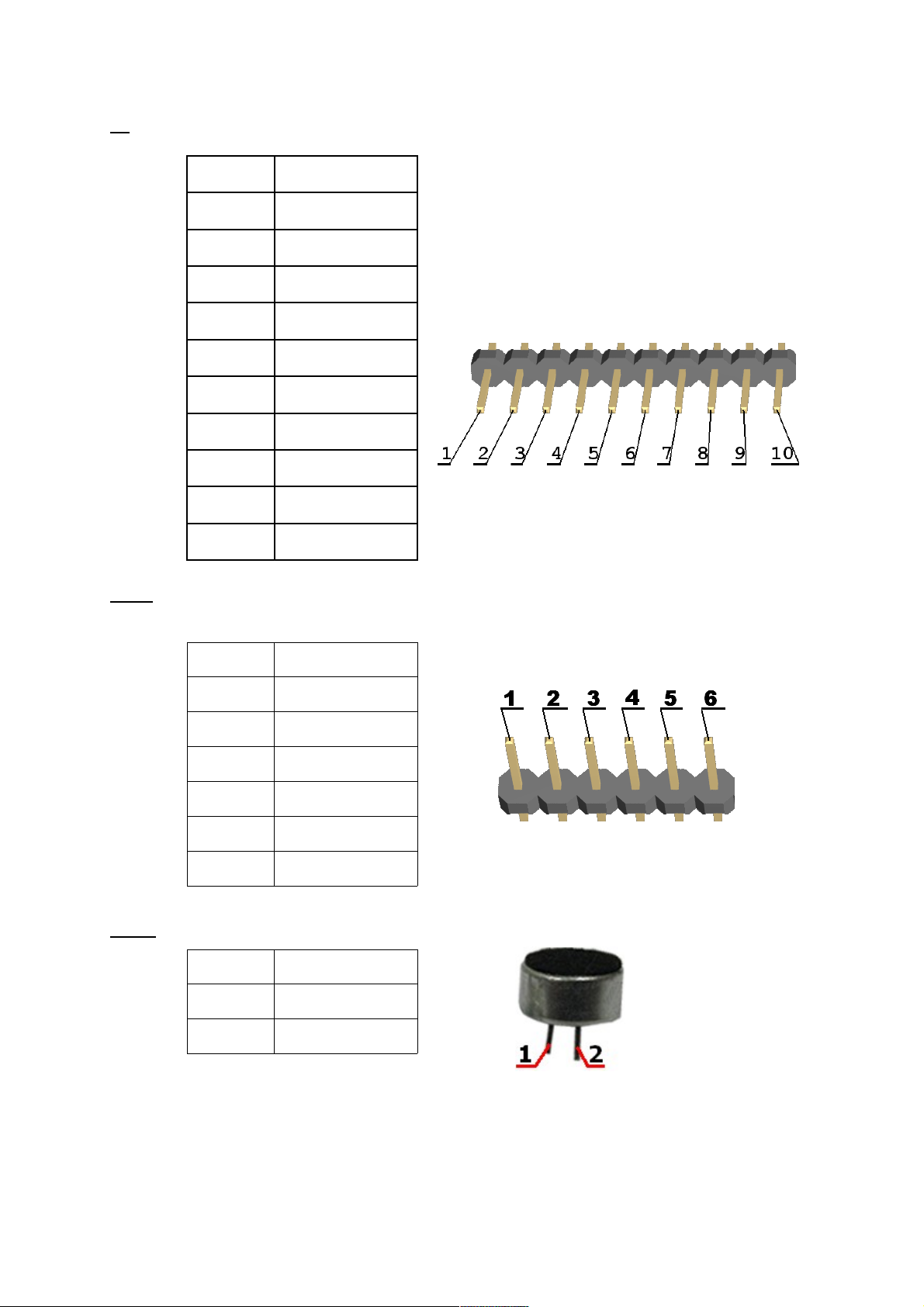

J2
Pin # Signal Name
1 GND
2 Not Connected
3 Not Connected
4 Not Connected
5 Not Connected
6 Not Connected
7 SR_DATA_IN
8 Not Connected
9 Not Connected
10 Not Connected
EXT
Pin # Signal Name
1 VCC
2 SR_SCK
3 SR_LATCH
4 SR_DATA_OUT
5 GND
6 Not Connected
MIC
Pin # Signal Name
1 A_IN
2 GND
Page 6

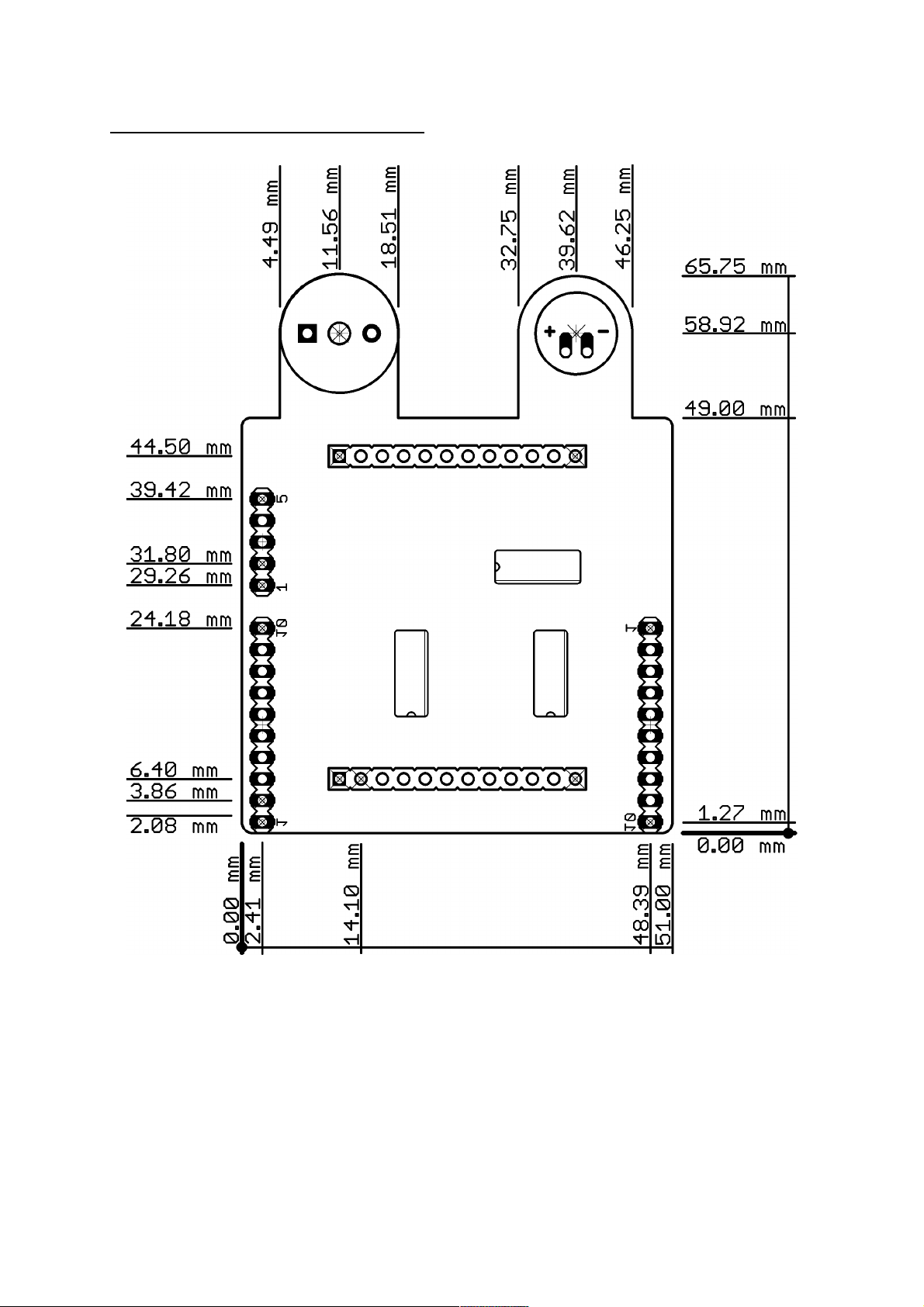

MECHANICAL DIMENSIONS
Page 7
AVAILABLE DEMO SOFTWARE
- MSP430-LED-BOOSTERPACK – demonstrates reactions of the board to
clapping with different violence by displaying several emoticons and playing
sound.
Page 8
ORDER CODE
MSP430-LED8x8 BOOSTERPACK – assembled and tested (no kit, no soldering
required)
How to order?
You can order to us directly or by any of our distributors.
Check our web www.olimex.com/dev for more info.
Revision history:
Board's Revision - Rev. B created June 2011
Manual's Revision - Rev. Initial created September 2011
