MOD-WiFi development board
User's manual
All boards produced by Olimex are ROHS compliant
Document revision B, May 2014
Copyright(c) 2014, OLIMEX Ltd, All rights reserved
Page 1
Page 2
INTRODUCTION:
MOD-WiFi module gives you the opportunity to add WIFI to any of our
development boards with UEXT connector. There is ready made support in
Microchip's TCP-IP stack so you can use MOD-WIFI with any PIC board with UEXT
and you have hands on the complete source code.
BOARD FEATURES:
– MOD-WIFI extends OLIMEX boards (that have a UEXT connector) to have Wireless
internet access
– Uses Microchip MRF24WB0MA module
– Works with Microchip TCP-IP stack
– PCB: FR-4, 1.5 mm (0,062"), soldermask, white silkscreen component print
– Dimensions: (29.00x22.50)mm (1.14x0.86)"
– Space between the pin rows: 20mm (0.8")
ELECTROSTATIC WARNING:
The MOD-WiFi board is shipped in protective anti-static packaging. The board
must not be subject to high electrostatic potentials. General practice for working
with static sensitive devices should be applied when working with this board.
BOARD USE REQUIREMENTS:
Hardware: some of our development boards with UEXT.
Page 2
Page 3
Wi-Fi Module Features:
MOD-WiFi board use MRF24WB0MA Wi-Fi module with these features:
– Single-chip 802.11b including MAC, baseband, RF and power amplifier
– Data Rate: 1 & 2 Mbps
– 802.11b/g/n compatible
– Low power operation
– API for embedded markets, no OS required
– PCB antenna
– Hardware support for AES and RC4 based ciphers (WEP, WPA, WPA2 security)
– SPI slave interface with interrupt
– Single 3.3V supply, operates from 2.7V to 3.6V
– 21mm x 31mm 36-pin Dual Flat pack PCB SM Package
– Wi-Fi certified, RoHS and CE compliant
– FCC Certified (USA, FCC ID: W7O-ZG2100-ZG2101)
– IC Certified (IC: 8248A-G21ZEROG)
– Fully compliant with EU & meets the R&TTE Directive for Radio Spectrum
– Radio Type Approval Certified (Japan, MRF24WB0MA based solution ID:
AC164136-2 – 005WWCA0311 005GZCA0149)
Page 3
Page 4
BLOCK DIAGRAM:
Page 4
Page 5

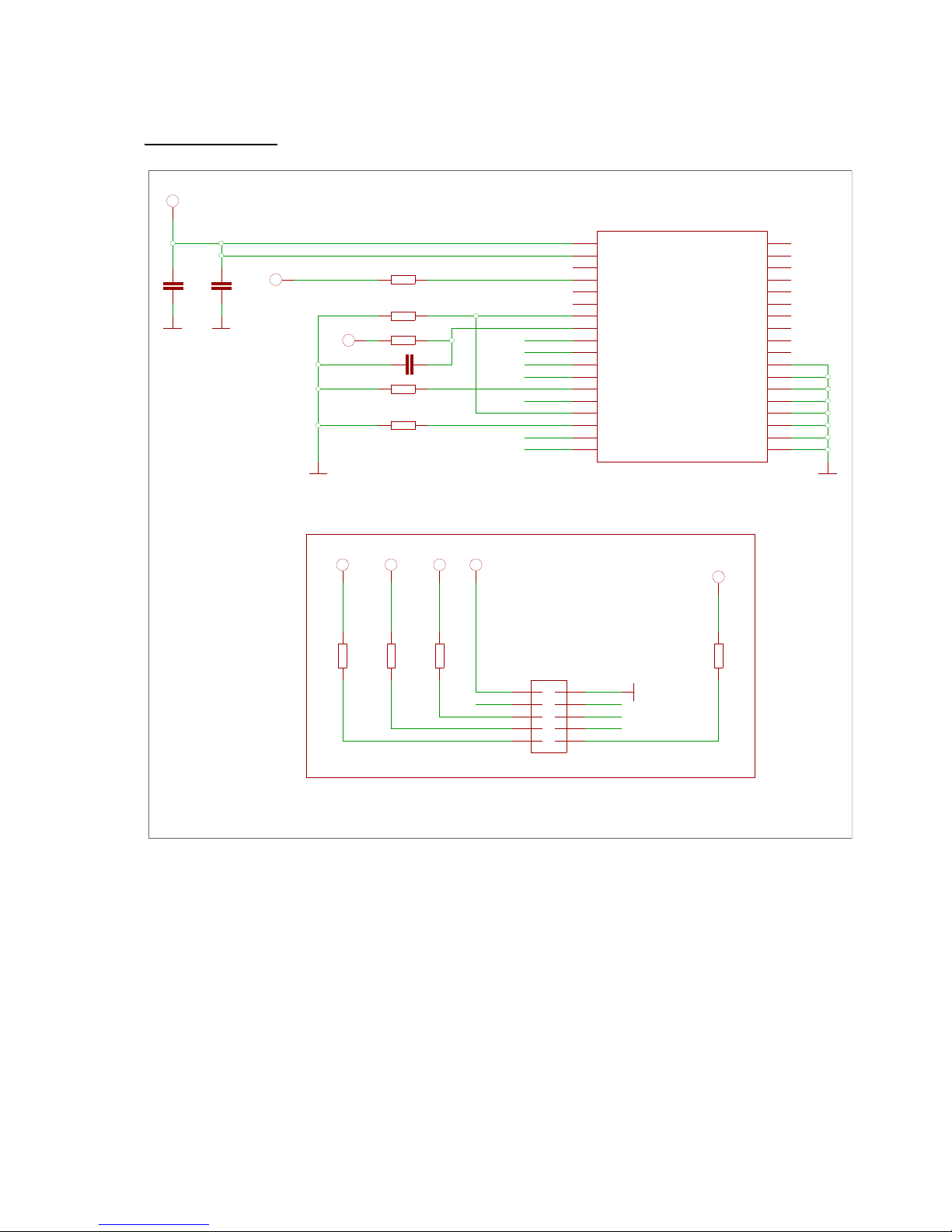

SCHEMATIC:
Page 5
UEXT
MOD-WIFI, board revision A with MRF24WB0MA
https://www.olimex.com
OLIMEX LTD, BULGARIA, 2014
C1
1uFC21uF
C3
39pF
R1
4.7k
R2
4.7k
R3
NA
R4
4.7k
R5
4.7k
R6
4.7kR74.7k
R8
4.7k
R9
4.7k
CE_N
20
DNC
8
DNC1
22
DNC2
12
DNC3
13
DNC4
14
DNC5
15
GND
1
GND1
10
GND2
18
GND3
19
GND4
25
GND5
28
GND6
30
GND7
36
INT_NX
33
JTAG_EN
21
JTAG_RST_N
9
JTAG_TCK
4
JTAG_TDI
6
JTAG_TDO
3
JTAG_TMS
5
RES
16
RST_N
7
SCK
34
SCS_N
23
SDI
35
SDO
32
UART_RX
26
UART_TX
27
VDD1_1.8
11
VDD1_3.3
29
VDD2_1.8
24
VDD3_1.8
31
VDD_1.8
2
VDD_3.3
17
U1
MRF24WB0MA
1 2
3 4
5 6
7 8
9 10
IDC10F/PCB
3.3V
3.3V
3.3V3.3V3.3V
3.3V
3.3V
3.3V
#SS
#SS
INT_NX
INT_NX
JTAG_RST_N
JTAG_RST_N
MISO
MISO
MOSI
MOSI
RST_N
RST_N
RXD
RXD
SCK
SCK
TXD
TXD
Page 6

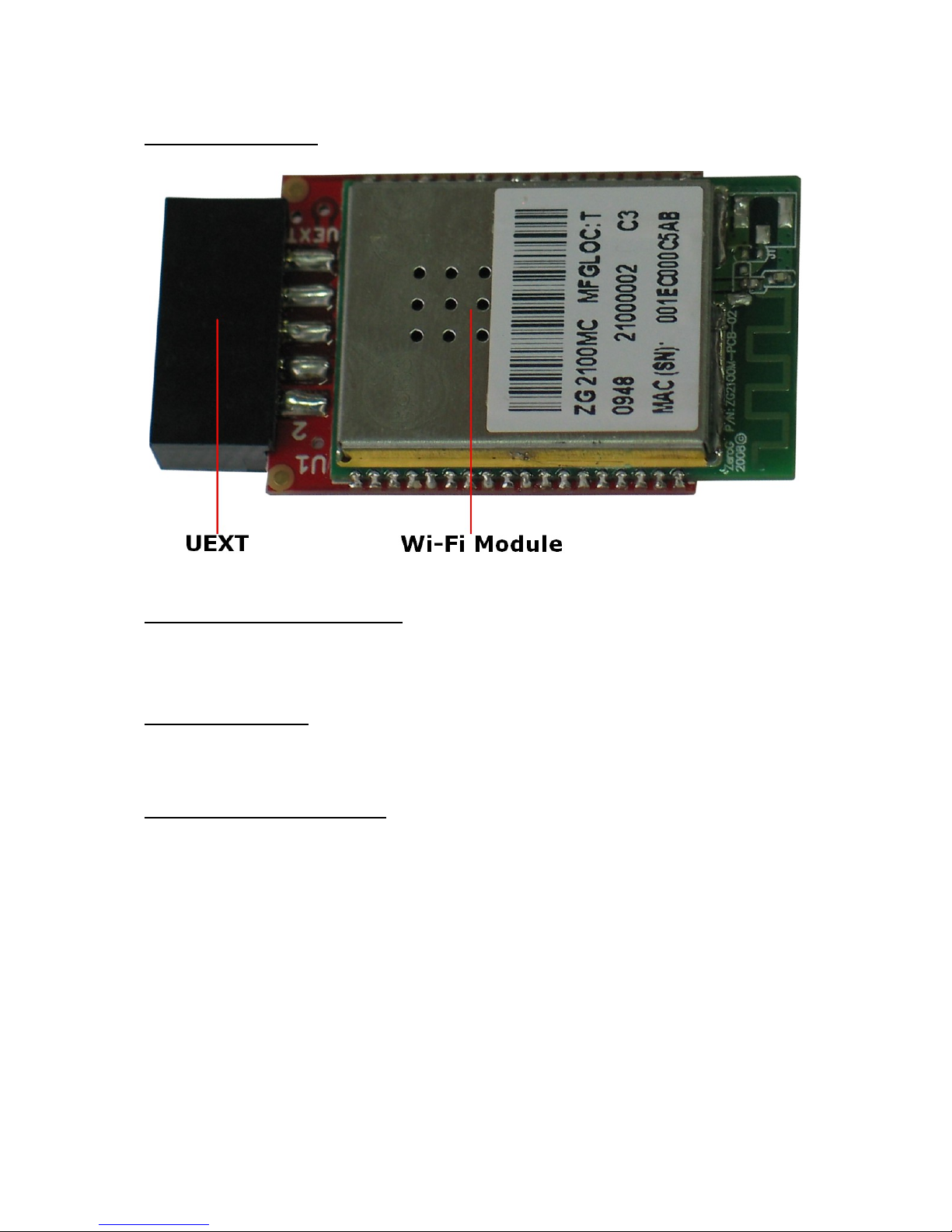

BOARD LAYOUT:
POWER SUPPLY CIRCUIT:
MOD-WiFi is typically power supplied by UEXT pin 1 and pin 2 with 3.3V.
The board power consumption is about 110 mA.
RESET CIRCUIT:
MOD-WiFi reset circuit includes pull down R4 (4.7k) connected to MRF24WB0MA
pin 8 (JTAG_RST_N) and pin 21 (JTAG_EN).
JUMPER DESCRIPTION:
There are no jumpers on this board.
Page 6
Page 7
CONNECTOR DESCRIPTIONS:
UEXT:
Pin # Signal Name
1 VCC
2 GND
3 RXD
4 TXD
5 INT_NX
6 RST_N
7 MISO
8 MOSI
9 SCK
10 #SS
Page 7
Page 8

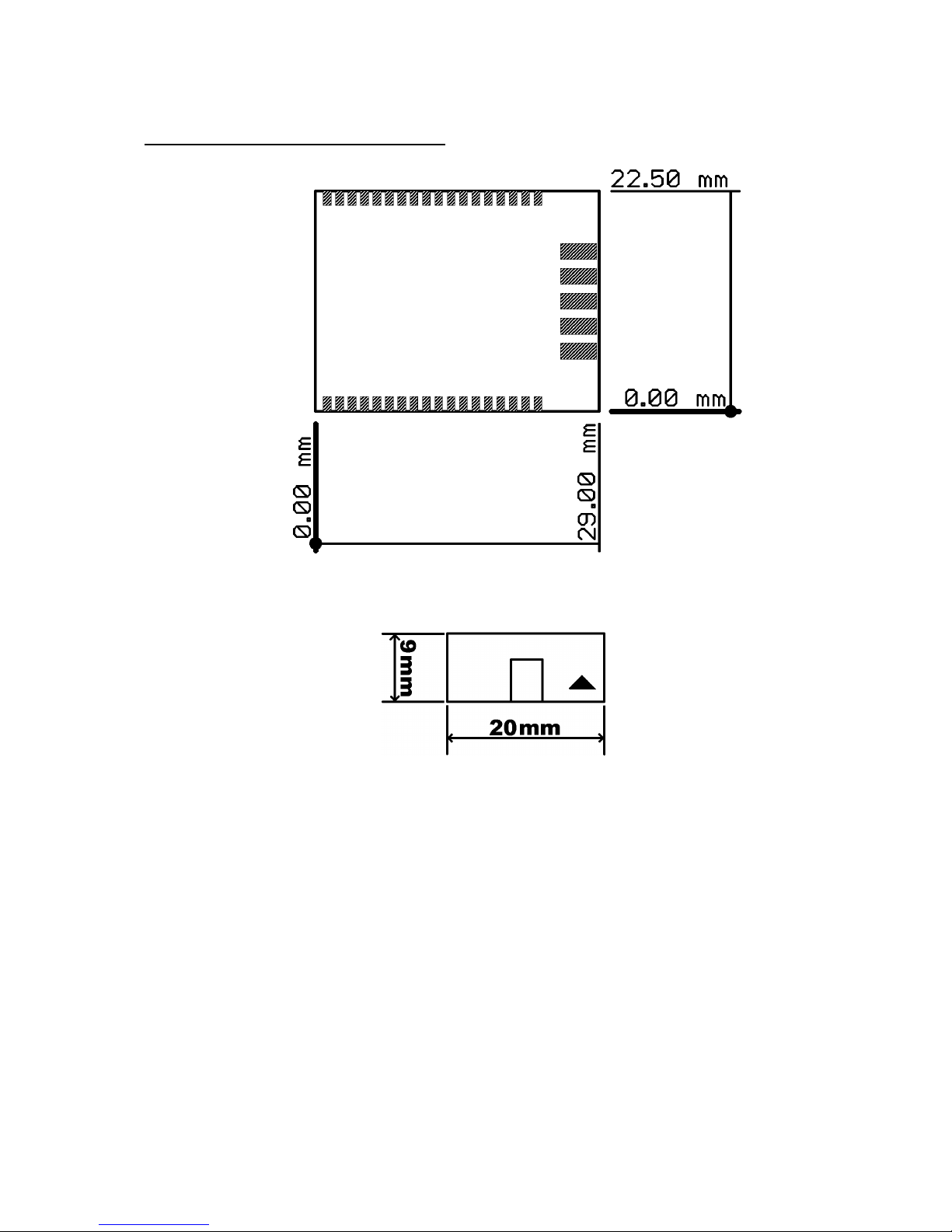

MECHANICAL DIMENSIONS:
UEXT measures
Page 8
Page 9
AVAILABLE DEMO SOFTWARE:
–Microchip's application libraries libraries that include a TCP-IP stack and examples,
very easy to configure and use with PIC microcontrollers.
– PIC-WEB and MOD-WIFI demo example; based on MICROCHIP's application
libraries: https://www.olimex.com/Products/PIC/Development/PIC-
WEB/resources/PIC_WEB_MOD_WIFI_5_42.zip
– MOD-MX460 and MOD-WIFI demo example:
https://www.olimex.com/Products/Modules/Ethernet/MODWIFI/resources/MOD-WIFI-demo-for-the-PIC32-MX460-rev.B-board.zip
– PIC-T795 and MOD-WIFI demo example:
https://www.olimex.com/Products/Duino/PIC32/PIC32-T795/resources/T795MOD-WIFI.zip
Page 9
Page 10
ORDER CODE:
MOD-WiFi – completely assembled and tested
How to order?
You can order to us directly or by any of our distributors.
Check our web www.olimex.com for more info.
Revision history:
Board revision: Rev. A – February 2010
Manual revision: Rev. Initial – June 2011
Rev. B – May 2014
