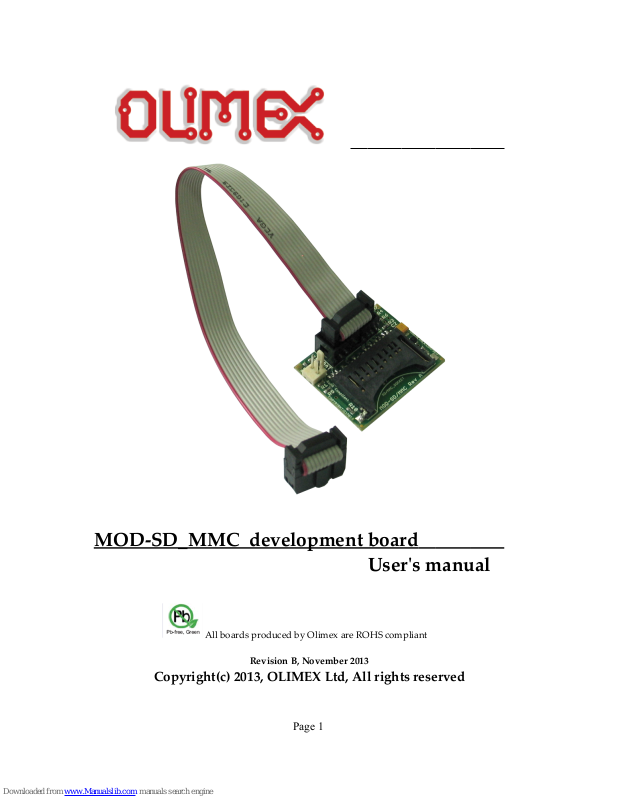

MOD-SD_MMC development board
User's manual
All boards produced by Olimex are ROHS compliant
Revision B, November 2013
Copyright(c) 2013, OLIMEX Ltd, All rights reserved
Page 1
Page 2
INTRODUCTION:
MOD-SDMMC is module board with SD/MMC connector on it. The board
is excellent extension for development boards without SD/MMC, but with UEXT.
You can connect the board via its 10 pin cable to the UEXT of another board and enjoy the enormous variety of SD/MMC applications.
BOARD FEATURES:
UEXT connector
BAT connector
SD/MMC_SOCKET
10 pin cable for the UEXT connector
FR-4, 1.5 mm, red soldermask, component print
Dimensions:38.00 x 31.00mm (1.50 x 1.22")
ELECTROSTATIC WARNING:
The MOD-SDMMC board is shipped in protective anti-static packaging. The
board must not be subject to high electrostatic potentials. General practice for
working with static sensitive devices should be applied when working with this
board.
BOARD USE REQUIREMENTS:
Cables: The boards is shipped with 10 pin cable for the UEXT connector.
Hardware: Some of OLIMEX's boards with UEXT.
Page 2
Page 3
SCHEMATIC:
You can find a searchable schematic at the web page of the MOD-SDMMC.
Page 3
Page 4
BOARD LAYOUT:
POWER SUPPLY CIRCUIT:
MOD-SD_MMC can take power from:
– + 3.3V via BAT connector.
– UEXT connector
Page 4
Page 5
EXTERNAL CONNECTORS DESCRIPTION:
UEXT:
Pin # Signal Name
1 3.3V
2 GND
3 WP
4 CP
5 DAT1
6 DAT2
7 MISO
8 MOSI
9 SCK
10 #SS
BAT
Pin # Signal Name
1 VCC
2 GND
Page 5
Page 6

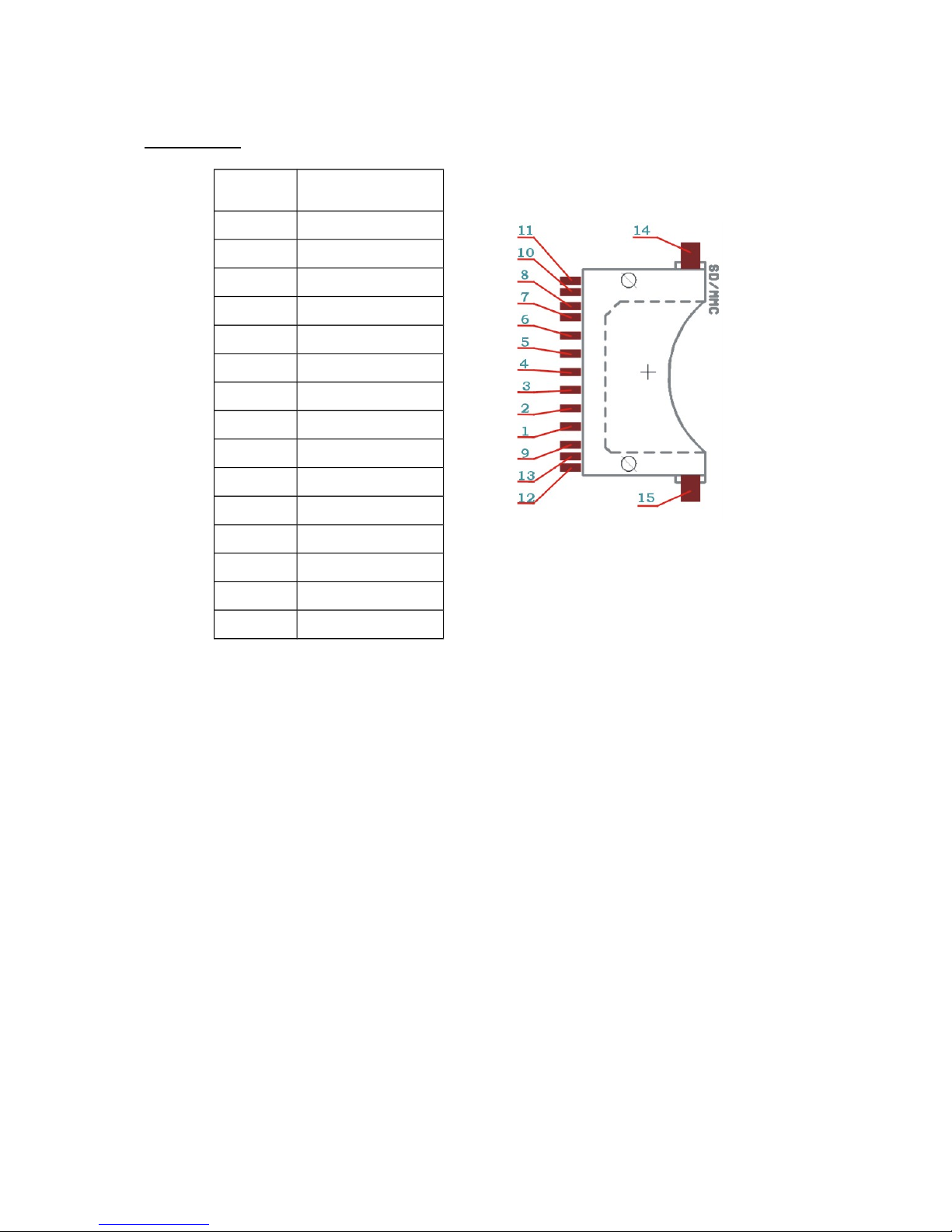

SD/MMC:
Pin # Signal Name
1 #SS
2 MOSI
3 GND
4 VCC
5 SCK
6 GND
7 MISO
8 DAT1
9 DAT2
10 WP
11 pull-down
12 pull-down
13 CP
14 pull-down
15 pull-down
Page 6
Page 7

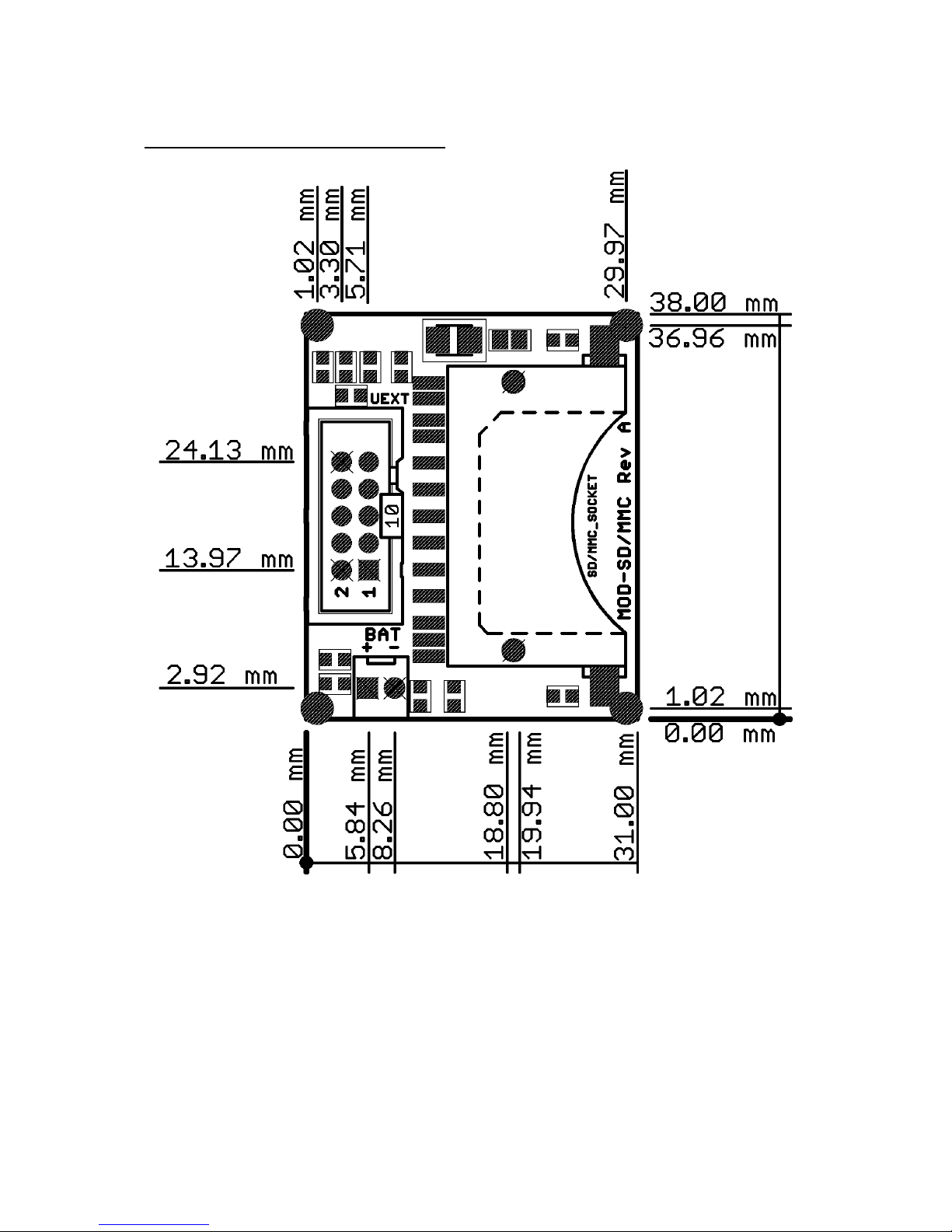

MECHANICAL DIMENSIONS:
Page 7
Page 8
ORDER CODE:
MOD-SDMMC - assembled and tested board
How to order?
You can order directly from our web shop or via our distributors.
Check our web site https://www.olimex.com for more info.
Revision history:
Board's revision: Rev. A, April 2011
Rev. C, November 2013
Manual's revision: Rev. Initial, June 2011
Rev. B, November 2013
