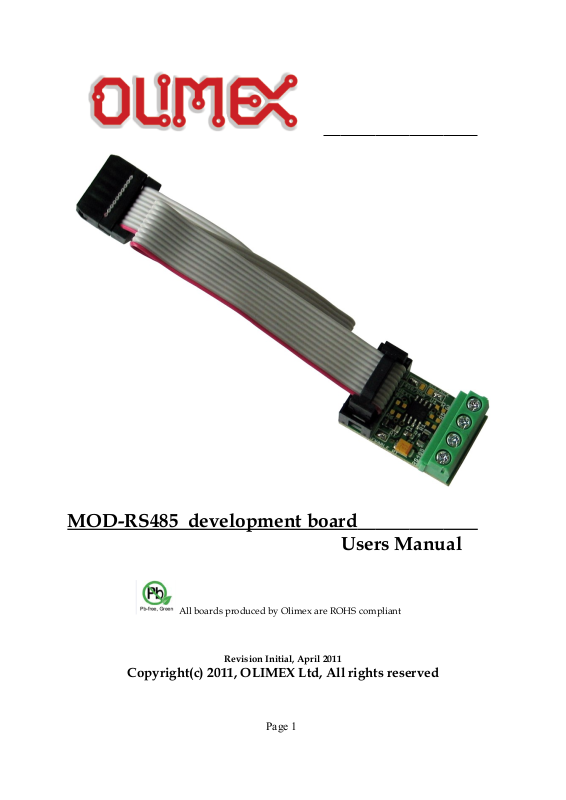

MOD-RS485 development board
Users Manual
All boards produced by Olimex are ROHS compliant
Revision Initial, April 2011
Copyright(c) 2011, OLIMEX Ltd, All rights reserved
Page 1
INTRODUCTION:
MOD-RS485 is a small module board realized with ADM3483ARZ - low
power, differential line transceiver designed to operate using a single 3.3 V power
supply, for half-duplex communication. This module can be used to convert RS232
signals into RS485 signals. The board comes with 10 pin cable for the UEXT, via
which it can be connected to each of our development boards with UEXT on it.
This module is an excellent choice for conveying information over long dis-
tances, allowing error-free data transmission at data rates up to 250 kbps.
BOARD FEATURES:
• Half-duplex transceiver ADM3483ARZ from Analog Devices
• UEXT connector
• RS485 connector
• FR-4, 1.5 mm, soldermask, component print
• Dimensions: 30.99x20.32mm (1.22 x 0.80")
ELECTROSTATIC WARNING:
The MOD-RS485 board is shipped in protective anti-static packaging. The board
must not be subject to high electrostatic potentials. General practice for working
with static sensitive devices should be applied when working with this board.
BOARD USE REQUIREMENTS:
Cables: The board comes with 10 pin cable for the UEXT connector.
Hardware: Any of our development boards wit UEXT connector on it.
Page 2
FUNCTIONAL BLOCK DIAGRAM:
Page 3
SCHEMATIC:
Page 4
10 0nF
47 uF/6.3V/tan t
0
NA
NA
NA
10 0R
NA
NA
TB4/5MM
12 0R
sck
BH10 S
3.3V 3.3V
3.3V
3.3V
3.3V
#ss
#SS
A
B
RXD
SCK
SCL SDA
TXD
123
#SS/SDA
C1
C2
12
ENABLE_RT
R1
R2
R3
R4
R5
R6
RS48 5-1
RS48 5-2
RS48 5-3
RS48 5-4
RT
1
2
3
SCL/SCK
/RE
2
A6B
7
DE3DI
4
GND
5
RO
1
VCC
8
U1
ADM34 83ARZ
1 2
3 4
5 6
7 8
9 10
UEXT
MOD-RS485
Re v. In itial
CO PYRIGH T(C) 201 0, O LIMEX L td .
http://www.olimex .com/dev
+

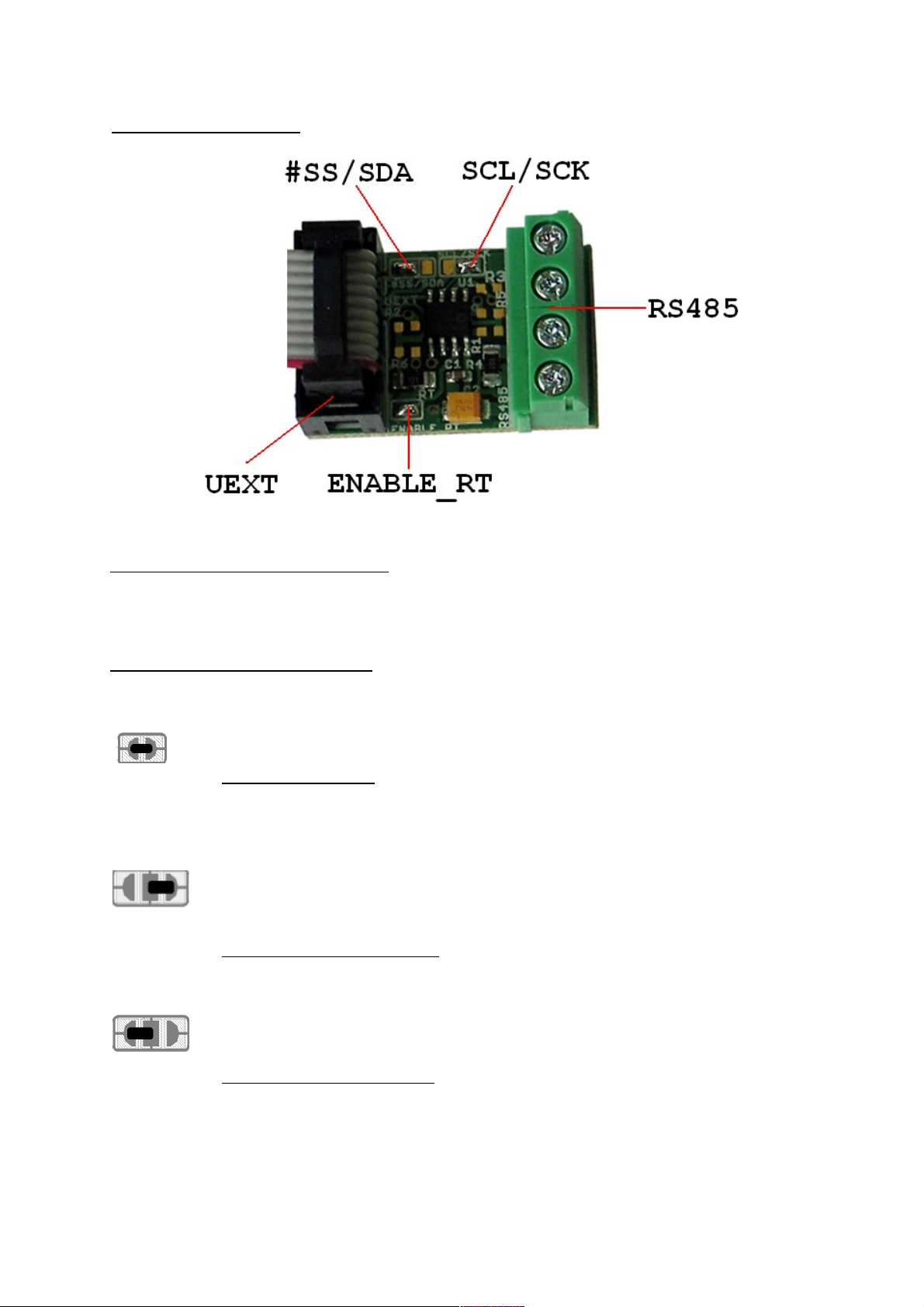

BOARD LAYOUT:
POWER SUPPLY CIRCUIT:
MOD-RS485 is power supplied via UEXT connector pin 1 (3.3V) and pin 2 (GND).
JUMPER DESCRIPTION:
ENABLE_RT
This jumper, when closed, enables 120 Ohm termination on the RS485 bus.
Default state is closed.
SCL/SCK
This jumper, when is in position SCL – connects UEXT pin 5 (SCL) to ADM3483ARZ
pin 3 (DE) and when is in position SCK – connects UEXT pin 9 (SCK) to
ADM3483ARZ pin 3 (DE).
Default state is in position SCK.
#SS/SDA
This jumper, when is in position #SS – connects UEXT pin 10 (#SS) to ADM3483ARZ
pin 2 (/RE) and when is in position SDA – connects UEXT pin 6 (SDA) to
ADM3483ARZ pin 2 (/RE).
Default state is in position #SS.
Page 5
EXTERNAL CONNECTORS DESCRIPTION:
UEXT:
Pin # Signal Name
1 VCC
2 GND
3 TXD
4 RXD
5 SCL
6 SDA
7 Not connected
8 Not connected
9 SCK
10 #SS
RS485:
Pin # Signal Name
1 VCC
2 100 Ohm pull-
down resistor
3 A
4 B
Page 6
MECHANICAL DIMENSIONS:
Page 7
AVAILABLE DEMO SOFTWARE:
- Coming soon at our web page: http://www.olimex.com/dev
Page 8
ORDER CODE:
MOD-RS485 - assembled and tested board
How to order?
You can order to us directly or by any of our distributors.
Check our web www.olimex.com/dev for more info.
