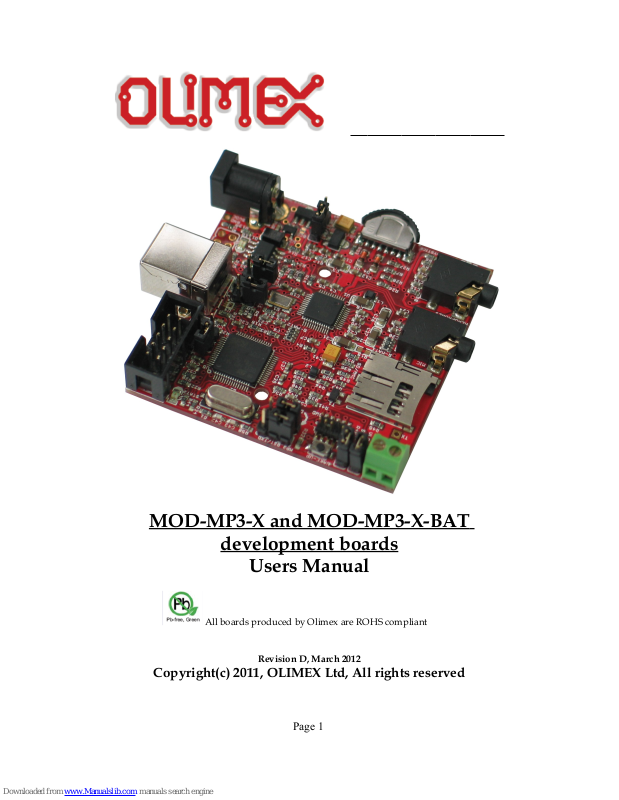

OLIMEX MOD-MP3-X, MOD-MP3-X-BAT User Manual

MOD-MP3-X and MOD-MP3-X-BAT

development boards

Users Manual

All boards produced by Olimex are ROHS compliant

Revision D, March 2012

Copyright(c) 2011, OLIMEX Ltd, All rights reserved

Page 1

INTRODUCTION:

MOD-MP3-X is MP3 player module based on VS1053 Ogg
Vorbis/MP3/AAC/-WMA/MIDI audio decoder and an IMA ADPCM and user­loadable Ogg Vorbis encoder; supports VBR (variable bit rate) for MP3; Supports
streaming. It also employs an on-board STM32F103RBT6 CORTEX-M3 microcon­troller for smart control via UEXT.

MOD-MP3-X has three modes of operation:

– Standalone mode – compatible with the old revision MOD-MP3 player. In

this mode VS1053 controls the playback of files written on a micro SD card inserted
in the board. The user is provided with controls on volume, sound effects, starting,
stopping and sequencing of files to play.

- UEXT playback mode – in this mode the board can be connected as slave device to
host microcontroller which streams data to the codec via SPI.

- UEXT smart control mode – in this mode the on-board microcontroller manages
playback of files written to the micro SD card. The microcontroller acts as a slave
device and accepts user commands via UART. Commands include SD card direct­ory listing, selecting of a file to play and playback and volume control.

STM32F103RBT6 firmware has an extra - Mass storage device, through
which you can save MP3 files to the SD card.

Note that, while the board works as mass storage device, it can not work in
UEXT smart control mode. If you want to use the board in UEXT smart control
mode, then the USB must not be plugged in and the board has to be power supplied
via external power supply (PWR_JACK or BATTERY).

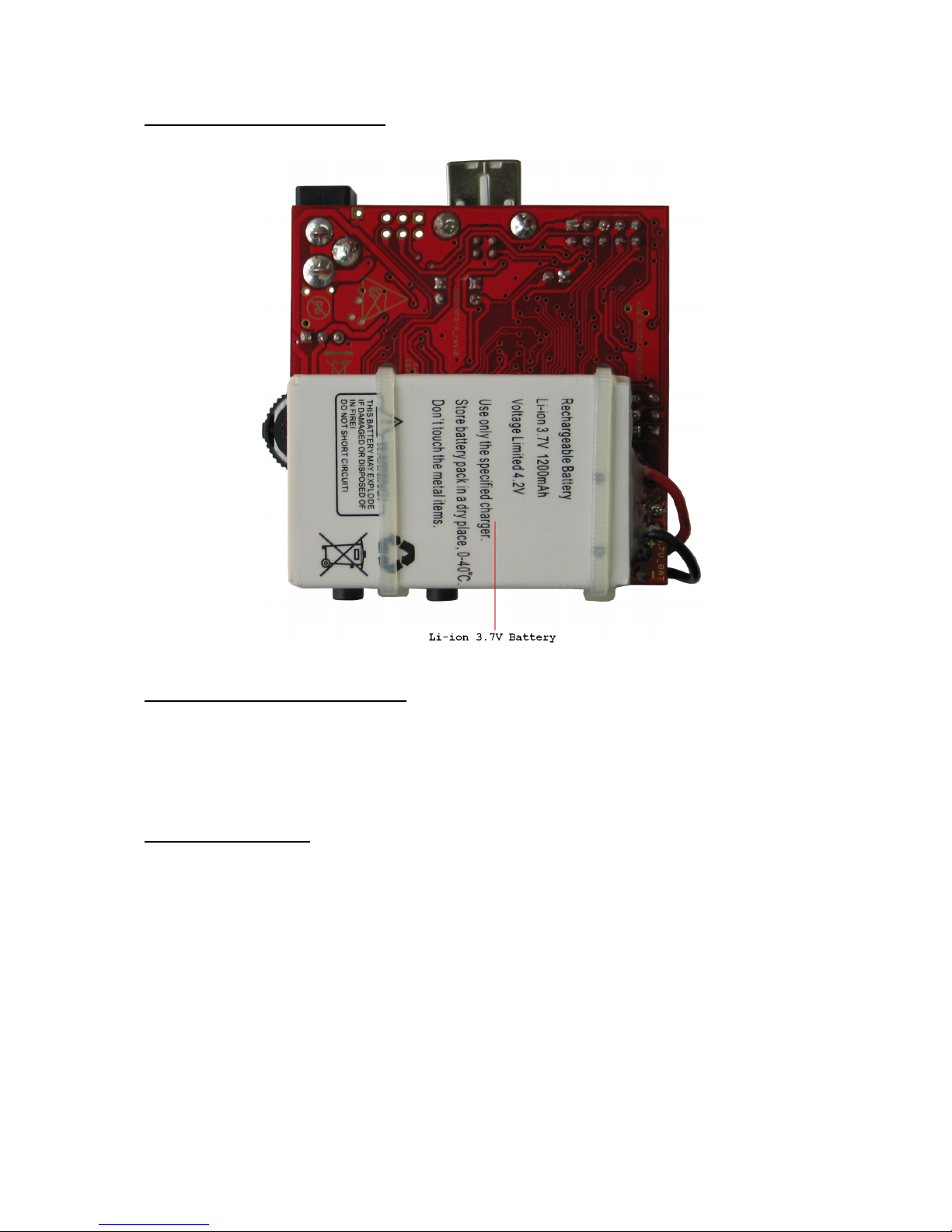

MOD-MP3-X ships in two variants – with and without battery. The battery
variant employs a Li-ion 3.7 V, 1200 mAh rechargeable battery and an on-board bat­tery charger.

BOARD FEATURES:

• On-board STM32F103RBT6 ARM 32-bit Cortex™-M3 microcontroller

• Based on VS1053 hardware decoder

• 3.7 V Li-ion battery and battery charger (for MOD-MP3-X-BAT)

• UEXT to connect to host microcontroller (standard connector on our

ARM development boards)

• Three modes of operation

• EEPROM with firmware for standalone mode

• micro SD card holder

• USB

• Stereo Audio microphone jack, Stereo Audio headphones jack

• Can be used to record and playback

Page 2

• Triple action joystick: Forward, Reverse, Play/Pause action

• Wake-up button

• Two status leds

• FR-4, 1.5 mm, soldermask, component print

• Dimensions: 60 x 60 mm ( 2.36 x 2.36")

ELECTROSTATIC WARNING:

The MOD-MP3-X board is shipped in protective anti-static packaging. The board
must not be subject to high electrostatic potentials. General practice for working
with static sensitive devices should be applied when working with this board.

BOARD USE REQUIREMENTS:

Cables: The cable you will need depends on the programmer/debugger you use. If

you use ARM-JTAG-EW, you will need USB A-B cable, for all types programmers
you will need ARM-JTAG-20to10 adapter.

Hardware: Programmer/Debugger ARM-JTAG-EW , ARM-USB-OCD, ARM-

USB-TINY, ARM-USB-TINY-H , ARM-USB-OCD-H or other compatible

programming/debugging tool. For EEPROM programming you can use PICkit 2
development programmer/debugger from Microchip, because we don't offer a
suitable programmer, yet.

PROCESSOR FEATURES:

MOD-MP3-X board use STM32F103RBT6 microcontroller from

STMicroelectronics with these features:

− Core: ARM 32-bit Cortex™-M3 CPU

− 72 MHz, 90 DMIPS with 1.25 DMIPS/MHz

− Single-cycle multiplication and hardware division

− Nested interrupt controller with 43 maskable interrupt channels

− Interrupt processing (down to 6 CPU cycles) with tail chaining

− Memories

− 128 Kbytes of Flash memory

− 20 Kbytes of SRAM

− Clock, reset and supply management

− 2.0 to 3.6 V application supply and I/Os

− POR, PDR, and programmable voltage detector (PVD)

− 4-to-16 MHz quartz oscillator

− Internal 8 MHz factory-trimmed RC

Page 3

− Internal 32 kHz RC

− PLL for CPU clock

− Dedicated 32 kHz oscillator for RTC with calibration

− Low power

− Sleep, Stop and Standby modes

− VBAT supply for RTC and backup registers

− 2 x 12-bit, 1 μs A/D converters (16-channel)

− Conversion range: 0 to 3.6 V

− Dual-sample and hold capability

− Synchronizable with advanced control timer

− Temperature sensor

− DMA

− 7-channel DMA controller

− Peripherals supported: timers, ADC, SPIs, I

2

Cs and USARTs

− Debug mode

− Serial wire debug (SWD) & JTAG interfaces

− 49 fast I/O ports

− 49 5 V-tolerant I/Os

− All mappable on 16 external interrupt vectors

− Atomic read/modify/write operations

− 4 timers

− 3 general purpose timers

− 1 advanced control timer

− Up to 9 communication interfaces

− 2 I

2

C interfaces (SMBus/PMBus)

− 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)

− 2 SPIs (18 Mbit/s)

− CAN interface (2.0B Active)

− USB 2.0 full speed interface

Page 4

BLOCK DIAGRAM:

Page 5

MEMORY MAP:

Page 6

AUDIO CODEC FEATURES:

− Decodes Ogg Vorbis; MPEG 1 & 2 audio layer III (CBR +VBR +ABR); layers I &

II optional; MPEG4 / 2 AAC-LC(+PNS), HE-AAC v2 (Level 3) (SBR + PS);
WMA4.0/4.1/7/8/9 all profiles (5-384 kbps); WAV (PCM + IMA ADPCM);
General MIDI 1 / SP-MIDI format 0 files

− Encodes Ogg Vorbis with software plugin

− Encodes IMA ADPCM from mic/line (stereo)

− Streaming support for MP3 and WAV

− EarSpeaker Spatial Processing

− Bass and treble controls

− Operates with a single 12..13MHz clock

− Can also be used with a 24..26MHz clock

− Internal PLL clock multiplier

− Low-power operation

− High-quality on-chip stereo DAC with no phase error between channels

− Zero-cross detection for smooth volume change

− Stereo earphone driver capable of driving a 30-load

− Quiet power-on and power-off

− I2S interface for external DAC

− Separate voltages for analog, digital, I/O

− On-chip RAM for user code and data

− Serial control and data interfaces

− Can be used as a slave co-processor

− SPI flash boot for special applications

− UART for debugging purposes

Page 7

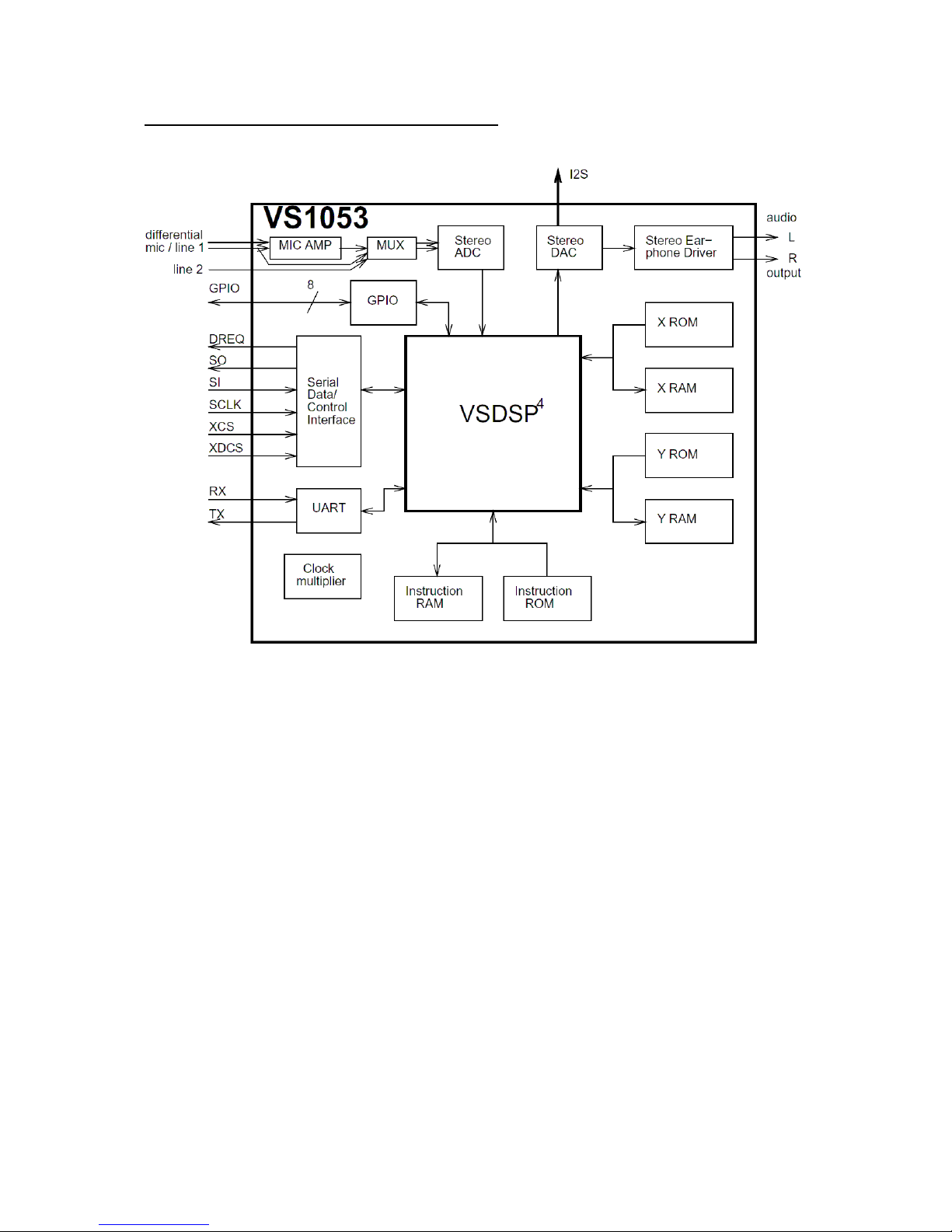

AUDIO CODEC BLOCK DIAGRAM:

Page 8

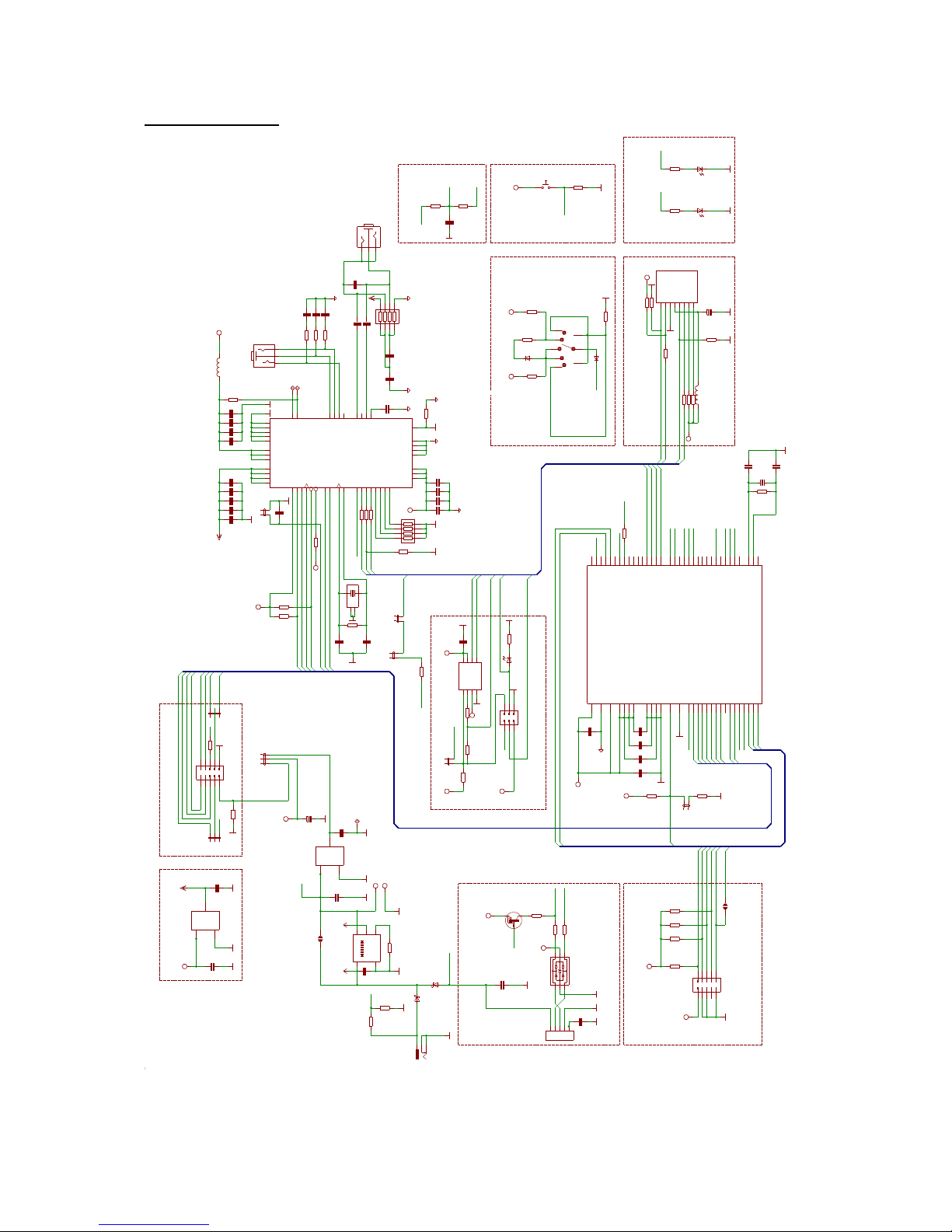

SCHEMATIC:

Page 9

TB2/3. 5mm

HN1x3

1uF

1uF

10uF/10V

100nF

100nF

100nF

100nF

10uF/10V

100nF

100nF

100nF

100nF

10nF

47uF/ 6.3V/TA NT

47nF

10nF

1uF

1uF

33pF

1uF

100p F

100n

33pF

1uF

1uF

10uF/ 10V

10uF/ 10V

100nF

100nF

100nF

10uF/ 10V

100n F

100nF

100n F

10nF

100n F

100nF 100nF

100nF

100nF

47uF/6.3V/TANT

27pF

27pF

1N58 19S

1N58 19S

1N4148

1N41 48

HN1x3

HN1x3

NA

SCG3 25\3.5 mm

CL470nH/08 05/0.47R

CL470nH/08 05/0.47R

red

SCG3 25\3.5 mm

HN1x3

+5V

+5V

YDJ-1 134

12.28 8Mhz

8MHz

1K

100K

200R

100K

100K

100K

100K

22R

100K

10R

22R

1M

100R

100R

20k

100R

33k

4.7K

680K

47R

270k/ 1%

10K

1M/1%

100K

200R

1K

1K

100K

100K

1.5k

22R

22R

10K

200R

200R

10K

10K

1M

47R

10K 10K 10K 10K 470R 470R

100R

100K

100K

560R

1M

1M

HN1x2

MICRO

gree n yellow

GPH1 27SMT-0 2x05( PIN7- CUT)

DTA114 YKA

VS105 3

MCP73812T-4 20I/OT

25LC 640

USBLC 6-2P6 (NA)

STM32F1 03RBT6 (LQFP 64)

BH10S

HN1x3

USB_B

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3V3

3.3V

3.3V

3.3V

3.3V

1.8V

1.8V

1.8V

MCP17 00T-18 02E/ MB

MCP170 2T-33 02E/MB

SPI1_MISO, SPI1_MOS I,SPI1_SC K,DC S,DREQ, RXD,T XD,XC S,MP3_R ST

SPI2_NSS,SP I2_MOSI, SPI2_SCK ,SPI2_MI SO

TCK/SWC LK,TDI ,TMS/SWD ,TDO,RS T,TRST

+3.3V_ UEXT

+3.3V_ UEXT

+3.3V_ UEXT

BAT_SEN SE

BAT_SEN SE

BAT_SEN SE_E

BAT_SEN SE_E

DCS

DCS

DCS

DCSDCS

DCS

DCS

DISC

DISC

DREQDREQ

DREQ

DREQ

DREQ

JACK_ DETECT

JACK_ DETECT

MP3_R ST

MP3_R ST

MP3_RS T

RST

RST

RST

RST

RX

RXD

RXD

RXD

SPI1_ MISO

SPI1_MI SO

SPI1_MI SO

SPI1_MI SO

SPI1_ MISO

SPI1_ MOSI

SPI1_ MOSI

SPI1_ MOSI

SPI1_MO SI

SPI1_MO SI

SPI1_ MOSI

SPI1_MO SI

SPI1_ SCK

SPI1_S CKSPI1_SCK

SPI1_ SCK

SPI1_ SCK

SPI1_ SCK

SPI2_MI SO

SPI2_MI SO

SPI2_MI SO

SPI2_ MISO

SPI2_MI SO

SPI2_ MISO

SPI2_ MISO

SPI2_ MOSI

SPI2_ MOSI

SPI2_MO SI

SPI2_ MOSI

SPI2_MO SI

SPI2_ MOSI

SPI2_ MOSI

SPI2_N SS

SPI2_ NSS

SPI2_ NSS

SPI2_ NSS

SPI2_ NSS

SPI2_ NSS

SPI2_ SCK

SPI2_S CK

SPI2_ SCK

STAT1

STAT1

STAT2

STAT2

SW-CS1

SW-CS1

SW-CS1

SW-CS 1

SW-CS 1

TCK/SWC LK

TCK/SWC LK

TCK/SWC LK

TDI

TDI

TDI

TDO

TDO

TDO

TDO

TMS/SWD

TMS/SWD

TMS/SWD

TRST

TRST

TRST

TX

TXD

TXD

USBDM

USBDM

USBDP

USBDP

USB_D ETECT

USB_D ETECT

VBAT

VBAT

WAKE-U P

WAKE-UP

XCS

XCS

XCSXCS

XCS

XCS

BATTERY- 1

BATTERY- 2

1 2

BCD

1
2

BOOT_ E

C1

C2

C3

C4

C5

C6 C7

C8

C9

C10 C11

C12

C13

C14

C15

C16

C17

C18

C19

C20

C21

C22

C23

C24

C25

C26

C27

C28 C29 C30

C31

C32

C33

C34

C35

C36

C37 C38 C39 C40

C41

C42

C43

D1

D2

D3

D4

123

DREQ/ RXD

1
2

DREQ_ E

1 2

3 4

5 6

EEPGM

GND

HEADPH ONES

L1

L2

LED

MIC

123

MP3_RS T/TXD

PWR

GND

GND_

Q1

Q2

R-MAT1

R-MAT2

1 2

R-T

R1

R2

R3

R4

R5

R6R7R8

R9

R10

R11

R12

R13

R14

R15

R16

R17

R18

R19

R20

R21 R22

R23

R24

R25

R26

R27

R28

R29

R30

R31

R32

R33

R34

R35

R36

R37

R38

R39 R40 R41 R42 R43 R44

R45

R46

R47

R48

R49

R50

RX

1
2

SA_E

CD/DAT3/CS2CLK/SCLK5CMD/DI3DAT0/DO7DAT1/RES8DAT2/RES1VDD4VSS

6

SD/MMC

STAT1 STAT2

1

2

STM_RST

1 2

3 4

5 6

7 8

9 10

SWD

T1

TX

AGND0

37

AGND1

40

AGND2

41

AGND3

47

AVDD0

38

AVDD1

43

AVDD2

45

CVDD0

5

CVDD1

7

CVDD2

24

CVDD3

31

DGND0

4

DGND1

16

DGND2

20

DGND3

21

DGND4

22

DREQ

8

GBUF

42

GND

35

GPIO0/SPIBOOT33GPIO134GPIO2/DCLK9GPIO3/SDATA10GPIO4/I2S_LROUT36GPIO5/I2S_MCLK25GPIO6/I2S_SCLK11GPIO7/I2S_SDATA

12

IOVDD0

6

IOVDD1

14

IOVDD2

19

LEFT

46

LINE2

48

MICN

2

MICP/LINE1

1

RCAP

44

RIGHT

39

RX

26

SCLK28SI29SO

30

TX

27

VCO

15

XCS23XDCS/BSYNC13XRESET3XTALI18XTALO

17

XTEST

32

U1

CE

1

PROG

5

VBAT

3

VDD4VSS

2

U2

CS1GND

4

HOLD

7

SCK

6SI5

SO

2

VCC

8

WP

3

U3

123 4

5

6

U4

BOOT060NRST7PA0-WKUP/USART2_CTS/ADC0/TIM2_CH1_ETR14PA1/USART2_RTS/ADC1/TIM2_CH215PA2/USART2_TX/ADC2/TIM2_CH316PA3/USART2_RX/ADC3/TIM2_CH417PA4/SPI1_NSS/USART2_CK/ADC420PA5/SPI1_SCK/ADC521PA6/SPI1_MISO/ADC6/TIM3_CH122PA7/SPI1_MOSI/ADC7/TIM3_CH223PA8/USART1_CK/TIM1_CH1/MCO41PA9/USART1_TX/TIM1_CH242PA10/USART1_RX/TIM1_CH343PA11/USART1_CTS/CANRX/USBDM/TIM1_CH444PA12/USART1_RTS/CANTX/USBDP/TIM1_ETR45PA13/JTMS-SWDAT46PA14/JTCK-SWCLK49PA15/JTDI

50

PB0/ADC8/TIM3_CH326PB1/ADC9/TIM3_CH4

27

PB2/BOOT1

28

PB3/JTDO

55

PB4/JTRST

56

PB5/I2C1_SMBA

57

PB6/I2C1_SCL/TIM4_CH1

58

PB7/I2C1_SDA/TIM4_CH2

59

PB8/TIM4_CH361PB9/TIM4_CH4

62

PB10/I2C2_SCL/USART3_TX

29

PB11/I2C2_SDA/USART3_RX

30

PB12/SPI2_NSS/I2C2_SMBAL/USART3_CK/TIM1_BKIN

33

PB13/SPI2_SCK/USART3_CTS/TIM1_CH1N

34

PB14/SPI2_MISO/USART3_RTS/TIM1_CH2N

35

PB15/SPI2_MOSI/TIM1_CH3N

36

PC0/ADC108PC1/ADC119PC2/ADC1210PC3/ADC1311PC4/ADC1424PC5/ADC15

25

PC637PC738PC839PC9

40

PC1051PC1152PC12

53

PC13/ANTI_TAMP

2

PC14/OSC32_IN

3

PC15/OSC32_OUT

4

PD0/OSC_IN

5

PD1/OSC_OUT

6

PD2/TIM3_ETR

54

VBAT1VDDA13VDD_132VDD_248VDD_364VDD_419VSSA

12

VSS_131VSS_247VSS_363VSS_4

18

U5

1 2

3 4

5 6

7 8

9 10

UEXT

1

2

3

UEXT/BA T

123

4

USB

1

2

VLS_RS T

GND1VIN

2

VOUT

3

VR1(1 .8V)

GND1VIN

2

VOUT

3

VR2(3 .3V)

WAKE-UP

5VDC

MOD-MP3-X

Rev. B

COPYR IGHT(C ) 201 1, OL IMEX Lt d.

http:/ /www. olimex.c om/dev

+

+

1-L

2

3-R

1-L23-R

R1R2R3

R4

R1

R2

R3

R4

0R

10k

47k

BATTERY

CHARGER

USB

SHIE LD

Battery Charger

STAT_LEDS

VCORE

USER INTERFACE

UEXT

EEPROM

JTAG

USB

SD/MMC

WAKE-UP

VOLTAGE

SW3

SW2SW1

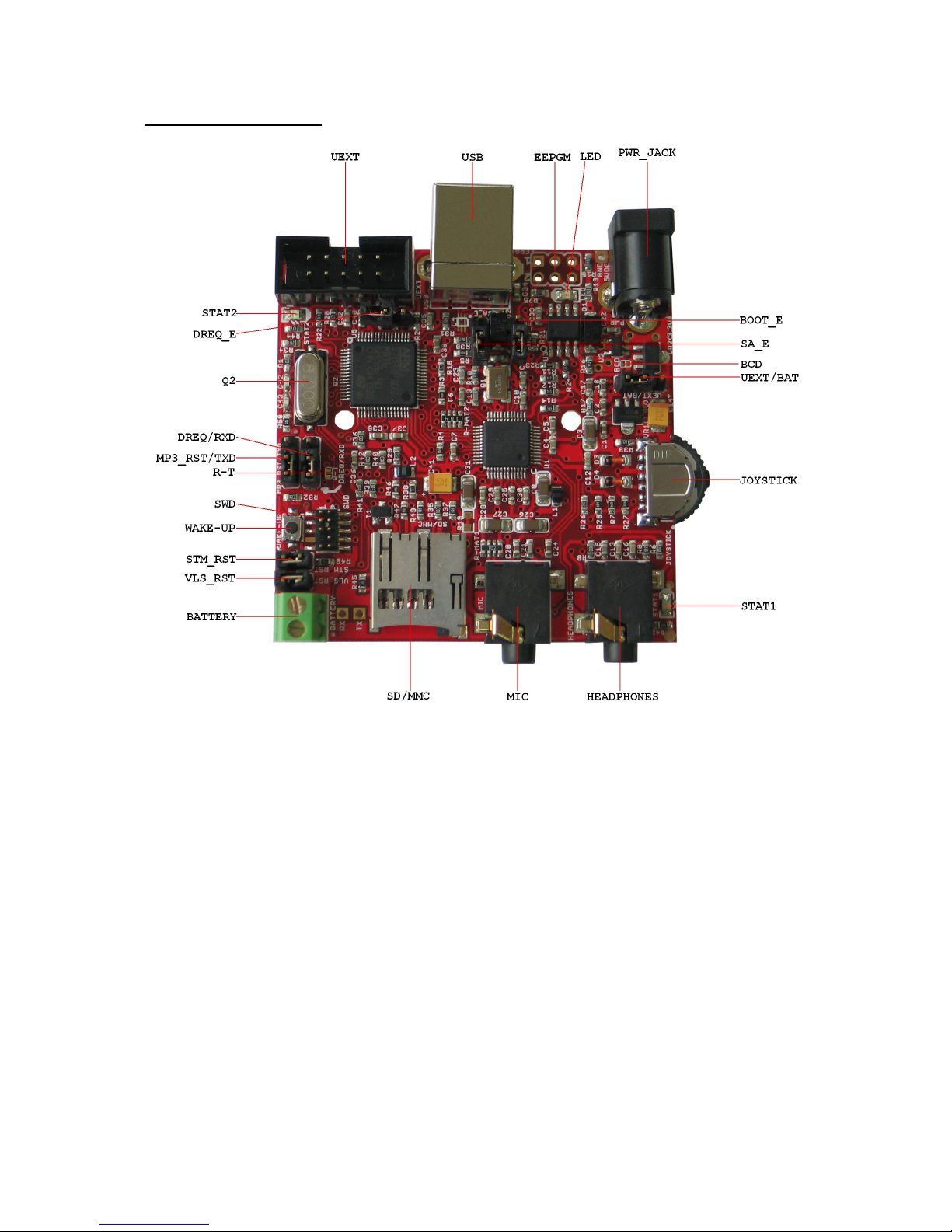

BOARD LAYOUT:

Page 10

MOD-MP3-X-BAT (only):

POWER SUPPLY CIRCUIT:

MOD-MP3-X is typically power supplied with 5 VDC.

The programmed board power consumption is about 70 mA with all peripherals
enabled.

RESET CIRCUIT:

MOD-MP3-X reset circuit for VS1053 includes RC group - R7 (100kΩ) pull-

up and C12 (100nF), jumper MP3_RST, jumper VLS_RST, STM32F103RBT6 pin 43
(PA10/USART1_RX/TIM1_CH3) and VS1053 pin 3 (XRESET).

Note, that if VLS_RST jumper is closed, STM32F103RBT6 must not control

the VS1053 RESET, because VLS_RST is connected to ground.

MOD-MP3-X reset circuit for STM32F103RBT6 includes R36 (10kΩ) pull-

up, STM_RST jumper, SWD pin 10 and STM32F103RBT6 pin 7 (NRST).

Page 11

CLOCK CIRCUIT:

Quartz crystal Q1 (12.288 MHz) is connected to VS1053 pin 17 (XTALO)

and pin 18 (XTALI).

Quartz crystal Q2 (8 MHz) is connected to STM32F103RBT6 pin 5

(PD0/OSC_IN) and pin 6 (PD1/OSC_OUT).

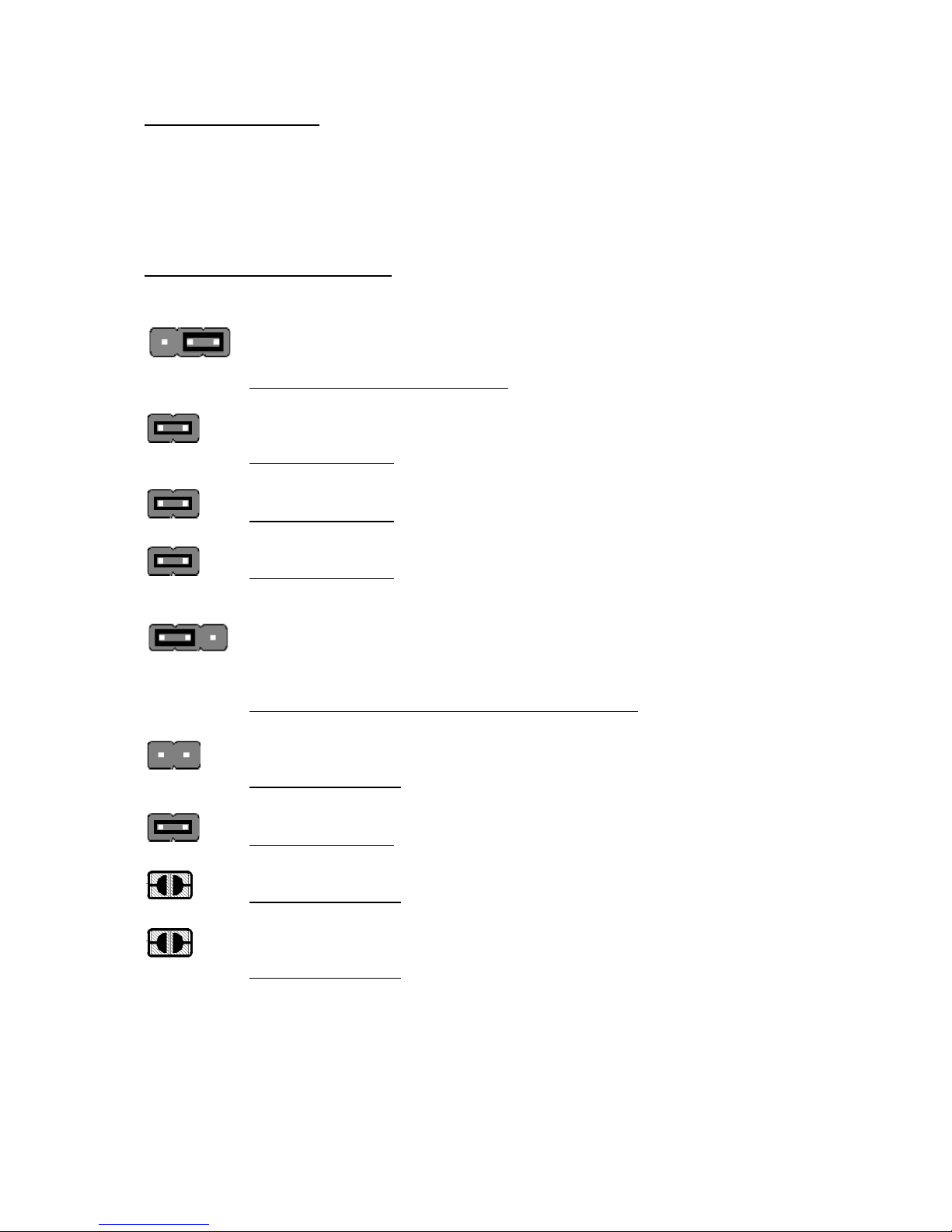

JUMPER DESCRIPTION:

UEXT/BAT

When this jumper is shorted in position UEXT – the board is power suppied via

UEXT. When this jumper is shorted in position BAT – the board is power supplied via
BATTERY, USB or external power supply.
Default state is shorted in position BAT.

BOOT_E

When this jumper is closed, codec is able to boot firmware from EEPROM. This is for
standalone mode.
Default state is closed.

SA_E

This jumper connects SPI2_MOSI signal with SPI1_SCK signal.
Default state is closed.

DREQ_E

This jumper connects SPI1_SCK signal with DREQ signal.
Default state is closed.

MP3_RST/TXD and DREQ/RXD

When these jumpers are shorted in position MP3_RST and DREQ, the codec is
controlled direct via UEXT, without involving STM32F103RBT6. When these jumpers

are shorted in position TXD and RXD - via the UART interface of UEXT may be
submitted to STM32F103RBT6 commands to operate the codec.
Default states are shorted in positions MP3_RST and DREQ.

VLS_RST

When this jumper is closed, STM32F103RBT6 must not control the VS1053 RESET,
because VLS_RST jumper connects VS1053 pin 3 (XRESET) to ground
Default state is opened.

STM_RST

When this jumper is closed, STM32F103RBT6 is in reset.
Default state is closed.

R-T

This jumper connects RST signal with TRST signal.
Default state is opened.

BCD

This jumper connects the battery charger input and output. When is closed the battery
charger is disabled.
Default state is opened.

Page 12

Jumpers description depending on mode:

Jumpers Standalone mode UEXT playback mode UEXT smart control mode

UEXT/BAT BAT UEXT BAT

BOOT_E closed opened opened

SA_E closed opened opened

DREQ_E closed opened opened

MP3_RST/TXD MP3_RST MP3_RST TXD

DREQ/RXD DREQ DREQ RXD

STM_RST closed closed opened

VLS_RST opened opened opened

Jumpers description for changing EEPROM firmware:

–SA_E, BOOT_E and DREQ_E – opened

–STM_RST and VLS_RST – closed

–DREQ/RXD – closed in position DREQ

–MP3_RST/TXD – closed in position MP3_RST

–UEXT/BAT – closed in position BAT (position of this jumper depends on the source of

power that you will choose)

In this jumper position you can program on board EEPROM with the proper programmer
(for example PICkit2). Note that you have to make custom adapter cable between
EEPROM programmer and EEPGM connector. See EEPGM connector description below.

Commands for UEXT smart control mode:

In this mode you can use RXD and TXD signals of UEXT connector to communicate
between MOD-MP3-X and your computer. For this purpose, for example, you can use our
module MOD-USB-RS232, which creates a virtual COM Port. The COM Port setting are
9600bps 8N1.

You can also use other our boards with UEXT to connect with MOD-MP3-X.

It is the list of used commands:

Note: For the latest version visit our site: www.olimex.com/dev

- "L" - lists the current directory and return its contents, directories are marked with
a <DIR> tag

- "CDIRNAME <name>" - switch the current directory to <name>, name should be
up to 8 characters long

- "cnum <index>" - switch the current directory to the one with given <index>, as
displayed with the "L" command

- "." - returns to the parent directory, no higher than the root directory

Page 13

- "PSONGNAME <name>" - plays file in the current directory by its <name>,
<name> should be in 8+3 format and the only extension supported is ".MP3"

- "pnum <num>" - plays file in the current directory by its <index>, starting from 0.
<index> may be calculated by the sequence number displayed with the "L"
command minus the number of directories in the current directory.

- "OFF" - turns the codec chip OFF, may be executed at any time

- "ON" - turns the codec chip ON, may be executed at any time

These commands have meaning only when playback is started:

- "C - stop playing current file, returns "Stopped."

- "+" - increase volume by 0.5dB step, 0 refers to max volume value, 254 is minimal
value.

- "-" - decrease volume by 0.5dB step, 0 refers to max volume value, 254 is minimal
value.

- "p" - play/pause toggle during playback, returns "Paused"/"Playing" respectively.

- "?" - display information on supported commands.

*Note: All of the commands should be followed by a newline character ('\n' or
"\r\n")!

INPUT/OUTPUT:

Status Led (green) with name STAT1, connected to STM32F103RBT6 pin 2

(PC13/ANTI_TAMP).

Meaning of the status LED (STAT1) activity:

- When in mass storage mode the LED indicates SD card read/write activity.

- When playing a file in MP3 player mode LED is constantly ON.

- When playback is paused in MP3 player mode LED is blinking with 0.5Hz period.

Battery level status Led (yellow) with name STAT2, connected to STM32F103RBT6
pin 3 (PC14/OSC32_IN).

Battery level status LED (STAT2) activity:

- When powered by the battery the MOD-MP3-X indicated low battery level. If
voltage of the battery falls below 3.3V then the STAT2 LED starts to blink.

- If an external power source is connected, then battery starts charging. In this case
STAT2 LED is constantly lit while battery is charging and turns off when battery is
fully charged.

Power-on led (red) with name LED is used by VS1053 firmware and is connected to
STM32F103RBT6 pin 36 (SPI2_MOSI).

Wake-up button, connected to STM32F103RBT6 pin 14 (PA0-WKUP).

Switch with name Joystick with three positions: SW1, SW2 and SW3.

Position Short Keypress Long Keypress

SW1 (to power jack) Next Song Volume up

Page 14

SW2 (to headphones) Previous Song Volume down

SW3 (pressed) Pause/Play -

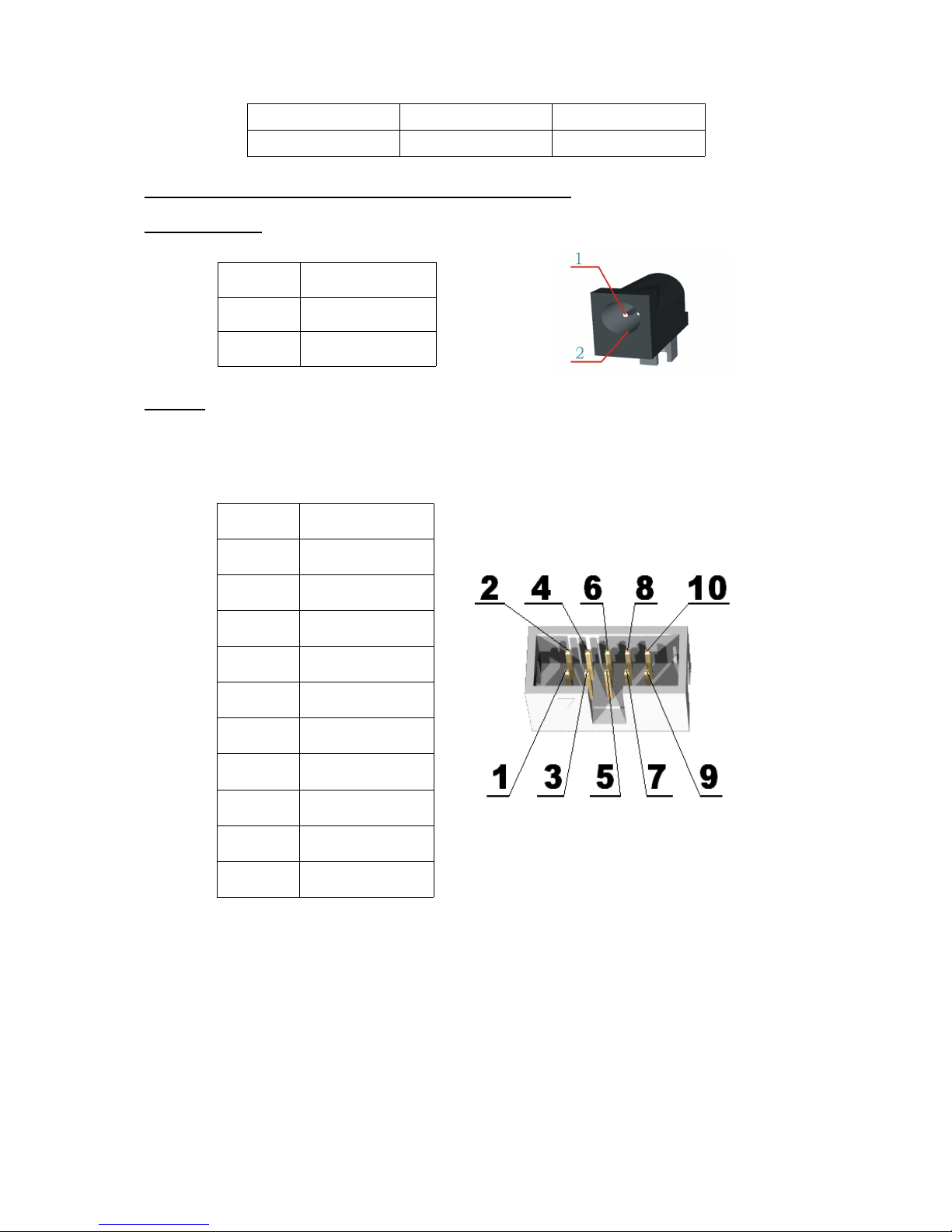

EXTERNAL CONNECTORS DESCRIPTION:

PWR_JACK:

Pin # Signal Name

1 Power Input

2 GND

UEXT:

Important note: If you apply power to a host device and then connect the host to the UEXT of MOD­MP3-X it might restart your host. The workaround is to connect the host to the UEXT of MOD-MP3-X
and then apply power to the host!

Pin # Signal Name

1 +3.3V_UEXT

2 GND

3 DREQ/RXD

4 MP3_RST/TXD

5 XCS

6 SW-CS1

7 SPI1_MISO

8 SPI1_MOSI

9 SPI1_SCK

10 DCS

Page 15

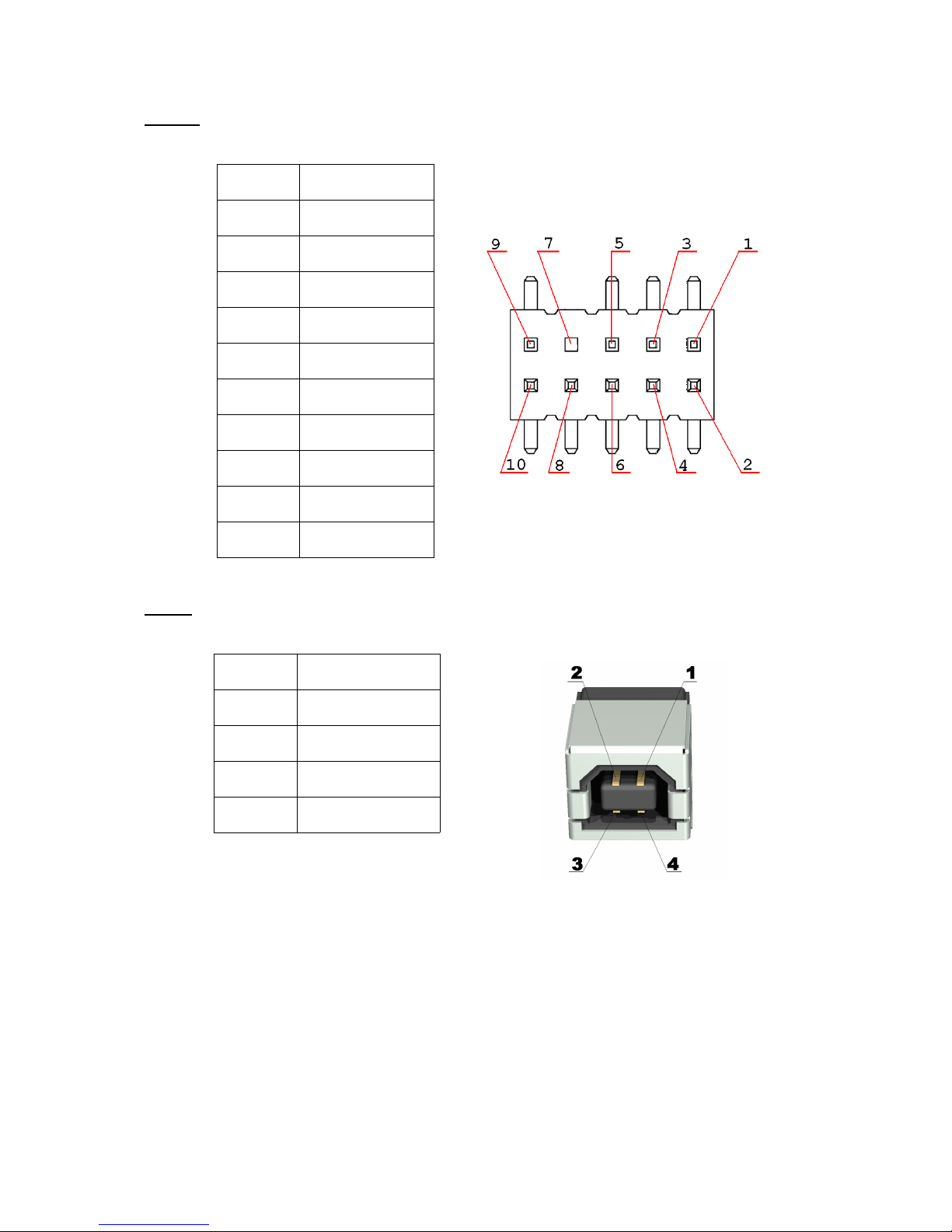

SWD:

Pin # Signal Name

1 VCC (3.3V)

2 TMS/SWD

3 GND

4 TCK/SWCLK

5 GND

6 TDO

7 CUT (NC)

8 TDI

9 GND

10 RST

USB:

Pin # Signal Name

1 USB_DETECT

2 USBDM

3 USBDP

4 GND

Page 16

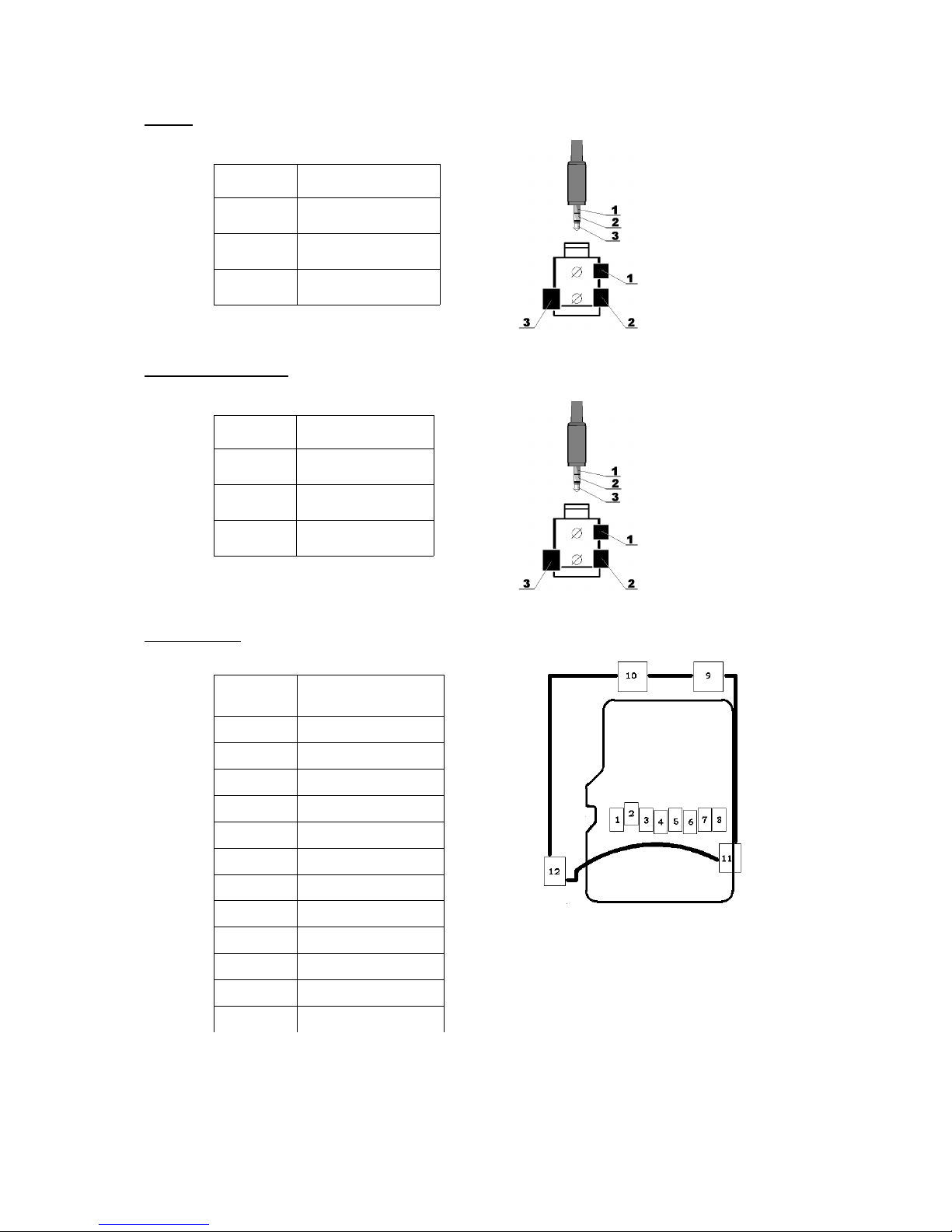

MIC:

Pin # Signal Name

1 MICN

2 MICP/LINE1

3 MICP/LINE1

HEADPHONE:

Pin # Signal Name

1 GBUF

2 RIGHT

3 LEFT

SD/MMC:

Pin # Signal Name

1 MCIDAT2

2 SPI2_NSS

3 SPI2_MOSI

4 VCC

5 SPI2_SCK

6 GND

7 SPI2_MISO

8 MCIDAT1

9 Not Connected

10 Not Connected

11 Not Connected

12 Not Connected

Page 17

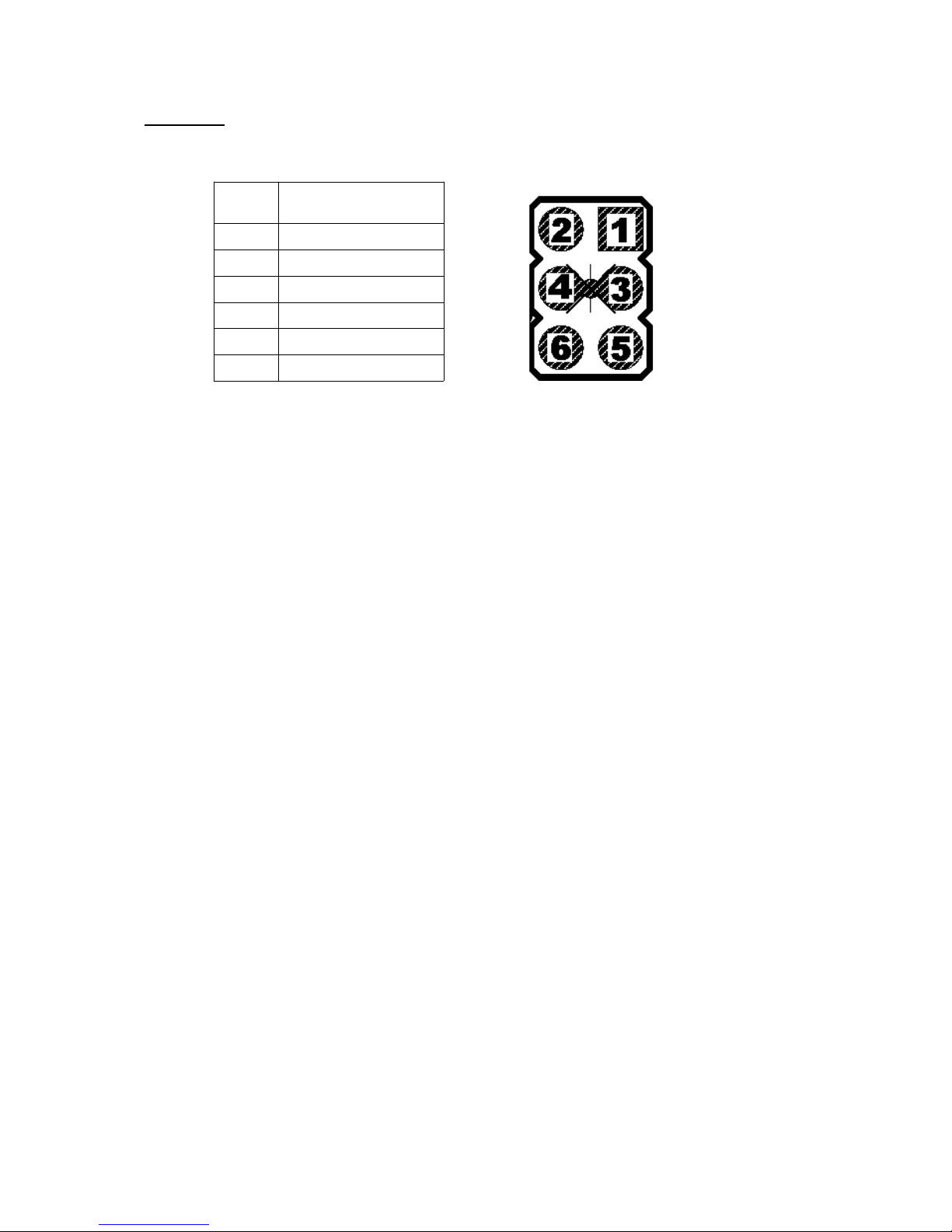

EEPGM:

Pin # Signal Name

1 VCC

2 GND

3 SPI2_MISO

4 SPI2_MOSI

5 SPI2_NSS

6 Via BOOT_E to SW-CS1

Page 18

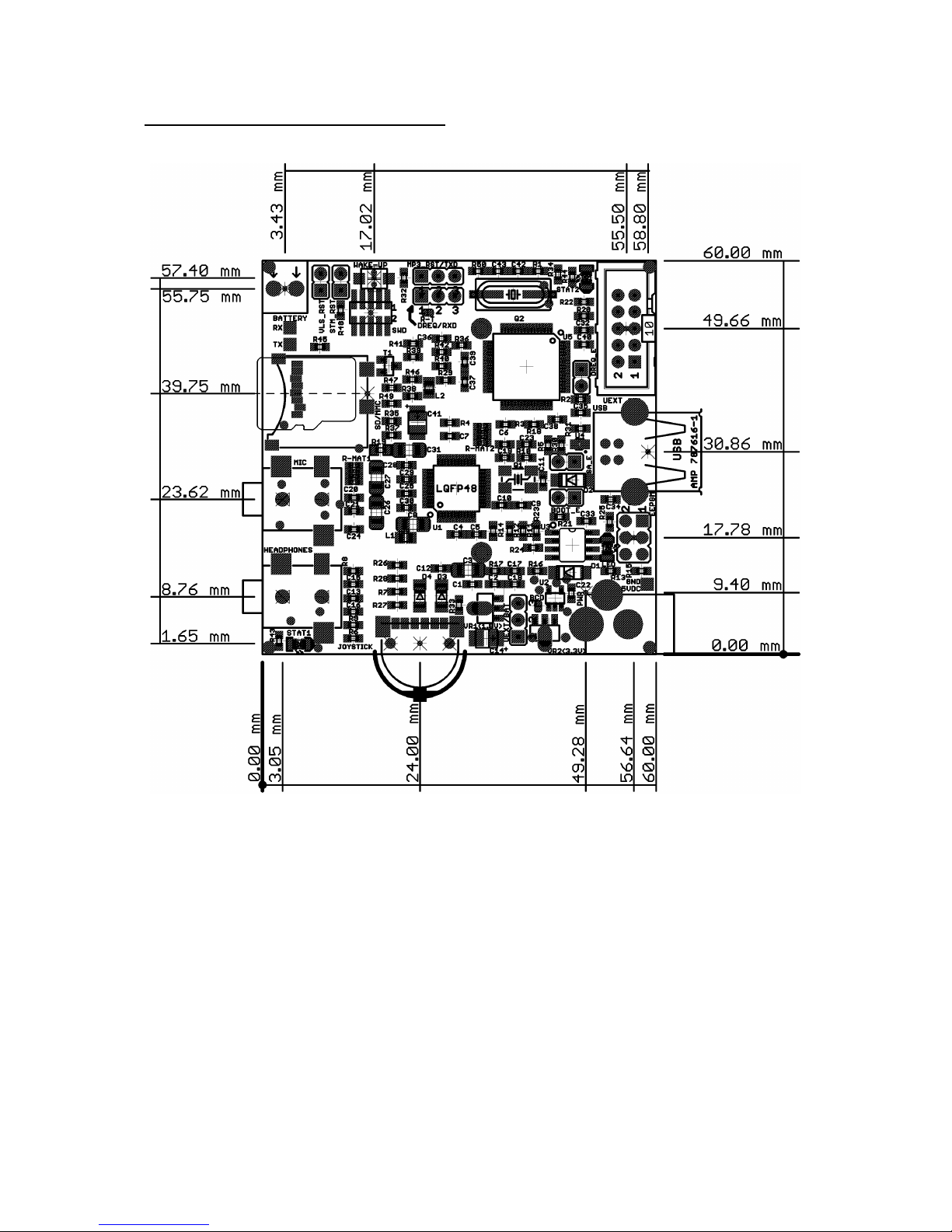

MECHANICAL DIMENSIONS:

Page 19

AVAILABLE DEMO SOFTWARE:

 MOD-MP3-X-Demo

Page 20

ORDER CODE:

MOD-MP3-X - assembled and tested board

How to order?

You can order to us directly or by any of our distributors.
Check our web www.olimex.com/dev for more info.

Revision history:

Manual's revision: Rev. C, July 2011

In “Introduction” added information about
working as mass storage device and note for UEXT
smart control mode.

Rev. D, January 2012

Page 15 – Note on powering the board from host
source via UEXT

Page 21

Disclaimer:

© 2011 Olimex Ltd. All rights reserved. Olimex®, logo and combinations thereof, are registered
trademarks of Olimex Ltd. Other terms and product names may be trademarks of others.
The information in this document is provided in connection with Olimex products. No license, express
or implied or otherwise, to any intellectual property right is granted by this document or in
connection with the sale of Olimex products.
Neither the whole nor any part of the information contained in or the product described in this
document may be adapted or reproduced in any material from except with the prior written
permission of the copyright holder.
The product described in this document is subject to continuous development and improvements. All
particulars of the product and its use contained in this document are given by OLIMEX in good faith.
However all warranties implied or expressed including but not limited to implied warranties of
merchantability or fitness for purpose are excluded.
This document is intended only to assist the reader in the use of the product. OLIMEX Ltd. shall not
be liable for any loss or damage arising from the use of any information in this document or any error
or omission in such information or any incorrect use of the product.
