OLIMEX LPC-P11C24 User Manual

LPC-P11C24

CORTEX-M0 Development board

USER’S MANUAL

Revision C, March 2013

All boards produced by Olimex LTD are ROHS compliant

DISCLAIMER

The information in this document is provided in connection with Olimex products. No license, express or implied or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Olimex products.

It is possible that the pictures in this manual differ from the latest revision of the board.

The product described in this document is subject to continuous development and improvements. All particulars of the product and its use contained in this document are given by OLIMEX in good faith. However all warranties implied or expressed including but not limited to implied warranties of merchantability or fitness for purpose are excluded. This document is intended only to assist the reader in the use of the product. OLIMEX Ltd. shall not be liable for any loss or damage arising from the use of any information in this document or any error or omission in such information or any incorrect use of the product.

This evaluation board/kit is intended for use for engineering development, demonstration, or evaluation purposes only and is not considered by OLIMEX to be a finished end-product fit for general consumer use. Persons handling the product must have electronics training and observe good engineering practice standards. As such, the goods being provided are not intended to be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including product safety and environmental measures typically found in end products that incorporate such semiconductor components or circuit boards.

Olimex currently deals with a variety of customers for products, and therefore our arrangement with the user is not exclusive. Olimex assumes no liability for applications assistance, customer product design, software performance, or infringement of patents or services described herein.

THERE IS NO WARRANTY FOR THE DESIGN MATERIALS AND THE COMPONENTS USED TO CREATE LPC-P11C24. THEY ARE CONSIDERED SUITABLE ONLY FOR LPC-11C24.

Page 2 of 26

Table of Contents

DISCLAIMER ...............................................................................................................

CHAPTER 1: OVERVIEW ..........................................................................................

1. Introduction to the chapter .........................................................................................................

1.1 Features .......................................................................................................................................

1.2 Target market and purpose of the board .................................................................................

1.3 Organization ...............................................................................................................................

CHAPTER 2: SETTING UP THE LPC-P11C24 BOARD ........................................

2. Introduction to the chapter .........................................................................................................

2.1 Electrostatic warning .................................................................................................................

2.2 Requirements .............................................................................................................................

2.3 Powering the board ....................................................................................................................

2.4 Prebuilt software and bootloader .............................................................................................

CHAPTER 3: LPC-P11C24 BOARD DESCRIPTION ..............................................

3. Introduction to the chapter .........................................................................................................

3.1 Layout (top view) .......................................................................................................................

CHAPTER 4: THE LPC11C24 MICROCONTROLLER .........................................

4. Introduction to the chapter .........................................................................................................

4.1 The microcontroller ...................................................................................................................

CHAPTER 5: CONTROL CIRCUITY .......................................................................

5. Introduction to the chapter .........................................................................................................

5.1 Reset ............................................................................................................................................

5.2 Clocks ..........................................................................................................................................

5.3 Power supply circuit ..................................................................................................................

CHAPTER 6: CONNECTORS AND PINOUT ..........................................................

6. Introduction to the chapter .........................................................................................................

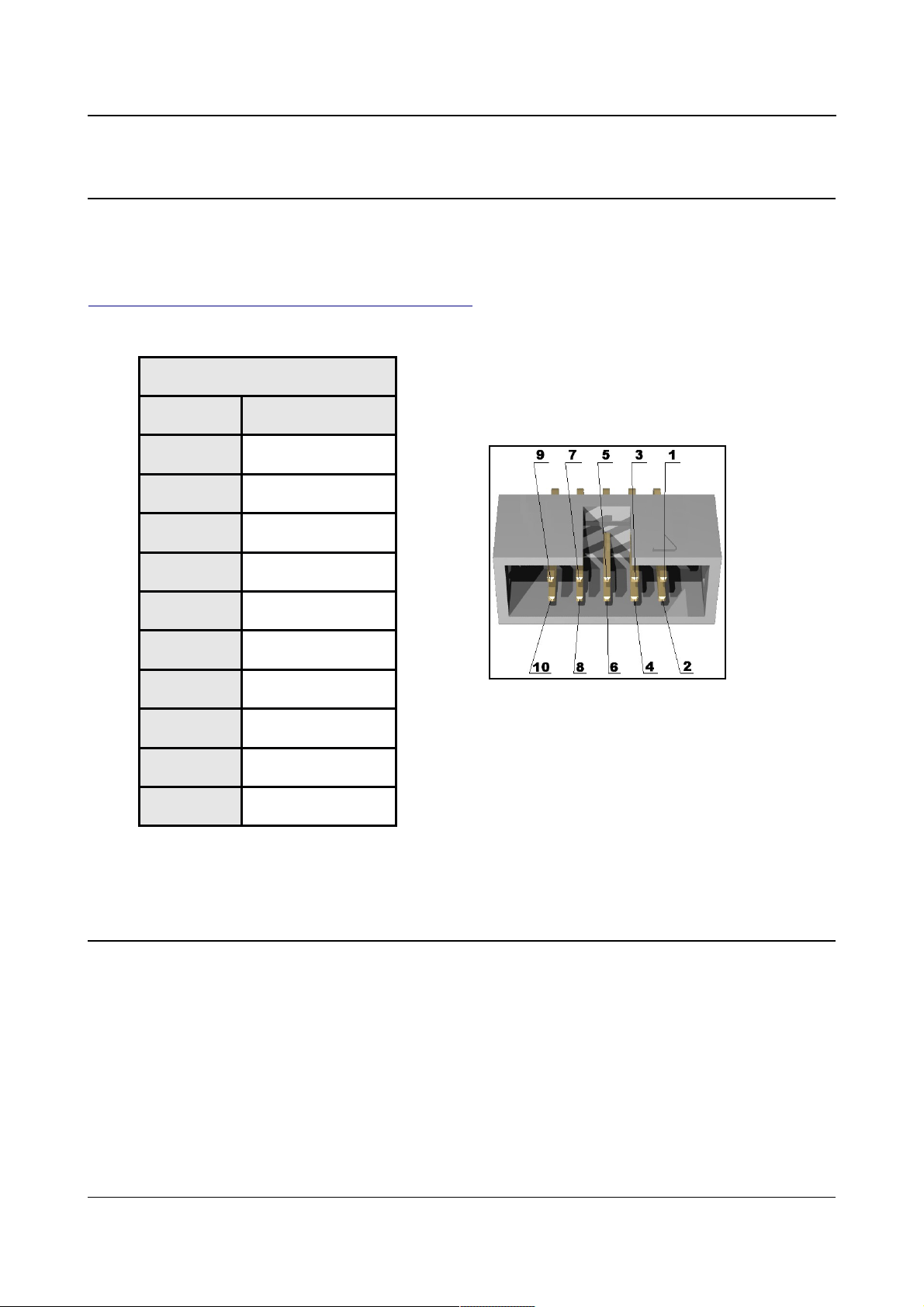

6.1 SWD debug connector ...............................................................................................................

6.2 UEXT connector .........................................................................................................................

6.3 Proto area pads ..........................................................................................................................

6.4 RS232 ..........................................................................................................................................

6.5 PWR Jack ...................................................................................................................................

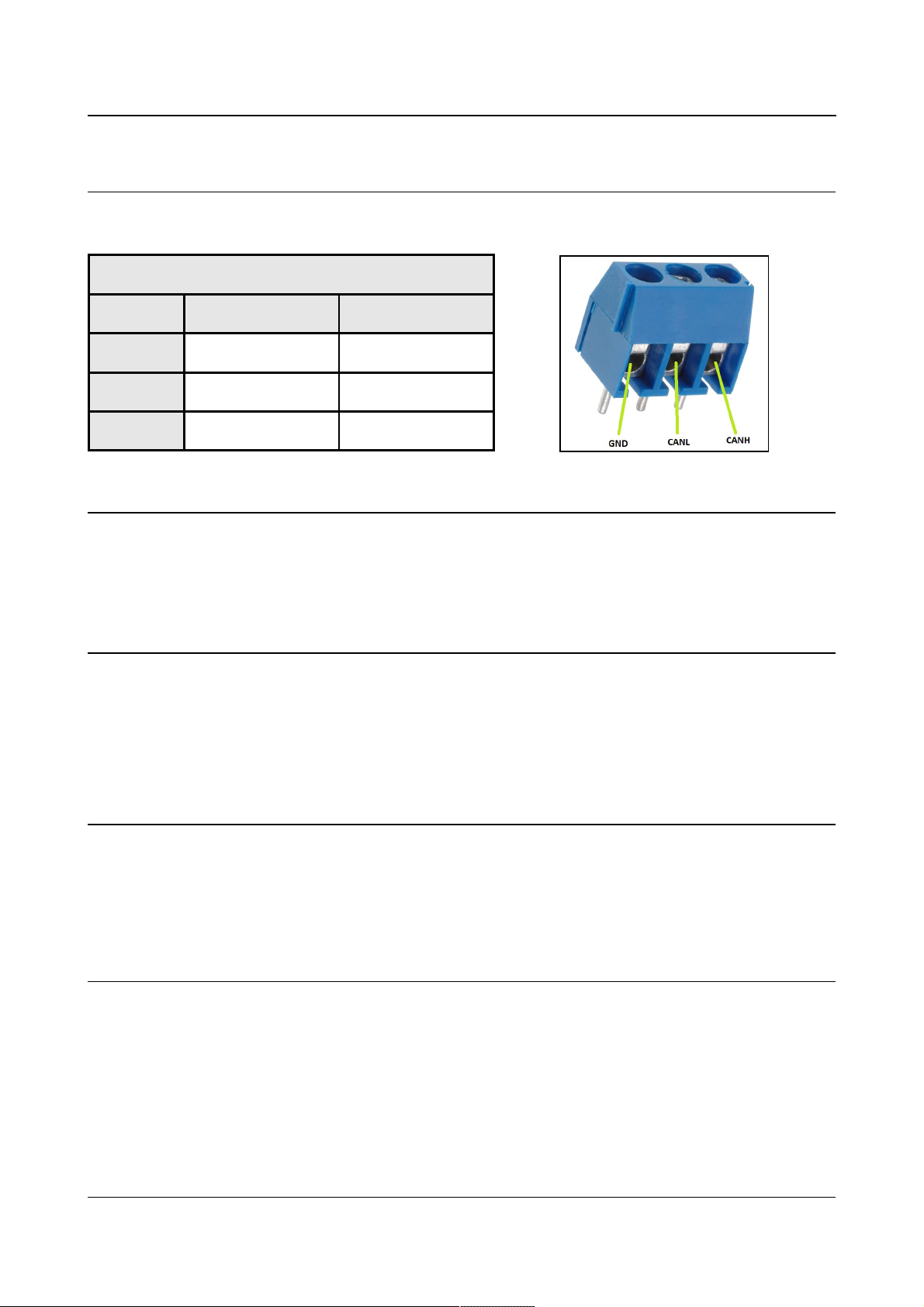

6.8 CAN interface .............................................................................................................................

6.12 Jumper description ..................................................................................................................

6.12.1 PIO1_LOW ............................................................................................................................

6.12.2 PIO3_LOW ............................................................................................................................

6.12.3 PIO1_RS and RST_E ...........................................................................................................

6.12.4 SILENT/NORMAL ..............................................................................................................

6.12.5 5V_DIS ...................................................................................................................................

Page 3 of 26

6.12.6 CAN_T ...................................................................................................................................

6.13 Additional hardware components ..........................................................................................

CHAPTER 7: BLOCK DIAGRAM AND MEMORY ...............................................

7. Introduction to the chapter .........................................................................................................

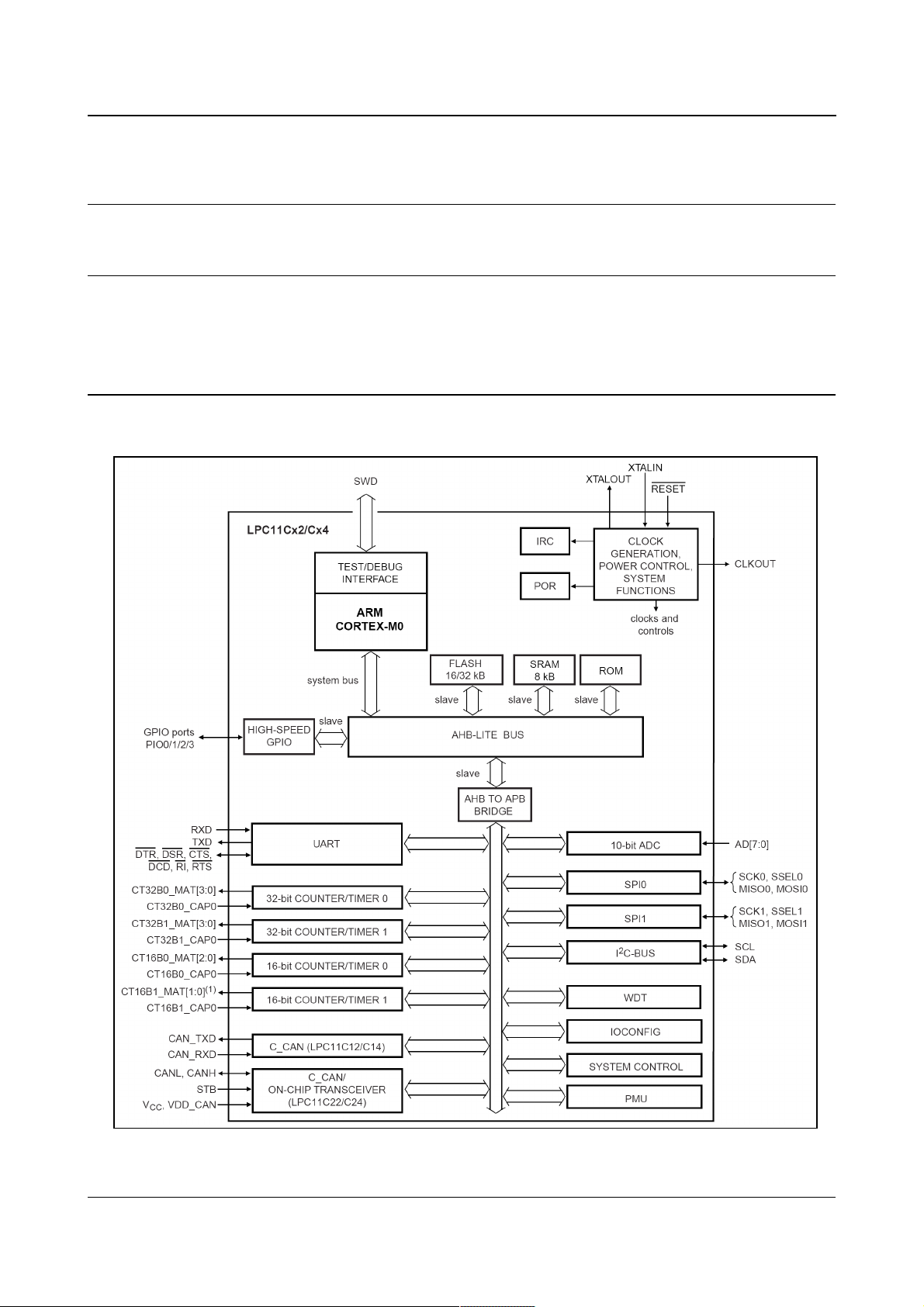

7.2 Processor block diagram ...........................................................................................................

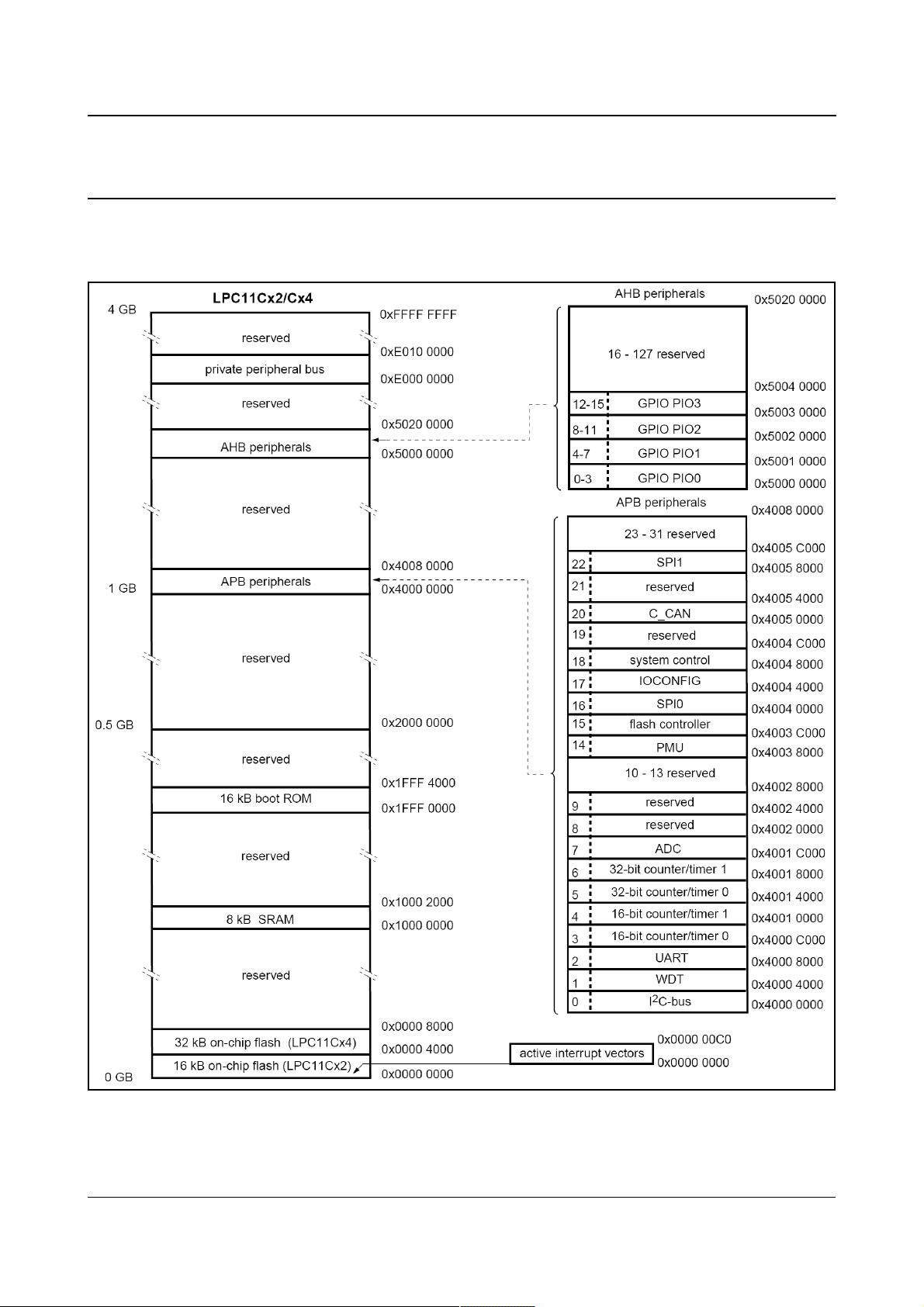

7.3 Physical memory map ...............................................................................................................

CHAPTER 8: SCHEMATICS ......................................................................................

8. Introduction to the chapter .........................................................................................................

8.1 Eagle schematic ..........................................................................................................................

8.2 Physical dimensions ...................................................................................................................

CHAPTER 9: REVISION HISTORY AND SUPPORT ............................................

9. Introduction to the chapter .........................................................................................................

9.1 Document revision .....................................................................................................................

9.2 Board revision ............................................................................................................................

9.3 Useful web links and purchase codes .......................................................................................

9.3 Product support .........................................................................................................................

Page 4 of 26

CHAPTER 1: OVERVIEW

1. Introduction to the chapter

Thank you for choosing the LPC-P11C24 development board from Olimex! This document provides a user’s guide for the Olimex LPC-P11C24 board. As an overview, this chapter gives the scope of this document and lists the board’s features. The document’s organization is then detailed.

The LPC-P11C24 development board enables code development of applications running on the microcontroller LPC11C24, manufactured by NXP Semiconductors.

1.1 Features

 MCU: LPC11C24 Cortex-M0, up to 50 Mhz, 32 kB Flash, 8kB SRAM, CAN,UART RS-

485, two SSP, I2C/Fast+, ADC

 Power supply circuit

 Power-on led

 CAN interface

 RS232 interface

 Debug interface – SWD (Serial Wire Debug)

 UEXT connector

 Two user leds

 Two user buttons

 Reset button

 Prototype area

 Variable input voltage

 FR-4, 1.5 mm, soldermask, component print

 Dimensions: 92x72mm (3.6 x 2.8")

1.2 Target market and purpose of the board

The LPC-P11C24 is a development board with prototyping area. It is suitable for hobbyists in the fields of ARM development.

The strong points of the board are the CAN interface, the built-in bootloader, the proto area and the low price.

The software for the boards is released under General Purpose License.

Page 5 of 26

1.3 Organization

Each section in this document covers a separate topic, organized as follows:

– Chapter 1 is an overview of the board usage and features

– Chapter 2 provides a guide for quickly setting up the board and software notes

– Chapter 3 contains the general board diagram and layout

– Chapter 4 describes the component that is the heart of the board: the LPC11C14

microcontroller

– Chapter 5 is an explanation of the control circuitry associated with the microcontroller to

reset. Also shows the clocks on the board

– Chapter 6 covers the connector pinout, peripherals and jumper description

– Chapter 7 shows the memory map

– Chapter 8 provides the schematics

– Chapter 9 contains the revision history, useful links and support information

Page 6 of 26

CHAPTER 2: SETTING UP THE LPC-P11C24 BOARD

2. Introduction to the chapter

This section helps you set up the LPC-P11C24 development board for the first time. Please consider first the electrostatic warning to avoid damaging the board, then discover the hardware and software required to operate the board.

The procedure to power up the board is given, and a description of the default board behavior is detailed.

2.1 Electrostatic warning

LPC-P11C24 is shipped in a protective anti-static package. The board must not be exposed to high electrostatic potentials. A grounding strap or similar protective device should be worn when handling the board. Avoid touching the component pins or any other metallic element.

2.2 Requirements

In order to set up the LPC-P11C24 optimally, the following items are required:

- 7V to 9V source of power with 1A maximum amperage.

- Personal Computer with RS232 port

- RS232-RS232 cable

- TRACE/SWD interface programmer for custom code

Code can be loaded via the RS232-RS232 interface and the bootloader, however it is highly recommended to have a SWD/TRACE programmer at your disposal.

Note that OpenOCD OLIMEX programmers + SWD adapter at the moment of writing are supported only in Rowleys Crossworks for ARM.

Page 7 of 26

2.3 Powering the board

The board is powered via the PWR jack by 7 to 9 volts (preferably closer to the upper limit if you use all peripherals and GPIOs).

When powered by 9V the current measured is around 40mA. The red, green and yellow leds (PWR LED, LED1 and LED2) turn on.

2.4 Prebuilt software and bootloader

The prebuilt software is a bootloader and a simple LEDs and buttons test. When you power the board initially all LEDs will be on. If you press and hold the B1 button LED2 should start blinking. If you press and hold WAKE_UP button LED1 should start blinking. Upon releasing the buttons the LEDs should return to their initial “always on” state.

In order to connect with the bootloader you should close PIO1_RS and RST_E jumpers. You will also need RS232 cable and RS232 computer port. After that you can use NXP's FlashMagic software to check if the board is connected successfully. You can also load binary files via the RS232 using the FlashMagic.

Page 8 of 26

CHAPTER 3: LPC-P11C24 BOARD DESCRIPTION

3. Introduction to the chapter

Here you get acquainted with the main parts of the board. Note the names used on the board might differ from the names used below to describe them. For the actual names check the LPC-P11C24 board itself.

3.1 Layout (top view)

Page 9 of 26
