Olimex iMX233- OLinuXino- NANO User guide

iMX233- OLinuXino- NANO
Open-source single-board Linux computer
USER’S MANUAL
Revision D, December 2013
Designed by OLIMEX Ltd, 2013
All boards produced by Olimex LTD are ROHS compliant
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual

DISCLAIMER

The information in this document is provided in connection with Olimex products. No license, express or implied or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Olimex products.
This work is licensed under the Creative Commons Attribution-ShareAlike 3.0 Unported License. To view a copy of this license, visit http://www.creativecommons.org/licenses/by-sa/3.0/.
This hardware design by Olimex LTD is licensed under a Creative Commons Attribution-ShareAlike 3.0 Unported License.
The software is released under GPL.
It is possible that the pictures in this manual differ from the latest revision of the board.
The product described in this document is subject to continuous development and improvements. All particulars of the product and its use contained in this document are given by OLIMEX in good faith. However all warranties implied or expressed including but not limited to implied warranties of merchantability or fitness for purpose are excluded. This document is intended only to assist the reader in the use of the product. OLIMEX Ltd. shall not be liable for any loss or damage arising from the use of any information in this document or any error or omission in such information or any incorrect use of the product.
This evaluation board/kit is intended for use for engineering development, demonstration, or evaluation purposes only and is not considered by OLIMEX to be a finished end-product fit for general consumer use. Persons handling the product must have electronics training and observe good engineering practice standards. As such, the goods being provided are not intended to be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including product safety and environmental measures typically found in end products that incorporate such semiconductor components or circuit boards.
Olimex currently deals with a variety of customers for products, and therefore our arrangement with the user is not exclusive. Olimex assumes no liability for applications assistance, customer product design, software performance, or infringement of patents or services described herein.
THERE IS NO WARRANTY FOR THE DESIGN MATERIALS AND THE COMPONENTS USED TO CREATE IMX233-OLINUXINO-NANO. THEY ARE CONSIDERED SUITABLE ONLY FOR IMX233-OLINUXINO-NANO.
Page 2 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual
Table of Contents
DISCLAIMER ............................................................................................................. 2
CHAPTER 1 OVERVIEW ......................................................................................... 5
1. Introduction to the chapter ....................................................................................................... 5
1.1 Features ..................................................................................................................................... 5
1.2 The OLinuXino family ............................................................................................................ 6
1.2 Target market and purpose of the board ............................................................................... 7
1.3 Organization ............................................................................................................................. 7
CHAPTER 2 SETTING UP THE OLINUXINO BOARD ...................................... 8
2. Introduction to the chapter ....................................................................................................... 8
2.1 Electrostatic warning ............................................................................................................... 8
2.2 Requirements ........................................................................................................................... 8
2.3 Powering the board .................................................................................................................. 9
2.4 Prebuilt software ...................................................................................................................... 9
2.5 Using BitBurner ..................................................................................................................... 10
2.6 Building the Linux image ...................................................................................................... 10
2.7 How to setup the I2C, SPI, UART ........................................................................................ 10
CHAPTER 3 OLINUXINO BOARD DESCRIPTION .......................................... 11
3. Introduction to the chapter ..................................................................................................... 11
3.1 Layout (top view) ................................................................................................................... 11
3.2 Layout (bottom view) ............................................................................................................. 11
CHAPTER 4 THE iMX233 MICROCONTROLLER ........................................... 12
4. Introduction to the chapter ..................................................................................................... 12
4.1 The microcontroller ............................................................................................................... 12
CHAPTER 5 CONTROL CIRCUITY AND HARDWARE MODULES ............. 15
5. Introduction to the chapter ..................................................................................................... 15
5.1 Reset ........................................................................................................................................ 15
5.2 Clock ....................................................................................................................................... 15
5.3 Power supply circuit .............................................................................................................. 16
CHAPTER 6 CONNECTORS AND PINOUT ....................................................... 17
6. Introduction to the chapter ..................................................................................................... 17
6.1 Debugging interfaces ............................................................................................................. 17
6.1.1 U_DEBUG ....................................................................................................................... 17
6.1.2 JTAG debug .................................................................................................................... 18
6.2 SD/MMC slot .......................................................................................................................... 19
6.3 UEXT module ......................................................................................................................... 20
6.4 CON1 and CON2 - GPIO connectors .................................................................................. 22
6.5 USB HOST connector ............................................................................................................ 24
6.6 External power pins ............................................................................................................... 25
Page 3 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual
6.7 Battery connector ................................................................................................................... 25
6.8 Boot mode positions ............................................................................................................... 26
6.9 Jumper description ................................................................................................................ 27
6.9.1 CH/CS and DH/DS ......................................................................................................... 27
6.9.2 CSS/CSH ......................................................................................................................... 27
6.9.3 Boot mode selecting jumpers ........................................................................................ 27
6.10 Additional hardware components ...................................................................................... 28
6.11 Accessories ............................................................................................................................ 28
6.11.1 USB-SERIAL-CABLE-F ............................................................................................. 28
CHAPTER 7 BLOCK DIAGRAM AND MEMORY ............................................. 29
7. Introduction to the chapter ..................................................................................................... 29
7.1 Memory addresses ................................................................................................................. 29
7.2 Processor block diagram ....................................................................................................... 30
7.3 Physical memory map ........................................................................................................... 31
CHAPTER 8 SCHEMATICS ................................................................................... 32
8. Introduction to the chapter ..................................................................................................... 32
8.1 Eagle schematic ...................................................................................................................... 32
8.2 Physical dimensions ............................................................................................................... 32
CHAPTER 9 REVISION HISTORY AND SUPPORT .......................................... 33
9. Introduction to the chapter ..................................................................................................... 33
9.1 Document revision ................................................................................................................. 33
9.2 Board revision ........................................................................................................................ 34
9.3 Useful web links and purchase codes ................................................................................... 34
9.4 Product support ..................................................................................................................... 35
Page 4 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual

CHAPTER 1 OVERVIEW

1. Introduction to the chapter

Thank you for choosing the OLinuXino single-board computer from Olimex! This document provides a user’s guide for the Olimex OLinuXino board. As an overview, this chapter gives the scope of this document and lists the board’s features. The differences between the members of the OLinuXino family are mentioned. The document’s organization is then detailed.
The OLinuXino development board enables code development of applications running on the iMX233 microcontroller, manufactured by Freescale Semiconductor.
OLinuXino is an open-source, open-hardware project and all documentation is available to the customer.

1.1 Features

iMX233 ARM926J processor at 454Mhz
64 MB RAM
SD-card connector for booting the Linux image
1 USB high speed host
Three buttons
Green LED
UEXT connector for connection of different peripheral modules
2 row x 24 pins - GPIO for easier connection of other hardware
U_DEBUG pin headers
3.7V Li-Po battery connector and built-in battery charger
Breadboard compatible
JTAG pads for bare-board programming
PCB dimensions: 3.00" x 0.8" (76.2mm x 20.3mm)
Nominal dimensions: 3.40'' x 0.8'' (86.4mm x 20.3mm)
Weight: 0.5 ounce (~14 grams)
Page 5 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual

1.2 The OLinuXino family

The design of all the iMX233 boards follows the same pattern which makes the transition between different Olimex iMX233 boards easier.
However, there are significant differences in the dimensions, the peripherals available and the power options between the different boards.
Table of comparison
OLinuXino-NANO OLinuXino-MICRO OLinuXino-MINI OLinuXino-MAXI
Processor
iMX233 @ 454Mhz iMX233 @ 454Mhz iMX233 @ 454Mhz iMX233 @ 454Mhz
Ram [MB]
64 64 64 64
# USB hosts
1 1 3 2
100/150 Mbit Ethernet*
No/WIFI option**
No/WIFI option** No/WIFI
option***
Yes/WIFI option**
GPIO connector
60pins 60pins 40pins 40pins
# of buttons
3 3 2 2
Reset button
Yes Yes Yes Yes
DC power supply
5V 5V 6V-16V 6V-16V
Dimensions
3.00'' x 0.80'' 3.40'' x 1.70'' 3.70'' x 2.65'' 3.70'' x 2.65''
Breadboarding
Yes Yes No No
Audio IN connector
No No Yes Yes
Audio OUT connector
No No Yes Yes
UEXT connector
Yes No Yes Yes
Power jack
No**** Yes Yes Yes
VGA connector
No Yes Yes Yes
* 100Mbit Ethernet for the wired network of OLinuXino-MAXI. 150Mbit for the WIFI following
811.02n standard.
** All three boards have the option to work with MOD-WIFI_RTL8188, which is USB WIFI modem with RTL8188CU chip and can be purchased separately. MOD-WIFI_RTL8188 can be connected to any of the OLinuXino boards via the USB.
*** OlinuXino-MINI has additional option of having RTL8188CU hardware mounted! If you wish RTL8188CU embedded in the device you should purchase OLinuXino-MINI-WIFI. Choosing the embedded WIFI option will leave your USB-HOSTs available for use.
**** There is an easy access to the power pin holes, however. Especially, if you use a breadboard.
Page 6 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual

1.2 Target market and purpose of the board

The boards from the OLinuXino family are ready to use, easy to setup and are suitable for embedded programming enthusiasts, Linux hobbyists, gadget fans and also professionals (since its low cost makes it very good solution for application orientated embedded systems). The main usage of the board is software embedded development without the urge of understanding perfectly the hardware.
The dimensions, the light weight and the breadboard capabilities of iMX233-OLinuXino-NANO make it a perfect Linux board for embedding in custom devices. This of course comes at the cost of the lack of some peripherals included in the bigger iMX233 Olimex-made boards. It is generally advice to get one of the other iMX233 boards for research and development and use the NANO for the stage when you have to implement the product.
The board has a LiPo connector and battery charger – the microcontroller can work solely on battery power supply.
However, when powering the board with a LiPo battery, please note that the USB host will not be able to power your USB devices since neither the microcontroller is able to step-up the low input voltage (from the battery) to 5V, neither there is additional circuit for such a step-up.
Customers have full access to the technical documentation of the board. The software is released under General Purpose License and the board is considered open-hardware.

1.3 Organization

Each section in this document covers a separate topic, organized as follow:
Chapter 1 is an overview of the board usage and features Chapter 2 provides a guide for quickly setting up the board Chapter 3 contains the general board diagram and layout Chapter 4 describes the component that is the heart of the board: the iMX233
microcontroller
Chapter 5 is an explanation of the control circuitry associated with the microcontroller to
reset. Also shows the clocks on the board
Chapter 6 covers the connector pinout, peripherals and jumper description Chapter 7 shows the memory map Chapter 8 provides the schematics Chapter 9 contains the revision history, useful links and support information
Page 7 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual

CHAPTER 2 SETTING UP THE OLINUXINO BOARD

2. Introduction to the chapter

This section helps you set up the OLinuXino development board for the first time. Please consider first the electrostatic warning to avoid damaging the board, then discover the hardware and software required to operate the board.
The procedure to power up the board is given, and a description of the default board behavior is detailed.

2.1 Electrostatic warning

OLinuXino is shipped in a protective anti-static package. The board must not be exposed to high electrostatic potentials. A grounding strap or similar protective device should be worn when handling the board. Avoid touching the component pins or any other metallic element.

2.2 Requirements

In order to set up the A20-OLinuXino-MICRO optimally one or more additional items may be used. They might be generally placed in three categories:
Required - items that are needed in order to achieve minimum functionality; Recommended – items that is good to have in order to be able to interact with the most important
of the features of the board;
Additional – items that provide access to additional features or expand the features of the board.
Required items:
- 5V source of power with 1A maximum amperage OR suitable 3.7V Li-Pol battery
- Personal computer + USB-SERIAL-CABLE-F – needed for debugging (if you lack RS232/COM port or another RS232-USB cable).
- SD card with Linux image (the latest official image might be downloaded for free from the respective Olimex wiki article)
Note that the board arrives without SD card or Linux image. You can purchase a card with Linux separately. It is recommended that the user has basic Linux experience.
Recommended items:
- a breadboard – for easier access to the GPIO signals via jumper wires without the need of soldering
Additional items:
- JTAG parallel interface programmer – if you wish to bare program the board
- A number of extension modules that can add functionality or interface to the board on the UEXT connector; these can be explored here: https://www.olimex.com/Products/Modules/
Some of the suggested items may be purchased by Olimex, for instance:
Page 8 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual
SY0605E - power supply adapter 5V/1A for iMX233-OLinuXino-NANO (50Hz utility frequency ­for EU residents only) SY0605E-CHINA - cheaper power supply adapter 5/1A for iMX233-OLinuXino-NANO (50Hz utility frequency - for EU residents only)
iMX233-OLinuXino-SD - SD card with the Linux image USB-SERIAL-CABLE-F - USB serial console cable female (check “6.1.1 UART Debug” for info
how to connect it to the board) BREADBOARD-1 – relatively small breadboard (82x52x10mm) that allows easy access to the GPIO pins via jumper wires (no soldering required)

2.3 Powering the board

The board may be powered via a 3.7V Li-Pol battery connected to the LIPO BAT connector or using a 5V external power supply on pins 1 and 2 of CON2 connector. When powering the board from CON2 it should be supplied with a 5V with a maximum current of 1A.
Note that there is a built-in battery charger the iMX233 processor.
When the board is powered only by a 3.7V battery the USB would NOT be able to power USB devices since there IS NO step-up convertor (to 5V).
It is a good idea to have a power supply providing minimum of 0.2 A.
If measuring the current consumption it should be around 0.06A before initializing all the peripherals. The consumption raises to 0.12A if performing a task without additional peripherals connected.
If Linux enters seep mode the consumption goes down to 0.01A.

2.4 Prebuilt software

Note that the boards arrive without Linux or SD card. The Linux image can be purchased separately on a SD card or you can built and write it yourself.
Currently the official iMX233 Linux image is based on Debian. It replaced the Archlinux distributions used before.
When we program the boards we change the default position of the following HW_OCOTP_ROM0 fuses of the processor:
SD_MBR_BOOT(3) - Blown SD_POWER_GATE_GPIO(21:20) – 10-PWM3
For burning the fuse position we use the BitBurner software. This operation is discussed in details before. Proceed with great caution when burning fuses since it is irreversible operation.
Page 9 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual

2.5 Using BitBurner

IMPORTANT! MODIFYING THE FUSES IS IRREVERSIBLE PROCESS! BURNING THE WRONG FUSES MIGHT DAMAGE OLINUXINO IRREVERSIBLY! BURNING WRONG FUSES MIGHT CAUSE BOOT PROBLEMS!
BURN FUSES AT OWN RISK!
The bit burning is done via the USB of the computer connected to the USB HOST connector OLINUXINO board and the BitBurner software. To be able to burn the fuses you will need to make a custom cable that connects a USB with the USB of your connector.

2.6 Building the Linux image

Notes on building the Linux image might be found at the following blog post:
http://olimex.wordpress.com/2012/07/05/building-debian-linux-distribution-for-imx233-olinuxino/

2.7 How to setup the I2C, SPI, UART

There are number of examples with our extension module board to achieve those connections on the UEXT. The examples might be used as an example for I2C, SPI or UART communication. You can find them at our GitHub page:
https://github.com/OLIMEX/OLINUXINO/tree/master/SOFTWARE/iMX233
Page 10 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual

CHAPTER 3 OLINUXINO BOARD DESCRIPTION

3. Introduction to the chapter

Here you get acquainted with the main parts of the board. Note the names used on the board differ from the names used to describe them. For the actual names check the OLinuXino board itself.

3.1 Layout (top view)

3.2 Layout (bottom view)

Page 11 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual

CHAPTER 4 THE iMX233 MICROCONTROLLER

4. Introduction to the chapter

In this chapter is located the information about the heart of OLinuXino – its microcontroller. The information is a modified version of the datasheet provided by its manufacturers.

4.1 The microcontroller

ARM926 CPU Running at 454 MHz Integrated ARM926EJ-S CP 16-Kbyte data cache and 16-Kbyte instruction cache
— One-wire JTAG interface — Resistor-less boot mode selection using integrated OTP values
32Kbytes of Integrated Low-Power On-Chip RAM 64 Kbytes of Integrated Mask-Programmable On-Chip ROM 1 Kbit of On-Chip One-Time-Programmable (OCOTP) ROM Universal Serial Bus (USB) High-Speed (Up to 480 Mb/s), Full-Speed (Up to 12 Mb/s)
— Full-speed/high-speed USB device and host functions — Fully integrated full-speed/high-speed Physical Layer Protocol (PHY) — Mass storage host-capable (uncertified by USB-IF)
Power Management Unit
— Single inductor DC-DC switched converter with multi-channel output supporting Li-Ion batteries. — Features multi-channel outputs for VDDIO (3.3 V), VDDD (1.2 V), VDDA (1.8 V), VDDM (2.5V) and regulated 4.2V source. — Direct power from 5-V source (USB, wall power, or other source), with programmable current limits for load and battery charge circuits. — Silicon speed and temperature sensors enable adaptive power management over temperature and silicon process.
Audio Codec
— Stereo headphone DAC with 99 dB SNR — Stereo ADC with 85 dB SNR — Stereo headphone amplifier with short-circuit protection and direct drive to eliminate bulky capacitors — Amplifiers are designed for click/pop free operation. — Two stereo line inputs — Microphone input — SPDIF digital out
16-Channel Low-Resolution ADC
— 6 independent channels and 10 dedicated channels — Resistive touchscreen controller — Temperature sensor controller — Absolute accuracy of 1.3%
Security Features
— Read-only unique ID for digital rights management algorithms
Page 12 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual
— Secure boot using 128-bit AES hardware decryption — SHA-1 hashing hardware — Customer-programmed (OTP) 128 bit AES key is never visible to software.
External Memory Interface (EMI)
— Provides memory-mapped (load/store) access to external memories — Supports the following types DRAM: — 1.8V Mobile DDR — Standard 2.5V DDR1
Wide Assortment of External Media Interfaces
— High-speed MMC, secure digital (SD) — Hardware Reed-Solomon Error Correction Code (ECC) engine offers industry-leading protection and performance for NANDs. — Hardware BCH ECC engine allowing for up to 20-bit correction and programmable redundant area.
Dual Peripheral Bus Bridges with 18 DMA Channels
— Multiple peripheral clock domains save power while optimizing performance. — Direct Memory Access (DMA) with sophisticated linked DMA command architecture saves power and off-loads the CPU.
Highly Flexible Display Controller
— 8-bit data ITU-R BT.656 D1 digital video stream output mode (PAL/NTSC), with onthe­fly RGB to YCbCr color-space-conversion. — Flexible input formats
Pixel Processing Pipeline (PXP)
— Provides full path from color-space conversion, scaling, alpha-blending to rotation without intermediate memory access — Bi-linear scaling algorithm with cropping and letterboxing — Alpha-blend, BITBLT, color-keying — Memory efficient block-based rotation engine
Integrated TV-Out Support
— Integrated PAL/NTSC TV-encoder fully pipelined to display controller’s D1 resolution output stream — Integrated low-power 10-bit Video DAC (VDAC) for composite analog video output.
Data Co-Processor (DCP)
— AES 128-bit encryption/decryption — SHA-1 hashing — High-speed memory copy
Three Universal Asynchronous Receiver-Transmitters (UARTs)
— Two high-speed application UARTs operating up to 3.25 Mb/s with hardware flow control and dual DMA. — Debug UART operates at up to 115Kb/s using programmed I/O.
I2C Master/Slave
— DMA control of an entire EEPROM or other device read/write transaction without CPU intervention
Dual Synchronous Serial Ports (for SPI, MMC, SDIO, Triflash)
— 1-bit, 4-bit and 8-bit MMC/SD/SDIO modes — Compliant with SDIO Rev. 2.0 — SPI with single, dual and quad modes.
Four-Channel 16-Bit Timer with Rotary Decoder
Page 13 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual
Five-Channel Pulse Width Modulator (PWM) Real-Time Clock
— Alarm clock can turn the system on. — Uses the existing 24-MHz XTAL for low cost or optional low power crystal (32.768 kHz or 32.0 kHz), customer-selectable via OTP.
Customer-Programmable One-Time-Programmable (OTP) ROM via Integrated eFuse Block
— Resistor-less boot mode selection — 128-bit boot mode crypto key — Boot mode specification of NAND characteristics for device that the customer is soldering to the board. This means no more costly delays waiting for new device support in t he boot ROM. — Fully software-programmable and accessible
Flexible I/O Pins
— All digital pins have drive-strength controls — Most non-EMI digital pins have general-purpose input/output (GPIO) mode.
For comprehensive information on the microcontroller visit the Freescale’s web page for a datasheet.
Page 14 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual

CHAPTER 5 CONTROL CIRCUITY AND HARDWARE MODULES

5. Introduction to the chapter

Here you can find information about reset circuit and quartz crystals locations, the power supply circuit is discussed.

5.1 Reset

OLinuXino's reset circuit includes R16 (2.2 kΩ), R17 (2.2 kΩ), T1, T2, quartz Q1 and a RESET button. The RESET is specific for the fact that it is accomplished when the quartz is disconnected using 3.3V and the transistors T1 and T2.

5.2 Clock

24 MHz quartz crystal Q1 is connected to pins 121 and 122 of the iMX233 processor.
Page 15 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual

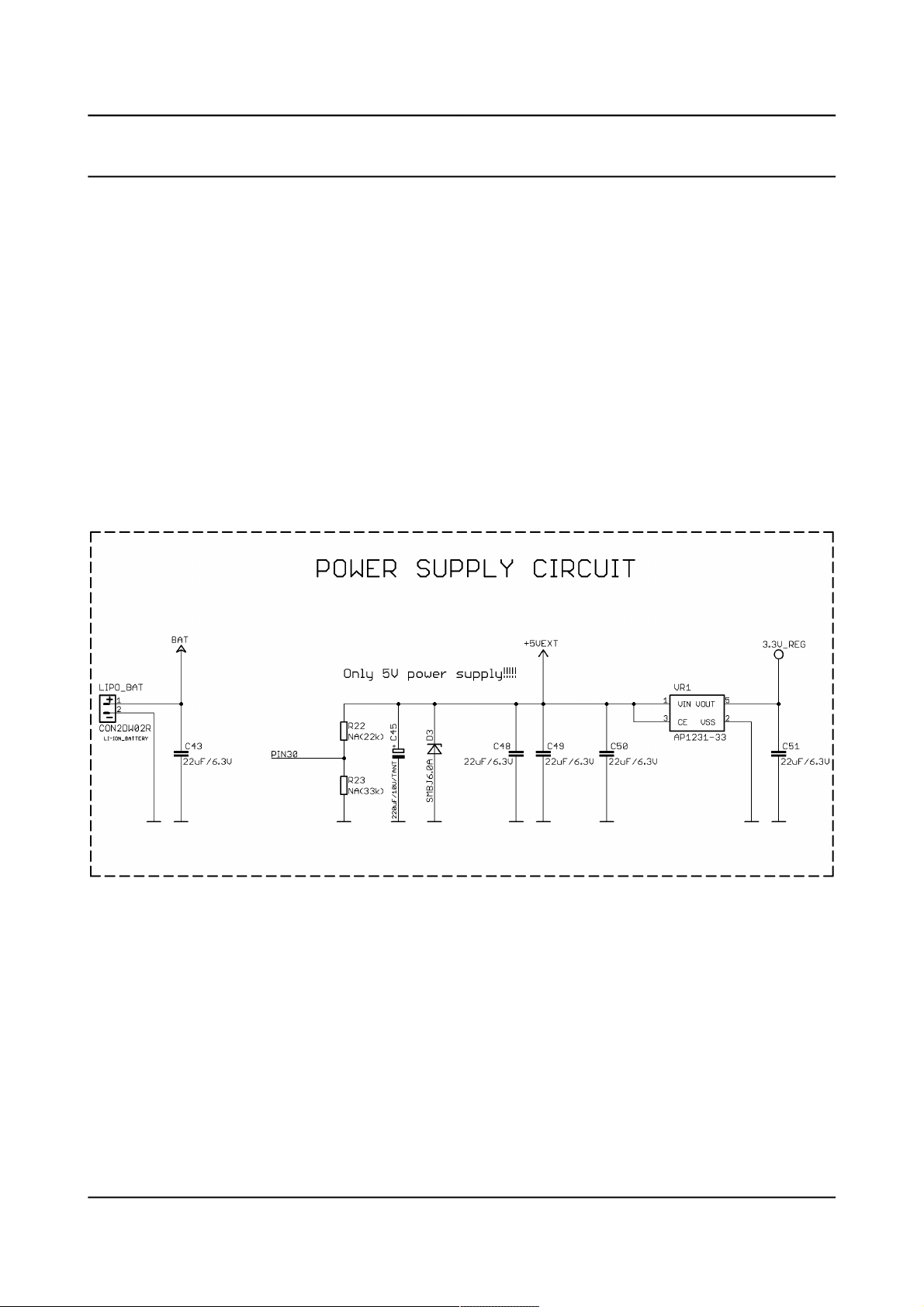

5.3 Power supply circuit

The power supply circuit of OLinuXino-NANO allows only 5V of power. The board requires a power supply or a battery capable of providing at least 0.25A (@5V) of current.
The board typically consumes between 0.12A and 0.16A while booting the Linux image with the prebuilt software and SD card equipped. When no other peripherals are connected the board (except the SD card) the typical consumption is 0.12A. With one flash memory stick the consumption raises to 0.16A.
The board can be powered either from LIPO_BAT connector or from the power pin holes of CON2. The pins used for powering are pins 1 and 2 of the CON2 row (over the SJTAG pinholes and behind the UEXT connector).
If you have successfully powered the board the green PWR LED will turn on. Note that it is possible to have the PWR LED on even if there isn't enough power for proper operation of the board and all the peripherals currently connected.
Page 16 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual

CHAPTER 6 CONNECTORS AND PINOUT

6. Introduction to the chapter

In this chapter are presented the connectors that can be found on the board all together with their pinout and notes about them. Jumpers functions are described. Notes and info on specific peripherals are presented. Notes regarding the interfaces are given.

6.1 Debugging interfaces

There are two debugging options available on the OLinuXino - U_DEBUG and JTAG.
The U_DEBUG is the main way of interacting with the NANO and currently booted OS. The JTAG is suitable for bare board programming but there is multiplexing with the SD card.
If you use a JTAG to program the board, you won't be able to use the SD card.

6.1.1 U_DEBUG

The first one is a debug UART interface – U_DEBUG. You can use our USB-SERIAL-CABLE for debugging via the UART. If your computer has an RS232 (COM) interface you might connect your cable as explained below.
How to use the U_DEBUG with USB-SERIAL-CABLE-F - which has RED GREEN BLUE wires GND=BLUE, RX(INPUT)=GREEN, TX(OUTPUT)=RED. You have to connect to OLinuXino-NANO U_DEBUG connector in this sequence:
BLUE wire to pin.3 (GND) GREEN wire to pin.2 (TX) RED wire to pin.1 (RX)
The baud rate for serial communication is 115 200.
U_DEBUG
Pin # Signal name Processor pin #
1 PWM0/DUART_RXD 125
2 PWM1/DUART_TXD 126
3 GND -
4 DEBUG 89
You can also check the pin names at the top and at the bottom of the board around the U_DEBUG
Page 17 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual
pins.

6.1.2 JTAG debug

This option allows you to use the classic 6-pin parallel JTAG (not including GND and VCC). There are pads left for this option at the top of the board over the SD card holder.
The important thing is that these pins are multiplexed with the SD card signals. In order to use the 6-pin JTAG you will have to stop using the SD card. Note also that the classic JTAG interface comes without plastic header mounted so in order to use it you will need to use wires for connection.
Consider the the software settings required to switch from SJTAG to 6-pin JTAG and vice verse referring to the iMX233 manual. For instance:
The HW_DIGCTL_CTRL_USE_SERIAL_JTAG bit in the digital control block selects whether the serial JTAG interface or the alternative six-wire parallel JTAG interface is used.
HW_DIGCTL_CTRL_USE_SERIAL_JTAG - 0x0 - selects whether the one-wire serial JTAG interface or the alternative six-wire parallel JTAG interface is used. 0 = Parallel six-wire JTAG is enabled and is mapped to a collection of module pins that must be enabled by programming their MUXSEL bits in the pin control block. 1 = Serial JTAG is enabled and uses the dedicated DEBUG pin. The ROM bootcode writes this field prior to enabling JTAG, selecting which type of JTAG pin signaling to use. OLD_JTAG = 0x0 Use six-wire parallel JTAG mode. SERIAL_JTAG = 0x1 Use one-wire serial JTAG mode.
It is good idea to check the datasheet of the iMX233 processor for all the options in the digital control block. The processor's datasheet should be always the first piece of paper you consult when dealing with electronics.
JTAG (multiplexed with SD card)
Pin # Signal name Processor pin#
1 SSP1_DATA1 85
2 SSP1_DATA0 84
3 GND -
4 SSP1_SCK 90
5 SD_VCC -
6 SSP1_CMD 83
7 SSP1_DATA3 87
8 SSP1_DATA2 86
Page 18 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual
Notice that the pad numeration is written at the bottom of OLinuXino-NANO under the microSD card connector. Please check the manual part for microSD card for a schematic of the pins.

6.2 SD/MMC slot

The microSD card slot is a standard 8pin connector.
We have tested a number of microSD cards on the OLinuXino boards and all of them worked fine regardless manufacturer or capacity. However, keep in mind that some of the lower quality microSD cards might draw too much current from the slot which might cause power-state problems. If you suspect the microSD card is causing problems please try using another one of better quality for better results.
microSD card connector
Pin # Signal name Processor pin #
1 SSP1_DATA2 86
2 SSP1_DATA3 87
3 SSP1_CMD 83
4 SD_VCC -
5 SSP1_SCK 90
6 GND -
7 SSP1_DATA0 84
Page 19 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual
8 SSP1_DATA1 85
Ensure the board is soft powered down before removing the SD card – unplugging the SD card during board operation OR removing the power supply during board operation might corrupt the SD card, rendering it useless.
When removing the card, please make sure that you release it from the connector by pushing and NOT by pulling the card directly (this can damage both the connector and the microSD card).
It is a good idea to be sure there are currently no read/write operations performed when ejecting the SD card, or you might corrupt your Linux OS. If you corrupt the SD card you can download a new image from the iMX233 wiki article at our web site.

6.3 UEXT module

OLinuXino board has UEXT connector and can interface Olimex's UEXT modules. For more information on UEXT please visit: https://www.olimex.com/Products/Modules/UEXT/.
*Note the three jumpers PIN29/SOFT_CL – PIN22/LCD_EN/I2C_SCL; PIN28/SOFT_SDA3 – PIN21/LCD_HSYNC/I2C_SDA and CS_SW:Open/CS_HW:Close which by default are set to a software I2C! They can be used to set the whole UEXT to a hardware SPI. Additionally the chip select might be left open.
Note that if you wish to use our UEXT modules the jumpers should be set to hardware I2C position.
UEXT connector
Pin # Signal name Processor pin #
1 +3.3V_REG -
2 GND -
3 AUART1_TXD 127
Page 20 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual
4 AUART1_RXD 128
5 I2C_SCL 34(default) OR 11*
6 I2C_SDA 31(default) OR 15*
7 PIN9/LCD_D08/SSP2_MISO 22
8 SSP2_MOSI 21
9 SSP2_SCK 33
10 CS_UEXT_GPIO 25(default) OR32*
*Controlled by SMT jumper
Page 21 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual

6.4 CON1 and CON2 - GPIO connectors

The pins that haven't been used by the peripherals mounted (or that are considered “important”) are lead out to the two rows of pins CON1 and CON2 near the edges of the board. They allow the user to attach additional hardware, check readings, perform hardware debug, etc. The “GPIO Pin#” column shows connector number and does NOT represent the naming on the bottom of the board.
Please note that pin holes 15-20 are not present. They are left to keep the 0.1'' step free space for perfect breadboard fit.
CON1 and CON2 - GPIO pinhole rows
CON1 CON2
GPIO Pin#
Signal name Processor pin#
GPIO Pin#
Signal name Processor pin#
1 BAT - 1 +5VEXT -
2 GND
-
2 GND -
3 3.3V - 3 3.3V_REG -
4 PIN1/LCD_D00 2 4 PWM0/DUART_RXD 125
5 PIN2/LCD_D01 3 5 PWM1/DUART_TXD 126
6 PIN3/LCD_D02 4 6 VDAC1 104
7 PIN4/LCD_D03 5 7 HPL 113
8 PIN5/LCD_D04 6 8 HPR 109
9 PIN6/LCD_D05 7 9 HP_VGND 111
10 PIN7/LCD_D06 8 10 LIN1_INL 115
11 PIN8/LCD_D07 9 11 LIN1_INR 114
12
PIN9/LCD_D08/SSP2_MIS O
22 12 PIN34/MIC 116
13 PIN10/LCD_D09 23 13 PIN33/LRADC0 108
14 PIN11/LCD_D10 24 14 PIN32/LRADC1 107
21 PIN12/LCD_D11 25 21 PIN31 82
22 PIN13/LCD_D12 27 22 PIN30 81
23 PIN14/LCD_D13 26 23 PIN29/SOFT_SCL 34
24 PIN15/LCD_D14 29 24 PIN28/SOFT_SDA 31
25 PIN16/LCD_D15 28 25 PIN27/PWM2 91
Page 22 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual
CON1 and CON2 - GPIO pinhole rows
GPIO Pin#
Name Processor pin#
GPIO Pin#
Name Processor pin#
26 PIN17/LCD_D16 19 26 PIN26/LCD_CS
10
27 PIN18/LCD_D17/USB_EN 20 27 PIN25/LCD_RS
14
28 PIN20/LCD_VSYNC 16 28 PIN24/LCD_WR
13
29
PIN21/LCD_HSYNC/I2C_S DA
15 29 PIN23/LCD_DISP
12
30 PIN22/LCD_EN/I2C_SCL 11 30 PIN19/LCD_DOTCLK
17
Signals in yellow color are the headphones out signals. Signals in blue color are the line in signals.
The hardware is associated differently in the Linux following the GPIO naming conventions suggested in the iMX233 datasheet. You can check the connection between Linux naming of the pin, Olimex naming of the pin and the consecutive connector pin number in the table below. The ones filled with “Not implemented” doesn't have Linux support by the time of writing and will be updated overtime. “Linux GPIO” is the one you should use in Linux (the one in the datasheet); “OLinuXino name” is the pin as written on the bottom of the board. ”OLinuXino GPIO Connector #” is the consecutive number of pins with BAT being Pin#1 and GND#40. Note that if “OLinuXino Name” starts with P and then is followed by a number X, the PX is the name written on the bottom of the board (under the connector) with white ink. If “OLinuXino Name” is other text it is a signal used for the hardware of the board but still can be controller by the Linux (it can't be found at the GPIO connector though).
The Linux implementation of pins
Linux GPIO/iMX 233 GPIO
OLinuXino Name
OLinuXino GPIO
Connector #
Linux GPIO/iMX 233 GPIO
OLinuXino
Name
OLinuXino GPIO
Connector #
0 PIN9 19 32 to 39
Not
implemented
Not
implemented
1 PIN10 17 51 PIN23 18
2 PIN11 15 52 PIN25 16
3 PIN12 13 53 PIN24 20
4 PIN13 11 55 PIN19 12
5 PIN14 9 56 PIN22 10
6 PIN15 7 64
JTAG_TDO1
SSP1_CMD
Not
implemented
7 PIN16 5 65 LED1
Not
implemented
Page 23 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual
16 PIN17 3 91 PIN30 28
17 PIN18 4 92 PIN31 30
19 TEST_PAD Not implemented
20 UEXT_SPI2_MOSI 9
23 PIN29 26
24 UEXT_SPI2_SCK Not implemented
25 PIN28 24
30 UEXT_TX1 Not implemented
31 UEXT_RX1 Not implemented
Below you can find the GPIO CON1 and CON2 as seen in the schematic:
There is numeration of the pinholes on the top of the board.

6.5 USB HOST connector

The USB host connector is a vertical one and it is side mounted. This is done to save space and to optimize the dimensions of the board.
It is a good idea to use an external USB hub (splitter) to connect more than one USB device to the board.
The signals follow the familiar and standard USB host pattern:
Page 24 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual
USB HOST
Pin # Signal name
1 +5V_HOST_PWR
2 USB_DM
3 USB_DP
4 GND

6.6 External power pins

The NANO board lacks power jack. If you wish to use regulated 5VDC you should provide it at pins 1 and 2 at the CON2 row of pins. Note that pin 1 is the VDC pins and pin 2 is the GND pin.
You would damage the board if you short-circuit the power supply to these pins!
More info about the power supply can be found in chapter 5 of this manual.

6.7 Battery connector

The voltage of a 3.7V LIPO battery would be enough to power the board. It uses the standard.
Pin # Signal name
1 VBAT
2 GND
The pins are also written on the bottom of the board, under the connector.
Page 25 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual
The iMX233 has a built-in battery recharge circuit. This means that if you have a battery and external power supply connected simultaneously, if the battery is not fully charged it would start charging (drawing current from the external power supply).

6.8 Boot mode positions

The iMX233 can boot the operating system from different locations. The default location for the Linux files we used is the microSD card. There is a resistor matrix RM1 responsible for the boot mode. It is located on the back of the board. Note that the jumpers are SMD type and opening a jumper would require cutting, closing a jumper would require soldering. To be able to do the quoted operations you will need basic engineering skills and experience. You can check below the table or the schematic for the correct positions. Value of “1” means the jumper is closed.
BOOT MODE D03 d02 d01 d00
USB 0 0 0 0
Page 26 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual
3.3V I2C Master 0 0 0 1
3.3V SPI Flash 1 Master 0 0 1 0
3.3V SPI Flash 2 Master 0 0 1 1
3.3V NAND 0 1 0 0
Start up waits for JTAG
debugger connection
0 1 1 0
3.3V SD/MMC 1 (Default !!!) 1 0 0 1
3.3V SD/MMC 2 1 0 1 0

6.9 Jumper description

Please note that all the jumpers on the board are SMD type. If you feel insecure in your soldering/cutting technique it is better not to try to adjust the jumpers. Additionally for the NANO board the jumpers are pretty tiny to keep the board factor as small as possible. If you are not good at soldering you might damage the board permanently.

6.9.1 CH/CS and DH/DS

Those two jumpers must be moved together – there are two available options – configuring software I2C interface (CS, DS) or hardware I2C interface (CH, DH).
The default positions for the first revision released (revision B) of the NANO board is DS/DH (software I2C).
The default positions of these jumpers for future revisions of the board would be CS/DS (hardware I2C).
Note that if you wish to use our UEXT modules the jumpers should be set to hardware I2C position.

6.9.2 CSS/CSH

This jumper controls whether the I2C CS (chip select) is software or hardware.
CS_SW:Open/CS_HW:Close
The default position is CS_HW closed (hardware CS).

6.9.3 Boot mode selecting jumpers

The boot mode is discussed in chapter 6.8 of this manual.
Page 27 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual

6.10 Additional hardware components

The components below are mounted on OLinuXino but are not discussed above. They are listed here for completeness:
Reset button - used to reset the board
Power button – when Linux is running pressing PWR_BUT will put the board in low power mode;
when powered by battery PWR_BUT is used to initially power up the board – and pressing the board again after it is powered will put it low power mode
Recovery button - when powered by battery the recovery button is used to bring the processor to normal power mode
512 (32M x 16) MBit DDR SDRAM - the exact memory used at the moment of writing is Xylinx H5DU5xxxyyy
Green LED1

6.11 Accessories

Here you will find additional information for Olimex products you can use with OLinuXino-NANO purchase

6.11.1 USB-SERIAL-CABLE-F

The cable for the U_DEBUG interface that can be purchased for additional cost has three cables. It is important to specify in your purchase order whether you want the USB-SERIAL-CABLE-F variant with male of female connectors.
You will need a drivers that can be downloaded from the page of USB-SERIAL-CABLE:
https://www.olimex.com/Products/Components/Cables/USB-Serial-Cable/USB-Serial-Cable-F/.
Page 28 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual

CHAPTER 7 BLOCK DIAGRAM AND MEMORY

7. Introduction to the chapter

On the next page you can find a memory map for this family of processors. It is strongly recommended to refer to the original datasheet released by Freescale for one of higher quality.

7.1 Memory addresses

Below is the table with some of the most frequently used addresses. For full list of addresses check the manual released by Freescale (Chapter Memory Map).
Decode block
Device Mnemonic Start address End address Size
AHB On-chip RAM OCRAM 0x00000000 0x00007FFF 32KB
On-chip RAM alias OCRAM 0x00008000 0x3FFFFFFF
External memory 0x40000000 0x5FFFFFFF 512MB
Default Slave 0x60000000 0x7FFFFFFF 512M
Page 29 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual

7.2 Processor block diagram

Page 30 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual

7.3 Physical memory map

Page 31 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual

CHAPTER 8 SCHEMATICS

8. Introduction to the chapter

In this chapter are located the schematics describing logically and physically OLinuXino.

8.1 Eagle schematic

OLinuXino schematics may be found it on the OLinuXino's GitHub repository:
https://github.com/OLIMEX/OLINUXINO/tree/master/HARDWARE/iMX233-OLinuXino-NANO.
You can download the whole repository as .zip without having a GitHub account.
We use mostly Eagle by Cad Soft 4.16r2 for designing. However, the files should be compatible with the latest Eagle available. Cad Soft offers a trial version of their software that allows you to inspect schematics and board files (without being able to modify them).
This work is licensed under the Creative Commons Attribution-ShareAlike 3.0 Unported License. To view a copy of this license, visit http://creativecommons.org/licenses/by-sa/3.0/.
If you are looking for a schematic of an older revision of the board and it isn't available at our web site you may request it by the support e-mail.

8.2 Physical dimensions

Note that all dimensions are in inches.
Note that the iMX233-OLinuXino-NANO board has a 6-layer PCB. The three highest elements on the board in order from the tallest to the shortest are: vertical USB HOST – 16.2mm (0.640'') over the pcb; UEXT connector – 13.6mm (0.525''); U_DEBUG pins – 12.0mm(0.464'').
The heights listed above include the PCB height.
Page 32 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual

CHAPTER 9 REVISION HISTORY AND SUPPORT

9. Introduction to the chapter

In this chapter you will find the current and the previous version of the document you are reading. Also the web-page for your device is listed. Be sure to check it after a purchase for the latest available updates and examples.

9.1 Document revision

Revision Changes Modified page#
A, 27.09.13 Initial Creation All
B, 30.09.13
Fixed error in the naming of the pins of the bottom view
Fixed wrong mention of SPI instead of I2C
Added more information about hardware I2C
11
20
27
C, 14.10.13
Wrong mention of iMX233-OLINUXINO-MICRO
Various page formatting
BREADBOARD-1 product added
Battery charger information added
2
8
9
8, 9, 26
D, 06.12.13
Fixed wrongfully stated information about the presence of a step-up converter (3.7V to 5V).
7, 9, 26
Page 33 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual

9.2 Board revision

Revision Notable changes
B Initial release of the board

9.3 Useful web links and purchase codes

The web page you can visit for more info on your device is
https://www.olimex.com/Products/OLinuXino/iMX233/iMX233-OLinuXino-NANO/.
It is highly recommended to visit the WIKI article which contains tons of useful information, sources and links: https://www.olimex.com/wiki/IMX233
You can get the latest updates on the software at: https://github.com/OLIMEX/OLINUXINO.
ORDER CODES:
iMX233-OLinuXino-NANO – the smallest version of the single-board computer
iMX233-OLinuXino-MAXI – the biggest version of OLinuXino featuring Ethernet controller iMX233-OLinuXino-MICRO – tiny in size, tiny in price and perfect for breadbording iMX233-OLinuXino-MINI-WIFI – the MINI version of OLinuXino + embedded RTL8128CU
WIFI module
USB-SERIAL-CABLE – USB serial console cable for U_DEBUG SY0605E - power supply adapter 5V/1A for iMX233-OLinuXino-NANO (Will not work with
iMX233-OLinuXino-MAXI and iMX233-OLinuXino-MINI) SY0605E-CHINA – cheaper power supply adapter 5V/1A for iMX233-OLinuXino-NANO (Will not work with iMX233-OLinuXino-MAXI and iMX233-OLinuXino-MINI) iMX233-OLinuXino-SD – SD card with the Linux image which can be used with every board from the OLinuXino family MOD-WIFI_RTL8188 – external USB WIFI modem with RTL8188 chip
The latest price list can be found at https://www.olimex.com/prices.
How to order? You can order directly from our web shop or from any of our distributors.
Visit https://www.olimex.com/ for more info. The full list of distributors can be found here: https://www.olimex.com/Distributors/.
Page 34 of 35
OLIMEX© 2013 iMX233-OLinuXino-NANO user's manual

9.4 Product support

For product support, hardware information and error reports mail to: support@olimex.com. Note that we are primarily a hardware company and our software support is limited.
Please consider reading the paragraph below about the warranty of Olimex products.
All goods are checked before they are sent out. In the unlikely event that goods are faulty, they must be returned, to OLIMEX at the address listed on your order invoice.
OLIMEX will not accept goods that have clearly been used more than the amount needed to
evaluate their functionality.
If the goods are found to be in working condition, and the lack of functionality is a result of
lack of knowledge on the customers part, no refund will be made, but the goods will be returned
to the user at their expense.
All returns must be authorized by an RMA Number. Email support@olimex.com for authorization
number before shipping back any merchandise. Please include your name, phone number and order
number in your email request.
Returns for any unaffected development board, programmer, tools, and cables permitted within 7
days from the date of receipt of merchandise. After such time, all sales are considered final.
Returns of incorrect ordered items are allowed subject to a 10% restocking fee. What is
unaffected? If you hooked it to power, you affected it. To be clear, this includes items that
have been soldered to, or have had their firmware changed. Because of the nature of the
products we deal with (prototyping electronic tools) we cannot allow returns of items that have
been programmed, powered up, or otherwise changed post shipment from our warehouse.
All returned merchandise must be in its original mint and clean condition. Returns on damaged,
scratched, programmed, burnt, or otherwise 'played with' merchandise will not be accepted.
All returns must include all the factory accessories which come with the item. This includes
any In-Circuit-Serial-Programming cables, anti-static packing, boxes, etc.
With your return, enclose your PO#. Also include a brief letter of explanation of why the
merchandise is being returned and state your request for either a refund or an exchange.
Include the authorization number on this letter, and on the outside of the shipping box.
Please note: It is your responsibility to ensure that returned goods reach us. Please use a
reliable form of shipping. If we do not receive your package we will not be held liable.
Shipping and handling charges are not refundable. We are not responsible for any shipping
charges of merchandise being returned to us or returning working items to you.
The full text might be found at https://www.olimex.com/wiki/GTC#Warranty for future reference.
Page 35 of 35
Loading...
