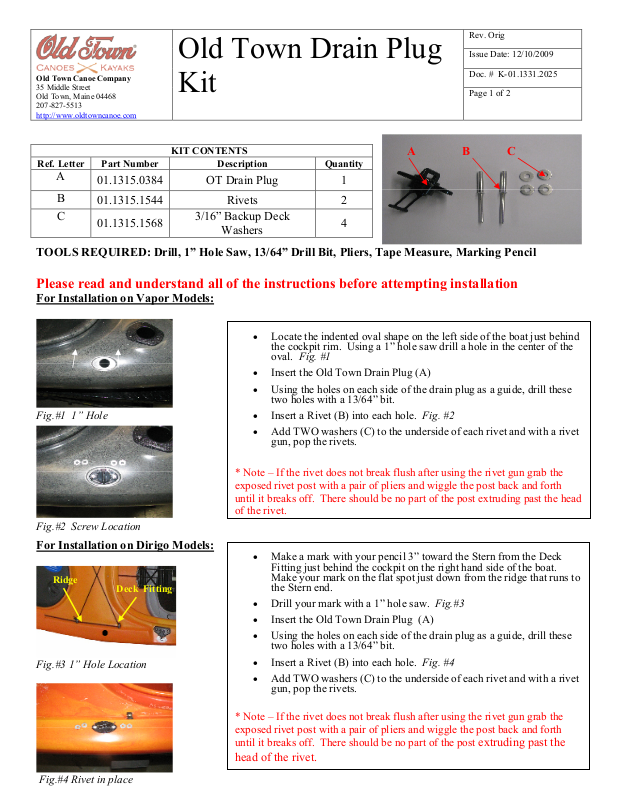

Old Town Drain Plug Kit User Manual
Rev. Orig
of the rivet.
Deck Fitting
Ridge
Issue Date: 12/10/2009
Doc. # K-01.1331.2025
Page 1 of 2
Old Town Canoe Company
35 Middle Street
Old Town, Maine 04468
207-827-5513
http://www.oldtowncanoe.com
Old Town Drain Plug
Kit
KIT CONTENTS
Ref. Letter Part Number Description Quantity
A
B
C
01.1315.0384
01.1315.1544
01.1315.1568
OT Drain Plug 1
Rivets 2
3/16” Backup Deck
Washers
4
A B C
TOOLS REQUIRED: Drill, 1” Hole Saw, 13/64” Drill Bit, Pliers, Tape Measure, Marking Pencil
Please read and understand all of the instructions before attempting installation
For Installation on Vapor Models:
•
Locate the indented oval shape on the left side of the boat just behind
Fig.#1 1” Hole
the cockpit rim. Using a 1” hole saw drill a hole in the center of the
oval. Fig. #1
•
Insert the Old Town Drain Plug (A)
•
Using the holes on each side of the drain plug as a guide, drill these
two holes with a 13/64” bit.
•
Insert a Rivet (B) into each hole. Fig. #2
•
Add TWO washers (C) to the underside of each rivet and with a rivet
gun, pop the rivets.
Fig.#2 Screw Location
For Installation on Dirigo Models:
Fig.#3 1” Hole Location
Fig.#4 Rivet in place
* Note – If the rivet does not break flush after using the rivet gun grab the
exposed rivet post with a pair of pliers and wiggle the post back and forth
until it breaks off. There should be no part of the post extruding past the head
•
Make a mark with your pencil 3” toward the Stern from the Deck
Fitting just behind the cockpit on the right hand side of the boat.
Make your mark on the flat spot just down from the ridge that runs to
the Stern end.
•
Drill your mark with a 1” hole saw. Fig.#3
•
Insert the Old Town Drain Plug (A)
•
Using the holes on each side of the drain plug as a guide, drill these
* Note – If the rivet does not break flush after using the rivet gun grab the
exposed rivet post with a pair of pliers and wiggle the post back and forth
until it breaks off. There should be no part of the post
two holes with a 13/64” bit.
•
Insert a Rivet (B) into each hole. Fig. #4
•
Add TWO washers (C) to the underside of each rivet and with a rivet
gun, pop the rivets.
extruding past the
head of the rivet.
