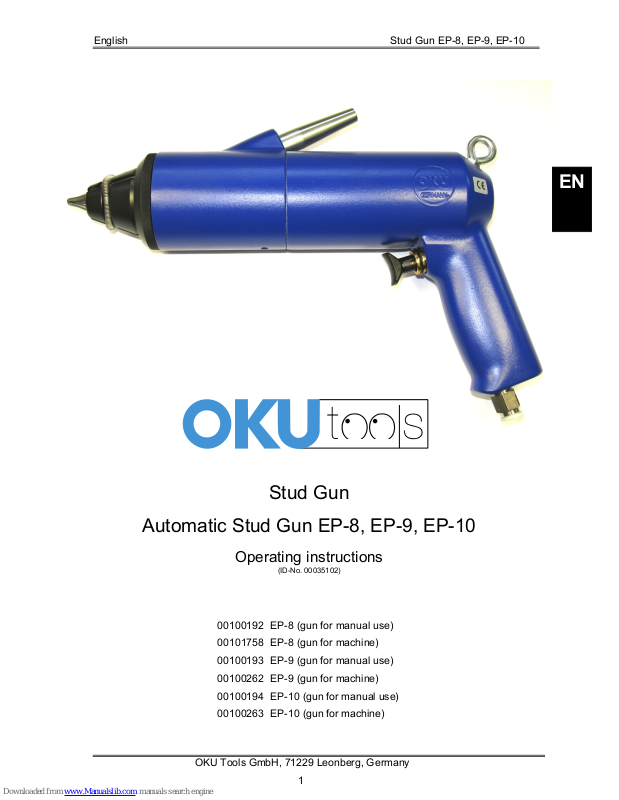

English Stud Gun EP-8, EP-9, EP-10
OKU Tools GmbH, 71229 Leonberg, Germany
1
EN
Stud Gun
Automatic Stud Gun EP-8, EP-9, EP-10
Operating instructions
(ID-No. 00035102)
00100192 EP-8 (gun for manual use)
00101758 EP-8 (gun for machine)
00100193 EP-9 (gun for manual use)
00100262 EP-9 (gun for machine)
00100194 EP-10 (gun for manual use)
00100263 EP-10 (gun for machine)
English Stud Gun EP-8, EP-9, EP-10
OKU Tools GmbH, 71229 Leonberg, Germany
2
EN
Table of contents
Table of contents ................................................................................................................... 2
1 Preface and general information ......................................................................................... 3
1.1 General ........................................................................................................................ 3
1.2 Scope of supply ........................................................................................................... 3
1.3 Intended use ................................................................................................................ 3
1.4 Liability ......................................................................................................................... 3
1.5 Warranty ...................................................................................................................... 4
2 Safety information .............................................................................................................. 4
2.1 Personnel responsible for safety............................................................................... 4
2.1.1 Operator ................................................................................................................ 4
2.1.2 Qualified personnel ................................................................................................ 4
2.2 General safety instructions ....................................................................................... 4
2.3 Layout of the safety instructions ............................................................................... 5
3 Technical Data ................................................................................................................... 5
3.1 Stud types .................................................................................................................... 5
3.2 Dimensions and weight ................................................................................................ 6
3.3 Noise emission ............................................................................................................ 6
3.4 Ambient conditions ....................................................................................................... 6
4 Commissioning ................................................................................................................... 6
4.1 Pneumatic connection .................................................................................................. 6
5 Operation of the gun ........................................................................................................... 7
5.1 Insertion of studs.......................................................................................................... 7
5.2 Faults during insertion .................................................................................................. 7
5.2.1 Studs inserted to deep ........................................................................................... 7
5.2.2 Studs jut out off the tire .......................................................................................... 7
5.3 Conversion of machine gun to manual gun ............................................................... 8
6 Faults and troubleshooting ................................................................................................. 9
7 Lubrication and maintenance .............................................................................................10
7.1 Lubrication ..................................................................................................................10
7.1.1 Lubricating oil .......................................................................................................10
7.1.2 Lubricating grease ................................................................................................10
7.2 Greasing points ...........................................................................................................10
7.3 Maintenance ...............................................................................................................11
8 Shutdown and dismounting ...............................................................................................11
9 Spear and wear parts ........................................................................................................12
9.1 Requirements .............................................................................................................12
9.2 Handling of order ........................................................................................................12
9.3 Explanation to the spare parts list ...............................................................................12
9.4 Spare parts-set ...........................................................................................................12
9.5 Exploded drawing EP-8, EP-9, EP-10 .........................................................................13
9.6 Spare parts list EP-8, EP-9, EP-10 .............................................................................14
10 Appendix .........................................................................................................................16
10.1 CE-Declaration of Conformity ....................................................................................16
10.2 Copyright ..................................................................................................................17
10.3 Manufacturer and contact person .......................... Fehler! Textmarke nicht definiert.
11 Notes ...............................................................................................................................18
English Stud Gun EP-8, EP-9, EP-10
OKU Tools GmbH, 71229 Leonberg, Germany
3
EN
1 Preface and general information
1.1 General
The operating instructions is used for safe operation of the Stud Guns (in the following referred to as “gun“) type Automatic Stud Gun EP-8, EP-9 and EP-10 (ID-No.
100192, 100193, 100194, 101758, 100262, 100263)). The safety instructions included hereinafter must be observed.
The operating instructions must be available for anybody who is working with the gun
and the included instructions must be carefully attended to.
The operating instructions must always be complete and perfectly readable.
1.2 Scope of supply
The delivery normally consists of a stud gun, the operating instruction and 1 separating finger for multi-flange studs fingers (only EP-8 and EP-9). The parts included in
your delivery are stated in the accompanying papers.
These papers shall be checked for conformity, immediately after receipt of the goods.
OKU Tools GmbH does not provide any guarantee and/or accept any liability for defects complained belatedly. Therefore:
Contact the forwarder immediately to complain visible transit damages.
Contact OKU Tools GmbH immediately to complain visible defects and/or incom-
pleteness of delivery.
1.3 Intended use
The gun is intended to be used only for the insertion of single and multi-flange spikes
into tyres of cars.
Any other use shall be deemed to be inappropriate!
1.4 Liability
The information, data and notes of this operating instruction were up-to-date when
passing for press. The specifications, illustrations and descriptions included hereinafter do not apply for any previously supplied guns.
We do not accept liability for damages and operating troubles caused by:
inappropriate use.
unauthorized modification of gun.
improper operation of the gun.
operating errors.
disregard of this operating instructions.
English Stud Gun EP-8, EP-9, EP-10
OKU Tools GmbH, 71229 Leonberg, Germany
4
EN
1.5 Warranty
Conditions of warranty: see Standard Terms and Conditions of OKU Tools GmbH.
Assert warranty claims against OKU Tools GmbH immediately after detection of the
defect.
Warranty claims expire in each case in which liability claims cannot be made.
2 Safety information
2.1 Personnel responsible for safety
2.1.1 Operator
Operator is called any natural or legal person who is using the gun and/or on behalf of
whom the gun is used.
The operator and/or his safety officer must ensure,
observance of the relevant regulations, instructions and laws,
only qualified personnel is working with the gun,
personnel having the operating instructions available at any time,
to prohibit non-qualified personnel from working with the gun.
2.1.2 Qualified personnel
As qualified personnel are to be considered persons who were authorised by the
safety officer of the plant to perform the necessary activities and who are able to recognise and avoid potential hazards because of their education, experience, instructions and their knowledge about corresponding standards and rules for the prevention
of accidents as well as operating conditions (see IEC 364, definition for qualified personnel).
2.2 General safety instructions
These safety instructions do not claim to be exhaustive. In case of any questions,
please, contact OKU Tools.
At the time of delivery the gun is state of the art and reliable.
The gun is a source of danger for persons, for the gun itself and for other material as-
sets of the operator, if
it is operated by unqualified personnel.
it is used inappropriately.
Operate the gun only when it is in good condition.
Any upgrade, modification or redesign of the gun is basically prohibited. In this case,
please confer with OKU Tools.
English Stud Gun EP-8, EP-9, EP-10
OKU Tools GmbH, 71229 Leonberg, Germany
5
EN
2.3 Layout of the safety instructions
The safety instructions described hereinafter are arranged consistently.
Beware of personal injury
Pictogram Meaning Signal words Notes
Warning for hazardous
electrical voltage
Danger! Warns of imminent danger.
Consequences of disregarding:
Death or very severe injuries
Warning for general danger
Warning! Warns of a potential, very hazardous
situation.
Consequences if disregarded:
Death or very severe injuries
Warning for a general danger
Caution! Warns of a potential hazardous situa-
tion.
Consequences if disregarded:
Light or minor injuries
Warning of material damage
Icons used Meaning Signal words Notes
Warning of material damage
Stop! Warns of potential material
damage.
Consequences if disregarded:
Ambient damage or damage of
the gun.
Other information
Icons used Meaning Signal words Notes
General note
Note!
Designates a general, useful
note.
Adherence hereof will ease the
use of the gun.
3 Technical Data
3.1 Stud types
The gun can be used for the insertion of single-flange and multi-flange studs into car
tires. Factory setting is for the insertion of single-flange studs.
To operate the gun with multi-flange studs you’ll be needed to convert the gun (not
possible for EP-10). Exchange the separating finger (20) of the single-flange studs for
the provided separating fingers of the multi-flange studs, as described in chapter 6.7.
English Stud Gun EP-8, EP-9, EP-10
OKU Tools GmbH, 71229 Leonberg, Germany
6
EN
Type ID.-No. Stud sizes
EP-8 (gun for manual use) 100192 Ø8 from a length of 11 mm
Multi-flange studs with a Ø8 and a
length of 10 mm can be inserted
with gun EPK-8 only.
EP-8 (gun for machine) 101758
EP-9 (gun for manual use) 100193 Ø8 from a length of 11 mm
Ø9 from a length of 11 mm
EP-9 (gun for machine) 100262
EP-10 (gun for manual use) 100194 Single-flange studs with an Ø10,
Ø9 from a length of 13 mm only.
EP-10 (gun for machine) 100263
3.2 Dimensions and weight
The following values are valid for the gun without any accessories and can differ according to the respective extra equipment.
Length ca. 282 mm
Width ca. 60 mm
Height ca. 194 mm
Weight ca. 1,8 kg
3.3 Noise emission
The sound pressure level at the work station of the operator can reach up to
83 dB(A). Provide suitable ear protection for the operator.
3.4 Ambient conditions
Use the gun only in closed and dry rooms.
The permissible ambient temperature during operation is from 10 °C to 40 °C.
4 Commissioning
Precautions to be taken before start working with the gun
Check gun for proper condition.
Do never operate a damaged gun.
4.1 Pneumatic connection
The pneumatic connection is to be made by qualified personnel with extensive knowledge in handling of pneumatic
systems.
English Stud Gun EP-8, EP-9, EP-10
OKU Tools GmbH, 71229 Leonberg, Germany
7
EN
Screw provided coupling (1) onto the hand grip. Plug compressed air hose into coupling. The gun requires compressed air with approx. 7-8 bar working pressure. The
maximum operating pressure amounts to 10 bar.
5 Operation of the gun
5.1 Insertion of studs
Without feeding unit: fill the feeding pipe (13) with approx. 10 studs (flange leading).
With feeding unit: connect the gun with the feeding hose of the studs until feeding
pipe (13) is filled with studs (flange leading).
Moisten tire with low surface tension water. To get this, mix normal tap water with
some drops of usual dish liquid.
Use only less dish liquid to avoid that the inserted stud is
pulled out again when extracting the gun.
Insert spreader fingers (23) into one of the moistened tyre holes. Operate the trigger
(28) and keep it pressed. The stud is pressed into the tire. Release trigger (28); the
gun is now loosen from the tire and the stud is inserted.
Put some pressure onto the gun when inserting the studs.
With some practice and skill you’ll soon find the respective
pressure which shall be applied to reach a steady result.
5.2 Faults during insertion
5.2.1 Studs inserted to deep
Reduce the pressure applied on the gun during insertion.
5.2.2 Studs jut out off the tire
Put more pressure onto the gun when inserting the studs.
Coupling (1) for compressed air connection
(gun for manual use)
Coupling (1) for compressed air connection
(gun for machine)
English Stud Gun EP-8, EP-9, EP-10
OKU Tools GmbH, 71229 Leonberg, Germany
8
EN
5.3 Conversion of machine gun to manual gun
If you are using a studding machine (AS-ZN, EP-ZN or EPK-ZN) and want to dismantle the gun from the base frame to use it manually you’ll firstly have to convert the
gun, i.e. to release the trigger:
Disconnect the gun from the compressed air supply.
Release trigger: Slip off O-ring (30) from bushing (32) and dowel pin (29) appears.
The dowel pin can be easily pushed out of the bore. The trigger (28) is released and
can be removed. Turn the trigger by 90° and insert it back into the bushing. Then insert the dowel pin into the bore of the bushing. Slip the O-ring over and place it into
the groove.
The gun must be set back to its initial state should you want to use it
on the studding machine.
Bushing (32)
Dowel pin (29)
O-ring (30) Trigger (28)
O-ring (30)
Bushing (32)
Trigger (28)
Dowel pin (29)
Images similar
English Stud Gun EP-8, EP-9, EP-10
OKU Tools GmbH, 71229 Leonberg, Germany
9
EN
6 Faults and troubleshooting
When unscrewing the intermediate piece (17), it must be held tight,
because of the strong compression spring which is in the gun. If
not, it can be ejected and pose great danger.
No. Cause Trouble shooting
6.1 Deformed or dirty stud jammed in
feeding pipe (13) or gun head.
Unscrew Union nut (18) and take the head (26)
off the gun. Now remove the jammed stud.
6.2 Stud in feeding pipe (13) in wrong
position (with shank leading)
Remove feeding tube and shake out stud
6.3 Trigger (28) get caught Remove O-Ring (30) and dowel pin (29) and
then trigger (28). Clean and lubricate trigger
slightly with oil.
Check if compression spring (3) broken, if so
replace compression spring.
6.4 Worn spreader fingers (23) Unscrew Union nut (18) and take the head (26)
off the gun. Remove spring lock (21) and replace spreader finger (23)
6.5 Worn push rod (12) Unscrew Union nut (18) and take the head (26)
off the gun. Unscrew both hexagon head cap
screws (27) (Caution!), hold the intermediate
piece (17) (pressure of inner springs). Remove
intermediate part and circlip (15). Extract push
rod (12) together with the springs (10, 11), retaining ring (14) piston disk (6) and lip seal (7).
Unscrew hexagon nut (4) and replace worn
push rod. Assemble the gun is reversed order
and replace hexagon nut if necessary.
6.6 Worn centering finger (24) Unscrew Union nut (18) and take the head (26)
off the gun. Remove spring lock (21), Union nut
and O-ring (19). Replace centering finger (24).
6.7 Worn separating finger (20) Unscrew Union nut (18) and take the head (26)
off the gun. Remove spring lock (21), Union nut
and O-ring (19). Drive off spring pin (22) with a
drift punch until it is possible to remove the
separating finger (20). Replace separating finger, consider that the separating finger may not
jam it should remain movable.
English Stud Gun EP-8, EP-9, EP-10
OKU Tools GmbH, 71229 Leonberg, Germany
10
EN
7 Lubrication and maintenance
7.1 Lubrication
Observe the effective directions for the use and
safety of the applied lubricants!
7.1.1 Lubricating oil
Distinguishing
mark acc. to
DIN 51502
Designation
ISO-Viscosity
Index
DIN 51519
Manufacturer
AN 22 Normal lubri-
cating oil
ISO VG 22 AVIA (AVILUB RS 22)
BP (BP Energol CS 22)
ESSO (Coray 22)
SHELL (SHELL Carnea Oel 22)
7.1.2 Lubricating grease
Designation
acc. to
DIN 51825
Designation
Consistency
Index
NLGI Class as per
DIN 51818
Worked pene-
tration as per
DIN ISO 2137
Manufacturer
KP2K-20 Lubricating
grease for
bearing
NLGI-2 265-295 AVIA (AVIALITH 2)
BP (Energrease L2)
ESSO (Beacon 2)
KLÜBER (CENTOPLEX 2 EP)
MOBIL (Mobilux 2)
SHELL (Alvania R 2)
7.2 Greasing points
The following points of the gun need to be greased regularly. You will find a maintenance-set including grease and corrosion preventive-oil-spray in the spare parts list in
chapter 9.6.
To grease the gun it must be partially dismounted (see hereto chapter 6 “Faults and
trouble shooting”. We recommend taking the opportunity and greasing the gun when
replacing the wear parts.
No. Designation Service to be
done
Consumables
Measured values
Frequency Notes
1 Trigger Lubricate with
oil
Lubricating oil
DIN 51501-L-AN 22
quarterly Oil trigger slightly
2 Piston disk
Lip seal
Lubricate with
grease
Lubricating grease
DIN 51825-KP2K-20
yearly Grease piston sur-
face slightly
English Stud Gun EP-8, EP-9, EP-10
OKU Tools GmbH, 71229 Leonberg, Germany
11
EN
7.3 Maintenance
We are working with water to insert the studs, therefore the head of the gun shall be
sprayed regularly with anticorrosive material to avoid corrosion and extend lifetime of
the gun.
8 Shutdown and dismounting
OKU Tools takes back your gun. We recommend you have OKU Tools professionally
dismantle the gun and dispose of it.
Be part of the environmental protection by recycling valuable materials.
What? Material Where?
Transport material Pallets Return to the manufacturer or forwarder
Packing material Cardboard boxes to waste paper
plastic to plastic recycling or waste material
reuse wood-wool or waste material
Lubricants Oil, grease Dispose according to the valid regulations
Components Used materials:
aluminum
aluminum cast
grey cast iron
steel
brass
plastic
Separate valuable substances and dispose
1
2
English Stud Gun EP-8, EP-9, EP-10
OKU Tools GmbH, 71229 Leonberg, Germany
12
EN
9 Spear and wear parts
9.1 Requirements
Spare and wear parts must be in accordance with
the technical requirements stipulated by the manufacturer.
9.2 Handling of order
To ensure punctual handling of orders, please state always the OKU-ID.-No. of the
spare part you need when ordering. You’ll find the OKU-Id.-No. on the drawing of the
gun and the spare parts list.
9.3 Explanation to the spare parts list
The numbering of the spare parts in the exploded drawing corresponds to the item
numbers of the spare parts list.
9.4 Spare parts-set
To the gun there is available a spare parts-set including the most important wear
parts. It contains all in the spare parts list with marked parts inclusive grease and
corrosion preventive-oil-spray.
OKU-Id.-No. spare parts-set EP-8: 20015505
OKU-Id.-No. spare parts-set EP-9: 20015506
OKU-Id.-No. spare parts-set EP-10: 20015507
English Stud Gun EP-8, EP-9, EP-10
OKU Tools GmbH, 71229 Leonberg, Germany
13
EN
9.5 Exploded drawing EP-8, EP-9, EP-10
English Stud Gun EP-8, EP-9, EP-10
OKU Tools GmbH, 71229 Leonberg, Germany
14
EN
9.6 Spare parts list EP-8, EP-9, EP-10
Item OKU part No. Qty Designation
1 00031539 1 Coupling (for manual use)
00031547 1 Coupling (for machine use)
2 00003463 1 O-Ring
3 00350297 1 Compression spring
4 00004082 1 Hexagon nut M8
5 00470944 1 Hand grip EP-Car
6 00350667 1 Piston disk
7 00003507 1 Lip seal
8 00000613 1 Eyebolt
9 00000627 1 Hexagon nut M6
10 00350670 1 Compression spring, inner
11 00350669 1 Compression spring, outer
12 00250052 1 Push rod 8 (EP-8)
00250051 1 Push rod 9 (EP-9)
00250050 1 Push rod 10 (EP-10)
13 00350671 1 Feeding pipe 8 (EP-8)
00350711 1 Feeding pipe 9 (EP-9)
00350726 1 Feeding pipe 10 (EP-10)
14 00350666 1 Retaining ring
15 00000796 1 Circlip
16 00004709 1 Set screw
17 00470185 1 Intermediate piece EP-PKW
18 00350922 1 Union nut
19 00003466 1 O-Ring
20 00470649 1 Separating finger (single-flange studs)
00470651 1 Separating finger (multi-flange studs) (not for EP-10)
21 00417280 1 Spring lock
22 00000582 1 Spring dowel pin
23 00485167 3 Spreader finger
24 00353730 3 Centering finger
25 00350668 1 Lock washer
26 00470214 1 Gun head EP-8
00470215 1 Gun head EP-9
00470218 1 Gun head EP-10
27 00004100 2 Hexagon socket head cap screw
English Stud Gun EP-8, EP-9, EP-10
OKU Tools GmbH, 71229 Leonberg, Germany
15
EN
Item OKU part No. Qty Designation
28 00470092 1 Trigger (manual use)
00470093 1 Trigger (machine use)
29 00000536 1 Dowel pin
30 00003464 1 O-ring
31 00003404 1 O-ring
32 00350728 1 Bushing
00885027 1 corrosion preventive-oil, aerosol can 100 ml (single)
00885028 1 grease, tube 20 g (single)
20015510 1 1 aerosol can corrosion preventive-oil (100 ml) and
1 tube grease (20 g) as maintenance-set
= included in the spare parts-set
English Stud Gun EP-8, EP-9, EP-10
OKU Tools GmbH, 71229 Leonberg, Germany
16
EN
10 Appendix
10.1 CE-Declaration of Conformity
(CE Machine Directive 2006/42/EC, Appendix II A)
The manufacturer: OKU Tools GmbH
Rosenstraße 15
73650 WINTERBACH, GERMANY
herewith declares that the machine
designation: Studding gun models:
AS-8, AS-9, EP-8, EP-9, EP-10, EP-12, EP-15, EPK-6,5, EPK-8
as delivered complies all the relevant regulations of the CE Machine Directive 2006/42/EC.
Harmonized standards applied:
EN ISO 12100 Safety of machinery – General principles for design
– Risk assessment and risk reduction
Leonberg, 15.11.2017
OKU Tools GmbH
Karin Klingel Elmar Peters
Geschäftsführer Geschäftsführer
English Stud Gun EP-8, EP-9, EP-10
OKU Tools GmbH, 71229 Leonberg, Germany
17
EN
10.2 Copyright
© 01/2016
This documentation is protected by copyright which covers the exclusive rights to reproduce and distribute the documentation, as well as all translation rights. No material
published in this documentation may reproduce photographically or stored on microfilm, in electronic data bases, video disks, etc. Technical modifications reserved.
10.3 Manufacturer and contact person
OKU Tools GmbH
Seestraße 123
71229 Leonberg
Phone: +49 7152 7641313
Fax: +49 7152 5698818
Internet: www.okutools.com
Your contact person is:
Sales Department Studs
Phone: +49 7152 7641313
Fax: +49 7152 5698818
E-Mail: info@okutools.com
English Stud Gun EP-8, EP-9, EP-10
OKU Tools GmbH, 71229 Leonberg, Germany
18
EN
11 Notes
Loading...
