Page 1
OKLAHOMA SOUND CORPORATION
PA-IN-CASE: Sound Attache Lectern
3
TABLE OF CONTENTS
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Safety Information.. . . . . . . . . . . . . . . . . . . . . . . . . . .2
Amplifier Control Panel Features . . . . . . . . . . . . . . .4
Interior Functions & Accessories . . . . . . . . . . . . . . .5
Practical Applications . . . . . . . . . . . . . . . . . . . . . . . .6
Optional Equipment . . . . . . . . . . . . . . . . . . . . . . . . . 7
Technical Specifications . . . . . . . . . . . . . . . . . . . . . .8
Manufacturer’s Warranty. . . . . . . . . . . . . . . . . . . . . 8
6

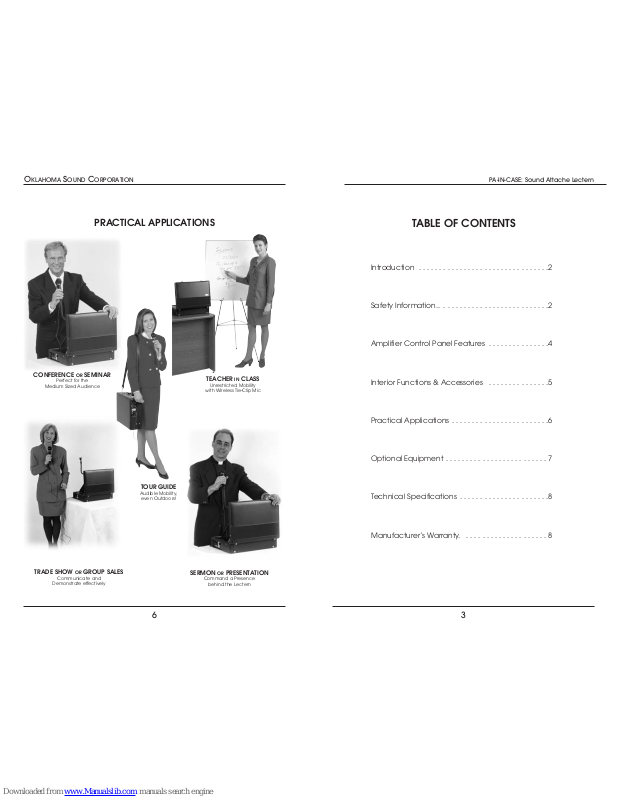

PRACTICAL APPLICATIONS
TOUR GUIDE
Audible Mobility,
even Outdoors!
SERMON OR PRESENTATION
Comm
and a Presence
behind the Lecter
n
TRADE SHOW OR GROUP SALES
Comm
unicate and
Demonstr
ate ef
fectively
CONFERENCE OR SEMINAR
Perfect for the
Medium Sized Audience
TEACHER IN CLASS
Unrestricted Mobility
with Wireless Tie-Clip Mic
Page 2
OKLAHOMA SOUND CORPORATION
PA-IN-CASE: Sound Attache Lectern
4 5
AMPLIFIER CONTROL PANEL FEATURES
A] Microphone Input: Plug microphone (included) into
this
1
/4" jack for audio output.
B] Volume Control: May be adjusted from 0 –10 to suit
your environment.
C] Tone/Base Control: -0 to -5= min/max tone control
+0 to +5= min/max base control
D] Fuse Box: Self contained sliding drawer holder for 2
amp fuse, with easy access for replacing fuse.
E] Power Light: When in use red light comes on.
F] Output Jack: Use with 1/4" jack for auxillary extension
speaker to broaden audio coverage and volume.
Also for recording device,to record speeches etc.
G] External Batter y Jack: Plug in battery cable (not
included) and attach to a 12V Lantern Battery.
H] On/Off Switch: Flick the switch for automatic power
to the sound system.
INTERIOR FUNCTIONS & ACCESSORIES
A] Microphones: 1.) Hand-held Electret Condenser, unidi-
rectional, 600 Ohm microphone with 9 ft cable; 2.)
Tieclip/Lavalier style with 10' cable.
B] Power Cord: Allows unit to be powered with 110AC
voltage to a typical wall outlet.
C] Battery pack: Accepts 8 ”C” cell batteries, for DC
power and function. Alkaline batteries recommended.
Unit will remain in constant power for about three
hours, when powered by 8 Alkaline batteries.
D] Gooseneck & Mount: 13" flexible gooseneck with mic
holder screws on here for speaker height control.
E] Reading Table: Fold out and snap into place to cre-
ate a 14" x 15" presentation surface.
F] Storage: Ample space for your presentation materials.
G] Removable Shoulder Strap: Clip on for easy portability.
H] Attache Combination Lock: Added security feature.
TO SET — push and hold large square button towards num-
ber
s, set your choice of combination before releasing button.
A
B
C
F
G
D
E
H
B
A
F
G
D
E
H
C
Page 3
OKLAHOMA SOUND CORPORATION
PA-IN-CASE: Sound Attache Lectern
7
OPTIONAL EQUIPMENT
Your sound attache lectern includes a choice of two corded
microphones. For complete freedom of movement, use any of
these wir
eless systems with your PA-IN-CASE—
For these and other OSC accessories, please contact your dealer, or:
OKLAHOMA SOUND CORP.
149 Entin Road,
Clifton,
NJ 07014
Tel 973-594-9000 • Fax 973-594-9339
www.oklahomasound.com • e-mail: [email protected]
2
INTRODUCTION
Congratulations! You are now the owner of one of the
most exciting products in the presentation world
today. The latest in the popular OSC lectern and pre-
sentation equipment product line. With proper care,
your multi-use executive attache case with built in
sound system, will give long lasting use.
IMPORTANT SAFETY INFORMATION
As with any electric/electronic device, care should be
taken during use. Always turn off amplifier before
opening or servicing any part of the unit. Please han-
dle your PA-IN-Case with the care it deserves.
PA-IN-CASE
™
Model #007-HT
Patent Pending 2000
TIE CLIP LAVALIER WIRELESS MIC
#WM-190TC
A compact, pocket-size, wireless system with tie-clip, lavalier
type microphone. Includes
transmitter,receiver and tie clip
mic. Move freely up to 200 ft.
Operates on two 9V batteries.
WIRED-WIRELESS MIC SYSTEM
#WM-100H
Hand-held wireless mic system.
Receiver has antenna and
on/off switch.Transmiter is built
into mic. Move freely up to 50
ft. Mic uses AA battery; receiver uses AAA battery.
DUAL HAND-HELD WIRELESS MIC
#WM-200H
Offers freedom of movement
for two people,Karaokee style
or speaker/audience participation; up to 200 ft. away.
Receiver operates on 110V AC.
Each mic transmitter uses one
9V battery (not Included).
12V LANTERN STYLE RECHARGEABLE BATTERY
#PS12V
Lectern recharges battery overnite.
For these and other OSC accessories, please contact your dealer, or:
OKLAHOMA SOUND CORP.
149 Entin Road, Clifton,
NJ 07014
Tel 973-594-9000 • Fax 973-594-9339
www.oklahomasound.com • e-mail: [email protected]
Page 4
OKLAHOMA SOUND CORPORATION
TECHNICAL SPECIFICATIONS
Power Output 20 Watts
Microphones • Hand-Held Electret Condenser with 9' Cable
• Tie Clip/Lavalier type, with 10' Cable
Speakers Two 4" High Efficiency
Inputs One Mic
Outputs 8 Ohm for additional Speaker and Recording
Controls One Volume; One Tone; On/Off
Fuse Internally Mounted
Power Supply 110 Volt AC; 12V DC* (Batteries not included)
*internal—8 “C”Batteries or External—12V Lanter n Battery
Dimensions 18"L x 13"W x 5"H
Reading Table Dimensions 14" x 15"
Weight 9 lbs.
P A-IN-CA SE
™
ATTACHE SOUND LECTERN
Manufacturers Warranty
Our Attache Sound Lectern undergoes the most rigid and exacting tests for
superior quality and performance before leaving the factory. Oklahoma
Sound Corporation warrants this product to be free from defective material and workmanship on the electronic product speakers and microphones
for two years from the date of resale by an authorized Oklahoma Sound
distributor. Oklahoma Sound will replace defective parts and repair malfunctioning products under this warranty when the defect occurs under
normal installation and use, provided the unit is returned to our factory
via prepaid transportation after direct authorization and approval by
Oklahoma Sound. This warranty provides that examination of the returned
product must disclose in our judgement, a manufacturing defect. This
warranty does not extend to any product which has been subject to misuse,
neglect, accident, improper installation, or where the serial number has
been removed or defected and is given in lieu of any other warranty
implied or expressed and will not cover any consequential damages.
MODEL #007-HT
INSTRUCTION MANUAL
