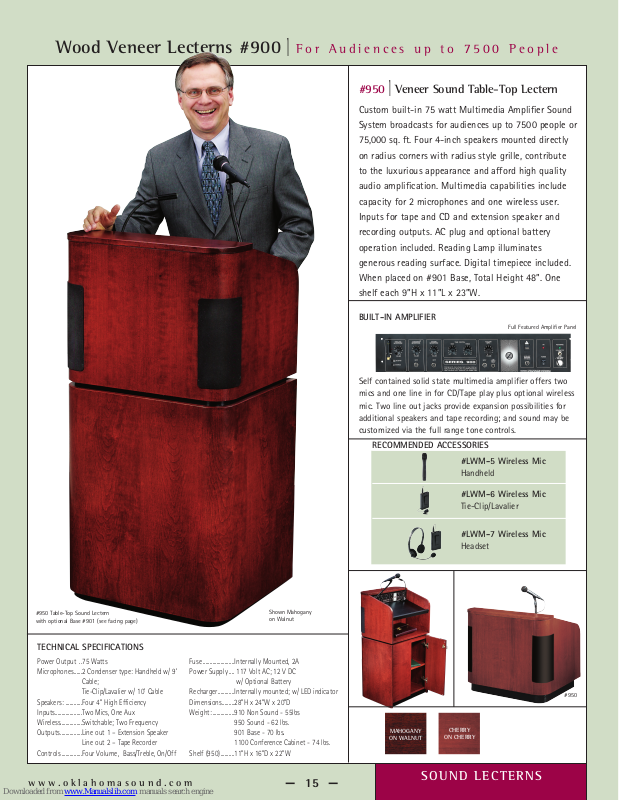

Oklahoma Sound 900 Technical Specifications
Wood Veneer Lecterns #900
F o r A u d i e n c e s u p t o 7 5 0 0 P e o p l e
I
#950
Veneer Sound Table-Top Lectern
I
Custom built-in 75 watt Multimedia Amplifier Sound
System broadcasts for audiences up to 7500 people or
75,000 sq. ft. Four 4-inch speakers mounted directly
on radius corners with radius style grille, contribute
to the luxurious appearance and afford high quality
audio amplification. Multimedia capabilities include
capacity for 2 microphones and one wireless user.
Inputs for tape and CD and extension speaker and
recording outputs. AC plug and optional battery
operation included. Reading Lamp illuminates
generous reading surface. Digital timepiece included.
When placed on #901 Base, Total Height 48”. One
shelf each 9”H x 11”L x 23”W.
BUILT-IN AMPLIFIER
Self contained solid state multimedia amplifier offers two
mics and one line in for CD/Tape play plus optional wireless
mic. Two line out jacks provide expansion possibilities for
additional speakers and tape recording; and sound may be
customized via the full range tone controls.
RECOMMENDED ACCESSORIES
#LWM-5 Wireless Mic
Handheld
Full Featured Amplifier Panel
#950 Table-Top Sound Lectern
with optional Base #901 (see facing page)
TECHNICAL SPECIFICATIONS
Power Output ..75 Watts
Microphones ...... 2 Condenser type: Handheld w/ 9’
Cable;
Tie-Clip/Lavalier w/ 10’ Cable
Speakers: ............Four 4” High Efficiency
Inputs....................Two Mics, One Aux
Wireless................Switchable; Two Frequency
Outputs ................ Line out 1 – Extension Speaker
Line out 2 – Tape Recorder
Controls ............... Four Volume, Bass/Treble, On/Off
Fuse .......................Internally Mounted, 2A
Power Supply .... 117 Volt AC; 12 V DC
Recharger ............ Internally mounted; w/ LED indicator
Dimensions .........28”H x 24”W x 20”D
Weight: ................ 910 Non Sound - 55lbs
Shelf (950) ..........11”H x 16”D x 22”W
w w w . o k l a h o m a s o u n d . c o m
Shown Mahogany
on Walnut
w/ Optional Battery
950 Sound - 62 lbs.
901 Base - 70 lbs.
1100 Conference Cabinet - 74 lbs.
— 15 —
#LWM-6 Wireless Mic
Tie-Clip/Lavalier
#LWM-7 Wireless Mic
Headset
MAHOGANY
ON WALNUT
CHERRY
ON CHERRY
SOUND L E C T E R N S
#950
