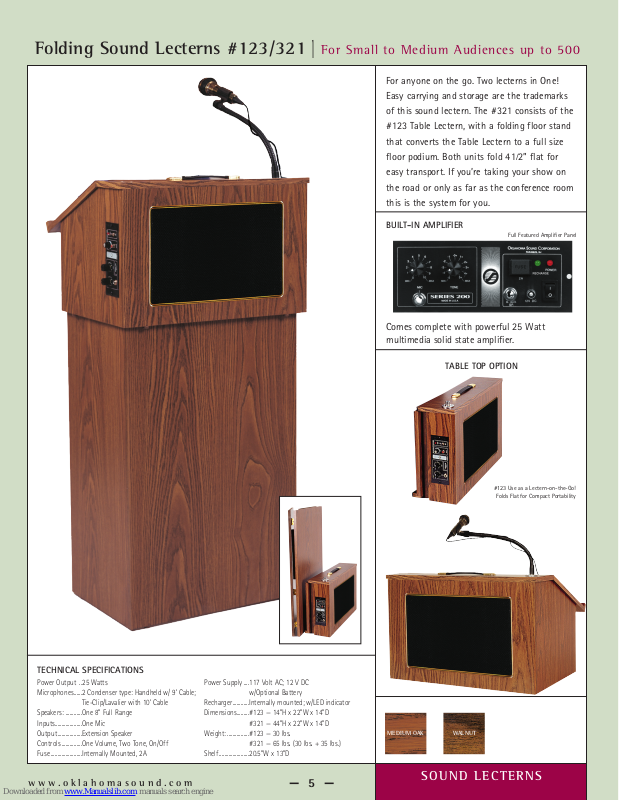

Oklahoma Sound 123, 321 Technical Specifications

Folding Sound Lecterns #123/321

For Small to Medium Audiences up to 500

I

For anyone on the go. Two lecterns in One!
Easy carrying and storage are the trademarks
of this sound lectern. The #321 consists of the
#123 Table Lectern, with a folding floor stand
that converts the Table Lectern to a full size
floor podium. Both units fold 41⁄2” flat for
easy transport. If you’re taking your show on
the road or only as far as the conference room
this is the system for you.

BUILT-IN AMPLIFIER

Full Featured Amplifier Panel

Comes complete with powerful 25 Watt
multimedia solid state amplifier.

TABLE TOP OPTION

#123 Use as a Lectern-on-the-Go!

Folds Flat for Compact Portability

TECHNICAL SPECIFICATIONS

Power Output ..25 Watts

Microphones ...... 2 Condenser type: Handheld w/ 9’ Cable;

Tie-Clip/Lavalier with 10’ Cable

Speakers: ............One 8” Full Range

Inputs....................One Mic

Output ..................Extension Speaker

Controls ............... One Volume, Two Tone, On/Off

Fuse .......................Internally Mounted, 2A

Power Supply .... 117 Volt AC; 12 V DC

Recharger ............Internally mounted; w/LED indicator

Dimensions ......... #123 — 14”H x 22”W x 14”D

Weight: ................ #123 — 30 lbs.

Shelf ......................20.5”W x 13”D

w w w . o k l a h o m a s o u n d . c o m

w/Optional Battery

#321 — 44”H x 22”W x 14”D

#321 — 65 lbs. (30 lbs. + 35 lbs.)

— 5 —

MEDIUM OAK WALNUT

SOUND L E C T E R N S
