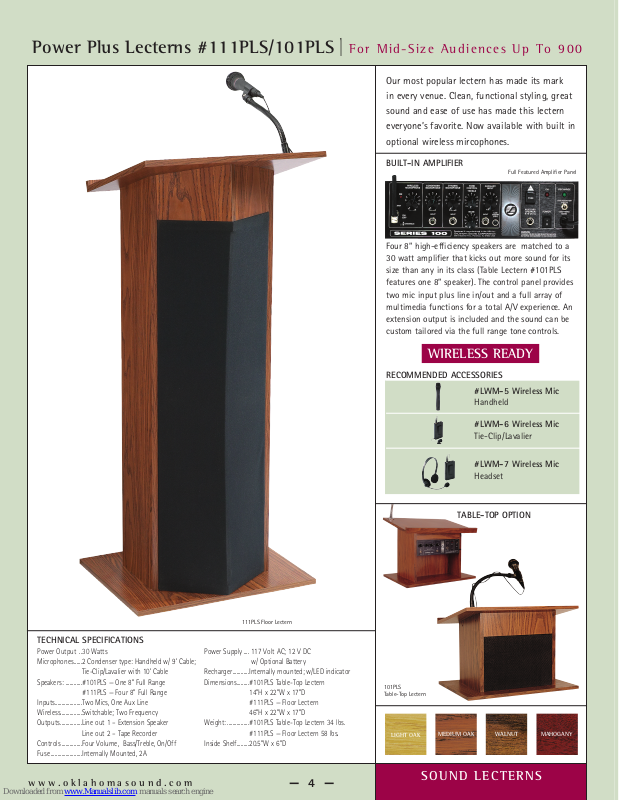

Oklahoma Sound 101PLS, 111PLS Technical Specifications

Power Plus Lecterns #111PLS/101PLS

F o r Mid-Size A u d i e n c e s U p To 9 0 0

I

Our most popular lectern has made its mark
in every venue. Clean, functional styling, great
sound and ease of use has made this lectern
everyone’s favorite. Now available with built in
optional wireless mircophones.

BUILT-IN AMPLIFIER

Four 8” high-efficiency speakers are matched to a
30 watt amplifier that kicks out more sound for its
size than any in its class (Table Lectern #101PLS
features one 8” speaker). The control panel provides
two mic input plus line in/out and a full array of
multimedia functions for a total A/V experience. An
extension output is included and the sound can be
custom tailored via the full range tone controls.

Full Featured Amplifier Panel

WIRELESS READY

RECOMMENDED ACCESSORIES

#LWM-5 Wireless Mic

Handheld

#LWM-6 Wireless Mic

Tie-Clip/Lavalier

TECHNICAL SPECIFICATIONS

Power Output ..30 Watts

Microphones ...... 2 Condenser type: Handheld w/ 9’ Cable;

Tie-Clip/Lavalier with 10’ Cable

Speakers: ............ #101PLS — One 8” Full Range

#111PLS — Four 8” Full Range

Inputs....................Two Mics, One Aux Line

Wireless................ Switchable; Two Frequency

Outputs ................ Line out 1 – Extension Speaker

Line out 2 – Tape Recorder

Controls ............... Four Volume, Bass/Treble, On/Off

Fuse .......................Internally Mounted, 2A

111PLS Floor Lectern

Power Supply .... 117 Volt AC; 12 V DC

w/ Optional Battery

Recharger ............Internally mounted; w/LED indicator

Dimensions ......... #101PLS Table-Top Lectern

14”H x 22”W x 17”D
#111PLS — Floor Lectern
46”H x 22”W x 17”D

Weight: ................ #101PLS Table-Top Lectern 34 lbs.

#111PLS — Floor Lectern 58 lbs.

Inside Shelf .........20.5”W x 6”D

#LWM-7 Wireless Mic

Headset

TABLE-TOP OPTION

101PLS
Table-Top Lectern

LIGHT OAK

MEDIUM OAK WALNUT MAHOGANY

w w w . o k l a h o m a s o u n d . c o m

— 4 —

SOUND L E C T E R N S
