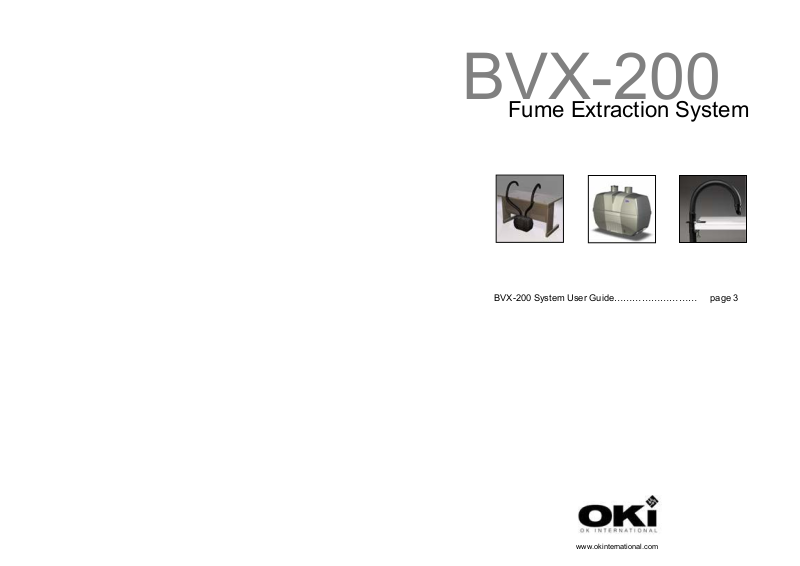

BVX-200
Fume Extraction System
BVX-200 System User Guide……………………… page 3
Guide de l'utilisateur du système BVX-200……….. page x
BVX-200 Benutzerhandbuch……………….……….. page x
Sistema BVX-200 – Guida per l’utente……..……... page x
Guía del Usuario del Sistema BVX-200……….…… page x
BVX-200 ……….…………………………page x
www.okinternational.com
Operations Manual & User Guide
Congratulations on your purchase of the BVX-200 Fume Extraction System. It is designed to protect your health from hazardous and irritating air pollution you may have at your work area. It has been designed and manufactured to the highest quality standards.
This document has been prepared to guide you with the setup, operation, and user maintenance of your system. We recommend that you review it to optimize performance and for your safety.
Contents |
Page No. |
||||
1.0 |
Please Observe The Following |
|
|
|
|
|
1.1 |
Emphasized Section ................................................ |
4 |
|
|
|
1.2 |
For Your Safety ........................................................ |
4 |
|
|
|
1.3 |
Unpacking and Inspection........................................ |
5 |
|
|
|
1.4 |
Items Supplied.......................................................... |
5 |
|
|
|
1.5 |
Features ................................................................... |
5 |
|
|
|
1.6 |
Usage ....................................................................... |
6 |
|
|
2.0 |
Description.......................................................................... |
7 |
|
||
3.0 |
Technical Data.................................................................... |
8 |
|
||
4.0 |
Installation........................................................................... |
8 |
|
||
5.0 |
Maintenance and Cleaning................................................ |
9 |
|
||
6.0 |
Ambient Temperature Alarm Calibration ....................... |
12 |
|||
7.0 |
Troubleshooting................................................................. |
13 |
|||
8.0 |
Part Numbers...................................................................... |
13 |
|||
9.0 |
Warranty .............................................................................. |
14 |
|||
10.0 Contact Information |
|
|
|
||
15 |
|
||||
|
|
www.okinternational.com |
|
|
|
|
|
3 |
|
|
|
1.0 Please Observe The Following
1.1Emphasized Sections
Warning!
Refers to safety regulations and requires safety measures that protect the operator or other persons from injury.
Caution!
Emphasizes what must be done or avoided so that the unit or other property is not damaged.
Note:
Gives recommendations for better handling of the unit during operation or adjustment as well as for service activities.
1.2 For Your Safety
Warning!
For safe and successful operation of the unit, read these instructions completely. If the instructions are not observed, the manufacturer can assume no responsibility. Retain this manual for future reference.
Consult your “safety department” when using the unit on flammable gases. This unit is not explosion safe and can only be used for the extraction of vapors, which have concentration levels well below the lower explosive limits.
Do not use the unit to extract corrosive substances.
Do not expose the connecting cable to heat, oil, or sharp edges.
Make sure the unit stands stable and secure.
Use only original equipment filters.
Do not operate the unit without filter inserts. Contaminants in the extracted air will damage the blower.
Always disconnect the power supply before servicing the unit.
Never cover exhaust openings.
Never cover both air inlet openings simultaneously.
Exception: One opening may be sealed off for single station operation.
This system is equipped with automatic reset overload protection, which may cause the unit to restart automatically.
Observe general safety regulations for the handling of chemicals such as adhesives and sealants. Observe the manufacturer’s instructions as stated in the Material Safety Data Sheet (MSDS).
While under warranty, the unit may be repaired only by an Authorized OK International Service Representative.
www.okinternational.com
4
1.3 Unpacking and Inspection
Carefully unpack the Fume Extraction System and examine the items contained in the Carton. Inspect the unit for any damage that might have occurred in transit. If such damage is present, notify the carrier immediately. Claims for damage must be made by the consignee to the carrier and should be reported to the manufacturer.
1.4 Items supplied
1 Filter Unit with filters installed

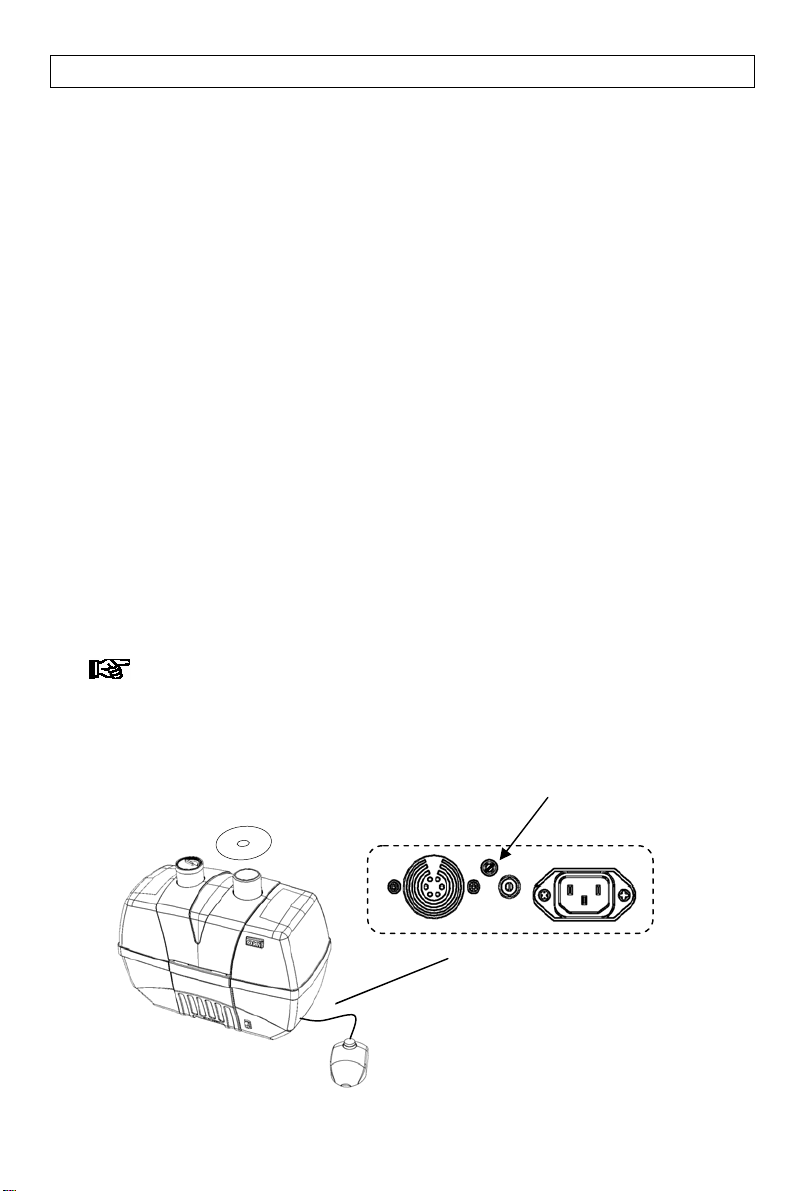

1 Remote Start/Stop Button
1 Power Cord
1Operating Manual
1.5Features
•Efficient motor with “soft-start” feature
•Optional, remote Start/Stop switch
•Audible alarm to indicate blocked filters
•Low noise level
•High suction force and airflow
•Compact and portable
•HEPA Efficiency at 99.95% (Model BVX-201)
•Deep-bed gas filter option (Model BVX-203)
•Connects to 50mm(2”) or 63mm(2.5”) hoses or exhaust arms
•ESD safe housing
•UL & CSA listed, CE certified
www.okinternational.com
5
1.6 Usage
The Fume Extraction System is a portable, two-station filtration system for the removal of fumes, light dust or vapors at the work place. The filter set supplied with the filter unit depends on the model ordered.
Model BVX-201 supplied with a pre-filter and a main filter. The main-filter is a combo-filter consisting of a HEPA filter with an efficiency of 99.95% at 0.3 micron and an activated carbon filter. This model is designed for applications such as solder fumes from solder irons, solder pots, etc.
Model BVX-203 supplied with a pre-filter and a deep-bed gas filter (activated carbon). This model is designed for applications such as cleaning with solvents, conformal coating, etc.
Warning! Consult your “safety department” when using the unit on flammable gases. This unit is not explosion safe and only used for the extraction of vapors, which have concentration levels well below the lower explosive limits.
|
|
|
|
|
|
|
|
|
Pre-filter mat |
|
|
|
|
|
|
|
|
|
|
|
Pre-filter mat |
||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
HEPA with slim |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Deep-bed |
|||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Carbon Filter |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Carbon Filter |
||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Airflow |
Model BVX-201 |
Model BVX-203 |
www.okinternational.com
6
