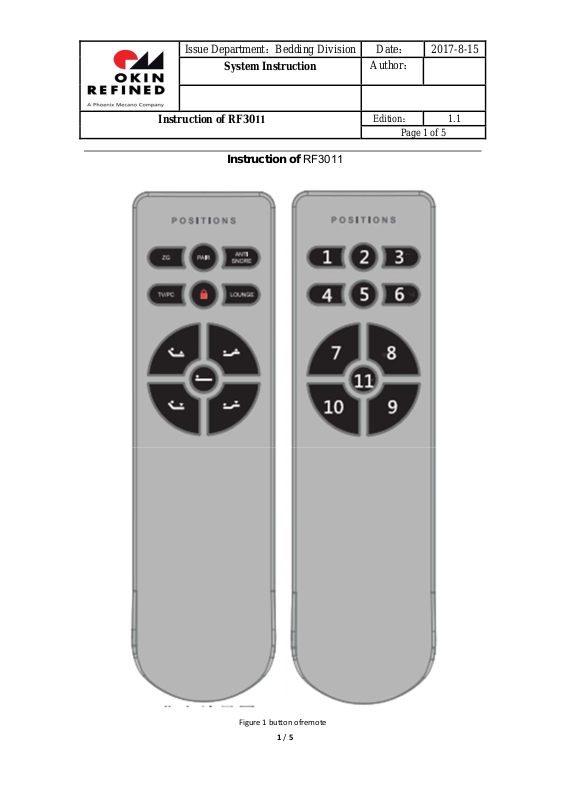

Figure1buttonofremote
1/5
Issue Department：Bedding Division Date：
2017-8-15
System Instruction
Instruction of RF3011
Author：
Edition：
Page 2 of 5
1. Item
1.1 ZG button（button 1 in figure 1）
Click the ZG button, the actuator moves to ZG position, stop when click any button during the
movement;
Press and hold the ZG button for 5s, timer LED of remote flashes, the control box records
current position as ZG position;
When in the process of moving to memory positions, the head and foot actuators move first,
then the tilt and lumbar actuators move;
1.1
1.2 AntiSnore button（button 3 in figure 1）
Click
AntiSnore
during movement；
Press and hold
current position as
When in the process of moving to memory positions, the head and foot actuators move first,
then the tilt and lumbar actuators move;
button, actuators move to
AntiSnore
AntiSnore
button for 5s, timer LED of remote flashes, the control box records
position;
AntiSnore
position, stop when click any button
1.3 TV/PC button（button 4 in figure 1）
Click
TV/PC
movement；
Press and hold
current position as
When in the process of moving to memory positions, the head and foot actuators move first,
then the tilt and lumbar actuators move;
button, actuators move to
TV/PC
button for 5s, timer LED of remote flashes, the control box records
TV/PC
position;
TV/PC
position, stop when click any button during
1.4 Childlock button（button 5 in figure 1）
In unlocked state, press and hold the childlock button, the red backlight of children lock
button begins to flash, after 5s, the red backlight stops flashing, remote entersl into locked
state;
Under locked state, press any button except childlock button, the red backlight of childlock
turns on, the button you pressed is invalid;
2/5
Issue Department：Bedding Division Date：
2017-8-15
System Instruction
Instruction of RF3011
Under locked state, press and hold childlock button, red backlight of childrenlock begins to
flash,after 5s, the red backlight stops flashing, remote enters into the normal working
condition;
Author：
Edition：
Page 3 of 5
1.5 LOUNGE button（button 6 in figure 1）
Click
LOUNGE
during movement；
Press and hold
current position as
When in the process of moving to memory positions, the head and foot actuators move first,
then the tilt and lumbar actuators move;
button, actuators move to
LOUNGE
LOUNGE
button for 5s, timer LED of remote flashes, the control box records
position;
LOUNGE
position, stop when click any button
1.1
1.6 Reset all memory positions to default settings（button 1 and 11 in figure 1）
Pressa and hold ZG+FLAT buttons
remote flashes, the control box reset all memory positions to default settings；
（button 1 and 16 in figure 2）for
5s, timer LED of
1.7 Head up（button 7 in figure 1）
Press and hold
released
；
HEAD UP button of remote, head actuator moves out, stop when
1.8 Head down（button 10 in figure 1）
Press and hold HEAD DOWN button of remote, head actuator moves in, stop when released；
1.9 Foot up（button 8 in figure 1）
Pressa and hold FOOT UP button of remote, foot actuator moves out, stop when released;
1.10 foot down（button 9 in figure 1）
Press and hold FOOT DOWN button of remote, foot actuator moves in , stop when released；
3/5
Issue Department：Bedding Division Date：
2017-8-15
System Instruction
Instruction of RF3011
When moving to flat position, lumbar actuator and tilt actuator move first, after 500ms, head and
foot actuators start moving;
Author：
Edition：
Page 4 of 5
1.1
1.11 Flat（button 11 in figure 1）
Click FLAT button, the bed goes flat, stop when click any button during the process of going
flat；
FCC Waring：
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
ISED RSS Warning:
This device complies with Innovation,Science and Economic Development Canada licenceexempt
RSS standard(s). Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'ISED applicables aux appareils radioexempts de
licence.
L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
