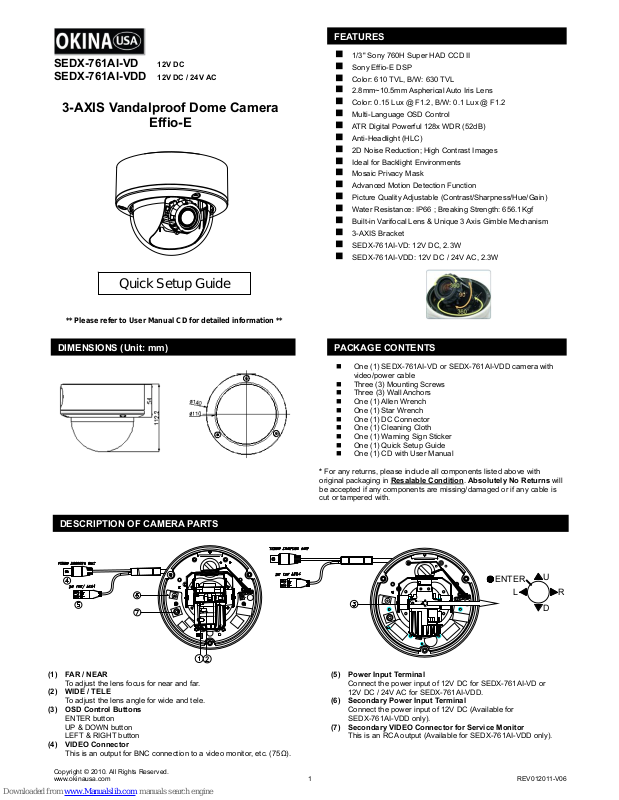

Page 1

SEDX-761AI-VD 12V DC SEDX-761AI-VDD

12V DC / 24V AC

3-AXIS Vandalproof Dome Camera

Effio-E

** Please refer to User Manual CD for detailed information **

DIMENSIONS (Unit: mm)

DESCRIPTION OF CAMERA PARTS

(1) FAR / NEAR

To adjust the lens focus for near and far.

(2) WIDE / TELE

To adjust the lens angle for wide and tele.

(3) OSD Control Buttons

ENTER button UP & DOWN button LEFT & RIGHT button

(4) VIDEO Connector

This is an output for BNC connection to a video monitor, etc. (75Ω).

Quick Setup Guide

FEATURES

 1/3" Sony 760H Super HAD CCD II  Sony Effio-E DSP  Color: 610 TVL, B/W: 630 TVL  2.8mm~10.5mm Aspherical Auto Iris Lens  Color: 0.15 Lux @ F1.2, B/W: 0.1 Lux @ F1.2  Multi-Language OSD Control  ATR Digital Powerful 128x WDR (52dB)  Anti-Headlight (HLC)  2D Noise Reduction; High Contrast Images  Ideal for Backlight Environments  Mosaic Privacy Mask  Advanced Motion Detection Function  Picture Quality Adjustable (Contrast/Sharpness/Hue/Gain)  Water Resistance: IP66 ; Breaking Strength: 656.1Kgf  Built-in Varifocal Lens & Unique 3 Axis Gimble Mechanism  3-AXIS Bracket  SEDX-761AI-VD: 12V DC, 2.3W  SEDX-761AI-VDD: 12V DC / 24V AC, 2.3W

PACKAGE CONTENTS

 One (1) SEDX-761AI-VD or SEDX-761AI-VDD camera with

video/power cable

 Three (3) Mounting Screws  Three (3) Wall Anchors  One (1) Allen Wrench  One (1) Star Wrench  One (1) DC Connector  One (1) Cleaning Cloth  One (1) Warning Sign Sticker  One (1) Quick Setup Guide  One (1) CD with User Manual

* For any returns, please include all components listed above with original packaging in Resalable Condition be accepted if any components are missing/damaged or if any cable is cut or tampered with.

ENTER

(5) Power Input Terminal

Connect the power input of 12V DC for SEDX-761AI-VD or 12V DC / 24V AC for SEDX-761AI-VDD.

(6) Secondary Power Input Terminal

Connect the power input of 12V DC (Available for SEDX-761AI-VDD only).

(7) Secondary VIDEO Connector for Service Monitor

This is an RCA output (Available for SEDX-761AI-VDD only).

. Absolutely No Returns will

ENTER

Page 2

(

SPECIFICATION

PIC D-236 D-242

Model SEDX-761AI-VD SEDX-761AI-VDD Image Sensor 1/3" Sony 760H Super HAD CCD II Number of Total Pixels NTSC: 811(H) x 508(V) / PAL: 795(H) x 596(V) Resolution ; DSP Color: 610 TVL, B/W: 630 TVL ; Sony Effio-E Minimum Illumination Color: 0.15 Lux @ F1.2, B/W: 0.1 Lux @ F1.2

Wide Dynamic Range

Video Output ; Connector 1.0Vp-p Composite, 75Ω ; BNC

Signal to Noise Ratio More than 52dB (AGC off, Weight on) Gamma Correction 0.45 Menu OSD Control Title TITLE (LOCATION) Synchronizing System INTERNAL Digital Day&Night Mode COLOR / B&W / AUTO

Electronic Shutter

Automatic Gain Control AUTO (4 steps)

White Balance ATW / PUSH / USER1 / USER2 / ANTI CR / MANUAL / PUSH LOCK

Back Light Compensation HLC / BLC / OFF Flickerless ON / OFF Dynamic Noise Reduction 2D

Language

Motion Detection ; Privacy

Lens Mount Built-in DC Auto IRIS Lens Lens, Angle of View (H) 2.8mm~10.5mm / F1.2 Aspherical Auto Iris Lens / 99.5°~27.4° Water Resistance IP66 Max. Breaking Strength 656.1 Kgf Power Input ; Consumption 12V DC ; 2.3W 12V DC / 24V AC ; 2.3W Internal 12V DC Only Operation ; Storage Temp. 14˚F~122˚F ; -4˚F~140˚F / -10˚C~50˚C ; -20˚C~60˚C Operation ; Storage Humidity Maximum: RH80% ; RH90% Dimensions 5.51”(DIA) x 4.41”(H) / 140mm(DIA) x 112mm(H) Net Weight 2.09 lbs / 950g

* Specifications are subject to change without notice.

PAL version also available.

OSD OPERATION

Use OSD Control Buttons to operate OSD and adjust settings.

ENTER

SETUP MENU

LENS AUTO<┘ SHUTTER/AGC AUTO<┘ NR <┘ WHITE BAL ATW<┘ ATR OF F BACKLIGHT OFF DAY/NIGHT AUTO<┘ NEXT<┘ EXIT<┘ SAVE ALL<┘

ATR Digital WD (ATR: Adaptive Tone-curve Reproduction) ;

MANUAL: 1/50(60), FL 1/120(100), 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000sec.

ENGLISH / JAPANESE / GERMAN / FRENCH / RUSSIAN / PORTUGUESE / SPANISH /

ON / OFF

128x Normal Camera (52dB)

1.0Vp-p Composite, 75Ω ; BNC

RCA Service Monitor Output

AUTO (1/50(60)~1/100,000sec.) /

SIMPLIFIED CHINESE

ON / OFF (24x16 Zones, Alarm) ;

8Zones Programmable, Polygonal Mosaic)

1. Start to operate the OSD menu

Press the ENTER button to bring up the OSD main menu to start operating OSD menus.

2. Select items with the cursor buttons

y Use buttons c and d to move the cursor up and down. y Use buttons e and f to switch the modes or to adjust the

parameters or the values of the settings.

3. Switch to the sub-menu

Items with “<┘” symbol in the end contains sub-menus. For further settings of those items, select the desired item with the button c or d and press the ENTER button to bring up the sub-menu and edit.

4. Return to the previous page

Select RETURN and press the ENTER button to return to the previous page.

5. Exit the OSD menu

Select EXIT with the button c or d and press the ENTER button to exit the OSD menu.

Page 3

BASIC SETTINGS

There are 2 pages of the OSD main menu. Adjust the item with buttons e and f, for the item with sub-menus, click enter to edit it.

Main Menu 1

Main Menu 1 Main Menu 2

SETUP MENU

LENS AUTO<┘ SHUTTER/AGC AUTO<┘ NR <┘ WHITE BAL ATW<┘ ATR OFF BACKLIGHT OFF DAY/NIGHT AUTO<┘ NEXT<┘ EXIT<┘ SAVE ALL<┘

y LENS: MANUAL / AUTO<┘ y SHUTTER/AGC: AUTO<┘ / MANUAL<┘ y NR: NR MODE / Y LEVEL / C LEVEL y

WHITE BAL: ATW / PUSH / USER1 / USER2 / ANTI CR /

MANUAL / PUSH LOCK

y ATR : OFF / ON<┘

BACKLIGHT: OFF / BLC / HLC

y y DAY/NIGHT: AUTO<┘ / COLOR / B/W y

NEXT<┘: Go to the next page of the main menu.

EXIT<┘: Exit the OSD menu.

SAVE ALL<┘: Save all the settings made.

SETUP MENU

PICT ADJUST <┘ MOTION DET ON<┘ PRIVACY OFF CAMERA ID OFF LANGUAGE ENGLISH CAMERA RESET

BACK<┘ EXIT<┘ SAVE ALL<┘

Main Menu 2

y PICT ADJUST: MIRROR / BRIGHTNESS / CONTRAST / SHARPNESS /

HUE / GAIN

MOTION DET: DETECT SENSE / BLOCK DISP / MONITOR AREA /

AREA SEL(TOP / BOTTOM / LEFT / RIGHT)

PRIVACY: AREA SEL(TOP / BOTTOM / LEFT / RIGHT) / COLOR /

TRANSP / MOSAIC

CAMERA ID: OFF / ON<┘

LANGUAGE: ENGLISH / 日本語 / DEUTSCH / FRANCAIS РУССКИЙ /

PORTUGUÊS / ESPAÑOL

y CAMERA RESET: Select to restore all the setting to the default values. y

BACK<┘: Go back to the previous page of the main menu.

EXIT<┘: Exit the OSD menu.

SAVE ALL<┘: Save all the settings made.

CAUTION

1. Never point the camera toward the sun

Do not expose the lens directly to the sun or to strong light as this may damage the pick-up device.

2. Handle this camera with care

Avoid any shock or bumping of the camera. Improper handling could damage the camera.

3. Requires a proper operating environment

This camera is designed for indoor and outdoor use. The allowable temperature range for operation of this camera is between 14˚F~122˚F /

-10

°C~50°C and the allowable humidity is 90%RH maximum.

4. Clean the front face to the pick-up device

It is recommended that the pick-up device surface be cleaned before lens installation or whenever the lens is changed. Cleaning should be done by using a chamois, a very fine soft cloth, lens tissue, or cotton tipped applicator and ethanol to carefully remove any fingerprint or dust.

5. Check the power source voltage

The power source voltage should be within the specified range. (Camera must meet the specifications). Camera must be connected to a surge protector at all times.

6. Objects and liquid entry

Never push objects of any kind into this camera as this may touch dangerous voltage points of short out parts that could result in a fire or electric shock. Never spill any kind of liquid on the video product.

7. Servicing

Do not attempt to service this video product by yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all service to qualified servicing personnel.

8. Damage requiring service

Unplug this video product from the wall outlet and refer service to qualified servicing personnel under the following conditions:

a. When the power supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into the video product. c. If the video product has been exposed to rain or water. d. If the video product has been dropped or the cabinet has been damaged. e. When the video product exhibits a distinct change in performance.

WARRANTY

OKINA USA products are covered under warranty for one year from the date of purchase. The warranty will automatically be voided if any of the following occurs:

1. Camera sticker is removed

If the camera sticker is removed, we will not be able to confirm any information regarding when and where the product was purchased. We have no other way to verify the purchase record without the serial number on the camera sticker; therefore, it should not be removed.

2. Camera is modified in any way

If the camera is scratched, damaged, or modified in a manner not described in this manual, the warranty will be voided immediately. It is the customer’s responsibility to keep the camera in good condition.

3. Video or power cable is cut

The video cable and the power cable should not be tampered with. Cutting or modifying of the cables will result in termination of the warranty.
