ECO H.264 DVR
User’s Manual
Version 1.3
00P3L1084ZSEA3
Page 2
DVR User’s Manual
1
Page 3
DVR User’s Manual
Caution and Preventive Tips
• Handle with care, do not drop the unit
• Mount the unit in an equipment rack or place it on a solid, stable surface
• Indoor use only, do not place the unit in a humid, dusty, oily, or smoky site
• Do not place it in an area with poor ventilation or in an area close to fire or other sources of
heat. Doing so may damage the unit as well as cause fire or an electric shock
• When cleaning is necessary, shut down the system and unplug the unit from the outlet
before uncovering the top cover. Do not use liquid cleaners or aerosol cleaners. Use only
a damp cloth for cleaning
• Always shut down the system prior connecting or disconnecting accessories, with the
exception of USB devices
This symbol intends to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying the
appliance.
This symbol intends to alert the user to the presence of unprotected “Dangerous
Voltage” within the product’s enclosure that may be strong enough to cause a
risk of electric shock.
2
Page 4
DVR User’s Manual
Important Information
Before proceeding, please read and observe all instructions and warnings in this manual.
Retain this manual with the original bill of sale for future reference and, if necessary, warranty
service. When unpacking your unit, check for missing or damaged items. If any item is missing,
or if damage is evident, DO NOT INSTALL OR OPERATE THIS PRODUCT. Contact your
dealer for assistance.
Rack Mounting
Consult with the supplier or manufacturer of your equipment rack for the proper hardware and
procedure of mounting this product in a safe fashion. Avoid uneven loading or mechanical
instability when rack-mounting units. Make sure that units are installed to get enough airflow
for safe operation. The maximum temperature for rack-mounted units is 40 °C. Check product
label for power supply requirements to assure that no overloading of supply circuits or over
current protection occurs. Mains grounding must be reliable and uncompromised by any
connections.
3
Page 5
DVR User’s Manual
Table of Content
1. Overview..........................................................................................................................6
2. System Setup..................................................................................................................7
2.1 Position the DVR ...................................................................................................7
2.2 Select Video Format..............................................................................................7
2.3 Connect Devices to the DVR.................................................................................8
2.4 Rear Panel Connections........................................................................................8
3. General System Setup .................................................................................................10
3.1 Front Panel Introduction ......................................................................................10
3.1.1 LED Definition ........................................................................................10
3.1.2 Function Keys ........................................................................................11
3.2 Power Up / Shutdown the DVR ...........................................................................13
3.3 Enter OSD Setup Menu.......................................................................................14
3.4 System Date / Time Setting.................................................................................14
3.4.1 Set Date / Time ......................................................................................15
3.4.2 Daylight Saving Time .............................................................................16
3.5 Record Schedule / Quality Setting ......................................................................16
3.5.1 Schedule Setup......................................................................................17
3.5.2 Preset Record Configuration .................................................................17
3.5.3 Record Event Video Only.......................................................................18
3.5.4 Per Camera Configuration .....................................................................18
3.5.5 ezRecord Setup .....................................................................................19
3.5.6 Circular Recording .................................................................................20
3.5.7 Purge Data .............................................................................................20
4. Basic Operation............................................................................................................21
4.1 View Live / Playback Video .................................................................................21

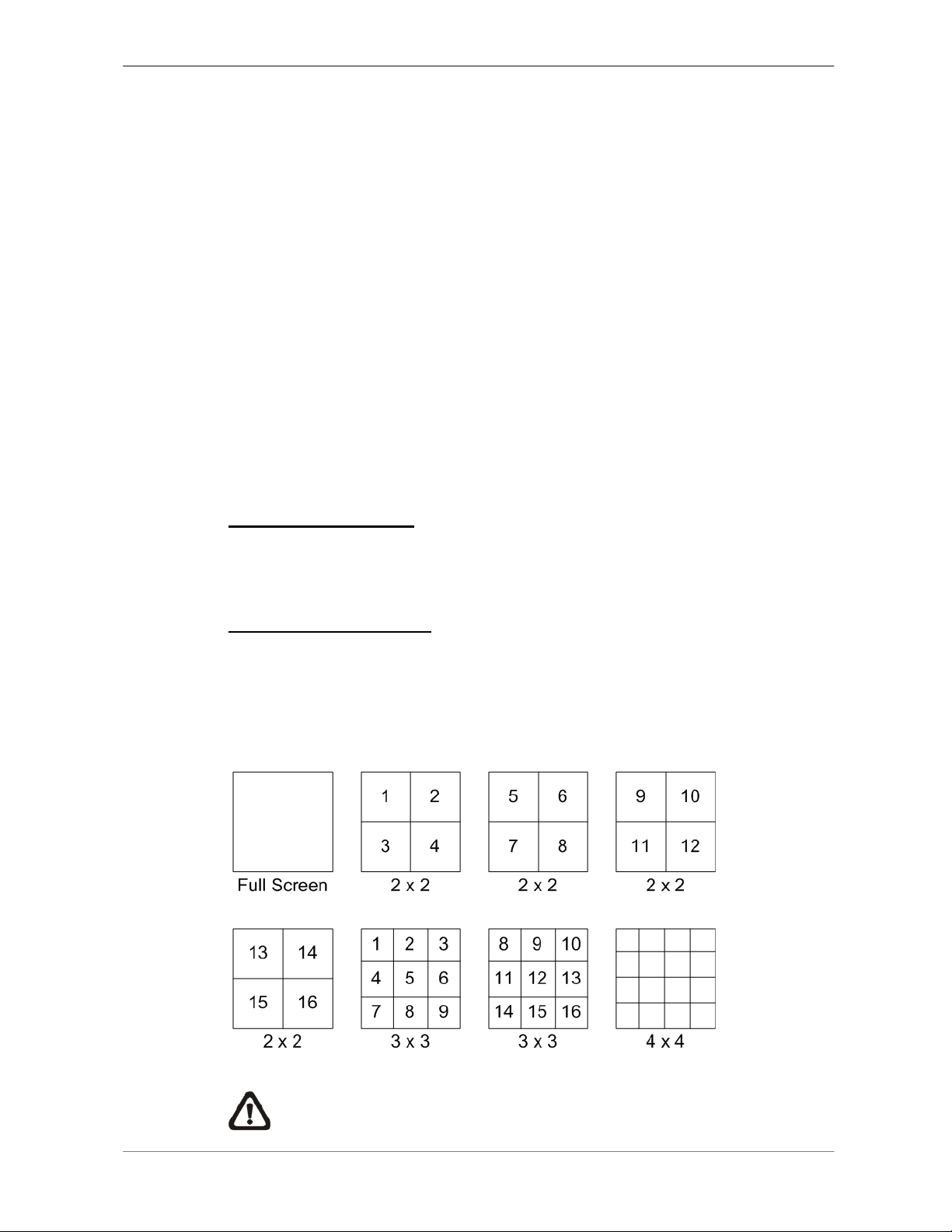

4.1.1 Viewing Modes.......................................................................................21
4.1.2 Digital Zoom ...........................................................................................22
4.1.3 View Live Cameras ................................................................................22
Freeze Live Image .................................................................................22
4.1.4 View Recorded Video ............................................................................22
Key Usage in Playback ..........................................................................23
Pause Playback and Single Step Forward ............................................23
4.2 Sequence.............................................................................................................24

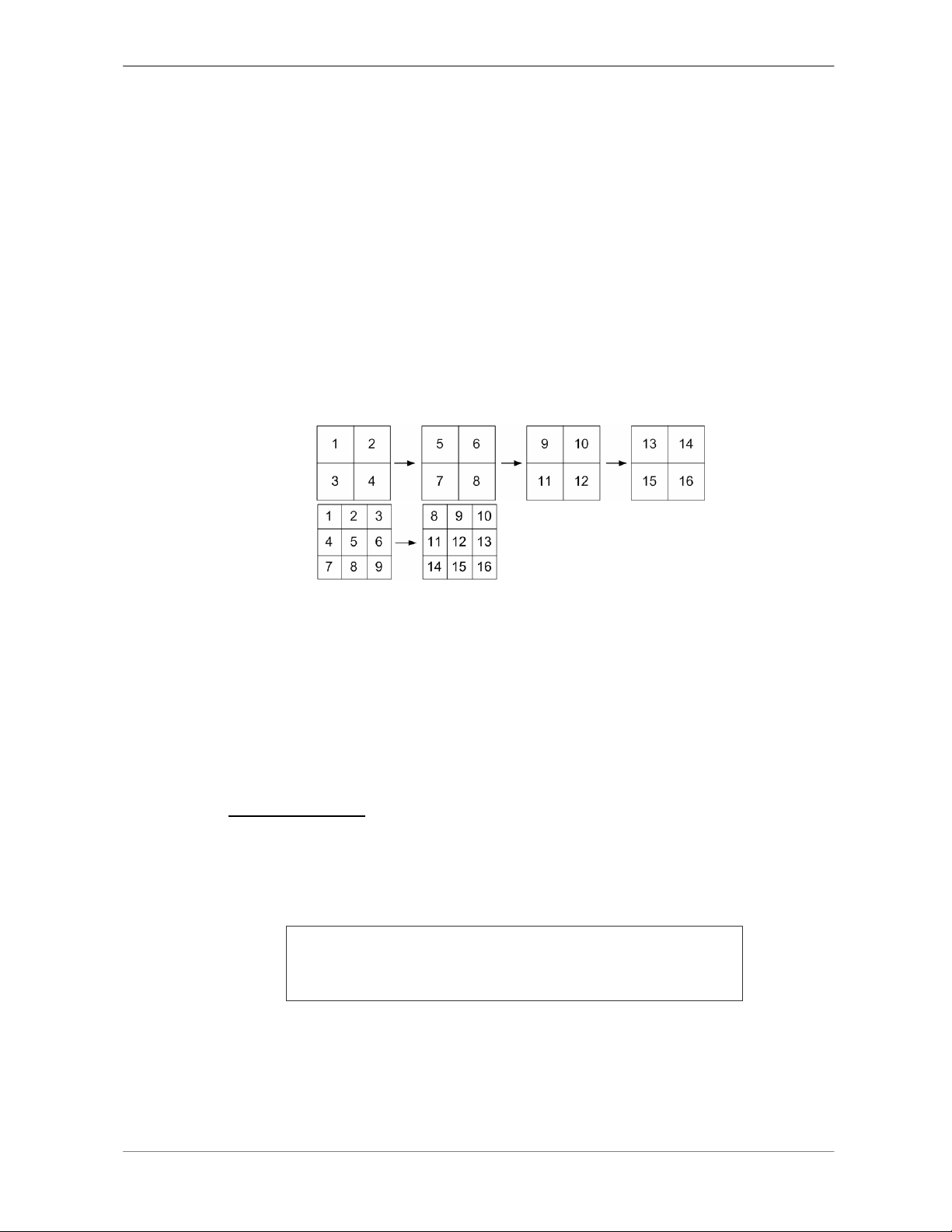

4.2.1 Sequence with Main Monitor .................................................................24
4.2.2 Sequence with Call Monitor(8CH & 16CH models only) .......................24
4.3 Search Recorded Video ......................................................................................25
4.3.1 Search by Time ......................................................................................25
4.3.2 Search by Event.....................................................................................26
4
Page 6
DVR User’s Manual
4.4 Video Export ........................................................................................................27

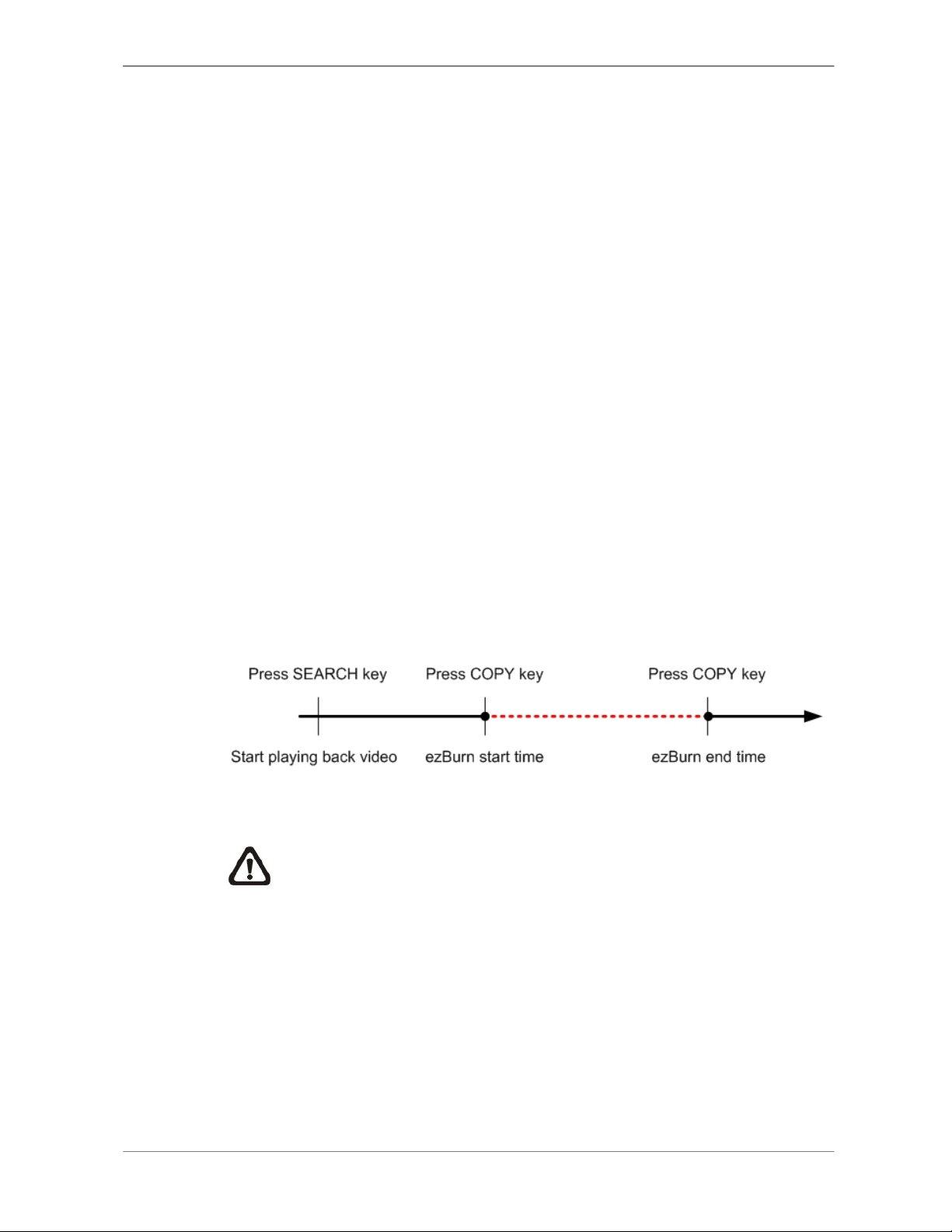

4.4.1 ezBurn Introduction ................................................................................27
4.4.2 Export Normal Video..............................................................................27
4.4.3 Export Event Video ................................................................................28
4.5 Dome Control.......................................................................................................29
4.5.1 Dome Connection ..................................................................................29
4.5.2 Dome Protocol Setup.............................................................................29
4.5.3 RS485 Setup..........................................................................................30
4.5.4 Dome Controlling Keys ..........................................................................30
4.5.5 Setting Preset Points .............................................................................32
4.5.6 Calling Preset Points..............................................................................33
5. Remote Monitoring Software ......................................................................................34
5.1 Remote Monitoring System Requirements..........................................................34
5.2 Installation of Software ........................................................................................35

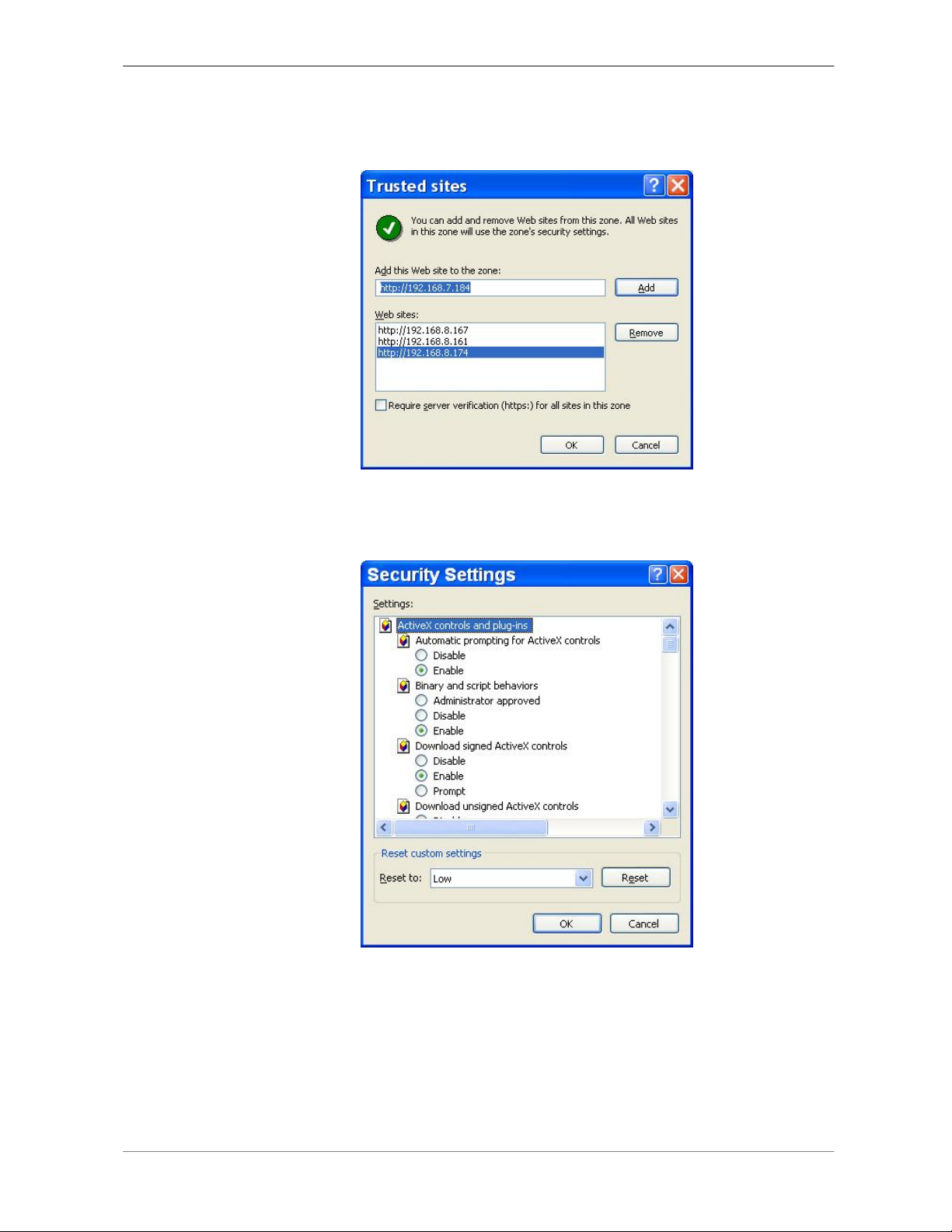

5.2.1 Change Internet Settings .......................................................................35
5.2.2 Install the Remote Monitoring Software.................................................37

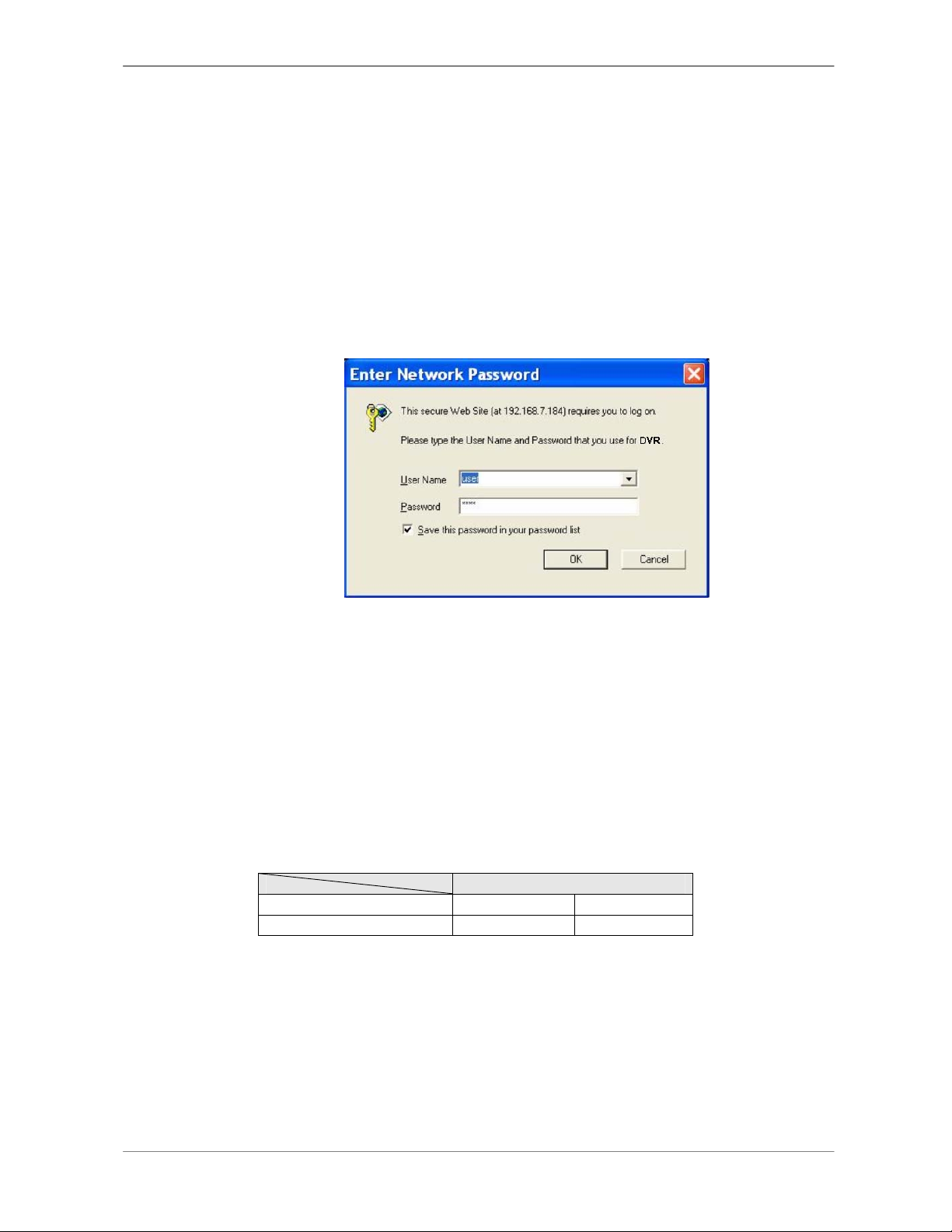

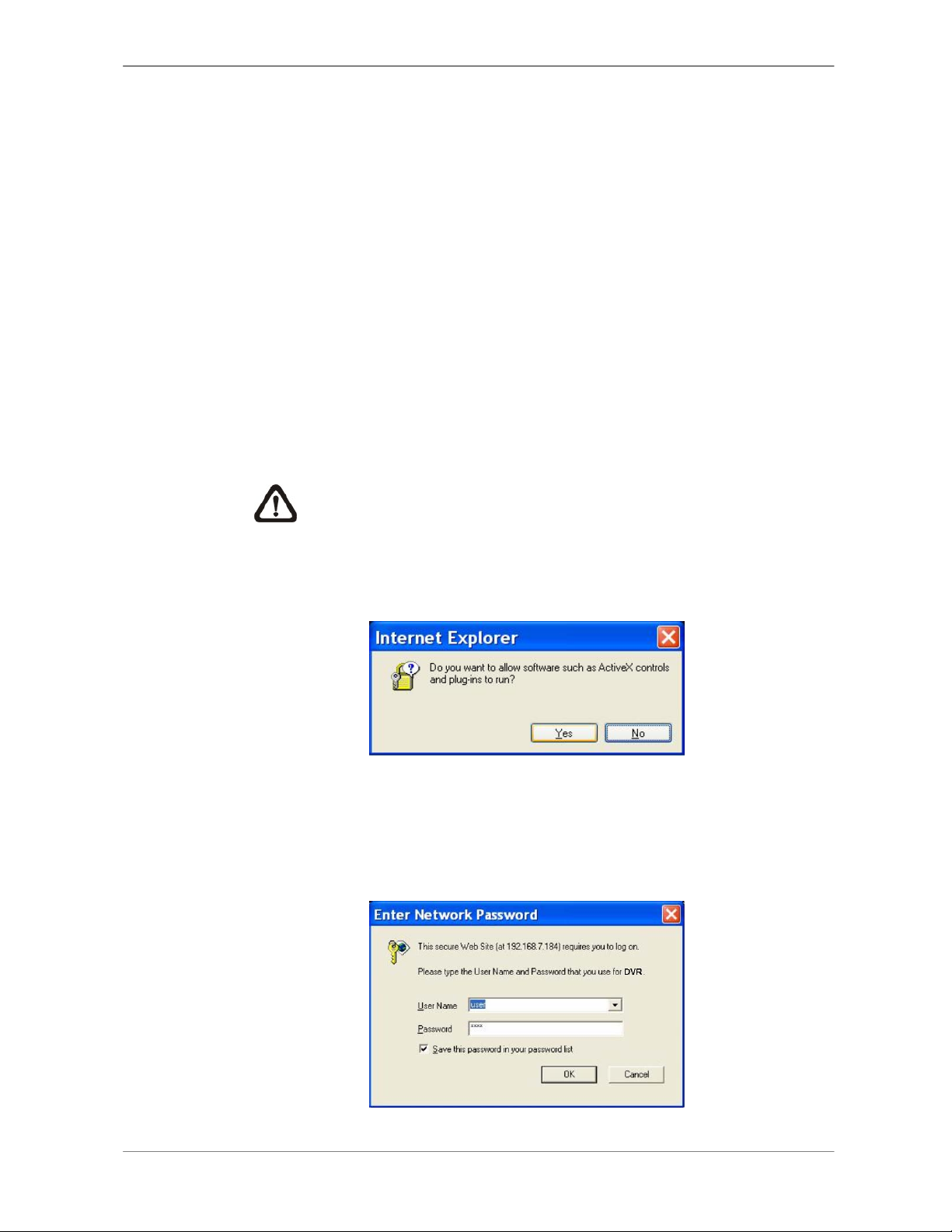

5.2.2.1 Login / Logout...........................................................................38
5.2.2.2 Software Upgrades...................................................................39
5.3 Basic Operation ...................................................................................................39
5.3.1 View Live Video......................................................................................39
5.3.1.1 Select Display Mode.................................................................40
5.3.1.2 Operating Cameras with Dome Control ...................................40
5.3.2 Instant Recording...................................................................................41
5.3.2.1 Record Video Instantly .............................................................41
5.3.2.2 Playback Instant Recorded Video ............................................41
5.3.3 Playback Video ......................................................................................42
5.3.3.1 Playback Remote Video ...........................................................42
5.3.3.2 Playback Local *.drv Files ........................................................43
5.3.3.3 Playback Controls ....................................................................43
5.3.4 Search from Event List...........................................................................44
5.3.5 Take a Snapshot ....................................................................................44
5.3.6 Health Status..........................................................................................44
5.3.7 Remote Monitoring Software Trouble Shooting Guide ..........................45
Appendix A: Technical Specifications.............................................................................46
Appendix B: Recommended HDDs ..................................................................................47

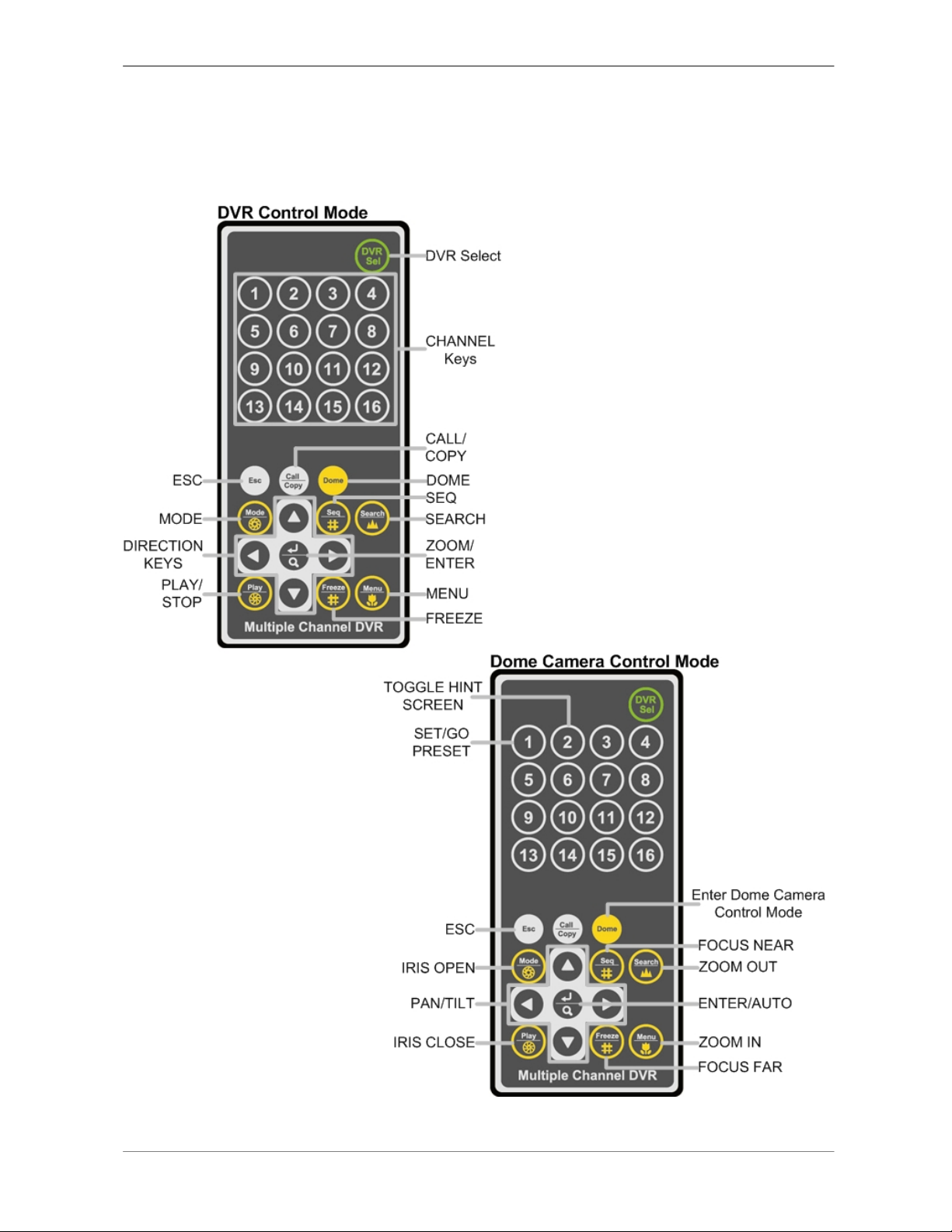

Appendix C: Remote Control............................................................................................48

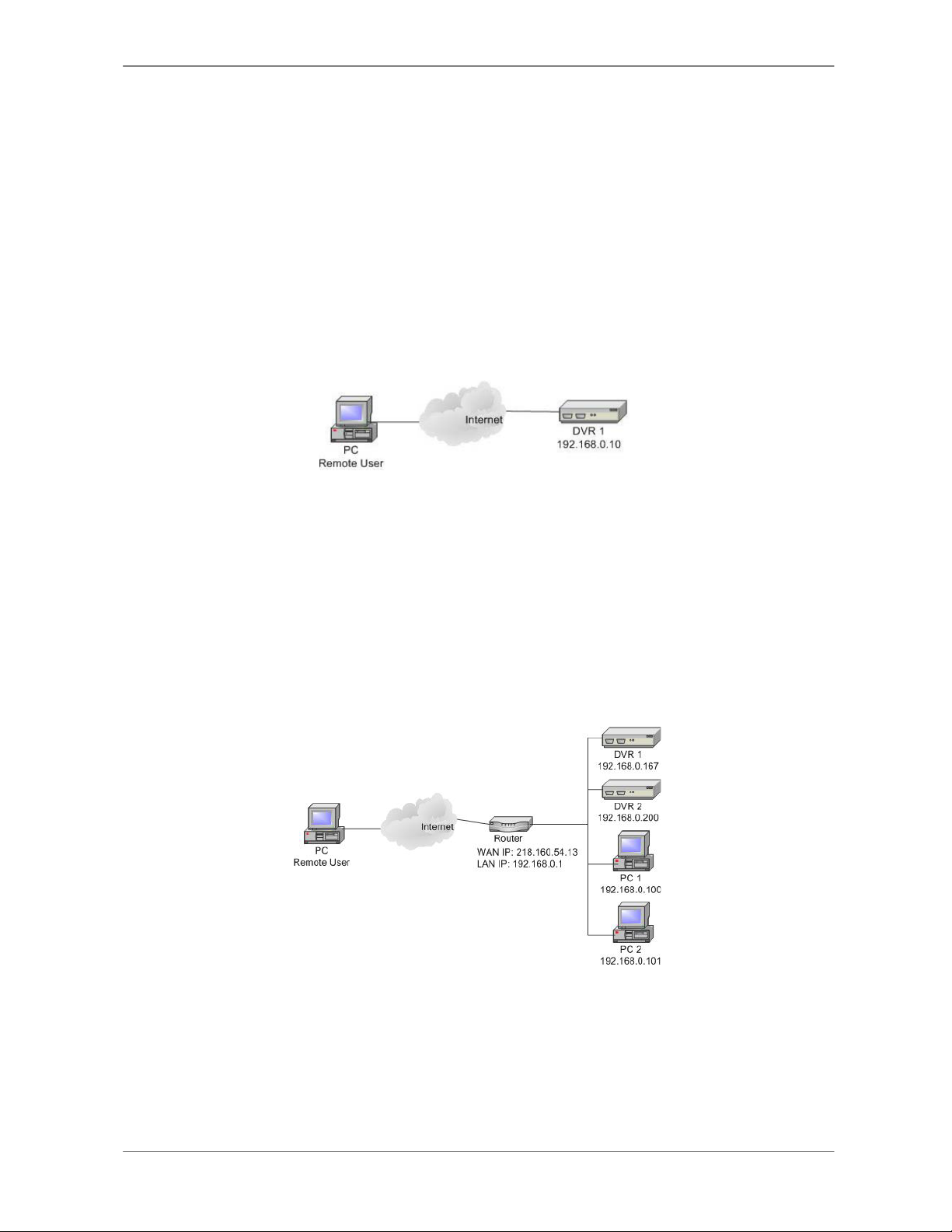

Appendix D: Setting up a DVR behind a Router.............................................................50
5
Page 7
DVR User’s Manual
1. Overview
ECO H.264 DVR is an integrated digital video recorder that combines the
features of a time-lapse audio / video recorder, a multiplexer, and a video
server to create a single security solution.
Its outstanding triplex operation enables users to view live video, search and
playback any recorded video by date/time or event, and remotely monitor the
unit via internet on PC, MEANWHILE the recording of the DVR unit is
ongoing simultaneously.
ECO H.264 DVR is enhanced to provide H.264 compression mode. Moreover,
a marvelous implementation is the brand-new experience of Graphical User
Interface (GUI) that optimizes the monitoring controls of the unit.
ECO H.264 DVR is pre-installed with remote viewing and configuration
software, which is a Web-browser plug-in allowing users to view live or
recorded video images, and enables remote configuration. The remote
software is stored in ECO H.264 DVR and deployed over a LAN, WAN or
Internet connection to remote Windows-based computers. This simplifies the
installation and maintenance of the software components so all remote users
are using the same software coming from the unit.
6
Page 8
DVR User’s Manual
2. System Setup
The notices and introduction on system installation will be described
particularly in this chapter. Please follow the description to operate the unit.
In order to prevent the unit from data loss and system damage that caused by
a sudden power fluctuation, use of an Uninterruptible Power Supply (UPS) is
highly recommended
2.1 Position the DVR
First, note to position / mount the DVR in a proper place and be sure to power
off the unit before making any connections. The placed location should avoid
hindering or blocking the unit from airflow. Enough airflow is needed to
protect the unit from overheating. The maximum allowable temperature of
operating environment is 40°C.
The unit utilizes heat-conducting techniques to transfer internal heat to the
case, especially to the bottom side of the unit.
NOTE: Be sure the rubber feet are not removed, and always leave a
space for air ventilation on the unit’s bottom side.
2.2 Select Video Format
The DVR is designed to operate under either NTSC or PAL video formats.
The switch is on the rear panel.
7
Page 9
DVR User’s Manual
2.3 Connect Devices to the DVR
This section lists some important notices that should be read before making
any connection to the DVR.
Connecting Required Devices
Before power up the unit, cameras and a monitor should be connected to the
unit for basic operation. If needed, connect a call monitor for displaying full
screen video of all installed cameras in sequence.
Connecting Short-term Device
If any short-term devices shall be installed to the DVR as parts of the unit
system, such as USB ThumbDrive® or any USB devices, etc, make sure
those devices are connected only after the unit is powered up. The reason is
because the DVR can recognize the external devices only after the power-up
process is done completely.
2.4 Rear Panel Connections
There are various connectors on the rear panel for the DVR installations. The
following shows the detailed description of each connector.
Main Monitor (BNC/ VGA)
BNC and VGA output connectors are offered for
connecting to a main monitor. The main monitor displays
live image and playback recorded video in either
full-screen or split-window format. VGA output connector
is standard feature.
Call Monitor (8CH and 16CH models only)
The call monitor is used to display full screen video of all
installed cameras in sequence. The BNC call monitor
connector allows users to connect the DVR with an
optional call monitor.
Video In
A group of BNC connectors is offered for video input
streams from installed cameras. The number of
connectors is equal to the number of channels.
8
Page 10
DVR User’s Manual
Alarm I/O & RS485
A D-Sub connector is provided to offer users
the flexibility to connect the DVR to Alarm I/O
and RS-485 devices. Refer to Setup Guide
for detailed pin definitions.
LAN Connector (RJ-45)
The DVR is capable of networking. Once the unit is
connected to the LAN network, users can remotely access
the unit through the remote software on a PC.
USB Connector (x1)
There is one USB 2.0 port provided to allow users to
connect external USB devices to the unit, such as a USB
ThumbDrive
®
or a USB mouse.
Power Jack
The DVR has a free voltage DC power connection jack.
Please connect the power adapter shipped with the unit.
Audio In
Audio In connectors are offered for connecting
audio source devices to the unit. 4CH models
offer RCA connectors while 8CH and 16CH
models offer a D-Sub connector.
Audio Out – Main & Call
Main & Call Audio Out RCA connectors are
provided for connecting the DVR to audio output
devices (e.g. amplified speakers). “Main” will
output audio from the main monitor, whereas
“Call” will output audio form the call monitor.
NOTE: Call Audio Out RCA connector is only available for 8CH and
16CH models.
4CH models
8CH & 16CH models
9
Page 11
DVR User’s Manual
3. General System Setup
Before operating the DVR, some general configuration should be setup first.
The following subsections will introduce function keys on the front panel and
general configuration of the DVR.
The regular displayed OSD information and its displayed positions are shown
as following figure. Title of the channel will be displayed on the top-left corner
of the window, either in full-screen mode or in spilt window mode. The current
operating mode, including Playback mode, Freeze mode and Sequence
mode, will be displayed on the bottom-left corner of the screen. The date/
time information will be display on the bottom-right corner.
Ch1
►*1
2008/05/09 PM04:31:22
3.1 Front Panel Introduction
The front panel controls enable users to control the unit and preset the
programmable functions.
3.1.1 LED Definition
The LEDs on the front panel of the DVR are described as follow.
Power LED
The LED lights up when the correct power is connected to the unit.
REC LED
The LED blinks while the DVR is recording.
Alarm LED
The LED lights up when an alarm is triggered.
Network LED
The LED lights up when the DVR is connected to a network and
blinks when the data is being transferred.
10
Page 12
DVR User’s Manual
3.1.2 Function Keys
This section describes the functional keys, which are for normal operation, on
the front panel of the DVR.
Please refer to the Setup Guide for the graphical illustration of functional
keys.
CHANNEL
In both Live and Playback modes, press the CHANNEL key to view the
corresponding video in full-screen.
DOME
Press the key to enter dome camera control mode. Please refer to Section
Dome Control
for detailed controlling operation.
MODE
Press repeatedly to select for wanted monitor display format. The available
view modes includes: full-screen, 4-window (2×2), 9-window (3×3) and
16-window (4×4). Refer to Section View Modes
for detailed information.
SEQ (Sequence)
Press to start automatic sequencing of the video coming from the installed
cameras.
MENU
Press this key to enter the OSD setup menu.
COPY
In Playback mode, press COPY to select the start and end time of the export
video. Refer to Section Video Export
for detailed information.
CALL (8CH and 16CH models only)
• In Live mode, press this button to enter Call Monitor Control mode.
• In Dome mode, press CALL in association with ENTER to enter the OSD
setup menu of the dome camera.
11
Page 13
DVR User’s Manual
PLAY/STOP
Press this key to switch between live image and playback video.
NOTE: According to record setting, part of the latest video cannot
be played back because the video is still saved in the buffer.
FREEZE
• Press FREEZE while viewing live image, the live video will be frozen. The
date / time information shown on the monitor will continue updating. Press
FREEZE again to return to live mode.
• Press FREEZE while playing the recorded video, the playback video will
be paused. Press LEFT / RIGHT to move the recorded video reverse /
forward by single step. Press FREEZE again to continue playing video.
SEARCH
In both Playback and Live mode, users can press SEARCH to display the
Search menu for searching and playing back recorded video by date and
time or events.
ESC
Press to cancel or exit from certain mode or OSD setup menu without
changing the settings made previously.
Direction Keys
• In Zoom mode, these keys function as Direction keys.
• In the OSD menu, the LEFT/ RIGHT keys are used to move the cursor to
previous or next fields. To change the value in the selected field, press
UP/ DOWN.
ENTER / ZOOM
• In OSD menu or selection interface, press this key to make the selection
or save settings.
• In live full screen view mode, press this key to view a 2× zoom image;
press it again to exit zoom mode.
12
Page 14
DVR User’s Manual
3.2 Power Up / Shutdown the DVR
If the DVR must be shut down for any reason, please use the proper shut
down and power up procedures to avoid damaging the DVR.
To Power Up the Unit
Simply plug in the power adapter that came with the package and the DVR
will start to boot.
The color bar and system checking information will be shown on the monitor
and then disappear when the unit has been completely powered up.
To Restart / Shutdown the Unit
Press MENU and input the administrator password to access the OSD setup
menu. Select <Shutdown> in Main Menu and press ENTER to enter the
Shutdown menu, which displays as follows.
Shutdown
1. Power Off
2. Reboot
Execute
Execute
<Power Off>
Select this item to shut down the unit. Do not remove the power during shut
down until the message “You can safely turn off DVR now!” displays.
<Reboot>
Select this item to reboot the unit. The color bar and system checking
information are displayed on the monitor until the unit is completely restarted.
13
Page 15
DVR User’s Manual
3.3 Enter OSD Setup Menu
The configuration of the DVR can be customized by entering the intuitive
Graphical User Interface (GUI) OSD setup menu. Collaborating with a USB
mouse, setting up the DVR can be easy as operating on a PC. Press MENU
and enter Administrator or User password to enter the OSD setup menu. The
Password Verification screen displays as follows.
Password Verification
________
Press Channel Keys To Enter Password
(4-8 Digits)
Press ◄ Key To Delete
The default passwords are shown in the following table. The same passwords
are used for entering the remote viewing software.
Administrator Password User Password
1 2 3 4 4 3 2 1
NOTE: It is strongly suggested to change the passwords to prevent
unauthorized access to the unit.
3.4 System Date / Time Setting
Users can set the current date, time and other OSD parameters in Date/Time
menu (under System Setup Menu). The administrator’s privileges are
required for entering the submenu. In OSD setup menu, select <System
Setup> and press ENTER, then select <Date/Time> to access the Date/Time
menu; the menu displays as follows.
Date/Time
1. Date
2. Time
3. Date/Time Display
4. Date Display Mode
5. Time Display Mode
6. Date/Time Order
7. Daylight Saving Time Setup
2008/02/21
PM10:39:26
1 Row
Y/M/D
12 HR
Date First
14
Page 16
DVR User’s Manual
3.4.1 Set Date / Time
Set Date / Time
Select <Date> / <Time> and press ENTER for adjusting the settings. LEFT /
RIGHT keys are used to move the cursor to previous or next field, ENTER is
for selecting, and UP / DOWN are used to change the value in the selected
field.
NOTE: The new date / time setting applies to record new video. The
date and time of previously recorded video will not be changed.
NOTE: If time settings have to be changed in any case, it is strongly
recommended to format the HDD to avoid database corruption.
Date / Time Display
Users are allowed to set the time OSD displays in 1 or 2 rows. Use the UP /
DOWN keys to change the setting.
Date Display Mode
This function allows users to set the OSD display type of the date. There are
three options to select from: <Y/M/D>, <M/D/Y> or <D/M/Y>. “Y” represents
“Year”, “M” represents “Month” and “D” represents “Day”.
Move to the item and press ENTER, the option starts blinking. Use UP /
DOWN keys to change the setting.
Time Display Mode
Users can set the time format to <12 hour> or <24 hour>. Use the UP /
DOWN keys to change the format.
Date / Time Order
The item is used to set the order of date / time display to <Date First> or
<Time First>. Use UP / DOWN keys to change the setting.
15
Page 17
DVR User’s Manual
3.4.2 Daylight Saving Time
Daylight Saving Time
The item is for those people who live in certain regions to observe Daylight
Saving Time. Select <ON> to enable, or <OFF> to disable the function.
If the function is disabled, the DST Start / End time and DST Bias will be
grayed out and cannot be accessed.
NOTE: If this function is enabled, the date/ time information will be
shown on the screen with a DST icon when playing back recorded
video or searching video in the event list. “S” indicates summer time
and “W” indicates wintertime.
DST Start / End
The items are used to program the daylight saving duration. Use LEFT /
RIGHT keys to move the cursor to the next or previous field, UP / DOWN to
change the settings in the selected field.
DST Bias
The item allows users to set the amount of time to move forward from the
standard time for daylight saving time. The available options are in minutes.
3.5 Record Schedule / Quality Setting
The Record Setup menu allows users to set recording quality, recording
schedules, and other recording parameters. Administrator's password is
required to access Record Setup menu. In the Main menu, move the cursor
to <Record Setup> and press ENTER; the following menu is displayed.
Record Setup
1. Record Mode Setup
2. Schedule Setup
3. Preset Config
4. Per Camera Config
5. ezRecord Setup
6. Circular Recording
7. Audio Recording
8. Purge Data
Best Quality
ON
ON
16
Page 18
DVR User’s Manual
3.5.1 Schedule Setup
The Schedule Setup is used to set the day and night time, or weekend
recording schedule. Select <Schedule Setup> from the Record Setup menu
and press ENTER; the following menu is displayed.
Schedule Setup
1. Day Time Start
2. Day Time End
3. Night Time Start
4. Night Time End
5. Weekend Schedule
6. Weekend Start
7. Weekend End
• Make appropriate changes of the start time of Day and Night Time using
Direction keys.
• Press ENTER to confirm the settings or ESC to cancel.
• If a weekend record is required, select <ON> to enable the Weekend
Schedule in advance and then set the Weekend Start/End time.
AM 06:00
PM 06:00
PM 06:00
AM 06:00
ON
Fri 18:00
Mon 06:00
• Press ESC to return to previous page.
3.5.2 Preset Record Configuration
The <Preset Config> is used to select the preset recording quality and frame
rate. In normal circumstances, it is strongly recommended to set the preset
configuration as <Best Quality>. Below table shows the PPS and picture size
under <Best Quality> in Half-D1 mode for 16CH models. Please refer to OSD
Setup Manual, Section Preset Record Configuration
information.
Halfl-D1 mode (NTSC: 720x240@120PPS; PAL: 720x288@100PPS)
Normal PPS Normal Size Event PPS Event Size
7.5 NTSC
(6.25 PAL)
10 KB / PIC
30 NTSC
(25 PAL)
for more detailed
10 KB / PIC
17
Page 19
DVR User’s Manual
3.5.3 Record Event Video Only
If the DVR shall start recording only when alarms are triggered, follow the
steps below:
• Enter the OSD setup menu with correct password.
• In the OSD setup menu, select <Record Setup> menu. Move the cursor to
the item <Preset Config>, and select <Event only>.
Refer to OSD Setup Manual, Section Preset Record Configuration
detailed information.
3.5.4 Per Camera Configuration
This function is used to set the Day / Night / Weekend PPS (Picture per
Second) and Quality for each channel. The Preset Configuration must be set
to <OFF> for accessing these schedules. The menu is displayed as below
(Record Mode: 720×240@120PPS in NTSC / 720×288@100PPS in PAL).
Per Camera Config
Cameral Select
Normal PPS
Normal Size
Event Max PPS
Event Size
Event Active
• Firstly, select a Camera for setting its record configuration. The image and
recording settings from the selected camera will be displayed on the
screen.
Day
7.5
Mid
30
Best
Both
Night
7.5
Mid
30
Best
Both
for more
CH1
Weekend
7.5
Mid
30
Best
Both
• Move the cursor using Direction keys and press ENTER to select an item.
• Change the value using UP / DOWN keys.
• Press ENTER to confirm the settings or ESC to abort.
• Press ESC to return to Record Setup menu.
Please note that the total normal PPS for all channels cannot exceed 120
NTSC (720×240@120PPS) / 100 PAL (720×288@100PPS). To increase one
channel’s PPS, you may have to reduce others’ first. Event PPS is not
restricted to this rule, since a smart event scheduler will handle the total PPS
with a correct weighting.
18
Page 20
DVR User’s Manual
3.5.5 ezRecord Setup
This item aims to ease the complicated record settings, and to make the
setup much easier. Note that the item can be reached only when <ezRecord>
is selected as the option for <Preset Config>.
Select <ezRecord Setup> from <Record Setup> and press ENTER, the
sub-menu appears as below figure:
ezRecord Setup
How Many Days To Record
Daytime Record
Night Record
Weekend Record
Average Normal PPS
Average Normal Quality
Record Info
Best
2 Days
Yes
Yes
Yes
3.75
Follow these steps to Setup ezRecord:
• Select <How Many Days To Record> and press ENTER, then press
UP/DOWN to choose an option. The average normal PPS & Quality will
be adjusted automatically. The maximum of days depends of the size of
the installed HDD. In other words, the larger the size of the HDD installed,
the more days the unit can record.
• Move to <Daytime Record> and press ENTER. This item will determine
whether the DVR will record during daytime. If yes, use UP/DOWN to
select <Yes> as to enable daytime recording; or select <No> to disable.
• Repeat the same procedures through the 3rd and 4th item, respectively.
Note that <Weekend Record> will be inaccessible if <Weekend
Schedule> in <Schedule Setup> is set to <No>.
• Select <Average Normal PPS> and press ENTER, then press
UP/DOWN to make a choice. The <How Many Days To Record> will be
computed automatically.
• Select <Average Normal Quality> and press ENTER, then press
UP/DOWN to make a choice. The <How Many Days To Record> will be
computed automatically.
NOTE: The current number of connected cameras will affect the
recording quality automatically calculated through the <ezRecord
Setup>. Therefore, once the number of connected cameras is
changed, the <ezRecord Setup> should be reset.
19
Page 21
DVR User’s Manual
3.5.6 Circular Recording
Users can choose to record video in circular mode or in linear mode. If
circular mode is selected, the DVR will stores new video into the HDD spaces
while overwrite the oldest recorded video. Alternatively, if linear mode is
selected, the DVR will stop recording when the HDD is full and the internal
buzzer will start to beep.
From the Record Setup menu, move the cursor to <Circular Recording> and
press ENTER, then select <ON> / <OFF> using UP / DOWN keys.
3.5.7 Purge Data
This item is used to delete the Normal or Event recording video. In Record
Setup menu, move the cursor to <Purge Data> and press ENTER; the Purge
Data menu is displayed.
Purge Data
1. Purge All Data
2. Purge All Event Data
3. Purge Event Before
4. Start to Purge
2008/01/01
No
No
No
Purge All Data
The item is used to delete all recorded video from the database. Set this item
to <Yes using UP / DOWN keys, and start the deletion by setting <Start to
Purge> to <Yes>.
Purge All Event Data
The item is used to delete all event video from database(s). Using UP /
DOWN keys to select <Yes> and start the deletion by setting <Start to Purge>
to <Yes>.
Purge Event Before
The item is used to delete event video before a specific date. Use LEFT /
RIGHT keys to move the cursor to next or previous field, ENTER to select the
item and UP / DOWN to adjust the value.
Start to Purge
After the video or data to be deleted are selected, set this item to <Yes> to
start the deletion or choose <No> to cancel.
20
Page 22
DVR User’s Manual
4. Basic Operation
The DVR allows users to access some general operations through the front
panel easily. The following sections introduce the general operations of the
unit.
4.1 View Live / Playback Video
The general functions in live and playback mode are described in the
following sections.
4.1.1 Viewing Modes
The DVR provides users versatile ways of viewing both live and recorded
video. Following presents these view formats.
Viewing in Full Screen
Press any CHANNEL key directly to view the corresponding camera image in
full screen format.
Viewing in Multi-window
Various multi-window view formats are offered for selection. To switch
between available viewing formats, press MODE repeatedly.
The available view formats are illustrated as the following figure.
NOTE: 3x3 viewing mode is only available in 8-ch and 16-ch models,
whereas 4x4 viewing mode is only available in 16-ch models.
21
Page 23
DVR User’s Manual
4.1.2 Digital Zoom
Users are able to view a 2× full screen in live mode. To view the 2× full
screen, follow the steps.
• Press a CHANNEL key to view the corresponding camera in full screen.
• Press ZOOM to enter a 2× full screen zoom mode of the selected camera.
• To view a specific area in 2× zoomed screen, use Direction keys to pan /
tilt the zoomed screen.
• Either press ZOOM again or ESC to leave the zoom mode.
4.1.3 View Live Cameras
Users are allowed to view live camera in versatile viewing modes, including
full-screen, 2×2, 3x3 and 4×4. The general operation under live mode is
described as follows.
Freeze Live Image
Press FREEZE while viewing live image, the image pauses but the date /
time information does not, and the system clock continues running.
Press FREEZE to pause the live image; press FREEZE again to resume the
live camera view.
4.1.4 View Recorded Video
To view recorded video, users can press PLAY key directly. When press the
PLAY key, the unit starts to continue playing back the recorded video from the
suspended point of record. If it is the first time to use the PLAY key, the unit
will playback from the very beginning of the record. Alternatively, users can
select records from the Search menu to play specific video. Refer to section
Searching Recorded Video
NOTE: When playing back videos with mass motion recorded in D1
mode (resolution=720x480), press SEQ key to switch on “deflicker
function” to avoid gleaming of images. Press SEQ again to switch
“deflicker off” and the image will return to real D1 resolution.
The Forward or Reverse speed indicator will be shown on the bottom-left
corner of the screen, when in the playback mode. The general operations in
playback mode are described as follows.
for more information.
22
Page 24
DVR User’s Manual
Key Usage in Playback
The key usage is slightly different in playback mode. Following is the key
usage found in playback mode.
z LEFT (Reverse Playback)
The key is used to reverse the recorded video while the unit is playing
back. Press the key repeatedly to increase the speed of reverse
playback by 1×, 2×, 4×, 8×, 16×, or 32×.
z RIGHT (Forward Playback)
The key is used to play the recorded video fast forward. Press the key
repeatedly to increase the speed of forward playback by 1×, 2×, 4×, 8×,
16×, or 32×.
z FREEZE
Press FREEZE to pause the playback video. When the recorded video is
paused, press LEFT / RIGHT to resume playback video single step
reverse / forward, respectively. Press FREEZE again to continue playing
video.
z PLAY
Press it to start playing back video, exit current mode, or stop playing
back video and return to live mode.
Pause Playback and Single Step Forward
To pause and resume recorded video, follow these steps.
• Press one of the CHANNEL keys to display the corresponding camera in
full screen.
• Press FREEZE to pause the current playback image.
• Press RIGHT / LEFT Direction keys to move the video single step reverse
/ forward. Press and hold RIGHT / LEFT keys to repeatedly reverse /
forward the video single step.
• Press FREEZE again to resume the playback operation.
23
Page 25
DVR User’s Manual
4.2 Sequence
This section introduces the way to view sequence mode with both Main
Monitor and Call Monitor, if connected. Sequence function can avoid manual
backtracking and provides more flexibility while monitoring surveillance.
4.2.1 Sequence with Main Monitor
Automatic sequence function can be observed in any view mode. Select
certain view format and press SEQ to toggle the automatic sequence; press
ESC to stop sequencing. The figure below displays the 4-camera and
9-camera sequencing view modes.
4-camera:
9-camera:
(for 16ch models only)
4.2.2 Sequence with Call Monitor (8CH & 16CH models only)
Users are allowed to use the DVR front panel to control a call monitor display
without having to access the Main menu. Two viewing modes can be
displayed on call monitor: Sequence display and Single camera display. To
program the call monitor sequence, see OSD Setup Manual, Section
Sequence Setup
Follow the steps to control the call monitor.
• Press the CALL key on the front panel to enter Call Monitor Control mode.
The message “Call Mode” will be shown on the bottom-left of the screen.
Call Mode
.
Press 1-16 Key To Select Channel
Press SEQ To Enable Sequence
• Press CHANNEL key to display the associated camera on call monitor.
• Alternatively, press SEQ repeatedly to display the sequence of cameras
previously programmed in Call Monitor Schedule menu.
• Press ESC to return the front panel to Main Monitor Control mode.
24
Page 26
DVR User’s Manual
4.3 Search Recorded Video
The DVR is capable of searching and playing back recorded video by date
and time or events. Enter the specific date and time of the wanted video, the
DVR will search for matched video and start to playback the video.
Alternatively, users can search for event video by channel as well.
In live or playback mode, press SEARCH to enter the Search menu, which is
shown as follows.
Search
----------------------------Search By Time---------------------------From:
End:
Select:
----------------------------Search By Event---------------------------Select Channel: CH1 CH2 CH3 CH4
2008/01/01 00:00:00
2008/05/01 00:00:00
2008/01/01 00:00:00
Begin Playback
Event List
4.3.1 Search by Time
Follow the steps to search video by date and time.
• Press SEARCH key to enter the Search menu.
• Move the cursor to “From Time” and press ENTER will start playing
recorded video from the specified “From Time”.
• Move the cursor to “End Time” and press ENTER will start playing
recorded video from the specified “End Time”.
• Use Direction keys to move the cursor for setting the start time. Adjust the
date and time values by UP / DOWN keys.
• Press ENTER to confirm the settings or ESC to abort.
• Move the cursor to <Begin Playback> and press ENTER to start playing
back the selected video.
• Either press PLAY again or ESC to return to live video.
NOTE: If there is no available recorded video that matches the
specified time and date, the unit starts playback from the next
available video.
NOTE: The date/time information will be shown on the screen
with a DST icon if the Daylight Saving Time function is enabled.
“S” indicates summer time and “W” indicates winter time.
25
Page 27
DVR User’s Manual
4.3.2 Search by Event
“Event List” allows users to search wanted video by event. The Event List is
displayed as below figure:
Event List
First Page
Date Time
2008/03/17 11:26:50
2008/03/17 09:53:03
2008/03/16 16:14:42
2008/03/15 03:45:31
2008/03/12 22:27:56
2008/03/12 10:09:29
2008/03/11 12:18:20
2008/03/10 05:16:00
2008/03/08 17:11:37
2008/03/08 16:29:10
2008/03/08 03:22:17
Ch.
2
1
3
4
1
2
3
4
2
1
4
The list displays events by date, time, triggered camera and alarm type. As
some events are deleted, others are displayed. The latest recorded event
video will be listed on the top.
Type
Motion
Alarm
Alarm
Motion
Alarm
Motion
Motion
Alarm
Motion
Motion
Alarm
Follow these steps to search event video through Event List:
• Press SEARCH to enter the Search menu.
• To search event video that has been recorded on a specific camera, use
LEFT / RIGHT to move the cursor and press ENTER to select or de-select
a channel.
• Move the cursor to <Event List> and press ENTER to list the event video
of the selected channels. The Event List displays.
• To exit the event list, press ESC.
Follow the steps to playback video from Event List.
• Press and hold UP / DOWN to scroll through the Event List.
• Press ENTER to play back the selected event record.
• Press PLAY to return to live mode.
26
Page 28
DVR User’s Manual
4.4 Video Export
The unit allows users to export wanted video to an external device, such as a
USB ThumbDrive®, and the exported video will be saved as *.drv file. Make
sure the external device is connected to the DVR unit and the port has been
set appropriately for video export.
According to the size of video, the export may take about 10 minutes to 1
hour.
4.4.1 ezBurn Introduction
Built with the ezBurn technology, ezBurn function provides users the easier
way to export desired video to an external device, such as an USB
®
ThumbDrive
TWO keys (SEARCH and COPY) and THREE touches are all that is needed
for completing the export. The entire exporting process will be done through
the front panel, without needing to enter the OSD setup menu.
The ezBurn exporting process is illustrated as below figure:
.
The entire process is described step by step in the following sections.
NOTE: The file exported using ezBurn will be in .drv file format, and
it can only be played using the remote player software.
4.4.2 Export Normal Video
To Export normal video to external device, follow these step:
• Press SEARCH and play wanted normal video by entering date and time.
Note if the screen is showing in multiple channel mode, please make sure
there is no window displaying in Live mode, or the export will not work.
• After entering playback mode, play the video and press COPY once to
mark the starting point of the export video. The playback continues.
27
Page 29
DVR User’s Manual
• Press COPY again to mark the ending point of the export video. Then the
“ezBurn” window will display as below figure. The information shown on
the window is “read only”.
ezBurn confirmation
Selected Device: External Device
All data on the disc will be erased.
Exported Required Size = 11 MB
Real Export Range:
From: 2008/05/07 AM10:41:13
To: 2008/05/07 AM10:41:21
Enter: YES ESC: NO
• Press ENTER to start the export; or, press ESC to abort.
• If there is no any exportable device connected to the DVR unit, then a
warning message will be shown on the screen, as below figure:
No exportable device detected.
Please install the target device/media
to the DVR.
Enter: Retry ESC: Exit
4.4.3 Export Event Video
To export event video, follow these steps:
• Press SEARCH and play wanted event video. To play event video, refer to
Section Searching Recorded Video
• After entering the playback mode, press COPY. The “ezBurn” window will
display as below figure. The information shown is “read only”.
Selected Device: External Device
All data on the disc will be erased.
Exported Required Size = 11 MB
Data Time Ch Type
2008/05/07 AM10:42:35 13 Motion
• If there is no any exportable device connected to the DVR unit, a warning
message will be shown on the screen
• Press ENTER to start the export the whole event video to the connected
device; or, press ESC to abort.
.
ezBurn confirmation
Export Event Info:
Enter: YES ESC: NO
28
Page 30
DVR User’s Manual
4.5 Dome Control
The DVR allows users to control a dome camera by the front panel.
In Live mode, users can press CHANNEL key to display the desired dome
camera in full screen. To enter Dome Control mode, press the DOME key and
press channel key 2 to display the hint screen. To exit the Dome Control
mode and return to live mode, press ESC or DOME.
To configure the dome control settings, see the following sections.
4.5.1 Dome Connection
Follow the steps to install dome cameras.
• See Setup Guide for RS-485 port pin definition.
• Connect the R+, R- terminals on the dome camera to the D+, D- terminals
on the RS-485 port by RS-485 cable respectively. Refer to the connection
figure illustrated in Setup Guide.
4.5.2 Dome Protocol Setup
The Dome Protocol item lists the available dome protocols for communicating
with dome cameras connected to the DVR. From the Main menu, select
<Camera Setup> and press ENTER. The following menu is displayed.
Analog Camera
1. Analog Camera Select
2. Dome Protocol
3. Dome ID
4. Camera Title
5. Covert
6. Brightness
7. Contrast
8. Saturation
9. Hue
10. Audio Association
To configure dome protocol, select a camera first and set the communications
protocol associated with dome camera using the Direction keys and ENTER.
CH1
None
0
No
0
0
0
0
Yes
NOTE: The settings become effective after saving the changes and
exiting from the menu.
29
Page 31
DVR User’s Manual
4.5.3 RS485 Setup
The DVR controls the domes via RS-485 communication protocol. The
RS-485 parameters in the DVR must be set to the same parameters set in
dome camera.
Users are allowed to change the RS-485 settings of the DVR. Select
<System Setup> in Main menu, then select <RS485 Setup> from the System
Setup menu and press ENTER. The following menu is displayed.
RS485 Setup
1 Unit ID
2 Baud Rate
3 Bits
4 Stop
5 Parity
The ID number must match the ID address set by the dome. The Unit ID is in
the range of 1 to 255. Note that there cannot be any two devices on the same
bus given the same ID address, or a conflict may occur.
224
9600
8
1
None
NOTE: The settings become effective after saving the changes and
exiting from the menu.
4.5.4 Dome Controlling Keys
The functions of some keys in Dome Control mode are totally different from
normal status function. Please refer to Setup Guide for the graphical
illustration of functional keys.
Set / Go Preset
This key is used to enter the Dome Preset menu to set up certain position as
a preset and go to the predetermined preset positions for viewing.
Toggle Hint Screen
This function is used to avoid viewing the dome parameter information while
controlling dome cameras. Press this key to hide the screen. Press it again to
redisplay the screen.
30
Page 32
DVR User’s Manual
Iris Open
Use to open the Iris on the dome camera.
Focus Near
Use to focus the dome camera near.
Zoom In
Use to zoom in the dome camera. This function enables users to enlarge a
certain area.
ESC
Use to leave Dome Control mode and return to live and full-screen viewing
mode.
Auto / Enter
• In OSD setup menu interface, the key is used to make selection.
• In Dome Control mode, this key is used to activate automatic focus and
iris function.
Iris Close
Use to close the Iris on the dome camera.
Focus Far
Use to focus the selected dome camera far.
Zoom Out
Use to zoom out the dome camera. This function enables users to shrink the
current image and view a larger area.
Pan / Tilt
Use to pan and tilt dome camera.
31
Page 33
DVR User’s Manual
4.5.5 Setting Preset Points
The DVR allows users to set preset positions. The amount of preset points
depends on the dome manufacturer.
Follow the steps to set preset points.
• Press a Channel key to view the corresponding camera in full screen.
• Then press DOME to enter Dome Control mode. A Hint Screen shown as
below figure displays on the screen.
• Press 2 to hide the Dome Control Hint Screen; press 2 again to toggle the
Hint Screen.
• Use Direction keys to position the dome camera to desired position.
Hint Screen
DOME / ESC: Exit
MODE / PLAY: Iris Open / Close
SEQ /
FREEZE: Focus Near / Far
MENU / SEARCH: Zoom In / Out
ENTER: Auto Focus / Iris
◄▲▼►: Pan / Tilt
CH1: Set / Go Preset
CH2: Hint Screen On / Off
Dome Control
• Press 1 to access the Set/Go Preset function. The Dome Preset menu is
displayed.
Dome Preset
First Page
No
No
No
No
No
No
No
Go Preset
No
No
No
No
No
No
No
Index
Set Preset
1
2
3
4
5
6
7
• Use UP / DOWN keys to select the desired preset number from the menu.
• Set the <Set Preset> of the selected preset number to <Yes>, and press
ENTER to save the position. Now the preset is set and ready to be called.
32
Page 34
DVR User’s Manual
4.5.6 Calling Preset Points
Follow the steps to call preset points.
• Press a Channel key to view the corresponding camera in full screen.
• Then press DOME to enter Dome Control mode. Then a Hint Screen,
shown as blow figure, will display on the screen.
• Press 2 to hide the Dome Control Hint Screen; press 2 again to toggle the
Hint Screen.
• Press 1 to access the Set/Go Preset function.
Dome Preset
First Page
No
No
No
No
No
No
No
Go Preset
No
No
No
No
No
No
No
Index
1
2
3
4
5
6
7
Set Preset
• Use UP / DOWN keys to select the desired preset number from the menu.
• Set the <Go Preset> of the selected preset number to <Yes>, and press
ENTER to call the preset point.
• Now the selected dome camera rotates to the preset position
automatically.
33
Page 35
DVR User’s Manual
5. Remote Monitoring Software
The remote monitoring software is a remote browser-based software
application designed to operate with the DVR products. Using the software,
users are allowed to view live and recorded video, and configure the DVRs
remotely via a LAN, WAN or Internet on a personal computer.
The connected PC will automatically download the remote monitoring
software plug-ins from the DVR when the DVR is connected by entering its IP
address in the address bar on the browser.
Due to the setting items are similar to those listed in the DVR’s OSD setup
menu, please refer to the sections above for setting configuration of the
remote monitoring software.
The tasks can be performed with the remote monitoring software are listed
below:
• Remote viewing of live/ recorded video
• Remote setup of the DVR
• Remote control of dome cameras
• Alarm notification from the DVR
• Up to three connections to one DVR using the remote monitoring software,
including one Administrator and two User operators
5.1 Remote Monitoring System Requirements
Items Minimum Requirements
Minimum:
Intel® Pentium® M CPU 1.40GHz
Personal Computer
Hard Disk Drive
Operating System
Web Browser
Monitor Resolution
Network Card
RAM 512 MB
Recommended:
Intel® Core™2 Quad CPU Q6600 @ 2.4GHZ
RAM 2 GB
Requires 20 MB for software installation
Windows XP, Windows Vista
Microsoft Internet Explorer version 6.0 or above
Minimum 1024 x 768 with 16-bit color
10Base-T (10 Mbps) or 100Base-TX (100 Mbps)
operation; must match the network configuration
34
Page 36
DVR User’s Manual
5.2 Installation of Software
Refer to the following description to install the remote monitoring software.
5.2.1 Change Internet Settings
The PC operating with the remote monitoring software should be set to
accept ActiveX plug-ins. Please follow the steps to set the Internet security
settings appropriately.
• Before operating the remote monitoring software, please check the IP
address of the DVR. To check the IP address, press MENU key on the unit
and enter password to access OSD setup menu. Select <System Setup>,
<Network Setup>, then <LAN Setup> to check the IP.
• Start the IE; it can be started either by clicking on the desktop icon, or by
using the Start menu to access it.
NOTE: Windows IE provides the ActiveX component that is
required when using the remote monitoring software.
• Select <Tools> from the main menu of the browser, then <Internet
Options>, and then click the <Security> tab.
• Select <Trusted sites> and click <Sites> to specify its security setting.
35
Page 37
DVR User’s Manual
• Uncheck “Require server verification (https:) for all sites in this zone”.
Type the IP address of the unit in field and click <Add> to add this web site
to the zone.
• Click <OK> to confirm the setting and close Trusted sites dialog.
• In the Security Level area, click <Custom Level>. The Security Settings
screen is displayed.
• Under <ActiveX controls and plug-ins>, set all items to <Enable> or
<Prompt>.
• Click <OK> to apply the setting and close the <Security Settings> screen.
• Click <OK> to close Internet Options dialog.
Now the installation can continue to the next step.
36
Page 38
DVR User’s Manual
5.2.2 Install the Remote Monitoring Software
Start the browser to initiate the installation of the remote monitoring software
on the PC. The IP address of the DVR can be saved as a Favorites item in
the web browser to enable easy access in the future.
• Start the IE; it can be started either by clicking on the desktop icon, or by
using the Start menu to access it.
• Enter the IP address of the DVR in the address bar at the top of the
browser.
• The ActiveX controls and plug-ins dialog will show twice for confirmation;
click <Yes> to accept ActiveX plug-ins. The remote monitoring software
plug-ins will be downloaded and installed on the PC automatically when
the connection is successfully made.
NOTE: Do not enter any leading “0” characters in the address, for
example, “192.068.080.006” should be entered as “192.68.80.6”.
If the default trigger port 80 is changed into another one, take port
81 for example, the IP address should be entered as
“192.68.80.6:81”.
• A version check starts to verify whether the remote monitoring software
was installed already, and also check if the version is the same as that
stored in that particular DVR. This process may take up to 30 seconds.
• When the software is completely downloaded and installed, the Login
Screen is now displayed.
37
Page 39
DVR User’s Manual
5.2.2.1 Login / Logout
Login using either <Admin> or <User> account. <Admin> account can modify
configuration without restraint, while <User> account is limited to general
remote access of the unit.
One “Admin” and up to two “Users” can access a DVR at the same time.
Nevertheless, if the “Admin” account is currently accessing the unit’s OSD
setup menu at the DVR site, then the “Admin” account at the remote
monitoring site cannot change the settings at the same time. The Admin
account of the DVR has priority.
The following steps demonstrate procedures to view video from remote unit:
• Start the remote monitoring software by entering the IP Address of the
DVR in the Address bar of the browser. Alternatively, click on the Favorite
entry for the unit (if the IP address of the unit has been set).
• Enter the Username and password. The login username and password
can be saved to ease future login. The default usernames and passwords
are listed as below.
Login Type
Default Username
Default Password
Admin User
1234 4321
• Click <OK> to login to the DVR. The process may take a few seconds.
• If the connection is made successfully, the main window will display live
video of the attached cameras.
If the IE browser is closed, the remote system is logout and disconnected
from the DVR at the same time.
38
Page 40
DVR User’s Manual
5.2.2.2 Software Upgrades
If a new version of the remote monitoring software is available on the DVR,
upgrade will be prompted while accessing the unit. Follow the steps to
upgrade the software.

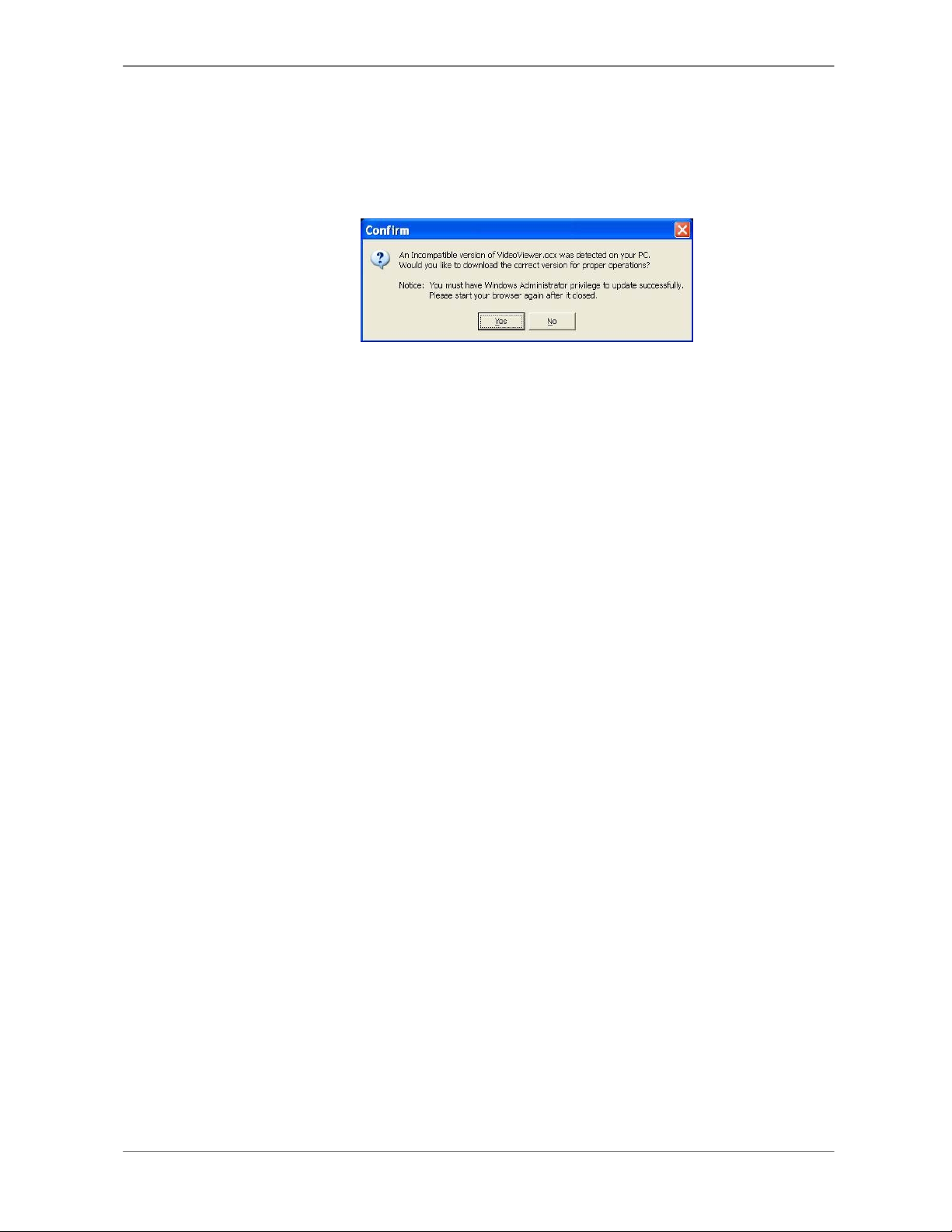

• The message as the above figure will be prompted. Click <Yes> to accept
version upgrade.
• Start the IE again and enter the IP address of the DVR in the Address bar
of the browser; or if the unit address is set as a Favorite site, click the
Favorites entry for the unit.
• When the software is completely downloaded and installed, the Login
Screen will be displayed.
5.3 Basic Operation
When a DVR is successfully connected, the main window of the remote
monitoring software will be displayed. Please refer to the Setup Guide for the
graphical illustration of functional items.
The functions on the remote monitoring software will be described in the
following sections.
5.3.1 View Live Video
View live video from the cameras attached to the DVR by clicking <Live>
button on the main window toolbar. Choose desired display mode –
full-screen, 2x2 windows, 3x3 windows, and 4x4 windows – after the live
images of the DVR are displayed on the main window. When a dome camera
is connected and viewed in single channel full-screen mode, the dome
camera control can be accessed. To choose desired display mode and to
operate dome camera control, refer to the following sections.
39
Page 41
DVR User’s Manual
5.3.1.1 Select Display Mode
Choose the number of windows to be displayed on the main window. Click
one of the display buttons in MODE section. Available selections are 4, 9 and
16 camera displays. To view certain window in full screen, either double-click
on the wanted window, or click on the corresponding CAMERA button.
5.3.1.2 Operating Cameras with Dome Control
The remote monitoring software allows users to control and configure a dome
camera remotely.
Click on any CAMERA button displayed with a dome icon to view the camera
in full screen. The Dome Control Panel will be displayed on the main window.
The items on the dome control panel are described as follows.
Set Preset (•)
Set Preset is used to set up preset positions. The remote monitoring software
allows its user to set up to 255 preset positions with DynaColor, American
Dynamics, Fastrax, JVC, Panasonic (C & N), and Pelco (Pelco P & Pelco D)
domes.
Use Direction buttons to move dome camera to an appropriate position, and
then click the button and choose wanted number from the pull-down list. The
preset position is named as the selected number.
Go Preset (•)
Go Preset is used to call the camera preset point, which was set up with the
set preset point function. Click and choose a number to call the preset point
for viewing.
Auto Focus (A.F.)
Click on it and the focus of the camera will be automatically adjusted to show
a clearer image.
Dome ID (ID)
Click for changing the dome ID and protocol. Proper authority is required to
access this function.
40
Page 42
DVR User’s Manual
Focus +/−
Use to adjust the camera lens to focus on objects for a clear view. Click on
<Focus +> to focus near or <Focus −> to focus far.
Iris +/−
This item is used to open and close the iris to let more or less light into the
camera. Click on <Iris +> to open iris or <Iris −> to close iris.
Zoom +/−
Users are allowed to zoom-in or zoom-out using the adjusting buttons.
Zoom-in to enlarge a certain area and zoom-out to view more area.
Direction Button
This button is used to pan and/or tilt the dome camera. Click the arrows in the
directions to be viewed.
5.3.2 Instant Recording
The Instant Recording function allows users to record video quickly to the PC.
NOTE: The Audio function is set to OFF as the default setting.
5.3.2.1 Record Video Instantly
Follow the steps to start recording instantly:
• Click on the <Instant Recording> button.
• Select the destination folder to save the video.
• Click on the button again to stop recording.
NOTE: The instant recording video will be saved as *.drv file.
5.3.2.2 Playback Instant Recorded Video
Follow the steps to playback a video recorded by “Instant Recording”.
• Click <Play> on main window toolbar and click <Local Playback> tab.
• Click <Open> to choose a recorded file.
• Click <OK> to start playing the recorded video.
41
Page 43
DVR User’s Manual
5.3.3 Playback Video
The remote monitoring software allows users to view recorded video either
from the DVR, or from the hard disk drive of the PC
To access the Playback screen, click <Play> button on the main window
toolbar. There are three tabs in the Playback screen: <Remote Playback>
and <Local Playback> tabs. <Remote Playback> allows users to play back
from the DVR. <Local Playback> enables users to playback a recorded video
file stored on the hard disk drive of the PC.
The DVR continues recording while playing back recorded video on the PC,
either remote playback or local playback.
5.3.3.1 Playback Remote Video
To view remote video, click <Play> on the main window toolbar, and then
<Remote Playback> tab. The <Remote Playback> screen will be displayed.
The <From> and <To> in the <Available Record Video> display the date and
time from which recorded video is available for playback.
To playback remote video segments, follow these steps:
• Choose <Playback> in <Select> field for playback recorded video.
• In <Start> field, users can change the date and time either by typing
desired numbers directly or using the arrow buttons.
To type directly:
Click on day, month and year of date field respectively, and type the
desired numbers directly. Follow above steps to adjust the hour, minute
and second of time field.
To use the arrow buttons:
Click on the arrow button next to the date field to display the calendar; then
click the left and right arrow at the top of the calendar to change the date.
Use up and down arrow next to the time field to change to the wanted time.
• The other way to select date and time is by moving the blue sliding bar.
• Click <OK> to start the playback, or click <Close> to abort.
42
Page 44
DVR User’s Manual
• The other option <Download (.DRV)> in <Select> field enables users to
download the video segment of selected date and time to the PC. The
selection of time duration is the same as described above. Files
downloaded will be in *.drv format.
5.3.3.2 Playback Local *.drv Files
The <Local Playback> tab allows users to playback *.drv video files stored in
the PC's hard drive.
Follow below steps to playback a downloaded *.drv file with the remote
monitoring software.
• Click <Open> and the file selection screen is displayed.
• Select the *.drv video file for playback and click <OK>.
• Click <OK> in the <Local Playback> Screen to start the playback, or click
<Cancel> to abort.
• View the video playback using the Playback controls.
• To end the playback, click <Live> to return to live video.
5.3.3.3 Playback Controls
When the local or remote video is being played, the remote monitoring
software is in Playback Mode. The playback controls toolbar will emerge on
the main window toolbar. The Playback controls and indicators are described
as below.
Icon Name Description
Fast Backward /
Step Backward
/
Play / Pause
Fast Forward /
Step Forward
1. Click to play the recorded video in backward
direction. Click repeatedly to select the backward
playback speed: 1×, 2×, 4×, 8×, 16×, or 32×.
2. When playback is paused, click repeatedly to
move backward step-by-step.
1. While playing, click to pause the playback.
2. When paused, click to resume the playback.
1. Click to play the recorded video in forward
direction. Click repeatedly to select the forward
playback speed: 1×, 2×, 4×, 8×, 16×, or 32×.
2. When playback is paused, click repeatedly to
move forward step-by-step.
43
Page 45
DVR User’s Manual
5.3.4 Search from Event List
Click SEARCH, the Event List appears. The List contains information about
the alarm events that the unit recorded and saved. Up to 1024 events can be
listed in the Event List.
The Event List displays each event by its number, the date and time of the
event, the type of the event (including Alarm In, Motion Detection, Video Loss,
and Over Speed), and the camera channel where the event occurred.
To view an event video, follow these steps:
• Click SEARCH button positioned in the main window toolbar. The Event
List appears.
• Scroll through the Event List and highlight the interested events.
• Double-click on the desired event to view the event video.
5.3.5 Take a Snapshot
Snapshot is a simple screen capture tool. When users click on the
SNAPSHOT button, it will capture the screenshot of the window that is
currently showing on the screen. Each click captures one screenshot to be
saved as a JPEG file on the desktop. The snapshot file will be named as
“Snapshot-*”.
5.3.6 Health Status
This function verifies the HDD status of the DVR. The information items in the
status chart are described as below.
Device Name
This item shows the model name of the HDD.
Int./Ext.
This item indicates whether the HDD is an internal or external device.
Total Siz e
This item indicates the total size of the HDD.
State
This item indicates whether the HDD is active or non-active.
44
Page 46
DVR User’s Manual
Tempe ratur e
This information item is currently not available.
5.3.7 Remote Monitoring Software Trouble Shooting Guide
What happened if the server requests to upgrade the software every time the
DVR is connected? If the following screen displays repeatedly, please follow
the steps to delete the temporary internet files.
• Select <Tools> from the main menu of the web browser, then <Internet
Options>, and then click the <General> tab.
• Click the <Delete Files> button in the <Temporary Internet Files> field; the
<Delete Files> screen displays as below.
• Check the <Delete all offline content> box and click <OK>.
• Now, enter the IP address of the DVR to make the connection again.
45
Page 47
DVR User’s Manual
Appendix A: Technical Specifications
All specifications are subject to change without notice.
Specifications 16CH 8CH 4CH
Video
Operation System
Input
Output
VGA Output
Picture Refresh Rate
Audio
Input
Output
Data Rate
Recording
Compression Method
Recording Mode
Pre-alarm
Rate
Recording Mode
Image Size
Storage Mode
Data Life Time
Storage
Built-in Storage Interface
Export
Alarm
Alarm Input
Alarm Relay Output
Alarm Detection
Motion Detection
Video Loss Detection
Communication
Network Connectivity
Remote Control Software
Remote Operation
RS-485
IR Remote
Control
USB Mouse Port
Dome Control Protocol
General
Operation Temperature
Relative Humidity
Power Consumption &
Input
Main
Call
Main
Call
BNCx16,1.0Vp-p, 75 ohm BNCx8,1.0Vp-p, 75 ohm BNCx4,1.0Vp-p, 75 ohm
BNCx1, 1.0Vp-p, 75 ohm --
800x600, 1024x768, 1280x1024 pixels
NTSC: 30PPS (per channel) / PAL: 25PPS (per channel)
D-SUB x 16, Line-In D-SUB x 8, Line-In RCA x 4, Line-In
RCA x 1, 1 Channel Line-Out --
Schedule, Alarm, Motion Detection
NTSC:
60PPS@720x480 pixels
120PPS@720x240 pixels
240PPS@360x240 pixels
PAL:
50PPS@720x576 pixels
100PPS@720x288 pixels
200PPS@360x288 pixels
x2, SATA x1, SATA
x1 USB 2.0 Port, Support ThumbDrive®, External CD-RW or DVD+RW
x16, D-Sub x8, D-Sub x4, D-Sub
16 x 12 Grid Array, Sensitivity, Trigger Level Adjustable
Ethernet RJ-45 Connector, 10/100Mbps, supports DHCP
Central Management System (CMS), Web Based Viewer
Monitor, Playback, Recording, System Setup, Archive
1x USB 2.0 Port None
DynaColor, Pelco P, Pelco D, AD422, Fastrax 2, Panasonic
AC 100 ~ 240V, 50-60Hz, 60W Adaptor
46
Embedded ( Linux )
BNCx1, 1.0Vp-p, 75 ohm
RCA x 1, 1 Channel Line-Out
8 Kb / s, per ch
H.264
Yes
NTSC:
30PPS@720x480 pixels
60PPS@720x240 pixels
5 Levels Presets
1K to 20K Byte/Picture
Linear/Circular
Yes (Programmable)
x1, D-Sub
N.C./N.O., Programmable
Programmable
D-Sub
Yes
-5°C ~ 40°C
10% - 90% Non-condensing
120PPS@360x240 pixels
PAL :
25PPS@720x576 pixels
50PPS@720x288 pixels
100PPS@360x288 pixels
Recording Resolution &
Page 48
DVR User’s Manual
Appendix B: Recommended HDDs
Refer to the following list for some recommended HDDs to be used in the DVR.
Brand Model Name Model Number Size
Barracuda ES.2 ST3500320NS 500G
Seagate
HITACHI
Maxtor
Western Digital
Barracuda 7200.11 ST3500320AS 500G
Barracuda 7200.11 ST3750330AS 750G
Barracuda 7200.11 ST31000340AS 1000G
DeskStar HDP725032GLA360 320G
DeskStar HDP725050GLA360 500G
DiamondMax 22 STM3500320AS 500G
WD AV WD1600AVJS 160G
WD AV WD2500AVJS 250G
WD AV WD3200AVJS 320G
WD AV WD5000AVJS 500G
WD AV WD7500AVVS 750G
47
Page 49
DVR User’s Manual
Appendix C: Remote Control
The operational function keys on the remote control are listed as below figure:
48
Page 50
DVR User’s Manual
The keys of the remote control function as the keys of the front panel of the DVR. The only
difference between the remote control and the front panel keys is the “DVR SEL” key. The
DVR Selection key is used to switch control between each DVR.
The remote control can be used to control up to 16 DVRs. To setup the remote control, the
first thing is to assign a unique DVR Unit ID to each DVR.
Use the front panel of the DVR, and follow this path to change the DVR Unit ID, <Main
Menu> Æ <System Setup> Æ <RS485 Setup> Æ <Unit ID>. Change the DVR Unit ID to
any number between 224 and 239, and exit the menu.
The ID Table is listed below for reference.
DVR Unit ID 224 225 226 227 228 229 230 231
Remote Control # 1 2 3 4 5 6 7 8
DVR Unit ID 232 233 234 235 236 237 238 239
Remote Control # 9 10 11 12 13 14 15 16
After the DVR Unit ID is changed, setup the “DVR SEL” of the remote control. Press “DVR
SEL”, and then press the Remote Control # immediately to select the DVR. For example,
assuming the DVR Unit ID is set to 225, press “DVR SEL” and then press “2” immediately.
Now, the remote control will only be able to control the specified DVR. Press “DVR SEL”,
and then press the Remote control # to switch between DVRs.
To exit the single DVR Control mode, press “DVR SEL”, and then press “ESC” to do so.
49
Page 51
DVR User’s Manual
Appendix D: Setting up a DVR behind a Router
This appendix describes how to set up a router if the DVR connects to the internet via a
router.
To properly operate a web server, e.g. a DVR, users have to set up both the IP and port of
the DVR, which are essential for data and command transmission. The port setting is
adjustable in OSD setup menu of the DVR and only one port is needed to do remote
operation. Typically and by the default, the DVR operates on port 80, which is well known
as the http port. Please make sure that port 80 is not blocked by the ISP. Otherwise, a
different available port shall be reset and the setting of the DVR shall be changed.
In case a router or sometimes a DSL modem is in place, the real IP is now assigned to the
router instead of the DVR. The DVR is located behind the wall (router) and operates on
virtual IP. In most cases, virtual IP starts with 192.168.x.x. The router has two IP: one is real
IP (WAN IP); the other is virtual IP (LAN IP). The virtual IP would be 192.168.x.1. When the
remote users want to operate the DVR, they will have to send command to the real IP, i.e.
the router. Then the router has to map (forward) the command to the DVR. Thus, it is
required to set up the router for port mapping (forwarding) before images from the DVR can
be remotely viewed on a PC.
See the router manufacturer's websites for more instructions on port mapping.
50
Page 52
DVR User’s Manual
Following is an example of how the router should be set.
Router
(D-Link DI-724P+)
WAN IP: 218.160.54.13
LAN IP: 192.168.0.1
PC
IP: 192.168.0.100
IP: 192.168.0.167
Trigger port: 80
DVR 1
DVR 2
IP: 192.168.0.200
Trigger port: 81
• To change the setting of the router, a PC with web browser is required.
• Connect to D-Link DI-724P+ from PC via IE. The setup screen will be shown after
entering the correct username and password.
• Click the <Advanced> tab and follow the steps to set up web port forward to DVR 1.
51
Page 53
DVR User’s Manual
A. Select <Enabled> to set up the service.
B. Enter the name of the setting in the Name field: DVR 1.
C. Enter Private IP: 167
D. Choose <TCP> as the Protocol Type.
E. Enter Private Port: 80.
F. Enter Public Port: 80.
G. Click <Always> for the Schedule setting.
H. Click <Apply>.
• Click <Continue> to go on when the following screen displays.
• Follow the steps to set up web port forward to DVR 2.
A. Click <Enabled> to set up the service.
B. Enter the name of the setting in the Name field: DVR 2.
C. Enter Private IP: 200
D. Choose <TCP> as the Protocol Type.
E. Enter Private Port: 81.
F. Enter Public Port: 81.
G. Click <Always> for the Schedule setting.
H. Click <Apply>.
• Now DVR 1 can be connected via http://218.160.54.13:80 and DVR 2 can be
connected via http://218.160.54.13:81.
• If there are more than one DVR behind the router, repeat the steps for port mapping
setting.
52
Loading...
