Oki 6120E User Manual

OkiLAN 6120e® User’s Guide

High Performance 10/100 Base-T Ethernet

Network Print Server

Copyright and Trademark Information

Every effort has been made to ensure that the information
in this document is complete, accurate, and up-to-date.
Oki Data assumes no responsibility for the results of
errors beyond its control. Oki Data also cannot guarantee
that changes in products made by other manufacturers
and referred to in this handbook will not affect the
applicability of the information in it. This handbook is
subject to change without notification.

© 2001 by Oki Data. All rights reserved.
Oki Data, OKIPAGE, OkiVIEW, OkiLAN Reg. T.M.,

M.D.,., and OKICOLOR T.M., OKI Electric Industry Co.,
Ltd.; Windows, MS-DOS Reg. T.M., Microsoft Corp.; HP
LaserJet, PCL, Reg. T.M. Hewlett Packard Company;
Centronics Reg. T.M., Centronics Data Computer Corp.;
Energy Star, Reg. T.M., U.S. EPA; Ethernet Reg. T.M.
Digital Equipment Corp.; Adobe Reg. T.M., PostScript
T.M., Adobe Systems Inc.; Macintosh EtherTalk,
LocalTalk, TrueType Reg. T.M. , Apple Computer Inc.;
Novell, NetWare, Unix, YES NetWare Tested and
Approved logo, Reg. T.M. Novell Corp.; ProPrinter, OS/2
Reg. T.M. TokenRing, T.M., International Business
Machines Corp.

ii

OKI OkiLAN 6120e User’ s Guide

Organization and Contents

Organization

This manual has been divided into eight sections. Section
I contains and installation instructions for the OkiLAN
6120e print server.

Section II contains information about management
features, an extremely valuable set of OkiLAN 6120e
management tools for network administrators.

The Network Operating System (NOS) and protocol
sections are found in Sections III through VI.

Section VI contains information and instruction on
Windows printing options. With the exception of the
Advanced Management Features section, each section in
this manual has been designed to be independent of one
another.

Contents

Section I: Hardware Installation..............................I-1

Section II: Advanced Management Features ........II-1

Chapter 1: SNMP......................................................... II-3

Chapter 2: HP JetAdmin Support................................. II-6

Chapter 3: HP Web JetAdmin Support ......................... II-8

Chapter 4: OkiLAN 6120e W eb Configuration .......... II-10

Chapter 5: Additional Management Features .............. II-18

Section III: NetWare................................................III-1

Chapter 1: Introduction................................................ III-4

Chapter 2: OkiNet for NetW are ...................................III-6

Chapter 3: OkiNet for NDS ......................................III-24

Chapter 4: Using the OkiLAN 6120e in NDPS

(NetW are 4.x, 5.1 or Higher).....................................III-33

OKI OkiLAN 6120e User’ s Guide

iii

Organization and Contents

Section IV: TCP/IP.................................................. IV-1

Chapter 1: Introduction................................................ IV -5

Chapter 2: Configuring the OkiLAN 6120e ................ IV-7

Chapter 3: TCP/IP Configuration and Printing.......... IV -14

Chapter 4: OkiNet for TCP/IP................................... IV-23

Chapter 5: W eb Configuration ................................... IV-42

Chapter 6: T elnet Configuration.................................IV-43

Appendix A: Troubleshooting ................................... IV -49

Appendix B: Application Considerations .................. IV-56

Appendix C: Internet Printing Protocol (IPP) ...........IV-81

Section V: LAN Manager/LAN Server................... V-1

Chapter 1: Introduction................................................. V-3

Chapter 2: Installation................................................... V-5

Chapter 3: Printing in the OS/2 Environment ............. V-11

Chapter 4: Additional Utility Features ........................ V -13

Chapter 5: Using Help................................................ V-16

Appendix A: Troubleshooting .................................... V-17

Section VI: Windows Printing .............................. VI-1

Chapter 1: OkiLAN 6120e Set Up

for Windows NT 4.0/2000 ......................................... VI-3

Chapter 2: OkiLAN 6120e Set Up

for Windows 95/98 .................................................. VI-10

Section VII: OkiView 32........................................ VII-1

Chapter 1: Introduction.............................................. VII-3

Chapter 2: OkiView 32 Printer Panel ........................ VII-4

Section VIII: Regulatory Information ................. VIII-1

Index

iv

OKI OkiLAN 6120e User’ s Guide

Network Operating Systems

Network Operating Systems

Overview

OkiLAN 6120e simultaneously supports several network
protocols in various combinations. Below is a list of
supported network protocols accompanied with NOS/OS
requirements.

TCP/IP and Windows NT

TCP/IP, FTP and Remote LPD protocols. Simple Network
Management Protocol (SNMP) and Windows NT are
supported in this environment. HTTP and a built-in Web
server are standard for the 6120e.

Novell NetWare

Novell NetWare versions 3.x, 4.1, 5.x and higher.

LAN Manager/LAN Server

OS/2 version 1.3 with LAN Manager version 2.x and OS/
2 version 1.3 or higher with LAN Server version 2.x and
higher.

OKI OkiLAN 6120e User’ s Guide

v

Technical Support

Service Information

Note: This information is valid for the United States and

Canada only.

Oki Data On Line

Visit the OKI DATA Web Site at http://www.okidata.com for
the latest information on:

• Software drivers

• Product guides

• Customer support

• Corporate information

• Dealers

• Documentation

Y our Dealer

Consult the store where you purchased your OkiLAN
6120e, or call 1-800-OKI-DATA (1-800-654-3282) for
the location of the nearest authorized Oki Data service
dealer. Have your ZIP code ready.

• Proof of purchase is required for warranty work. Be
sure to retain your purchase documents.

• Prices and minimum charges may vary.

The Oki Data Customer Support Center

For customer support, call 1-800-OKI-DATA (800-654-

3282). The Oki Data Information System Automated

Attendant is available 24 hours a day, 7 days a week. The
system can provide immediate assistance with:

• Basic operating procedures

• Sales and service referrals

• Parts and consumable referrals

• Product information

vi

OKI OkiLAN 6120e User’ s Guide

Technical Support

Oki Data Customer Support Representatives

Agents are available 24 hours a day, 7 days a week at
1-800-OKI-DATA (1-800-654-3282). Please be sure that
you are calling from a telephone close to your printer, so
you can describe your problem accurately. Our customer
service representatives are trained on all current Oki Data
products They can answer your questions regarding:

• Installation

• Determination of printer issues that require service

• Consumer relations

• Interface information

• Availability and installation of printer drivers and
support for the latest network operating systems.

(Customer service representatives are not trained to
provide assistance with the use of commercial software
packages. Please consult your software user’s manual
for times and availability of their support).

Oki Data Service Centers

Oki Data has over 2,000 local Authorized Service
Providers in North and South America.

For the most comprehensive, up-to-date listing of Oki
Data authorized Service Centers:

- Consult our web site at www.okidata.com

- In the U.S. and Canada, call 1-800-654-3282 (1-800-

OKI-DATA) English and French only.

- In Latin America, contact the Latin America Service

Coordinator at Oki Data’s Corporate
Headquarters at 856-222-7496 (Spanish only).

OKI OkiLAN 6120e User’ s Guide

vii

Technical Support

UNITED STATES

Oki Data Americas, Inc.
2020 Bishops Gate Blvd.
Mt. Laurel, NJ 08054
Tel: [phone]
Fax: [phone]

CANADA

Oki Data Americas, Inc.
2735 Matheson Blvd. East, Unit 1
Mississauga, Ontario, Canada
L4W 4M8
Tel: [phone]
Fax: [phone]

MEXICO

Oki Data de Mexico, S.A. de C.V.
Mariano Escobedo No. 748 - 8 Piso
Col Anzures, e. p. 11590
Mexico, DF
Tel: [phone]
Fax: [phone]

BRAZIL

Oki Data do Brasil, Ltda.
Rua Alexandre Dumas, 2220

- 8 andar
Chácara Sto Antonio
São Paulo 04717-004, Brasil
Tel: [phone]
Fax: [phone]

viii

OKI OkiLAN 6120e User’ s Guide

Technical Support

When you call Technical Support, the following
information will help us answer your questions more
quickly and accurately. Please be able to identify the
following:

• OkiLAN model number

• Serial number

• Configuration sheet settings

• Type of network cable connected to the OkiLAN 6120e

• Printer(s) make and model numbers

• Computer and network adapter card make and model
numbers

• Network Operating System and version number

Please write these numbers down in the space provided
below for future reference.

Model #: ___________________
S/N: ___ ___ ___ ___ ___ ___ ___
Ethernet ADDR: 00:40:68: ___ : ___ : ___

OKI OkiLAN 6120e User’ s Guide

ix

Technical Support

x

OKI OkiLAN 6120e User’ s Guide

Section I:
Hardware

Installation

Hardware Installation

Section I - Hardware Installation

I - 2

OKI OkiLAN 6120e User’ s Guide

Section I - Hardware Installation

Contents

Powering On the OkiLAN 6120e ............................. I-7

Printing a Configuration Sheet...............................I-8

Hardware Installation

OKI OkiLAN 6120e User’ s Guide

I - 3

Section I - Hardware Installation

I - 4

OKI OkiLAN 6120e User’ s Guide

Section I - Hardware Installation

The OkiLAN 6120e Print Server enables Ethernet
network users to connect to a printer with an OKI SIDM
port.

The OkiLAN 6120e supports 10/100-megabit networks
and most popular network operating systems and SIDM
printers.

Removing the OkiLAN 6120e

Before using the parallel port, you must remove the
OkiLAN 6120e from the printer.

1. Turn off printer power .

2. Unplug the power cord.

3. Unplug the 10/100Base-T UTP cable from the

receptor on the back of the OkiLAN 6120e.

Hardware Installation

OKI OkiLAN 6120e User’ s Guide

I - 5

Section I - Hardware Installation

4. Unplug the power adapter from the wall outlet. Then
unplug the power adapter wire from the power jack
on the OkiLAN 6120e.

5. Slide the OkiLAN 6120e out of the printer and store
it in a safe place for future network requirements.

6. Attach the interface cable to the parallel interface
connector. Attach the other end of the cable to your
computer.

7. Plug the power cord into the power outlet.

I - 6

OKI OkiLAN 6120e User’ s Guide

Section I - Hardware Installation

Re-installing the OkiLAN 6120e

T o use your printer on a network, you must re-install the
OkiLAN 6120e.

1. Turn off printer power .

2. Unplug the power cord.

3. Detach the interface cable from the rear of the printer.

4. Insert the OkiLAN 6120e by sliding it along the rails

in the recess of the printer, until it is plugged into the
socket in the rear of the recess.

Hardware Installation

OKI OkiLAN 6120e User’ s Guide

I - 7

Section I - Hardware Installation

5. Plug the power adapter wire into the power jack on
the OkiLAN 6120e. Then plug the power adapter
into a 120 VAC wall outlet.

Please note that some countries may requir e a
different adapter for local voltages, such as 240
V AC.

6. Attach the 10/100Base-T UTP cable to the recep­tacle on the back of the OkiLAN 6120e. Attach the
other end of the cable to the Network.

7. Plug the power cord into the power outlet.

I - 8

OKI OkiLAN 6120e User’ s Guide

Section I - Hardware Installation

Powering On the OkiLAN 6120e

Turn printer power on. The red and green indicators on
the OkiLAN 6120e will blink during self-test. When
self-test completes successfully , the red indicator will go
off and the green indicator will stay on.

Green indicator Red indicator

Hardware Installation

OKI OkiLAN 6120e User’ s Guide

I - 9

Section I - Hardware Installation

Note: If the red and green indicators do not display as
indicated above, see Hardware T roubleshooting at the
end of this section.

Printing a Configuration Sheet

T o print configuration information, press the T est button
on the front of the OkiLAN 6120e. You can also print

configuration information using the utility program
provided on the CD.

Note: By default, the configuration sheet prints in
ASCII text.

The content of the configuration sheet will vary depend­ing on your printer and system setup.

I - 10

OKI OkiLAN 6120e User’ s Guide

Section I - Hardware Installation

Installing the OkiLAN 6120e
Software Utilities

Introduction

Your OkiLAN 6120e Print Server comes with two types
of software utilities: OkiV iew 32 and OkiNet Utilities.

OkiView 32

OkiV iew 32 is a general purpose utility for configuring
and monitoring printers on NetW are and W indows NT/
2000 servers. It includes a GUI for the Win32
(Windows) environment. For more information on using
OkiV iew 32, see section VIII.

OkiNet Utilities

The OkiNet utilities are specialty utilities used in differ­ent operating systems such as Unix, Mac and Win32.

A custom port monitor utility is also provided for the
Win32 environment which supports peer -to-peer
printing, also known as serverless printing. TCP/IP, DLC
and IPX-direct protocols are supported in this serverless
network environment. See Section VII, W indows Print­ing, for details.

Hardware Installation

OKI OkiLAN 6120e User’ s Guide

I - 11

Section I - Hardware Installation

Installing the OkiNet Utilities
Software in Windows

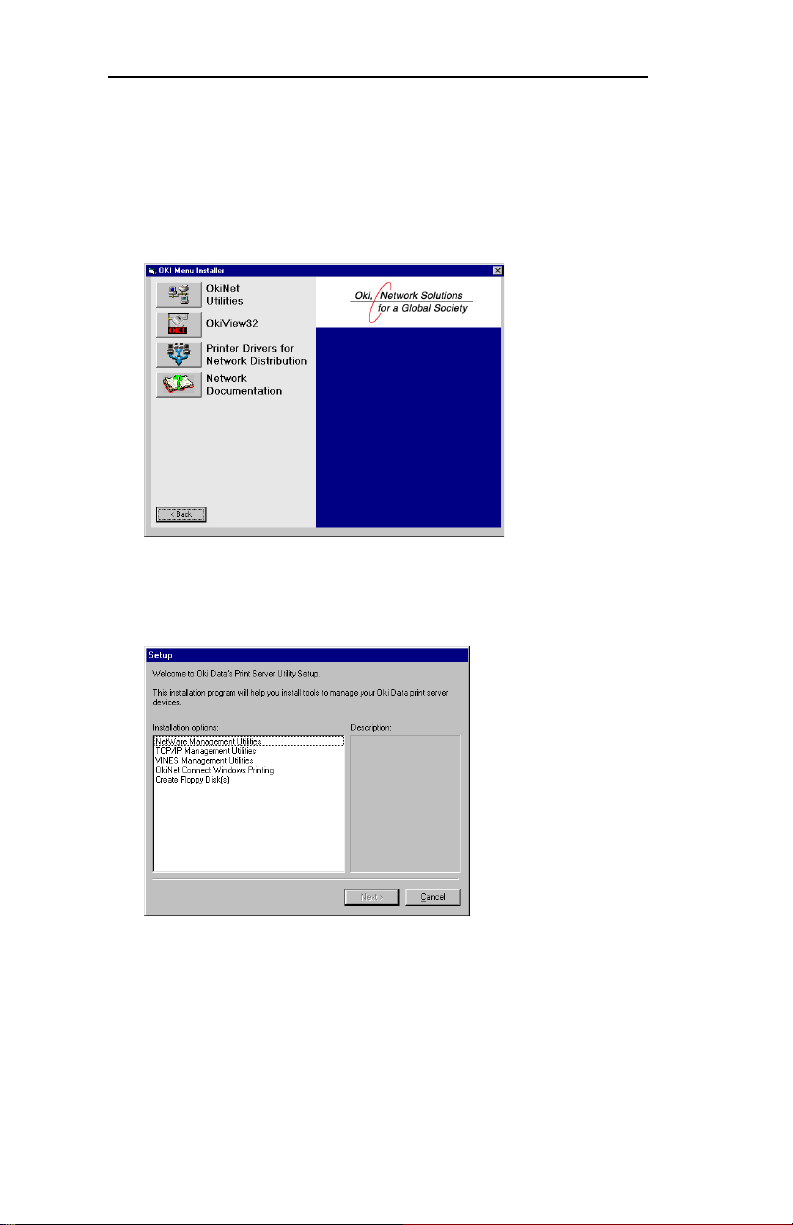

1. Click the OkiNet Utilities button on the OKI Menu
Installer screen.

2. When the Setup screen appears, select the utility
group for the network environment you have, then
click Next.

3. Follow the online instructions to complete installa­tion.

I - 12

OKI OkiLAN 6120e User’ s Guide

Section I - Hardware Installation

Windows Utility Groups:

NetWare Management Utilities

OkiNet Utility for NetW are
OkiNet Utility for NDS (W orkstation and Server)
OkiNet Utility for NDS (W orkstation)

OkiNet Connect Windows Printing

OkiNet Connect for TCP/IP (Windows 95/98)
OkiNet Connect for TCP/IP (Windows NT)
OkiNet Connect for IPX/SPX (Windows 95/98)
OkiNet Connect for IPX/SPX Windows NT)
OkiNet Connect DLC (Windows 95/98)
OkiNet Connect DLC (Windows NT)

TCP/IP Management Utilities

OkiNet Utilities for TCP/IP
OkiNet Alert for TCP/IP
Okidata MIB
BootP Server

Hardware Installation

OKI OkiLAN 6120e User’ s Guide

I - 13

Section I - Hardware Installation

Apple® MacIntosh® Utility Groups:

OkiNet for the Apple® MacIntosh®
Utility

Note: The OkiLAN Utilities CD is designed for more
than one type of OkiLAN print server and includes
features that do not apply to the OkiLAN 6120e. Specifi­cally , Apple EtherT alk is supported by other OKI print
servers but not by the OkiLAN 6120e.

Installing OkiView 32

Note: Novell’s Client for W indows 95/98/Me, NT or
2000 is required for OkiV iew 32. Microsoft Client is
required only for configuring Novell using a Microsoft
network.

1. Click the OkiView 32 button on the OKI Menu
Installer screen.

2. Follow the online instructions to complete installa­tion.

I - 14

OKI OkiLAN 6120e User’ s Guide

Section I - Hardware Installation

Hardware T roubleshooting

Status Indicator

The LED status indicators display the general operating
state of the OkiLAN 6120e. During normal operation,
the red LED is off and the green LED is on, indicating
that the OkiLAN 6120e is functioning properly and the
presence of the network is detected.

The following list describes LED displays that indicate
problems, as well as possible solutions:

LED Display

Green indicator flashing very rapidly

Problem

The OkiLAN 6120e has not detected the presence of a
network cable.

Solution

a) Unplug the OkiLAN 6120e power adapter from the

wall outlet. Remove the network cable. Plug the
network cable back in until you hear a positive click.
Check the other end of the cable in the same manner .
Plug the OkiLAN 6120e back in. If it does not detect
a cable, continue below .

b) Verify the cable is a 10/100 Base-T cable and it has

an RJ-45 end. The network cable must have a cat-3
or higher rating. Silver Satin or flat ribbon cable is

not adequate.

c) Connect to a network that a currently working PC or

print server is using. If the OkiLAN 6120e is still
unable to detect the network cable, contact T echnical
Support for assistance.

Hardware Installation

OKI OkiLAN 6120e User’ s Guide

I - 15

Section I - Hardware Installation

LED Display

Green indicator is flashing slowly (1 timer/sec);
the OkiLAN 6120e is trying to print a job.

Problem

The printer is malfunctioning or does not have sufficient
paper or toner.

Solution

Verify that the printer is not showing any errors and has
sufficient paper and toner .

LED Display

Red indicator stays red for more than 30 seconds

Problem

The printer server has failed the Power On Self T est.

Solution

The OkiLAN 6120e will try to print a configuration
sheet on the printer with more information.

Failing the self test can be caused by any of the follow­ing:
a) The printer is malfunctioning. Unplug the OkiLAN

6120e from the printer and unplug the power adapter.
Reconnect the OkiLAN 6120e and the power
adapter. If the OkiLAN 6120e still fails the self test,
continue below .

b) The OkiLAN 6120e power supply has failed or there

is a hardware problem. Contact Oki Data Customer
Support for replacement information.

I - 16

OKI OkiLAN 6120e User’ s Guide

Section I - Hardware Installation

LED Display

The red and green indicators are alternately flashing for
longer than two minutes.

Problem

The OkiLAN 6120e is in firmware download mode.
This means it is waiting for new firmware to be sent
before it will continue functioning normally .

Solution

If the OkiLAN 6120e was purposely put into firmware
download mode, finish the download with the proper
update utility . Contact our web site at
http://www .okidata.com to download the utility .

Hardware Installation

OKI OkiLAN 6120e User’ s Guide

I - 17

Section I - Hardware Installation

I - 18

OKI OkiLAN 6120e User’ s Guide

Section II:

Advanced Management Features

Advanced Management

Section 2 - Advanced Management Features

In This Section

Chapter 1 SNMP ......................................................II-3

Overview ....................................................... II-3

Private MIB ................................................... II-3

Traps .............................................................. II-4

Security .......................................................... II-5

Chapter 2 HP JetAdmin Support............................II-6

Overview ....................................................... II-6

Configuring the OkiLAN 6120e

Using JetAdmin........................................... II-6

Chapter 3 HP Web JetAdmin Support ...................II-8

Overview ....................................................... II-8

Configuring the OkiLAN 6120e Using

Web JetAdmin ............................................. II-8

Installing a Windows NT Printer for the

OkiLAN 6120e ............................................ II-8

Obtaining Diagnostic Information from

the OkiLAN 6120e ...................................... II-9

Chapter 4 OkiLAN 6120e Web Configuration .....II-10

Overview ..................................................... II-10

Connecting to the OkiLAN 6120e............... II-10

Configuration............................................... II-12

Status............................................................ II-15

Print Job Log ............................................... II-15

Support......................................................... II-15

Reset ............................................................ II-16

OkiLAN 6120e Server Discovery ............... II-16

Troubleshooting........................................... II-17

Chapter 5 Additional Management Features ......II-18

OkiNet Alert................................................. II-18

Enhanced Printer Status............................... II-18

OkiNet for NDS ........................................... II-19

OkiNet for TCP/IP (Creating Custom

Views)........................................................II-19

NetWare Load Balancing............................. II-19

Windows Printing ........................................ II-19

Printer Security for TCP/IP Printing............ II-19

II - 2

OKI OkiLAN 6120e User’s Guide
