OJ Electronics UCG, UDG User Manual

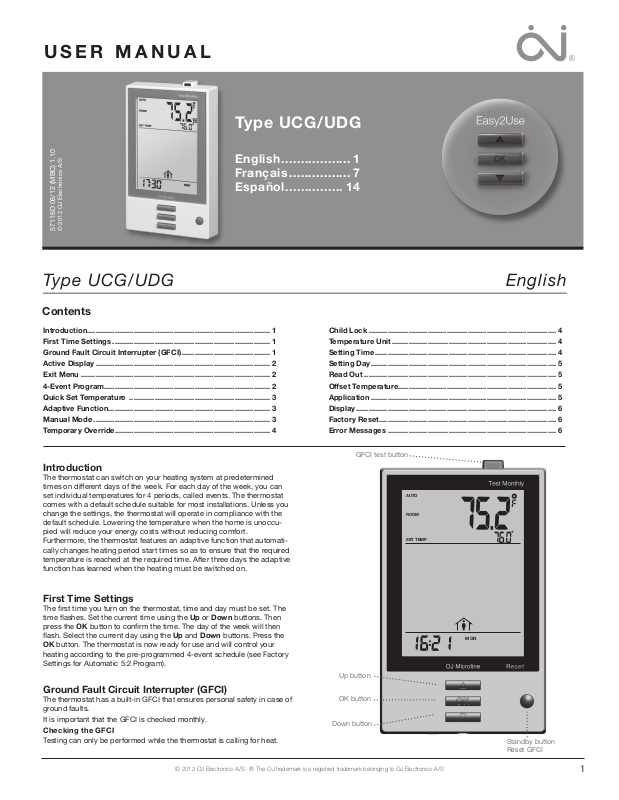

U S E R M A N U A L

Type UCG/UDG

English .................. 1

Français ................ 7

Español ............... 14

57116D 06/12 (MBC) 1.10

Type UCG/UDG English

Contents

Introduction ....................................................................................... 1

First Time Settings ........................................................................... 1

Ground Fault Circuit Interrupter (GFCI) .......................................... 1

Active Display ................................................................................... 2

Exit Menu .......................................................................................... 2

4-Event Program ............................................................................... 2

Quick Set Temperature ................................................................... 3

Adaptive Function ............................................................................. 3

Manual Mode ....................................................................................3

Temporary Override .......................................................................... 4

Introduction

The thermostat can switch on your heating system at predetermined times on dierent days of the week. For each day of the week, you can set individual temperatures for 4 periods, called events. The thermostat comes with a default schedule suitable for most installations. Unless you change the settings, the thermostat will operate in compliance with the default schedule. Lowering the temperature when the home is unoccupied will reduce your energy costs without reducing comfort. Furthermore, the thermostat features an adaptive function that automatically changes heating period start times so as to ensure that the required temperature is reached at the required time. After three days the adaptive function has learned when the heating must be switched on.

First Time Settings

The ﬁrst time you turn on the thermostat, time and day must be set. The time ﬂashes. Set the current time using the Up or Down buttons. Then press the OK button to conﬁrm the time. The day of the week will then ﬂash. Select the current day using the Up and Down buttons. Press the OK button. The thermostat is now ready for use and will control your heating according to the pre-programmed 4-event schedule (see Factory Settings for Automatic 5:2 Program).

Ground Fault Circuit Interrupter (GFCI)

The thermostat has a built-in GFCI that ensures personal safety in case of ground faults.

It is important that the GFCI is checked monthly.

Checking the GFCI

Testing can only be performed while the thermostat is calling for heat.

Child Lock .........................................................................................4

Temperature Unit .............................................................................. 4

Setting Time ...................................................................................... 4

Setting Day ........................................................................................ 5

Read Out ........................................................................................... 5

Oset Temperature........................................................................... 5

Application ........................................................................................ 5

Display ............................................................................................... 6

Factory Reset .................................................................................... 6

Error Messages ................................................................................ 6

GFCI test button

AUTO

ROOM

SET TEMP

MON

Up button

OK button

Down button

Standby button Reset GFCI

Type UCG/UDG English

Adjust the setpoint until the heating symbol ( ) appears. Use the Up button to increase the heating demand and then press the OK button Wait 10 seconds to allow the thermostat to adjust to the new setpoint. Then press the TEST button on the top of the thermostat. The test is successful if the red light in the TEST button lights up and GROUND FAULT is shown on the display. If this does not occur, check the installation/contact your electrical installer. Press the Standby/Reset button to reset the GFCI. The red light should go out and the display returns to normal appearance. Press the Down button to return to the original temperature setting. If the test fails, check the heating cable and thermostat.

If during normal operation the GFCI trips without the TEST button being pressed, there could be a ground fault! To check whether it is a ground fault or nuisance tripping, press Standby/Reset. If this causes the red light to go o and stay o, it was nuisance tripping and the system is operating correctly. If this does not occur, there is a ground fault! Contact your electrical installer.

Active Display

After 1 minute without user activity the display will go into idle mode (the display backlight will turn o). Press any key to activate the display.

Exit Menu

I want to exit a menu.

To do so, you must use the EXIT option: The various menus and submenus contain an EXIT option.

1 Press the Up or Down buttons until EXIT ﬂashes. 2 Press the OK button. You may have to repeat steps 1 and 2 to return

to the ﬁnal EXIT option.

Please note: When you activate a menu, the menu item last selected will begin ﬂashing. This allows you to view the latest setting. If, for example, you activate the MODE menu, MAN. MODE will ﬂash if you used MAN. MODE the last time.

Factory setting: Auto mode

AUTO OVERRIDE MAN. MODE

MODE SCHEDULE PROGRAM SETTINGS EXIT

Step 2: Choosing the weekly schedule for your program. You have the following options:

5:2 will give you 5 days (Monday to Friday) with the same four events

(Morning, Out, Home, Night) and 2 days (Saturday and Sunday) with the same two events (Morning and Night).

6:1 will give you 6 days (Monday to Saturday) with the same four events (Morning, Out, Home, Night) and 1 day (Sunday) with the same two events (Day and Night).

7:0 will give you individual settings for each day from Monday to Sunday.

1 With Active Display (backlight on) press OK to activate the menu. 2 Press the Up or Down buttons until the SCHEDULE option ﬂashes. 3 Press the OK button. 4 Press the Up or Down buttons until the required program

(5:2, 6:1 or 7:0) ﬂashes in the lower part of the display.

5 Press the OK button.

SCHEDULE

This principle also applies to current temperature/time settings. When you enter the various menus, they always display the value that was last selected. This allows you to check the current settings.

Should you enter a menu by mistake, you can exit it again without changing the setting by simply conﬁrming the current setting, i.e. by clicking the OK button.

4-Event Program

I want the temperature to be controlled automatically in accordance with a program of individual temperature settings for four separate events during a day:

• when I wake up in the morning,

• when I am away at work,

• when I come home,

• and at night.

To do so, you must perform the following 3 steps:

Step 1: Select automatic temperature control.

1 With Active Display (backlight on) press OK to activate the

menu.

2 Press the Up or Down buttons until the MODE option flashes. 3 Press the OK button. 4 Press the Up or Down buttons until the AUTO options flashes in

the upper part of the display.

5 Press the OK button.

MON

TUE WED THU

FRI

Step 3: Select the time and temperature settings for each event in the program of days selected in the previous step.

1 Press the Up or Down buttons until the PROGRAM option ﬂashes. 2 Press the OK button. 3 Press the Up or Down buttons until the day(s) that you wish to

program ﬂash in the lower part of the display, e.g. MON TUE WED THU FRI.

4 Press the OK button. The symbol for the ﬁrst event (e.g. morning)

will now ﬂash.

5 Press the OK button. The time will ﬂash, allowing you to set the time

at which you want the period to begin. The time can be set in an interval of 15 minuttes.

6 Press the Up or Down buttons until the required time is displayed. 7 Press the OK button. The temperature setting will now ﬂash in the

upper part of the display.

Type UCG/UDG English

The new temperature setting will then be saved and used for this event in the future.

Example: If you change the temperature on a Tuesday morning while the thermostat is running a 5:2 program, the new temperature will apply to all mornings from Monday to Friday.

Adaptive Function

I want to ensure that the required temperature has already been reached when I get up in the morning or come home from work.

At work

SET TEMP

PROGRAM

At home

EXIT

Morning

Hour

Minutes 5-day period

MON

TUE WED THU

FRI

Please note: The following description illustrates an example in which settings are made for the daily events in a 5:2 program.

8 Press the Up or Down buttons to set the required temperature. 9 Press the OK button. The symbol for the next event (e.g. at work)

will now ﬂash, allowing you to set the time and temperature for this period of the day by repeating steps 5-9.

10 Once time and temperature have been set for the four events

applicable for the 5-day period Monday to Friday, the ﬁrst event symbol for the next 2 says, SAT SUN, will then ﬂash. Please note that now only two events (Day and Night) are displayed.

11 Set the time and temperature for this event, and for the following

event, by repeating steps 5-9.

12 Once time and temperature have been set for the two events appli-

cable for the 2-day periode Saturday and Sunday, the setup will return to the main menu with PROGRAM ﬂashing.

SET TEMP

PROGRAM

EXIT

Night

To do so, you must activate the adaptive function:

1 With Active Display (backlight on) press OK to activate the menu. 2 Press the Up or Down buttons until the SETTINGS option ﬂashes. 3 Press the OK button. 4 Press the Up or Down buttons until the ADAPTIVE option ﬂashes. 5 Press the OK button. ON or OFF will now ﬂash in the upper part of

the display.

6 Press the Up or Down buttons until ON ﬂashes. 7 Press the OK button. 8 Follow the Exit Menu procedure to exit the menu.

Please note: The adaptive function is only related to the 4-event program and only works in connection with going from one event to another where the temperature is going to be raised.

The adaptive function calculates when the thermostat must start the heating system to ensure that the required temperature is reached at the set time. Three days after the adaptive function has been activated, it has learned when the heating must be switched on to attain the required temperature.

Factory setting: ON

TIME DAY

SETTINGS

CHILDLOCK C°/F° APPLICATION OFFSET TEMP READOUT ADAPTIVE DISPLAY FACTORY RESET EXIT

SAT SUN

Quick Set Temperature

I want to permanently change the temperature for the event currently active in the automatic program.

To do so, you must:

1 Press the Up or Down buttons to set the required temperature for the

event currently active.

2 Press the OK button.

Manual Mode

I want to temporarily cancel the automatic 4-event program and manually select temperature.

To do so, you must use manual mode:

1 With Active Display (backlight on) press OK to activate the menu. 2 Press the Up or Down buttons until the MODE option ﬂashes. 3 Press the OK button. 4 Press the Up or Down buttons until MAN. MODE ﬂashes in the upper

part of the display.

5 Press the OK button. The temperature will begin to ﬂash. 6 Press the Up or Down buttons until the required temperature ﬂashes. 7 Press the OK button.

Type UCG/UDG English

Please note: This feature can be useful for instance if you are going on holiday and want to maintain a frost protection temperature (e.g. 41°F) while you are away.

To return to the automatic 4-event program, you must select Auto. Please refer to page 2 for instructions.

MAN. MODE

MODE

Temporary Override

I want to temporarily set a comfort temperature for a single event, e.g. because I am not at work one day and want to maintain a higher temperature or because I am having a party.

To do so, must use override mode:

part of the display.

5 Press the OK button. The temperature will begin to ﬂash. 6 Press the Up or Down buttons until the required temperature ﬂashes. 7 Press the OK button.

Please note: Override mode is a temporary temperature setting that is cancelled automatically by the next event in the scheduled 4-event program.

Factory setting: OFF

SETTINGS

CHILDLOCK

Temperature Unit

I want to change the temperature unit (°C/°F) used in the display.

To do so, you must:

The unit currently selected will appear in the upper part of the display.

5 Press the OK button. 6 Press the Up or Down buttons until the required unit °C/°F ﬂashes. 7 Press the OK button. 8 Follow the Exit Menu procedure to exit the menu.

Please note: Temperatures are displayed in Celsius with a resolution of

0.5 degree and in Fahrenheit with a resolution of 1 degree.

OVERRIDE

MODE

Child Lock

I want to lock the thermostat menus to prevent the settings from being changed.

To do so, you must activate the child lock:

A padlock symbol will appear in the menu area.

5 Press the OK button. OFF will ﬂash in the upper part of the display. 6 Press the Up or Down buttons until ON ﬂashes. 7 Press the OK button. 8 Follow the Exit Menu procedure to exit the menu.

To unlock the child lock again, proceed as follows:

1 With Active Display (backlight on) press OK to activate the menu. 2 Then press and hold the Up and Down buttons simultaneously for

three seconds.

Factory setting: Cel sius

SETTINGS C°/F°

Setting Time

I want to change the time.

To do so, you must:

1 With Active Display (backlight on) press OK to activate the menu. 2 Press the Up or Down buttons until the SETTINGS option ﬂashes. 3 Press the OK button. 4 Press the Up or Down buttons until the TIME option ﬂashes. 5 Press the OK button. 6 Press the Up or Down buttons to select either 12 or 24 hour clock. 7 Press the OK button. The hour will begin ﬂashing in the lower part of

the display.

8 Press the Up or Down buttons to set the hour. 9 Press the OK button. Now the minutes will ﬂash. 10 Press the Up or Down buttons to set the minutes. 11 Press the OK button. 12 Follow the Exit Menu procedure to exit the menu.

Type UCG/UDG English

Factory setting: 24 hour clock

TIME

SETTINGS

Setting Day

I want to change the day of the week.

To do so, you must:

The currently selected day of the week will appear in the lower part of the display.

5 Press the OK button. 6 Press the Up or Down buttons until the required day of the week

ﬂashes.

7 Press the OK button. 8 Follow the Exit Menu procedure to exit the menu.

Please note: Usually, the electrician who installed the thermostat will have set the correct time and day of the week.

Factory setting: MON

DAY

SETTINGS

6 Press the Up or Down buttons to the select the period of interest:

2 DAYS, 30 DAYS or 365 DAYS. The percentage of time that the

heating has been turned on will then be indicated in the upper part of the display.

The Readout submenu also contains information about the Software version and the type of control (Room, Floor, Regulator or Room limit) selected for the Application. (See Application for more information).

SETTINGS

READOUT

2 DAYS 30 DAYS 365 DAYS SOFTWARE APPLICATION EXIT

Oset Temperature

I want to adjust the difference in temperature between the thermostat and my room thermometer.

To do so, you must:

1 With Active Display (backlight on) press OK to activate the menu. 2 Press the Up or Down buttons until the SETTINGS option ﬂashes. 3 Press the OK button. 4 Press the Up or Down buttons until the OFFSET TEMP option ﬂashes. 5 Press the OK button. 6 Press the Up or Down buttons to set the oset temperature (in steps

of 0.1°).

7 Press the OK button. 8 Follow the Exit Menu procedure to exit the menu.

Oset is used to compensate for any dierence between the thermostat and the actual room temperature. It is possible to adjust the oset by up to +/- 10 °C or +/- 18 °F.

If, for example, the thermostat shows 1° too much, the oset should be set to 1°. The temperature will then be set 1° lower.

MON

TUE

WED

FRI

SAT

THU

SUN

Read Out

I want to know the amount of time (in percent) that the heating has been turned on within a certain period.

To do so, you must:

SETTINGS

OFFSET TEMP

Application

I want to select the type of temperature control. To do so, you must:

1 With Active Display (backlight on) press OK to activate the menu.

2 Press the Up or Down buttons until the SETTINGS option ﬂashes. 3 Press the OK button. 4 Press the Up or Down buttons until the APPLICATION option ﬂashes. 5 Press the OK button.

Type UCG/UDG English

6 Press the Up or Down buttons to select one of the four types of

control: ROOM: The built-in room sensor is used. Only room temperature is controlled.

FLOOR: A ﬂoor sensor is used. Only ﬂoor temperature is controlled. REGULATOR: The thermostat functions as a simple regulator and no

sensors are used. ROOM LIMIT: The thermostat controls room temperature while using the external temperature sensor as a limit sensor. If you choose this option, you must set a maximum and minimum temperature for the limit sensor, so that the thermostat will switch the heating o or on if the temperature on the ﬂoor reaches the maximum or minimum temperature respectively. This can, for instance, be used to avoid excessively high temperatures on wooden ﬂooring (maximum limit) or excessively cold temperatures on tiled/stone ﬂooring (minimum limit).

7 Press the OK button. 8 If FLOOR or ROOM LIMIT is chosen, maximum and minimum ﬂoor

temperatures can now be set. Press the Up or Down buttons to set the High temperature. Press OK and set the Low temperature. Press the OK button.

9 Follow the Exit Menu procedure to exit the menu.

Please note: Usually, the electrician who installed the thermostat will have selected the correct type of temperature control for your application.

ROOM FLOOR REGULATOR ROOM LIMIT

TIME DAY

SETTINGS

CHILDLOCK C°/F° APPLICATION OFFSET TEMP READOUT ADAPTIVE DISPLAY FACTORY RESET EXIT

FLOOR

Room/ﬂoor/regulator

On/O

TIME DAY

SETTINGS

CHILDLOCK C°/F° APPLICATION OFFSET TEMP READOUT ADAPTIVE DISPLAY FACTORY RESET EXIT

On/O

Factory Reset

I want to return to the factory settings.

To do so, you must:

ﬂashes.

5 Press the OK button. A submenu will appears. 6 Press the Up or Down buttons until the RESET option ﬂashes. 7 Press the OK button. 8 Follow the Exit Menu procedure to exit the menu.

TIME DAY

SETTINGS

CHILDLOCK C°/F° APPLICATION OFFSET TEMP READOUT ADAPTIVE DISPLAY FACTORY RESET EXIT

RESET EXIT

Display

I want to choose the information to be shown on the thermostat display.

To do so, you must:

1 With Active Display (backlight on) press OK to activate the menu. 2 Press the Up or Down buttons until the SETTINGS option ﬂashes. 3 Press the OK button. 4 Press the Up or Down buttons until the DISPLAY option ﬂashes. 5 Press the OK button. 6 Press the Up or Down buttons to select whether or you wish to:

- display the Clock or not (On/O),

- display the Set temperature or not (On/O).

- You can also decide whether the temperature displayed is the Room temperature, the Floor temperature (if a ﬂoor sensor is used) or the Regulator temperature.

7 Press the OK button to conﬁrm the settings as you work your way

through the various options in the DISPLAY submenu.

8 Follow the Exit Menu procedure to exit the menu.

Factory settings: TIME: ON; SET TEMP.: ON; TEMP.: FLOOR

Error Messages

E0 = Internal failure. Replace thermostat. E1 = Internal sensor defective or short-circuited. Replace thermostat. E2 = External sensor defective or short-circuited. Check external sensor.

Factory Settings for Automatic 5:2 Program

Days 1-5 (Monday - Friday)

Event Time Temperature

Morning 6:00 a.m. - 8:00 a.m. 77 °F / 25 °C

Out 8:00 a.m. - 4:00 p.m. 68 °F / 20 °C

Home 4:00 p.m. - 10:00 p.m. 77 °F / 25 °C

Night 10:00 p.m. - 6:00 a.m. 68 °F / 20 °C

Days 6-7 (Saturday - Sunday)

Event Time Temperature

Day 8:00 a.m. - 11:00 p.m. 77 °F / 25 °C

Night 11:00 p.m. - 08:00 a.m. 68 °F / 20 °C

+ 14 hidden pages

OJ Electronics UCG, UDG User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
