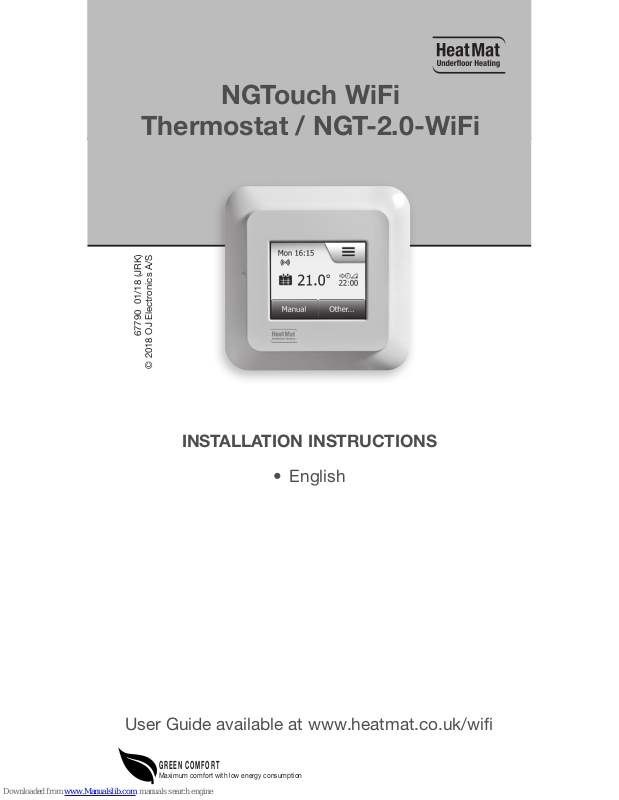

NGTouch WiFi
Thermostat /
NGT-2.0-WiFi
NGTouch WiFi
Thermostat / NGT-2.0-WiFi
• English
INSTALLATION INSTRUCTIONS
67790 01/18 (JRK)
© 2018 OJ Electronics A/S
GREEN COMFORT
Maximum comfort with low energy consumption
User Guide available at www.heatmat.co.uk/wifi
© 2018 OJ Electronics A/S
2
© 2018 OJ Electronics A/S
ILLUSTRATIONS
Pages .................................................................................... 3
INSTRUCTIONS
English .................................................................................. 7
3
© 2018 OJ Electronics A/S
NGTouch WiFi
Thermostat /
NGT-2.0-WiFi
BR1017A02
Fig. 1
Fig. 2
BR1017A01
BR1017A01BR1017A02
4
© 2018 OJ Electronics A/S © 2018 OJ Electronics A/S
NGTouch WiFi Thermostat / NGT-2.0-WiFi
BR1017A03A
1.5m
1
2
3
BR1017A03a
BR1017A05A
653 421
N
L
Fig. 3
Fig. 4
BR1017A04c
5
© 2018 OJ Electronics A/S
NGTouch WiFi Thermostat / NGT-2.0-WiFi
BR1017A05A
653 421
N
L
BR1017A06
Fig. 5
Fig. 6
BR1017A05aBR1017A06
© 2018 OJ Electronics A/S
6 © 2017 OJ Electronics A/S
NGTouch WiFi Thermostat / NGT-2.0-WiFi
1
2
3
4
4
BR1017A14BR1017A07
Fig. 7
Fig. 8
BR1017A07
ON
OFF
1
2
Manual
Menu
Auto
BR1017A17
Fig. 9
7
© 2018 OJ Electronics A/S
NGTouch WiFi
Thermostat /
NGT-2.0-WiFi
INTRODUCTION
The thermostat is an electronic PWM/PI thermostat for temperature
control by means of an NTC sensor located either externally or
internally within the thermostat.
The thermostat is for flush mounting in a wall socket. A baseplate
for wall mounting is also available.
Fig. 1 - Content
• Thermostat
• Sensor
Product programme
NGTouch WiFi WiFi Clock-thermostat
Thermostat / with two sensors:
NGT-2.0-WiFi floor sensor and built-in room sensor.
IMPORTANT SAFETY INSTRUCTIONS
Fig. 2 - Warnings
To avoid electric shock, disconnect the heating system
power supply at the main panel before carrying out any
work on this thermostat and associated components.
Installation must be carried out by qualified personnel in accordance
with appropriate statutory regulations (where required by law).
Installation must comply with national and/or local electrical codes.
Cautions
This instruction must be observed, otherwise the liability
of the manufacturer shall be voided.
Any changes or modifications made to this thermostat
shall void the liability of the manufacturer.
Instruction
English
8
© 2018 OJ Electronics A/S © 2018 OJ Electronics A/S
Maximum product lifetime is achieved if the product is not turned
o but set at the lowest possible set point / frost protection when
heat is not required.
Notice
The language used in the original documentation is
English.
Other language versions are a translation of the original
documentation.
The manufacturer cannot be held liable for any errors in the
documentation. The manufacturer reserves the right to make
alterations without prior notice.
Content may vary due to alternative software and/or
configurations.
Fig. 3 - Thermostat placement
Mounting of sensor
The floor sensor contains a safety extra-low voltage (SELV) circuit,
allowing it to be placed as close to the floor surface as possible
without having to take account of the risk of shock should the
sensor cable become damaged. The two wires connecting the
sensor to the mounting box must be additionally insulated, e.g.
shrink flex.
To prevent loose wires in the fixed installation from coming into
contact with the terminal block for the floor sensor, they must be
restrained using cable ties.
It is strongly recommended that the cable and sensor are placed in
a non-conductive installation pipe embedded in the floor. The end
of the pipe must be sealed and the pipe placed as high as possible
in the concrete layer. Alternatively, the sensor can be embedded
directly in the floor. The sensor cable must be led through a
separate conduit or segregated from power cables.
The floor sensor must be centred between loops of heating cable.
The sensor cable may be extended up to 100 m by means of a
separate two-core cable. Two vacant wires in a multi-core cable
used, for example, to supply current to the floor heating cable must
not be used. The switching peaks of such current supply lines
may create interference signals that prevent optimum thermostat
function. If a shielded cable is used, the shield must not be
NGTouch WiFi Thermostat / NGT-2.0-WiFi English
9
© 2018 OJ Electronics A/S
connected to earth (PE). The two-core cable must be placed in a
separate pipe or segregated from power cables in some other way.
Mounting of thermostat with built-in sensor
The room sensor is used for comfort temperature regulation in
rooms. The thermostat should be mounted on the wall approx.
1.5 m above the floor in such a way as to allow free air circulation
around it. Draughts and direct sunlight or other heat sources must
be avoided.
Fig. 4 - Opening the thermostat
1. Slide the power button down to O “0”.
2. Release the front cover ONLY by inserting a small screwdriver
into the slot at the centre of the bottom side of the front cover to
press and hold the catch securing the front cover.
3. Then carefully pull the front cover away, initially from the
lower part of the thermostat, then from the upper part of the
thermostat.
Fig. 5 - Connections
Connect the wires in accordance with the diagram. The wires must
be connected as follows:
Term. 1: Neutral (N)
Term. 2: Live (L)
Term. 3-4: Output, max. 16 A
Term. X: Do not connect
Term. 5-6: External floor sensor
Fig. 6 + 7 - Mounting the thermostat
1. Mount the thermostat in the wall socket.
2. Fit the frame and carefully press the cover onto the thermostat
- starting with the upper part of the cover, then the lower part of
the cover. Ensure that both the power slide button on the cover
and the power switch pin in the thermostat are down.
3. Click the cover into place by applying light, even pressure.
Warning! Do not apply pressure to the corners of the display
cover or to the display itself.
DO NOT open the thermostat by releasing the four fixing clips on
the back.
NGTouch WiFi Thermostat / NGT-2.0-WiFi English
10
© 2018 OJ Electronics A/S © 2018 OJ Electronics A/S
Fig. 8 - Operating the thermostat
There is an ON/OFF switch on the left side of the thermostat: up is
ON - down is OFF.
The resistive touchscreen requires a soft tap with your fingertip to
register the touch.
Installer Wizzard:
The first time the thermostat is connected, push the power slide
button to On “I” The Installer Wizard on the touchscreen will guide
you through the set up of:
1. Region
2. Language
3. Date
4. Time
5. Floor Type
Programming
User Guide available at:
http://www.heatmat.co.uk/wifi
Fig. 9 - Troubleshooting
If the sensor is disconnected or short-circuited, the heating system
is switched o. The sensor can be checked against the resistance
table.
Error codes
E0: Internal fault. The thermostat must be replaced.
E1: Built-in sensor defective or short-circuited. Replace the
thermostat, or use the floor sensor only.
E2: External sensor disconnected, defective or short-circuited.
Reconnect the sensor if disconnected, or replace the sensor.
E5: Internal overheating. Inspect the installation.
NGTouch WiFi Thermostat / NGT-2.0-WiFi English
11
© 2018 OJ Electronics A/S
MAINTENANCE
The thermostat is maintenance free.
Keep the thermostat’s air vents clean and unobstructed at all
times.
The thermostat may only be cleaned with a dry cloth.
APPROVALS AND STANDARDS
Regulations
OJ Electronics A/S hereby declares that the product is in
conformity with the following directives of the European
Parliament:
LVD - Low Voltage Directive
EMC - Electromagnetic Compatibility
RoHS - Restriction of the use of certain Hazardous Substances
RED - Radio Equipment Directive
Applied standards and approvals
According to the following standard:
EN 60730-1, EN 60730-2-9, EN 300 328, EN 301 489-17,
EN 301 489-1, EN 62479
Classification
Protection from electric shock must be assured by appropriate
installation. Must be installed according to the requirements of
Class II (reinforced insulation).
ENVIRONMENT AND RECYCLING
Protect the environment by disposing of the package in
compliance with local regulations for waste processing.
Recycling of obsolete appliances
Equipment containing electrical components must not
be disposed of along with domestic waste.
It must be separately collected together with electrical
and electronic waste in accordance with current local
regulations.
NGTouch WiFi Thermostat / NGT-2.0-WiFi English
12
© 2018 OJ Electronics A/S © 2018 OJ Electronics A/S
NGTouch WiFi Thermostat / NGT-2.0-WiFi English
TECHNICAL SPECIFICATIONS
Purpose of control Electrical underfloor heating
Method of mounting.
Wall mounting in a socket or
mounting box
Supply voltage 100-240 VAC ±10% 50/60 Hz
Max. pre-fuse 16 A
Built-in interupter 2-pole, 16 A
Enclosure rating IP 21
Wire size, terminals
Current ≤ 13 A - 1.5 mm
2
, solid core
wire
Current > 13 A to 16 A - 2.5 mm2,
solid core wire
ELV limits realized SELV 24 VDC
Output relay Make contact - SPST - NO
Output, load Max. 16 A / 3600 W
Max. Load/supply
1800 W at 120 Vac
3120 W at 208 Vac
3600 W at 240 Vac
Control principle PWM/PI
Standby consumption ≤0.5 W
Battery backup 5 years (storage)
Battery life, typical 5 years (storage) 10 years (powered)
RF frequency band* 2.4 GHz
WIFI* IEEE 802.11 b/g/n - 2.4GHz
Security* WPA/WPA2
Dimensions
OxD5: H/82, W/82, D/40 mm
MxD5: H/84, W/84, D/40 mm
MxD5-UA: H/115, W/84, D/40 mm
Build-in depth 22mm
Weight ≤200 g
Display 176x220 pixels TFT - resistive touch
Control pollution degree 2
Overvoltage category III
Type of action 1.B
Software class A
Rated impulse voltage 4kV
Ball pressure temperature (TB) 125°C
EU registered design DM/082270
Note: At very low ambient temperatues the display may respond slowly.
* Only valid for WiFi Thermostats
13
© 2018 OJ Electronics A/S
NGTouch WiFi Thermostat / NGT-2.0-WiFi English
DECLARATION OF CONFORMITY
en No.: 1013a (front side)
. . . . . . . . . . . . . .
(signature)
Approval Manager: Palle Jensen of the signatory empowered to bind OJ ELECTRONICS A/S
Name and address of the manufacturer
Manufacturer:
OJ ELECTRONICS A/S
Address:
Stenager 13B, 6400 Soenderborg, Denmark.
This declaration of conformity is issued under the sole responsibility of the manufacturer.
Identification of apparatus:
OCD5-1999-xxSy Electronic thermostat
OCD5-1999-xxPy Electronic thermostat with power measurement
OWD5-1999-xxPy Electronic thermostat with WiFi module
MCD5-1999-xxSy Electronic thermostat
MCD5-1999-xxPy Electronic thermostat with power measurement
MWD5-1999-xxPy Electronic thermostat with WiFi module
xx are replaced by any letters from A-Z or leaved blank.
For different colors of plastic on the front and frame the y are replaced by a number.
The object of the declaration described above is in conformity with the relevant Union harmonization
legislation:
Reference no
Title
2014/30/EU
EMC Directive
DIRECTIVE 2014/30/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL
of 26 February 2014 on the harmonization of the laws of the Member States relating to
electromagnetic compatibility
2014/35/EU
Low Voltage Directive
DIRECTIVE 2014/35/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL
of 26 February 2014 on the harmonization of the laws of the Member States relating to the
making available on the market of electrical equipment designed for use within certain voltage
limits
2011/65/EU
RoHS Directive
DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL
of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and
electronic equipment
2014/53/EU
RED Directive
DIRECTIVE 2014/53/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL
of 16 April 2014 on the harmonization of the laws of the Member States relating to making
available on the marked of radio equipment and repealing Directive 1999/5/EC
Harmonized standards
No
Issue
No
Issue
EN 60730-1
2011 EN 300 328
V1.9.1
EN 60730-2-9
2010 EN 301 489-17
V2.2.1
EN 50559
2013 EN 301 489-1
V1.9.1
EN 62479
2010
Soenderborg, date 2018-01-04
14
NGTouch WiFi
Thermostat /
NGT-2.0-WiFi
© 2018 OJ Electronics A/S
Heat Mat Limited
Ashwyn Business Centre
Marchants Way
Burgess Hill
West Sussex
RH15 8QY
sales@heatmat.co.uk
www.heatmat.co.uk
The trademark is registered and belongs to OJ Electronics A/S · © 2018 OJ Electronics A/S
Loading...
