Ojeda RDCH3 Specifications
460 Southport Commerce Blvd.
Spartanburg SC 29306
Phone: 864-574-6004
Fax: 864-574-6005
www.ojedausa.com
sales@ojedausa.com
Project: ___________________________
Model #:
Item #: _______________ Qty: _
_______________________
_____
___
__
Approval: __________________________

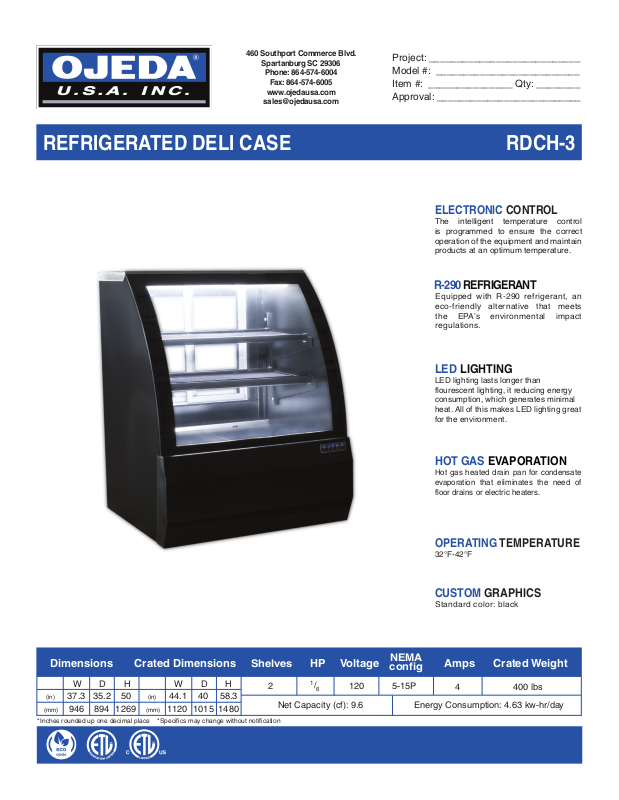

REFRIGERATED DELI CASE RDCH-3
ELECTRONIC CONTROL
The intelligent temperature control
is programmed to ensure the correct
operation of the equipment and maintain
products at an optimum temperature.
R-290 REFRIGERANT
Equipped with R-290 refrigerant, an
eco-friendly alternative that meets
the EPA’s environmental impact
regulations.
LED LIGHTING
LED lighting lasts longer than
flourescent lighting, it reducing energy
consumption, which generates minimal
heat. All of this makes LED lighting great
for the environment.
HOT GAS EVAPORATION
Hot gas heated drain pan for condensate
evaporation that eliminates the need of
floor drains or electric heaters.
OPERATING TEMPERATURE
32°F-42°F
CUSTOM GRAPHICS
Standard color: black
Dimensions Crated Dimensions HP Voltage Amps Crated Weight
W D H
(in) 37.3 35.2 50
(mm) 946 894 1269
*Inches rounded up one decimal place *Specifics may change without notification
W D H
(in) 44.1 40 58.3
(mm) 1120 1015 1480
Shelves
2 120
Net Capacity (cf): 9.6
1
/
6
NEMA
config
5-15P
Energy Consumption: 4.63 kw-hr/day
4
400 lbs
REFRIGERATED DELI CASE RDCH-3
CABINET CONSTRUCTION
• High-density, CFC-Free, polyurethane
insulation
• Curved glass
• Exterior: galvanized metal cabinet with
powder coated painted surface
• Interior: easy to clean pre-painted steel
• Stainless steel bottom
• Sliding glass doors
SHELVING
• Adjustable shelves
• 31.3” width x 15” depth (795 mm x 380 mm)
• Weight capacity per shelf 132.2 lbs
4 AMP ACCESSORY RECEPTACLE
OPERATING CONDITIONS
• The unit is best suited for an environment
where temperatures remain below 75°F and
humidity does not exceed 55%.
• Areas with direct sunlight should also be
avoided.
REFRIGERATION
• Maintenance free condenser
• Reverse cycle defrost system
• Hot gas heated pan for condensate
evaporation
• R-290 refrigerant
OPTIONS
• Interior mirrored ends
• Cutting board top
WARRANTY
• 3 year parts and labor warranty
• 5 year compressor
LIGHTING
• Horizontal LED lighting
• On/off light switch
LED LIGHTING
2”
35.2”
37.3”
50”
*Specifics may change without notification
