Ojeda NCFH28 Specifications
460 Southport Commerce Blvd.
Spartanburg SC 29306
Phone: 864-574-6004
Fax: 864-574-6005
www.ojedausa.com
sales@ojedausa.com
Project: ___________________________
Model #:
Item #: _______________ Qty: _
_______________________
_____
___
__
Approval: __________________________

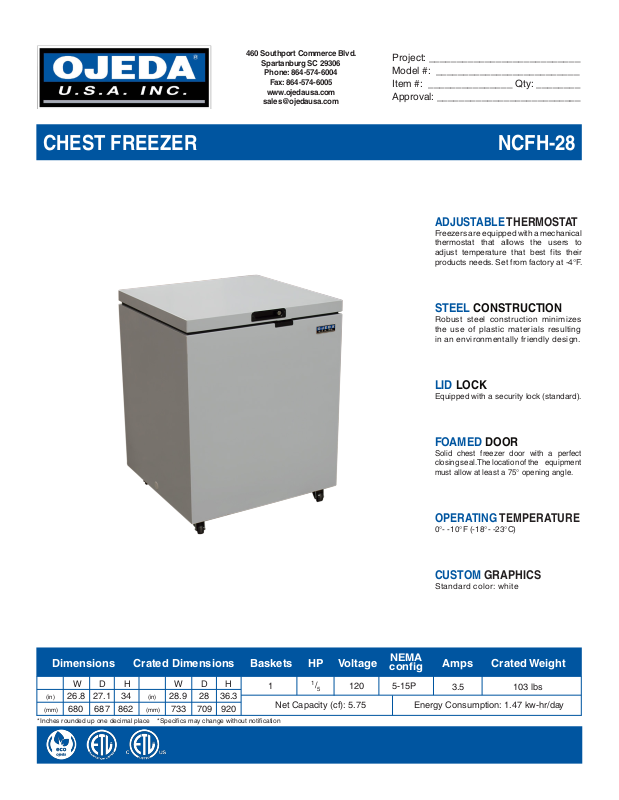

CHEST FREEZER NCFH-28
ADJUSTABLE THERMOSTAT
Freezers are equipped with a mechanical
thermostat that allows the users to
adjust temperature that best fits their
products needs. Set from factory at -4°F.
STEEL CONSTRUCTION
Robust steel construction minimizes
the use of plastic materials resulting
in an environmentally friendly design.
LID LOCK
Equipped with a security lock (standard).
FOAMED DOOR
Solid chest freezer door with a perfect
closing seal. The location of the equipment
must allow at least a 75° opening angle.
OPERATING TEMPERATURE
0°- -10°F (-18°- -23°C)
CUSTOM GRAPHICS
Standard color: white
Dimensions Crated Dimensions Baskets HP Voltage Amps Crated Weight
W D H
(in) 26.8 27.1 34
(mm) 680 687 862
*Inches rounded up one decimal place *Specifics may change without notification
W D H
(in) 28.9 28 36.3
(mm) 733 709 920
1 120
Net Capacity (cf): 5.75
1
/
5
NEMA
config
5-15P
Energy Consumption: 1.47 kw-hr/day
3.5
103 lbs
CHEST FREEZER NCFH-28
OPERATING CONDITIONS
• The unit is best suited for an environment
where temperatures remain below 85 F and
humidity does not exceed 55%
• Areas with direct sunlight should also be avoided
WARRANTY
• 3 year parts and labor warranty
• 5 year compressor part
STANDARD UNIT LOCK
CABINET CONSTRUCTION
• High-density, CFC-Free, polyurethane insulation
• Exterior: Galvanized metal cabinet with
powder coated painted surface
• Interior: Easy to clean pre-painted steel
• Heavy Duty Casters
• Drain plug for easy cleaning
BASKETS
• Removable Wire baskets
HINGE
REFRIGERATION
• Maintenance free condenser
• Adjustable Thermostat
• Easy to reach components for
maintenance
• Triple access air flow compressor
compartment.
REMOVEABLE GASKET
2”
HEAVY DUTY CASTERS
27.1”
REMOVEABLE BASKETS
26.8”
34”
*Specifics may change without notification
