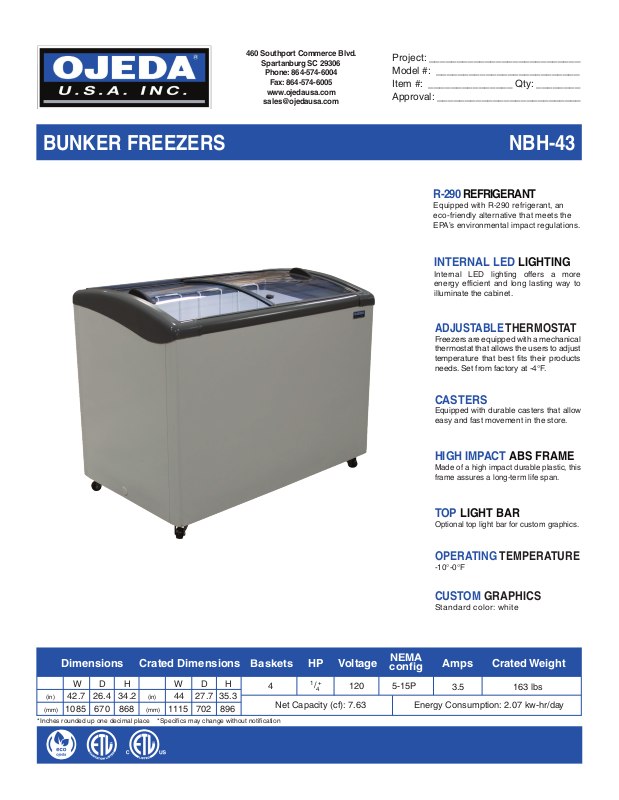

Ojeda NBH43 Specifications
460 Southport Commerce Blvd.
Spartanburg SC 29306
Phone: 864-574-6004
Fax: 864-574-6005
www.ojedausa.com
sales@ojedausa.com
Project: ___________________________
Model #:
Item #: _______________ Qty: _
_______________________
_____
___
__
Approval: __________________________
BUNKER FREEZERS NBH-43
R-290 REFRIGERANT
Equipped with R-290 refrigerant, an
eco-friendly alternative that meets the
EPA’s environmental impact regulations.
INTERNAL LED LIGHTING
Internal LED lighting offers a more
energy efficient and long lasting way to
illuminate the cabinet.
ADJUSTABLE THERMOSTAT
Freezers are equipped with a mechanical
thermostat that allows the users to adjust
temperature that best fits their products
needs. Set from factory at -4°F.
CASTERS
Equipped with durable casters that allow
easy and fast movement in the store.
HIGH IMPACT ABS FRAME
Made of a high impact durable plastic, this
frame assures a long-term life span.
TOP LIGHT BAR
Optional top light bar for custom graphics.
OPERATING TEMPERATURE
-10°-0°F
CUSTOM GRAPHICS
Standard color: white
Dimensions Crated Dimensions HP Voltage Amps Crated Weight
W D H
(in) 42.7 26.4 34.2
(mm) 1085 670 868
*Inches rounded up one decimal place *Specifics may change without notification
W D H
(in) 44 27.7 35.3
(mm) 1115 702 896
Baskets
+
1
4 120
Net Capacity (cf): 7.63
/
4
NEMA
config
5-15P
Energy Consumption: 2.07 kw-hr/day
3.5
163 lbs
BUNKER FREEZERS NBH-43
CABINET CONSTRUCTION
• High-density, CFC-Free, polyurethane insulation
•
Low-E tempered curved sliding glass lids
with lock and keys
• High impact ABS top frame
• Exterior: white galvanized metal cabinet with
powder coated painted surface
•
Interior: white easy to clean pre-painted steel
• 2” heavy duty casters
• Drain plug for easy cleaning
• Lighting: Interior LED lighting
TOP LIGHT BAR
OPERATING CONDITIONS
• The unit is best suited for an environment
where temperatures remain below 75°F and
humidity does not exceed 55%
• Areas with direct sunlight should also be avoided
OPTIONS
• Two ring tub holders
• Top light bar
• Includes 4 baskets
BASKETS
REFRIGERATION
• Mechanical thermostat
• Easy to reach components for repairs
• R-290 refrigerant
WARRANTY
• 3 year parts and labor warranty
• 5 year compressor part
2”
26.4”
42.7”
34.2”
*Specifics may change without notification
