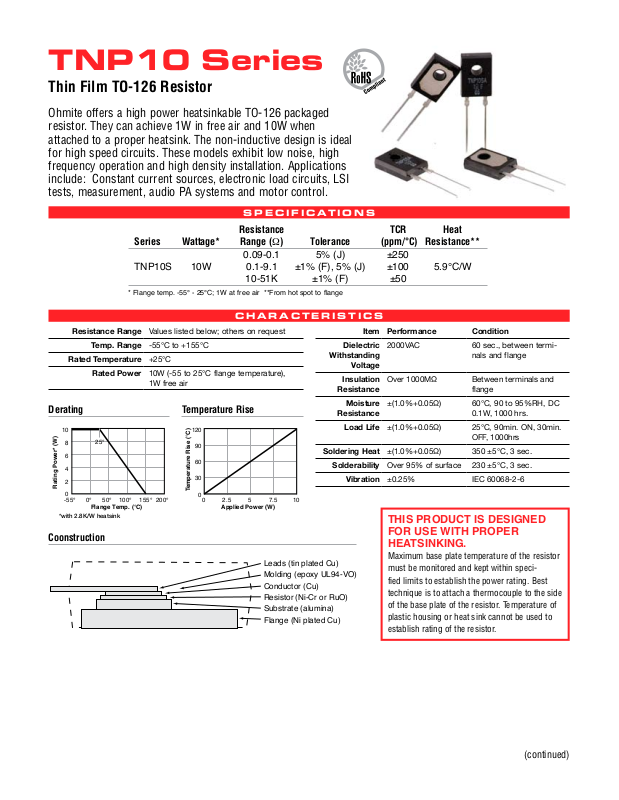

Ohmite TNP10 Series Data Sheet
TNP10 Series
Rating Power* (W)
Flange Temp. (°C)
8
4
2
0
-55° 0° 50°
25°
100° 155° 200°
10
6
*with 2.8K/W heatsink
Temperature Rise (°C)
Applied Power (W)
90
30
0
0 2.5 5 7.5 10
120
60
Leads (tin plated Cu)
Molding (epoxy UL94-VO)
Conductor (Cu)
Resistor (Ni-Cr or RuO)
Substrate (alumina)
Flange (Ni plated Cu)
Thin Film TO-126 Resistor
Ohmite offers a high power heatsinkable TO-126 packaged
resistor. They can achieve 1W in free air and 10W when
attached to a proper heatsink. The non-inductive design is ideal
for high speed circuits. These models exhibit low noise, high
frequency operation and high density installation. Applications
include: Constant current sources, electronic load circuits, LSI
tests, measurement, audio PA systems and motor control.
SPECIFICATIONS
Resistance TCR Heat
Series Wattage* Range (Ω) Tolerance (ppm/°C) Resistance**
0.09-0.1 5% (J) ±250
TNP10S 10W 0.1-9.1 ±1% (F), 5% (J) ±100 5.9°C/W
10-51K ±1% (F) ±50
* Flange temp. -55° - 25°C; 1W at free air **From hot spot to flange
CHARACTERISTICS
Resistance Range
Temp. Range
Rated Temperature
Rated Power
Derating
Values listed below; others on request
-55°C to +155°C
+25°C
10W (-55 to 25°C flange temperature),
1W free air
Temperature Rise
Dielectric
Withstanding
Insulation
Resistance
Moisture
Resistance
Load Life
Soldering Heat
Solderability
Vibration
Item Performance Condition
2000VAC 60 sec., between termi-
nals and flange
Voltage
Over 1000MΩ Between terminals and
flange
±(1.0%+0.05Ω) 60°C, 90 to 95%RH, DC
0.1W, 1000 hrs.
±(1.0%+0.05Ω) 25°C, 90min. ON, 30min.
OFF, 1000hrs
±(1.0%+0.05Ω) 350 ±5°C, 3 sec.
Over 95% of surface 230 ±5°C, 3 sec.
±0.25% IEC 60068-2-6
Coonstruction
THIS PRODUCT IS DESIGNED
FOR USE WITH PROPER
HEATSINKING.
Maximum base plate temperature of the resistor
must be monitored and kept within specified limits to establish the power rating. Best
technique is to attach a thermocouple to the side
of the base plate of the resistor. Temperature of
plastic housing or heat sink cannot be used to
establish rating of the resistor.
(continued)
TNP10 Series
0.15"
(3.8mm ±.2)
ø0.12"
(3.1mm ±.1)
0.6"
(1.40mm ±.05)
0.02"
(0.6mm ±.05)
0.20"
(5.08mm ±.05)
0.07"
(1.75mm ±.1)
0.02"
(0.5mm ±.05)
0.47"
(12.0mm ±.2)
0.67"
(17.0mm ±1.0)
0.12"
(3.1mm ±.2)
0.13"
(3.2mm ±.5)
0.33"
(8.5mm ±.2)
TNP10SC50R0FE
Resistance
R500 = 0.500Ω
1R00 = 1Ω
250R = 250Ω
1K00 = 1,000Ω
25K5 = 25,500Ω
Tolerance
F = 1%
J = 5%
TCR
H = 250ppm
A = 100ppm
C = 50ppm
RoHS
compliant
Series
Thin Film TO-126 Resistor
DIMENSIONS
(in./mm)
ORDERING INFORMATION
Standard part numbers
Other values on request
TNP10SHR100JE
TNP10SHR150JE
TNP10SAR200JE
TNP10SHR250JE
TNP10SHR330JE
TNP10SAR500JE
TNP10SA1R00FE
TNP10SA1R50FE
TNP10SA2R00FE
TNP10SA3R00FE
TNP10SA5R00FE
TNP10SA7R50FE
TNP10SC10R0FE
TNP10SC12R0FE
TNP10SC15R0FE
TNP10SC20R0FE
TNP10SC25R0FE
TNP10SC27R0FE
TNP10SC47R0FE
TNP10SC50R0FE
ASSOCIATED PARTS
TNP10 resistors may be mounted with Ohmite
C Series (parts C126-XXX) heatsinks:
http://www.ohmite.com/cat/sink_c.pdf
TNP10SC75R0FE
TNP10SC100RFE
TNP10SC120RFE
TNP10SC150RFE
TNP10SC200RFE
TNP10SC330RFE
TNP10SC560RFE
TNP10SC1K00FE
TNP10SC10K0FE
