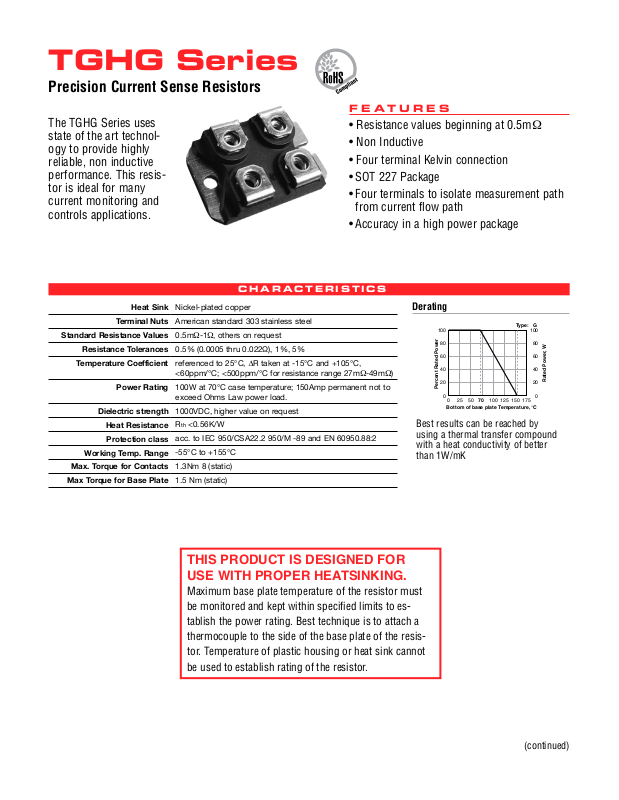

Ohmite TGHG Series Data Sheet

TGHG Series

100

Percent Rated Power

Bottom of base plate Temperature, °C

60

20

0

175

80

40

25 100 125050 70

Rated Power, W

150

100

60

20

0

80

40

GTy pe:

Precision Current Sense Resistors

The TGHG Series uses
state of the art technol­ogy to provide highly
reliable, non inductive
performance. This resis­tor is ideal for many
current monitoring and
controls applications.

CHARACTERISTICS

FEATURES

• Resistance values beginning at 0.5mΩ

• Non Inductive

• Four terminal Kelvin connection

• SOT 227 Package

• Four terminals to isolate measurement path
from current flow path

• Accuracy in a high power package

Heat Sink

Terminal Nuts

Standard Resistance Values

Resistance Tolerances

Temperature Coefficient

Power Rating

Dielectric strength

Heat Resistance

Protection class

Working Temp. Range

Max. Torque for Contacts

Max Torque for Base Plate

Nickel-plated copper

American standard 303 stainless steel

0.5mΩ-1Ω, others on request

0.5% (0.0005 thru 0.022Ω), 1%, 5%

referenced to 25°C, ∆R taken at -15°C and +105°C,
<60ppm/°C; <500ppm/°C for resistance range 27mΩ-49mΩ)

100W at 70°C case temperature; 150Amp permanent not to
exceed Ohms Law power load.

1000VDC, higher value on request

th <0.56K/W

R

acc. to IEC 950/CSA22.2 950/M -89 and EN 60950.88:2

-55°C to +155°C

1.3Nm 8 (static)

1.5 Nm (static)

THIS PRODUCT IS DESIGNED FOR
USE WITH PROPER HEATSINKING.

Maximum base plate temperature of the resistor must
be monitored and kept within specified limits to es­tablish the power rating. Best technique is to attach a
thermocouple to the side of the base plate of the resis­tor. Temperature of plastic housing or heat sink cannot
be used to establish rating of the resistor.

Derating

Best results can be reached by
using a thermal transfer compound
with a heat conductivity of better
than 1W/mK

(continued)

TGH = series

Configuration

C = current sense

Resistance Value

Example:
R0200=0.02 ohms

T GHGCR0200FE

Wattage

G= 100W

E = RoHS compliant

Tolerance

D= 0.5%
F = 1%
J = 5%

1.24" ±.02

(31.5mm ±.5)

0.315" ±.008

(8mm ±.2)

0.031" ±.002

(0.8mm ±.05)

0.472" ±.008

(12mm ±.2)

0.354" ±.004

(9mm ±.1)

0.165" ±.004

(4.2mm ±.1)

0.157" min.

(4.0mm)

diam.

0.209" min.

(5.3mm)

0.98" ±.2

(24.9mm ±.5)

0.078" ±.002

(2mm ±.05)

1.496"±.012

(38mm ±.3)

1.189" ±.004

(30.2mm ±.1)

M4

0.59" ±.008

(15mm ±0.2)

0.5" ±.02

(12.7mm ±.5)

C C

SS

C = current connection (source)
S = voltage connection (sense)

TGHG Series

Precision Current Sense Resistors

DIMENSIONS

ORDERING INFORMATION

Standard part numbers

Ohms 100 Watt 0.5% 100 Watt 1%

0.00050 TGHGCR0005FE

0.00100 TGHGCR0010DE TGHGCR0010FE

0.00200 TGHGCR0020DE TGHGCR0020FE

0.00500 TGHGCR0050DE TGHGCR0050FE

0.01000 TGHGCR0100DE TGHGCR0100FE

0.01500 TGHGCR0150FE

0.02000 TGHGCR0200DE TGHGCR0200FE

0.02500 TGHGCR0250FE

0.05000 TGHGCR0500FE

0.0750 TGHGCR0750FE

0.1000 TGHGCR1000FE
