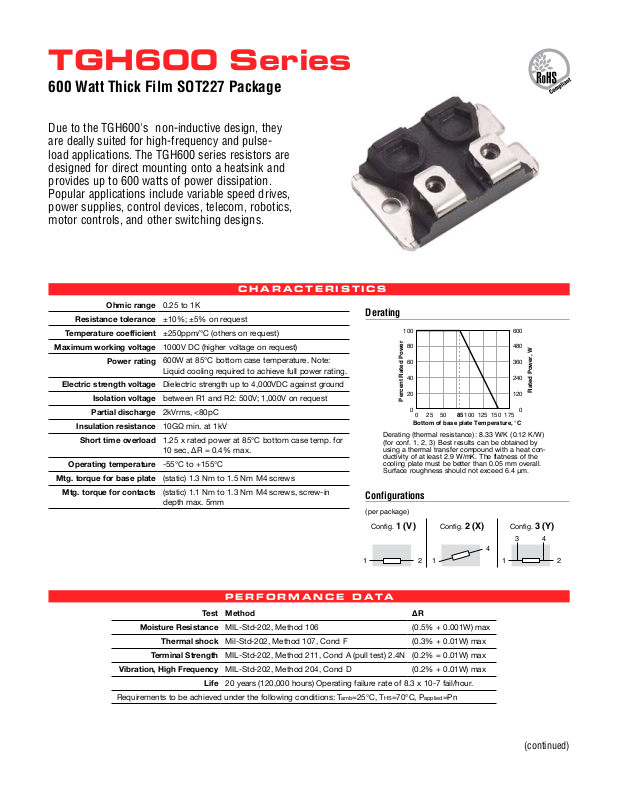

Ohmite TGH600 Series Data Sheet

TGH600 Series

100

Percent Rated Power

Bottom of base plate Temperature, °C

60

20

0

175

80

40

25 100 125050 85

600

Rated Power, W

360

120

0

480

240

150

1

4

1 2

Config.

1 (V) Config. 2 (X)

1

3 4

2

Config.

3 (Y)

600 Watt Thick Film SOT227 Package

Due to the TGH600's non-inductive design, they
are deally suited for high-frequency and pulse­load applications. The TGH600 series resistors are
designed for direct mounting onto a heatsink and
provides up to 600 watts of power dissipation.
Popular applications include variable speed drives,
power supplies, control devices, telecom, robotics,
motor controls, and other switching designs.

CHARACTERISTICS

Ohmic range

Resistance tolerance

Temperature coefficient

Maximum working voltage

Power rating

Electric strength voltage

Isolation voltage

Partial discharge

Insulation resistance

Short time overload

Operating temperature

Mtg. torque for base plate

Mtg. torque for contacts

0.25 to 1K

±10%; ±5% on request

±250ppm/°C (others on request)

1000V DC (higher voltage on request)

600W at 85°C bottom case temperature. Note:
Liquid cooling required to achieve full power rating.

Dielectric strength up to 4,000VDC against ground

between R1 and R2: 500V; 1,000V on request

2kVrms, <80pC

10GΩ min. at 1kV

1.25 x rated power at 85°C bottom case temp. for

10 sec, ΔR = 0.4% max.

-55°C to +155°C

(static) 1.3 Nm to 1.5 Nm M4 screws

(static) 1.1 Nm to 1.3 Nm M4 screws, screw-in
depth max. 5mm

Derating

Derating (thermal resistance): 8.33 W/K (0.12 K/W)
(for conf. 1, 2, 3) Best results can be obtained by
using a thermal transfer compound with a heat con­ductivity of at least 2.9 W/mK. The flatness of the
cooling plate must be better than 0.05 mm overall.
Surface roughness should not exceed 6.4 μm.

Configurations

(per package)

PERFORMANCE DATA

Test Method ΔR

Moisture Resistance

Thermal shock

Terminal Strength

Vibration, High Frequency

Requirements to be achieved under the following conditions: T

MIL-Std-202, Method 106 (0.5% + 0.001W) max

Mil-Std-202, Method 107, Cond F (0.3% + 0.01W) max

MIL-Std-202, Method 211, Cond A (pull test) 2.4N (0.2% = 0.01W) max

MIL-Std-202, Method 204, Cond D (0.2% + 0.01W) max

20 years (120,000 hours) Operating failure rate of 8.3 x 10-7 fail/hour.

Life

amb=25°C, THS=70°C, Papplied=Pn

(continued)

TGH600 Series

1.24" ±.02

(31.5mm ±.5)

0.315" ±.008

(8mm ±.2)

0.031" ±.002

(0.8mm ±.05)

0.472" ±.008

(12mm ±.2)

0.354" ±.004

(9mm ±.1)

0.165" ±.004

(4.2mm ±.1)

0.157" min.

(4.0mm)

diam.

0.209" min.

(5.3mm)

0.98" ±.2

(24.9mm ±.5)

0.078" ±.002

(2mm ±.05)

1.496"±.012

(38mm ±.3)

1.189" ±.004

(30.2mm ±.1)

4

3

1 2

M4

0.59" ±.008

(15mm ±0.2)

0.5" ±.02

(12.7mm ±.5)

TGHPV50R0KE

SOT227 Series

Resistance Value

Example:
R500 = 0.500Ω
1R00 = 1Ω
250R = 250Ω
1K00 = 1,000Ω
10K0 = 10,000Ω

Wattage

P=600W

E = RoHS
compliant

Tolerance

J= 5%
K=10%

Configuration

V = config. 1
X = config. 2
Y = config. 3

600 Watt Thick Film SOT227 Package

DIMENSIONS

ORDERING INFORMATION

Standard part numbers

TGHPVR500KE
TGHPV1R00KE
TGHPV5R00KE
TGHPV7R50KE
TGHPV10R0KE
TGHPV15R0KE
TGHPV27R0KE
TGHPV50R0KE

TGHPV68R0KE
TGHPV100RKE
TGHPV150RKE
TGHPV250RKE
TGHPV470RKE
TGHPV750RKE
TGHPV1K00KE

THIS PRODUCT IS DESIGNED FOR
USE WITH PROPER HEATSINKING.

Maximum base plate temperature of the resistor must
be monitored and kept within specified limits to es­tablish the power rating. Best technique is to attach a
thermocouple to the side of the base plate of the resis­tor. Temperature of plastic housing or heat sink cannot
be used to establish rating of the resistor.
