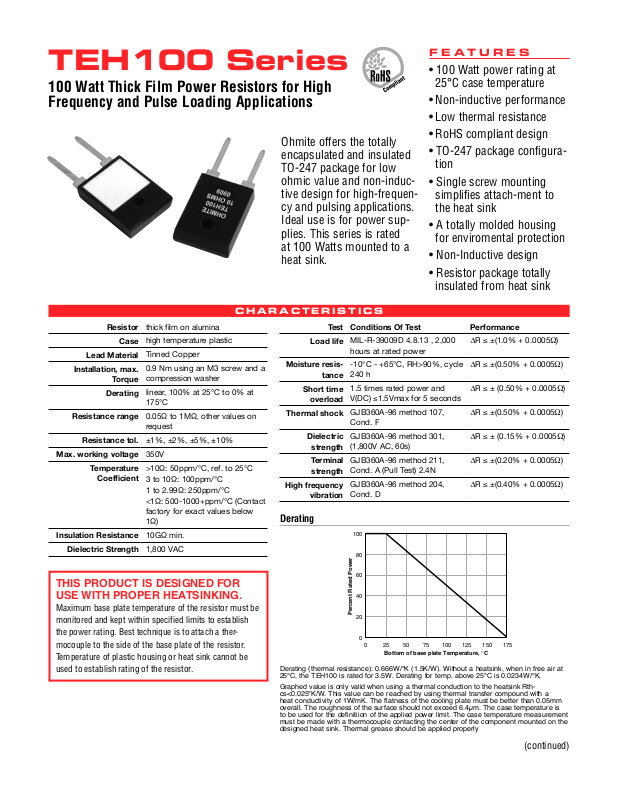

Ohmite TEH100 Series Data Sheet

TEH100 Series

100

Percent Rated Power

Bottom of base plate Temperature, °C

60

20

0

0

80

40

75 100 1751255025 150

100 Watt Thick Film Power Resistors for High
Frequency and Pulse Loading Applications

FEATURES

• 100 Watt power rating at

25°C case temperature

• Non-inductive performance

• Low thermal resistance

Resistor

Case

Lead Material

Installation, max.

Torque

Derating

Resistance range

Resistance tol.

Max. working voltage

Temperature

Coefficient

Insulation Resistance

Dielectric Strength

CHARACTERISTICS

thick film on alumina

high temperature plastic

Tinned Copper

0.9 Nm using an M3 screw and a
compression washer

linear, 100% at 25°C to 0% at
175°C

0.05Ω to 1MΩ, other values on

request

±1%, ±2%, ±5%, ±10%

350V

>10Ω: 50ppm/°C, ref. to 25°C
3 to 10Ω: 100ppm/°C
1 to 2.99Ω: 250ppm/°C
<1Ω: 500-1000+ppm/°C (Contact

factory for exact values below
1Ω)

10GΩ min.

1,800 VAC

Ohmite offers the totally
encapsulated and insulated
TO-247 package for low
ohmic value and non-induc­tive design for high-frequen­cy and pulsing applications.
Ideal use is for power sup­plies. This series is rated
at 100 Watts mounted to a
heat sink.

Test Conditions Of Test Performance

Load life

Moisture resis-

Short time

overload

Thermal shock

Dielectric

strength

Terminal

strength

High frequency

vibration

Derating

MIL-R-39009D 4.8.13 , 2,000

hours at rated power

-10°C - +65°C, RH>90%, cycle
240 h

tance

1.5 times rated power and

V(DC) ≤1.5Vmax for 5 seconds

GJB360A-96 method 107,

Cond. F

GJB360A-96 method 301,
(1,800V AC, 60s)

GJB360A-96 method 211,
Cond. A (Pull Test) 2.4N

GJB360A-96 method 204,
Cond. D

• RoHS compliant design

• TO-247 package configura-

tion

• Single screw mounting

simplifies attach-ment to
the heat sink

• A totally molded housing

for enviromental protection

• Non-Inductive design

• Resistor package totally

insulated from heat sink

∆R ≤ ±(1.0% + 0.0005Ω)

∆R ≤ ±(0.50% + 0.0005Ω)

∆R ≤ ± (0.50% + 0.0005Ω)

∆R ≤ ±(0.50% + 0.0005Ω)

∆R ≤ ± (0.15% + 0.0005Ω)

∆R ≤ ±(0.20% + 0.0005Ω)

∆R ≤ ±(0.40% + 0.0005Ω)

THIS PRODUCT IS DESIGNED FOR
USE WITH PROPER HEATSINKING.

Maximum base plate temperature of the resistor must be
monitored and kept within specified limits to establish
the power rating. Best technique is to attach a ther­mocouple to the side of the base plate of the resistor.
Temperature of plastic housing or heat sink cannot be
used to establish rating of the resistor.

Derating (thermal resistance): 0.666W/°K (1.5K/W). Without a heatsink, when in free air at
25°C, the TEH100 is rated for 3.5W. Derating for temp. above 25°C is 0.0234W/°K.

Graphed value is only valid when using a thermal conduction to the heatsink Rth­cs<0.025°K/W. This value can be reached by using thermal transfer compound with a
heat conductivity of 1W/mK. The flatness of the cooling plate must be better than 0.05mm
overall. The roughness of the surface should not exceed 6.4µm. The case temperature is
to be used for the definitiion of the applied power limit. The case temperature measurement
must be made with a thermocouple contacting the center of the component mounted on the
designed heat sink. Thermal grease should be applied properly

(continued)

0.610~0.630"

(15.49~16.01mm)

0.805~0.825"

(20.44~20.96mm)

0.200~0.220"

(5.07~5.59mm)

ø0.139~0.147"

(3.53~3.73mm)

0.136~0.150"

(3.45~3.81mm)

“M”

0.054~0.066"

(1.37~1.67mm)

“L”

0.042~0.054"

(1.07-1.37mm)

0.080~0.140"

(2.03~3.55mm)

0.390~0.410"

(9.90~10.42mm)

0.185~0.205"

(4.69~5.21mm)

0.085~0.105"

(2.15~2.67mm)

0.022~0.042"

(0.55~1.07mm)

0.520~0.620"

(13.21~15.75mm)

“M” option

“L” option

0.807~0.886"

(20.50~22.50mm)

TEH100M10R0JE

Series Tolerance

F= 1%
J= 5%

Ohms

R = Decimal
Example:
2R50 = 2.50Ω
25R0=25Ω
100R = 100Ω
1K00 = 1000Ω

RoHS Compliant

Non-compliant
version unavailble

Package Code

M = standard
L = long terminals

TEH100 Series

100 Watt Thick Film Power Resistors for High
Frequency and Pulse Loading Applications

DIMENSIONS

(in./mm)

ORDERING INFORMATION

Standard part numbers

Ohms 5% tolerance 1% tolerance

0.05 TEH100MR050JE

0.075 TEH100MR075JE

0.1 TEH100MR100JE

0.2 TEH100MR200JE

0.5 TEH100MR500JE

1 TEH100M1R00JE TEH100M1R00FE
2 TEH100M2R00JE TEH100M2R00FE

2.5 TEH100M2R50JE TEH100M2R50FE
3 TEH100M3R00JE TEH100M3R00FE
5 TEH100M5R00JE TEH100M5R00FE

7.5 TEH100M7R50JE TEH100M7R50FE
10 TEH100M10R0JE TEH100M10R0FE
15 TEH100M15R0JE TEH100M15R0FE
20 TEH100M20R0JE TEH100M20R0FE
25 TEH100M25R0JE TEH100M25R0FE

50 TEH100M50R0JE TEH100M50R0FE

100 TEH100M100RJE TEH100M100RFE
270 TEH100M270RJE
470 TEH100M470RJE
750 TEH100M750RJE

1K TEH100M1K00JE
5K TEH100M5K00JE

7.5K TEH100M7K50JE
