Ohmite Super Mox Series Data Sheet

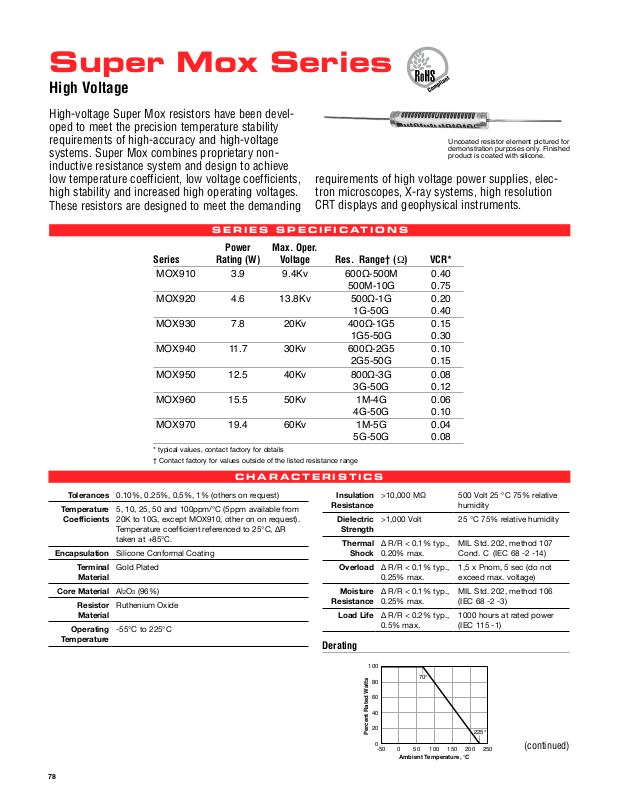

Super Mox Series

100

Percent Rated Watts

Ambient Temperature, °C

60

20

0

150

80

40

100050-50 250200

70°

225°

High Voltage

High-voltage Super Mox resistors have been devel­oped to meet the precision temperature stability
requirements of high-accuracy and high-voltage
systems. Super Mox combines proprietary non­inductive resistance system and design to achieve
low temperature coefficient, low voltage coefficients,
high stability and increased high operating voltages.
These resistors are designed to meet the demanding

SERIES SPECIFICATIONS

Power Max. Oper.

Series Rating (W) Voltage Res. Range† (Ω) VCR*

MOX910 3.9 9.4Kv 600Ω-500M 0.40

MOX920 4.6 13.8Kv 500Ω-1G 0.20

MOX930 7.8 20Kv 400Ω-1G5 0.15

MOX940 11.7 30Kv 600Ω-2G5 0.10

MOX950 12.5 40Kv 800Ω-3G 0.08

MOX960 15.5 50Kv 1M-4G 0.06

MOX970 19.4 60Kv 1M-5G 0.04

* typical values, contact factory for details

† Contact factory for values outside of the listed resistance range

CHARACTERISTICS

requirements of high voltage power supplies, elec­tron microscopes, X-ray systems, high resolution
CRT displays and geophysical instruments.

500M-10G 0.75

1G-50G 0.40

1G5-50G 0.30

2G5-50G 0.15

3G-50G 0.12

4G-50G 0.10

5G-50G 0.08

Uncoated resistor element pictured for
demonstration purposes only. Finished
product is coated with silicone.

Tolerances

Temperature

Coefficients

Encapsulation

Terminal

Material

Core Material

Resistor

Material

Operating

Temperature

78

0.10%, 0.25%, 0.5%, 1% (others on request)

5, 10, 25, 50 and 100ppm/°C (5ppm available from
20K to 10G, except MOX910, other on on request).
Temperature coefficient referenced to 25°C, ΔR
taken at +85°C.

Silicone Conformal Coating

Gold Plated

2O3 (96%)

Al

Ruthenium Oxide

-55°C to 225°C

Insulation

Resistance

Dielectric

Strength

Thermal

Overload

Moisture

Resistance

Load Life

Derating

Shock

>10,000 MΩ 500 Volt 25 °C 75% relative

humidity

>1,000 Volt 25 °C 75% relative humidity

∆ R/R < 0.1% typ.,

0.20% max.

∆ R/R < 0.1% typ.,

0.25% max.

∆ R/R < 0.1% typ.,

0.25% max.

∆ R/R < 0.2% typ.,

0.5% max.

MIL Std. 202, method 107
Cond. C (IEC 68 -2 -14)

1,5 x Pnom, 5 sec (do not
exceed max. voltage)

MIL Std. 202, method 106
(IEC 68 -2 -3)

1000 hours at rated power
(IEC 115 -1)

(continued)

M OX91021006JTE

Tolerance*

B=0.10%
C=0.25%
D=0.5%
F=1%

Super Mox Series

see chart for wattage

E = RoHS compliant

Coating

2 = conformal silicone standard

Ohms

First 3 digits are
significant; 4th digit is
multiplier (# of zeroes
to follow). Examples:
1001 = 1000Ω
1503 = 150,000Ω
1006 = 100 MΩ

TCR*

T=100ppm
V= 50ppm
W= 25ppm
X= 15ppm
Y= 10ppm
Z= 5ppm

*Extremely tight tolerances

and TCRs not available
across the full resistance
range. Consult factory.

Super Mox Series

L

0.32" /

8.2mm

1.38" /

35mm ±2

1mm

High Voltage

DIMENSIONS

(in./mm ±0.5mm)

ORDERING INFORMATION

Series L

MOX910 1.07" / 27.2mm

MOX920 1.56" / 39.5mm

MOX930 2.05" / 52mm

MOX940 3.06" / 77.6mm

MOX950 4.06" / 103.2mm

MOX960 4.87" / 123.7mm

MOX970 6.05" / 153.7mm

Part Number Watts 1% tol. TCR

MOX91021004FVE 3.9W 1M 50ppm
MOX91025004FVE 3.9W 5M 50ppm
MOX91021005FVE 3.9W 10M 50ppm
MOX91022505FTE 3.9W 25M 100ppm

MOX92021005FVE 4.6W 10M 50ppm
MOX92025005FVE 4.6W 50M 50ppm
MOX92021006FVE 4.6W 100M 50ppm
MOX92021007FTE 4.6W 1000M 100ppm

MOX93021004FVE 7.8W 1M 50ppm
MOX93025004FVE 7.8W 5M 50ppm
MOX93021005FVE 7.8W 10M 50ppm
MOX93022505FTE 7.8W 25M 100ppm

MOX94021005FVE 11.7W 10M 50ppm
MOX94025005FVE 11.7W 50M 50ppm
MOX94021006FVE 11.7W 100M 50ppm
MOX94021007FTE 11.7W 1000M 100ppm

MOX95021004FVE 12.5W 1M 50ppm
MOX95025004FVE 12.5W 5M 50ppm
MOX95021005FVE 12.5W 10M 50ppm
MOX95022505FTE 12.5W 25M 100ppm

MOX96021005FVE 15.5W 10M 50ppm
MOX96025005FVE 15.5W 50M 50ppm
MOX96021006FVE 15.5W 100M 50ppm
MOX96021007FTE 15.5W 1000M 100ppm

MOX97021004FVE 19.4W 1M 50ppm
MOX97025004FVE 19.4W 5M 50ppm
MOX97021005FVE 19.4W 10M 50ppm
MOX97022505FTE 19.4W 25M 100ppm
