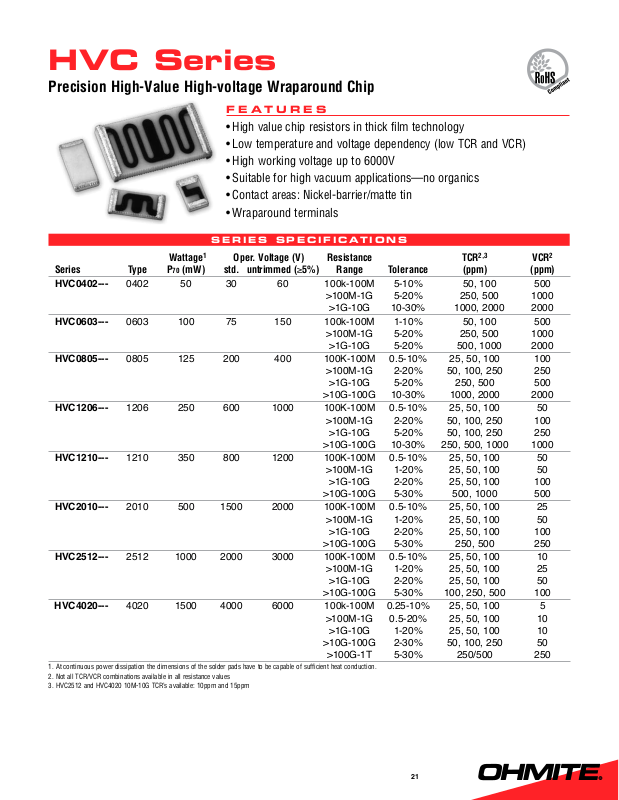

HVC Series
Precision High-Value High-voltage Wraparound Chip
FEATURES
• Highvaluechipresistorsinthickfilmtechnology
• Lowtemperatureandvoltagedependency(lowTCRandVCR)
• Highworkingvoltageupto6000V
• Suitableforhighvacuumapplications—noorganics
• Contactareas:Nickel-barrier/mattetin
• Wraparoundterminals
SERIES SPECIFICATIONS
Wattage 1 Oper. Voltage (V) Resistance TCR
Series Type P70 (mW) std. untrimmed (≥5%) Range Tolerance (ppm) (ppm)
HVC0402--- 0402 50 30 60 100k-100M 5-10% 50, 100 500
>100M-1G 5-20% 250, 500 1000
>1G-10G 10-30% 1000, 2000 2000
HVC0603--- 0603 100 75 150 100k-100M 1-10% 50, 100 500
>100M-1G 5-20% 250, 500 1000
>1G-10G 5-20% 500, 1000 2000
HVC0805--- 0805 125 200 400 100K-100M 0.5-10% 25, 50, 100 100
>100M-1G 2-20% 50, 100, 250 250
>1G-10G 5-20% 250, 500 500
>10G-100G 10-30% 1000, 2000 2000
HVC1206--- 1206 250 600 1000 100K-100M 0.5-10% 25, 50, 100 50
>100M-1G 2-20% 50, 100, 250 100
>1G-10G 5-20% 50, 100, 250 250
>10G-100G 10-30% 250, 500, 1000 1000
HVC1210--- 1210 350 800 1200 100K-100M 0.5-10% 25, 50, 100 50
>100M-1G 1-20% 25, 50, 100 50
>1G-10G 2-20% 25, 50, 100 100
>10G-100G 5-30% 500, 1000 500
HVC2010--- 2010 500 1500 2000 100K-100M 0.5-10% 25, 50, 100 25
>100M-1G 1-20% 25, 50, 100 50
>1G-10G 2-20% 25, 50, 100 100
>10G-100G 5-30% 250, 500 250
HVC2512--- 2512 1000 2000 3000 100K-100M 0.5-10% 25, 50, 100 10
>100M-1G 1-20% 25, 50, 100 25
>1G-10G 2-20% 25, 50, 100 50
>10G-100G 5-30% 100, 250, 500 100
HVC4020--- 4020 1500 4000 6000 100k-100M 0.25-10% 25, 50, 100 5
>100M-1G 0.5-20% 25, 50, 100 10
>1G-10G 1-20% 25, 50, 100 10
>10G-100G 2-30% 50, 100, 250 50
>100G-1T 5-30% 250/500 250
1. At continuous power dissipation the dimensions of the solder pads have to be capable of sufficient heat conduction.
2. Not all TCR/VCR combinations available in all resistance values
3. HVC2512 and HVC4020 10M-10G TCR’s available: 10ppm and 15ppm
2,3
VCR2
21
W
L T
a
HVC Series
H VC1206T1004JET
Tolerance
D = 0.50%
F = 1%
G = 2%
J = 5%
K = 10%
M = 20%
P = 30%
Ohms
1004 = 1MΩ
5006 = 500MΩ
(ppm) TCR
W = 25
V = 50
T = 100
Z = 250
E = 500
N = 1000
U = 2000
Tape & Reel
500 pc/reel
RoHS Compliant
Package
Size
Series
High Voltage
Wrap Around Chip
100
Percent Rated Power
Ambient Temperature, °C
60
20
0
80
40
050 100 15570-55
Precision High-Value High-voltage Wraparound Chip
CHARACTERISTICS
Operating temp. range
Climatic category
Solderability
Max. soldering temp.
Long term stability
Short term overload
Damp heat
Data not specified according to EN 140401-802 (CECC 40401-802)
-55°C ~ +155°C
55/155/56, acc. to EN 60068-1
250°C, 3s, acc. to EN 60068-2-58
260°C, 10s, acc. to IEC 68-2-58
<1G <10G ≥10G
Load Life 70°C/1000h <0.25% <0.5% <1%
Storage 125°C/1000h <0.5% <1% <2%
Max. Voltage/1000h <0.5% <1% <2%
2.5*P70 / 5 sec. <1G <10G ≥10G
<0.25% <0.5% <0.5%
56d/40°C/96%: ΔR <0.5%
Derating
DIMENSIONS
(mm)
Power
Size Rating (mW) L W T a
0402 50 1.04 ±.05 0.50 ±.05 0.30 ±.05 0.1 +.1/-.05
0603 100 1.50 +.15/-.05 0.80 +.15/-.05 0.40 +.15/-.05 0.2 +.2/-.1
0805 125 2.00 +.15/-.05 1.25 +.15/-.05 0.40 +.15/-.05 0.3 +.2/-.1
1206 250 3.20 +.15/-.05 1.50 +.2/-.05 0.40 +.15/-.05 0.3 +.2/-.1
1210 350 3.20 +.15/-.05 2.50 +.2/-.05 0.50 +.15/-.05 0.8 ±.2
2010 500 5.10 +.15/-.05 2.50 +.2/-.05 0.60 +.20/-.1 1.2 ±.2
2512 1000 6.30 +.15/-.05 3.50 +.2/-.05 0.60 +.15/-.05 0.9 ±.2
4020 1500 10.20 +.20/-.05 5.10 +.2/-.05 0.60 +.20/-.1 0.9 ±.2
TERMINAL DETAILS
Base Metal
Termination Finish
Thickness of Finish
Barrier Material between Base
Metal and Finish
Baking/Annealing Process after
Sn Plating
Peak Process Body Temperature
(Classification Temperature) and
Maximum Time
PdAg
100% electroplated
matte Sn100
5 microns
Porosity-free Ni (5-8
microns thickness)
150°C; > 4 hours
260°C for
10 seconds
Standard Part Numbers
HVC0402E5006KET
HVC0402N5007KET
HVC0402T1004JET
HVC0402T1005JET
HVC0402T1006JET
HVC0402T2504JET
HVC0402T2505JET
HVC0402Z2506JET
HVC0402T5004JET
HVC0402T5005JET
HVC0603N1007KET
HVC0603N5007KET
HVC0603T1004FET
HVC0603T1005FET
HVC0603T1006FET
HVC0603T2504FET
HVC0603T2505FET
HVC0603T5004FET
HVC0603T5005FET
HVC0603Z5006JET
HVC0805E1008KET
HVC0805T1004JET
HVC0805T1005JET
HVC0805T1006JET
HVC0805T2504JET
HVC0805T2505JET
HVC0805Z2506JET
HVC0805T5004JET
HVC0805T5005JET
HVC0805E5007JET
HVC0805Z1007JET
HVC0805Z5006JET
HOW TO ORDER
HVC1206T1004JET
HVC1206T1005JET
HVC1206T1006JET
HVC1206Z2504JET
HVC1206T2505JET
HVC1206Z2506JET
HVC1206T5004JET
HVC1206T5005JET
HVC1206Z5007KET
HVC1206Z1007JET
HVC1206Z1008KET
HVC1206Z5006JET
HVC2512T1004JET
HVC2512T1005JET
HVC2512T1006JET
HVC2512T1007JET
HVC2512T1008KET
HVC2512T2504JET
HVC2512T2505JET
HVC2512T2506JET
HVC2512T5004JET
HVC2512T5005JET
HVC2512T5006JET
HVC2512T5007JET
HVC4020V1004JET
HVC4020V1005JET
HVC4020V1006JET
HVC4020V1007JET
HVC4020V1008KET
HVC4020V2504JET
HVC4020V2505JET
HVC4020V2506JET
HVC4020Z2508KET
HVC4020V5004JET
HVC4020V5005JET
HVC4020V5006JET
HVC4020V5007JET
rev 6/20-3
