Page 1
Vacuum Regulators
Global Service Parts and Kits
suction and oxygen therapy
Page 2
Page 3
0221-5871-870
Filter & O-ring Kit
6700-0043-200
Svc Kit/Std & High
6700-0044-200
Service Kit/Low
6700-0030-700
Diaphragm Rpl Kit
Continuous Vacuum Regulator (CVR) Service Parts and Kits

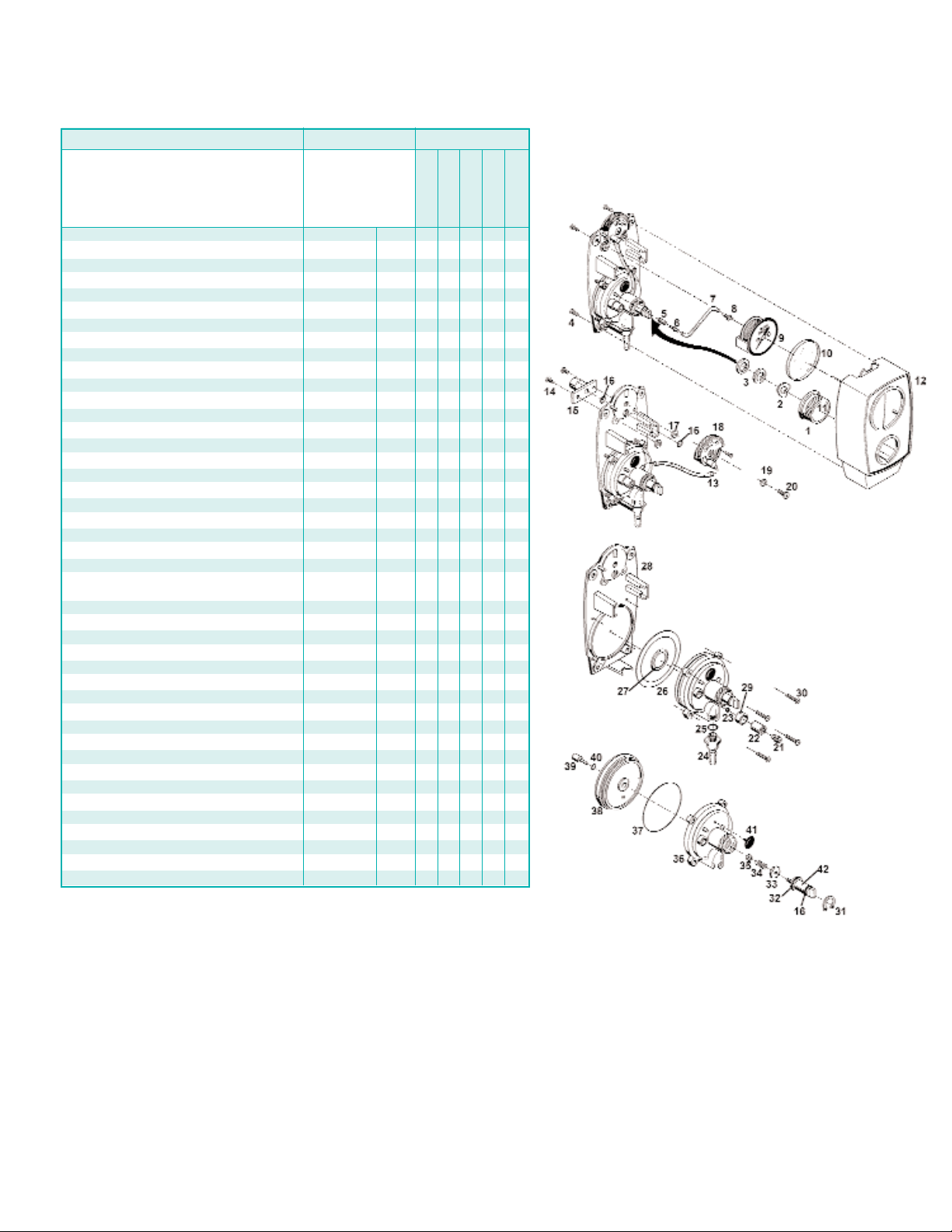

Parts Multi-Paks Kits*
Description Part Number Part Number Qty/Pak
1. Cover Screw (4) 6700-0152-400
2. Cover Assy., Low** 6700-0629-850
Cover Assy., Std/High 6700-0628-850
3. Low Vacuum Limiting Screw (2) 6700-0058-400
(Not Shown) (Low Models Only)
Increase Label (Not Shown) 6700-0164-100
4. Switch 6700-0078-500
5. Switch Plate, 3 Mode 6700-0193-500
Switch Plate, 2 Mode/Low 6700-0194-500
6. Screw 6700-0152-400
7. O-ring, Vacuum Relief Valve 6700-0135-500 1 1
(Low Modes Only)
8. Vacuum Relief Valve & 6700-0660-850
O-ring, (Low Modes Only)
9. Gauge Assy. (Includes Items 10 &11)
N. American Std, 0-200 mmHg 6700-0050-200 0205-8689-870 4
N. American Low, 0-160 mmHg 6700-0050-202 6700-0098-200
N. American High, 0-760 mmHg 6700-0050-201 6700-0097-200
International Low, ccw 6700-0050-205
International High, ccw 6700-0050-204
10. Lens 6700-0087-500
11. O-ring (2), Buna-N 6700-0130-500 2 2 2
12. Regulator Module
Std/High Models 6700-1225-800 6700-0026-700 6
Low Models 6700-0428-800 6700-0190-700 6
13. Positive Pressure Safety 6700-0115-400 1 1
Relief Valve
14. Filter (Internal) 0206-5159-300 2 1 1
15. Base
N. American Std and High
(2 & 3 Mode) 6700-0018-203 6700-0194-700 4
N. American Low 6700-0029-203 6700-0198-700 4
International Low 6700-0029-200 6700-0195-700 4
International High 6700-0018-200 6700-0191-700 4
16. Screw, 4-20, Ph. Hd 6700-0078-400 2 2 2
17. Screw, 4-40 x .38, Ph. Hd 1 1 1
18. Diaphragm 1 1 1
19. O-ring, Stem 0210-0527-300 1111
20. O-ring Module 6700-0136-500 2111
21. Service Manual 6700-0201-700
* Kits contain the noted quantities of items in the corresponding rows
** If current unit does not have limit screws inside the cover behind the control knob and the relay vent has 4
vent holes, the Std/High part can be purchased
Page 4

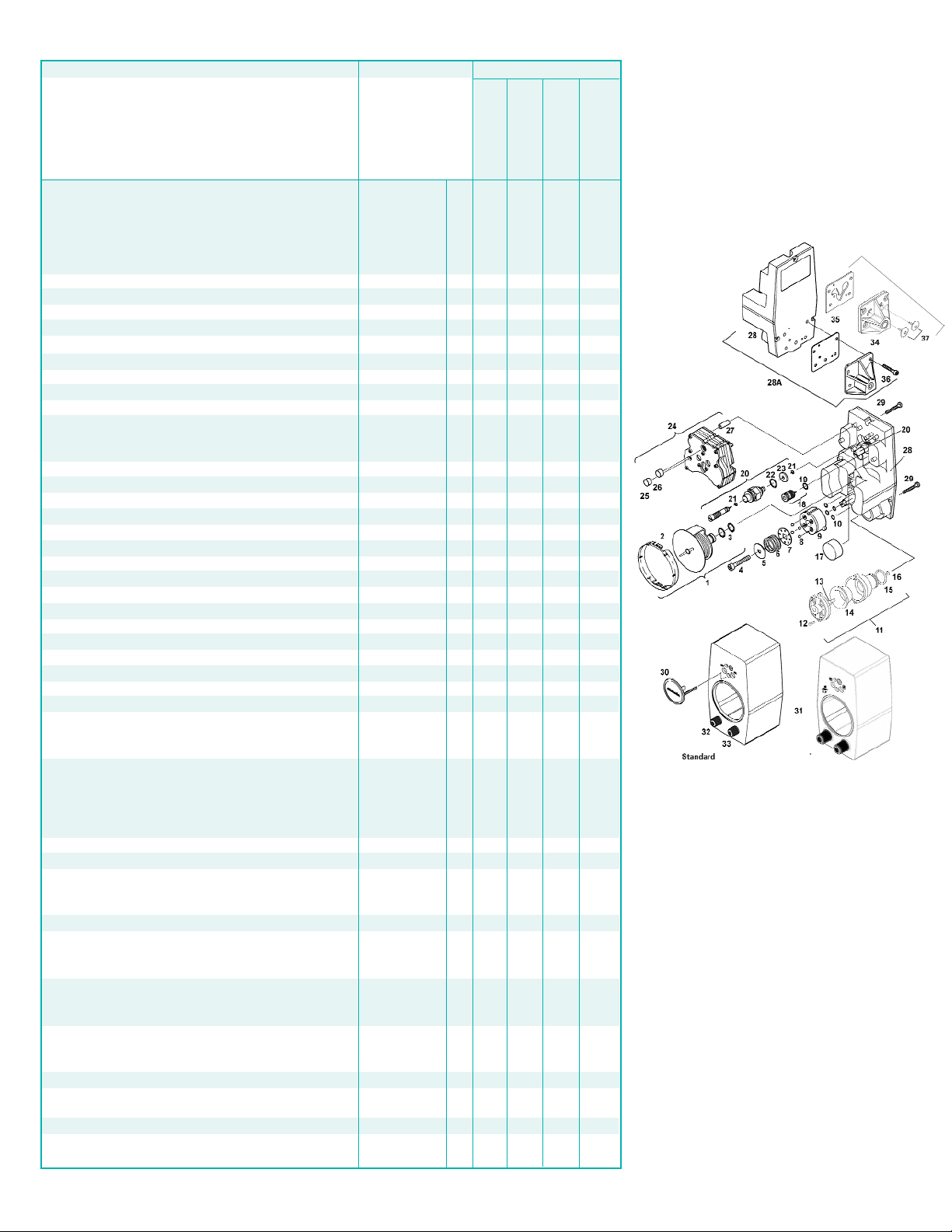

Intermittent Suction Unit (ISU) Service Parts and Kits
Parts Multi-Paks Kits*
0211-5887-300
Filter & O-ring Kit
0211-0474-870
O-Ring Kit
0221-5884-870
Filter Kit
6700-0030-700
Diaphragm Rpl Kit
Description Part Number Part Number
Qty/
Pak
1 Gauge Assy.
(Includes O-rings and Lens)
North American Std, 0-200 mmHg 6700-0050-200 0205-8689-870 4
North American Low, 0-160 mmHg 6700-0050-202 6700-0098-200 4
International Std, ccw, 0-200 mmHg 6700-0090-200
International Low, ccw, 0-160 mmHg 6700-0050-205
2 Gauge Lens 6700-0087-500
3 O-ring, 2-012 Buna-N 6700-0130-500 2 2
4 Screw 6700-0150-400
5 Retaining Washer 0402-0748-300
6 Spiral Spring Washer 6700-0168-400
7 Detent Plate 0214-3213-300
8 Ball 0409-1684-300
9 Switch Main Valve Body 0221-5891-300
10 O-ring, 2-010 Buna-N 6700-0131-500 4 4
11 Regulator Module
Standard Model 6700-1225-800 6700-0026-700 6
Pediatric Model 6700-0685-850 6700-0686-850 6
12 Screw, 4-20, Ph. Hd 2
13 Screw, 4-40, Ph. Hd 1
14 Diaphragm 1
15 O-ring, 2-016 Buna-N 6700-0136-500 2 2 1
16 O-ring, 2-004 Buna-N 0210-0527-300 1 1 1
17 Gauge Filter 0210-6540-300 2 1
18 Flow Control Valve 0207-0132-300
19 O-ring, 2-011 Buna-N 6700-0133-500 1 1
20 Timing Valve 0207-8295-300 0207-8298-870 6
21 O-ring, 2-006 Buna-N 0210-0593-300 4 4
22 O-ring, 2-014 Buna-N 6700-0135-500 2 2
23 Filter 0221-5883-300 2 2
24 Unilogic Module 6700-0093-200 6700-0024-700 4
25 Filter, Green 0221-5879-300 1 1
26 Filter, Beige 0221-5880-300 1 1
27 Tube 6700-0095-400
28 Backplate Assy.
North American 6700-0426-850
International 6700-0427-850
28A Backplate Assy. w/Mount Plate
North American Standard 6700-0002-700 6700-0090-700 4
North American Low 6700-0680-850 6700-0681-850 4
International Standard CE 6700-0003-700
International Low CE 6700-0682-850
29 Cover Screw 6700-0152-400
30 Ohmeda Nameplate Wrench 6700-0043-400
31 Cover & Knob Assy.
Standard Model 6700-0009-700 6700-0091-700 4
Pediatric SU Model Only (w/Baby 6700-0683-850 6700-0684-850 4
32 Mode Selector Knob 0221-5897-300 0221-5852-870 6
33 Suction Control Knob
Standard Model Only 0221-5898-300 0221-5853-870 6
Pediatric Model – order item
34 Mounting Plate, Std ISU
Standard Model Only 6700-0053-400
Pediatric Model - order item 38 6700-0252-400
35 Gasket
Standard Model 6700-0030-500
Pediatric Model 6700-0221-500
36 Screw 6700-0151-400
37 Positive Pressure 6700-0687-850 2
Relief Valves (Low ISU Only)
38 Pediatric Mnounting Plate Assembly 6700-0689-850
39 Service Manual 6700-0199-700
* Kits contain the noted quantities of items in the corresponding rows
Pediatric
38
Page 5
6700-0013-200
Switch Rpl Kit

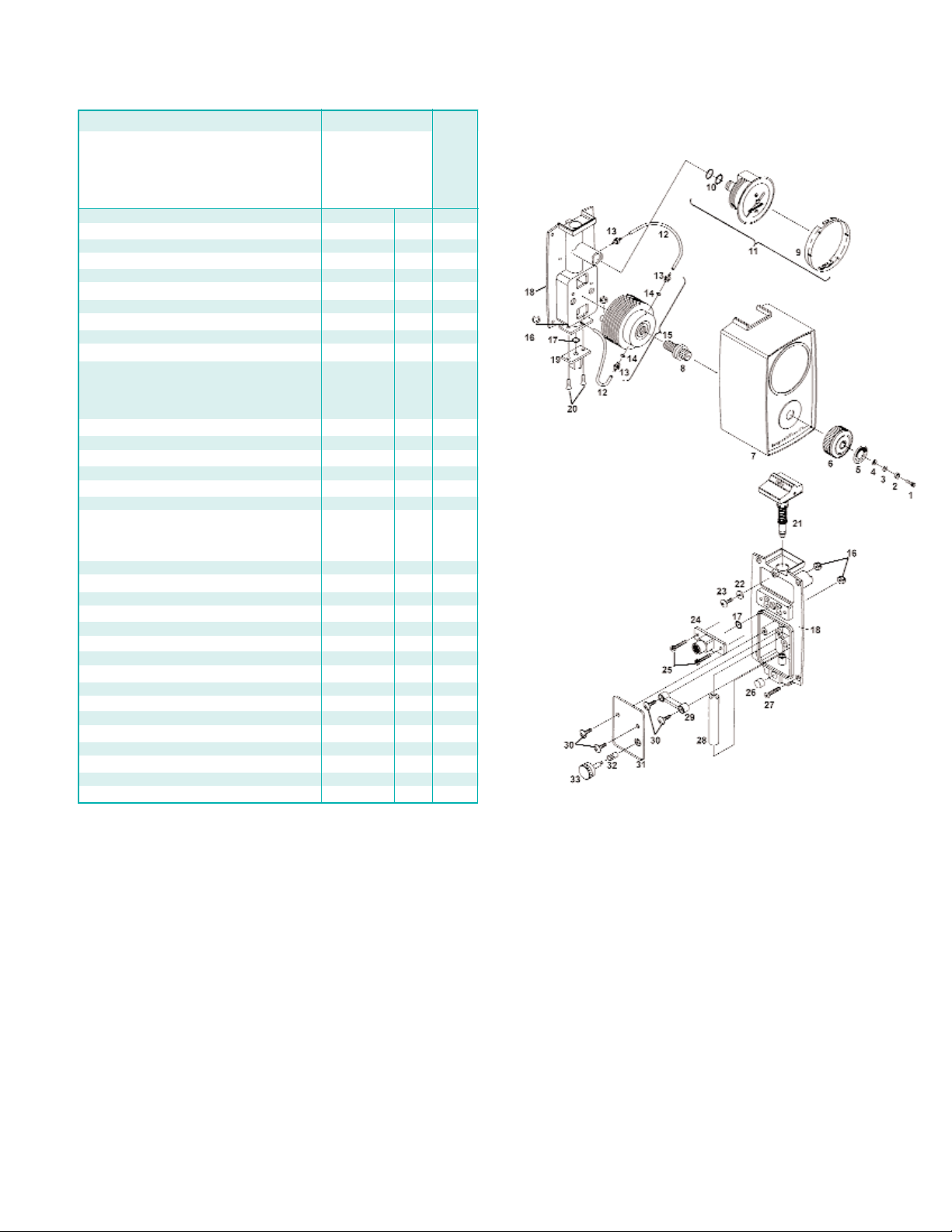

Surgical/Free-Flow (SFF) Service Parts and Kits
Parts Multi-Paks Kits*
Description Part Number Part Number Qty/Pak
1. Screw, Socket Head, 4-40 x 1/2 6700-0182-400
2. Locking Cam 0212-1705-300
3. Washer, Flat .28 OD, .125 6700-0174-400
4. Washer, Spring 6700-0148-400
5. Increase Label 0206-5154-300
6. Control Knob 0206-5187-300
7. Regulator Cover 6700-0198-500
8. Control Shaft 0206-5188-300
9. Snap Fit Lens 6700-0087-500
10. O-ring (2), Gauge 6700-0130-500
11. Gauge Assy. (Includes gauge,
O-rings and Lens)
North American Std 6700-0050-200 0205-8689-870 4
North American High 6700-0050-201 6700-0097-200 4
International High 6700-0050-204
12. Tubing, .125 OD (2) 0206-5186-300
13. Adapter (3) 6700-0173-400
14. O-ring (3) 0210-0593-300
15. Bellows Assy. 6700-0165-700
16. Nut, Elastic Stop, 6-32 (4) 6700-0175-400
17. O-ring, 2-010, Neoprene 6700-0131-500
18. Surgical/Free-Flow Base (Includes
base, adapter and serial # plate)
North American 6700-0161-700
International 6700-0162-700
19. Bottom Connector 0206-5195-300
20. Screw, Flathead, 6-32 x 1/2 (2) 6700-0171-400
21. Valve Assy., SFF Universal 6700-0067-700 6700-0101-200 4 1
22. Washer, Flat 6700-0164-400 1
23. Screw, Buttonhead, 8-32 x 5/16 6700-0165-400 1
24. Inlet Connector, Universal 0206-5149-300
25. Screw, Roundhead, 6-32 x 7/8 6700-0176-400
26. Filter 0206-5181-300
27. Screw, No. 6 Panhead (4) 6700-0152-400
28. Valve Tube 0206-5182-300
29. Regulating Bar 0206-5183-300
30. Screw, Buttonhead, 8-32 x 3/8 (4) 6700-0172-400
31. Rear Window 0206-5180-300
32. Tubular Speed Clip 0402-2018-300
33. Locking Knob 0212-1932-300
34. Service Manual 6700-0200-700
* Kits contain the noted quantities of items in the corresponding rows
Page 6
6700-0429-850
Tubes & Orifice
6700-0430-850
Gauge Kit (CW)
6700-0431-850
Gauge Kit (CCW)
6700-0432-850
Vacuum Relief Adj
6700-0673-850
Shaft, Nut & Knob
Parts Multi-Paks Kits*
Description Part Number Part Number Qty/Pak
1. Control Knob 0212-0806-100
2. Bent Metal Washer 0202-3042-300
3. Plastic Spacer (2) 0202-0063-300
4. Cover Mounting Screw (4) 0142-4113-108
5. Restrictor Mounting Tube 1
6. Restrictor Orifice 1
7. Tube 1
8. Barbed Fitting 1 1
9. Vacuum Gauge 1 1
10. Lens Cover 6700-0087-500 1 1
11. Label 6700-0224-100
12. Front Cover 6700-0155-400
13. Vacuum Tube 0211-0072-300
14. Probe/Adapter Mtg. Screw (2) 0140-6624-108
15. Probe/Adapter Connector 0206-5149-300
16. O-ring 6700-0131-500 1
17. Nut (2) 6700-0175-400
18. On/Off Selector Switch 6700-0092-700
19. Spring Washer 0202-3030-300
20. Screw 6700-0208-400
21. Vacuum Relief Adj. Screw 1
22. Vacuum Relief Body 1
23. Ball 0409-1686-300
24. Patient Port Fitting 0204-9046-535
Patient Port 1/8 NPTF** 6700-0209-700
25. O-ring 6700-0130-500
26. Diaphragm 0210-7300-100
27. Disc 0214-3212-300
28. Backplate, N. American*** 6700-0632-850
29. Rubber Sleeve 0211-0719-500
30. Screw (4) 0140-6124-112
31. Snap Ring 0203-5213-300
32. O-ring 6700-0132-500 1
33. Brass Nut 1
34. Spring 0203-3054-300
35. Spring Button 0212-0800-100
36. Spring Case Cover 0221-6365-300
37. O-ring 6700-0100-400
38. Baffle Guide Plate 0212-0804-100
39. Piston 6700-0099-400
40. O-ring 0210-0527-300
41. Flapper Valve 0211-1451-100
42. Control Shaft 1
43. Service Manual 6700-0011-000
* Kits contain the noted quantities of items in the corresponding rows
** Fitting required for Thoracic 904 and 905 versions with Locking Gland
*** Other languages available:
Backplate, French 6700-0633-850
Backplate, Spanish 6700-0634-850
Backplate, German 6700-0635-850
Backplate, Italian 6700-0636-850
Backplate, Swedish 6700-0637-850
Backplate, Japanese 6700-0638-850
Backplate, Russian 6700-0639-850
Backplate, Greek 6700-0640-850
Backplate, Dutch 6700-0641-850
Backplate, Portuguese 6700-0642-850
Backplate, English 6700-0643-850
Thoracic Service Parts and Kits
Page 7
Page 8
producers of:
OHMEDA SUCTION
& OXYGEN THERAPY DEVICES
AEROS®INSTRUMENTS PORTABLE SUCTION MACHINES
HEALTHCAIR®MEDICAL GAS PIPELINE EQUIPMENT
HEALTHCAIR
®
, LABCAIR®, SELECTORR
®
SERIES OF
VACUUM & AIR COMPRESSOR PACKAGES AND ACCESSORIES
1111 Lakeside Drive, Gurnee, IL 60031-4099 | 1-866-549-6446 | www.ohiomedical.com
SOT132 Rev2 (06/2006)
