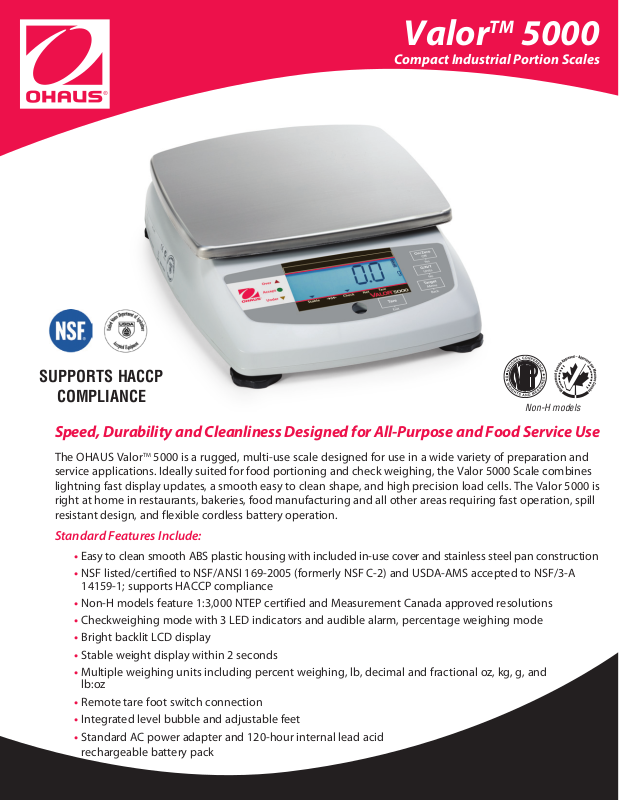

Valor
Compact Industrial Portion Scales
5000
SUPPORTS HACCP
COMPLIANCE
Non-H models
Speed, Durability and Cleanliness Designed for All-Purpose and Food Service Use
The OHAUS ValorTM 5000 is a rugged, multi-use scale designed for use in a wide variety of preparation and
service applications. Ideally suited for food portioning and check weighing, the Valor 5000 Scale combines
lightning fast display updates, a smooth easy to clean shape, and high precision load cells. The Valor 5000 is
right at home in restaurants, bakeries, food manufacturing and all other areas requiring fast operation, spill
resistant design, and flexible cordless battery operation.
Standard Features Include:
• Easy to clean smooth ABS plastic housing with included in-use cover and stainless steel pan construction
• NSF listed/certified to NSF/ANSI 169-2005 (formerly NSF C-2) and USDA-AMS accepted to NSF/3-A
14159-1; supports HACCP compliance
• Non-H models feature 1:3,000 NTEP certified and Measurement Canada approved resolutions
• Checkweighing mode with 3 LED indicators and audible alarm, percentage weighing mode
• Bright backlit LCD display
• Stable weight display within 2 seconds
• Multiple weighing units including percent weighing, lb, decimal and fractional oz, kg, g, and
lb:oz
• Remote tare foot switch connection
• Integrated level bubble and adjustable feet
• Standard AC power adapter and 120-hour internal lead acid
rechargeable battery pack
Page 2
Valor
5000 Compact Industrial Portioning Scales
Easy to Set-Up for Your Operation:
The OHAUS Valor 5000 Has All The Features You Need:
• Selectable Weighing Units – The Valor 5000 can be set up to display all, some, or only one weighing unit to match the
requirements of your operation.
• Lb & Oz Display – The Valor 5000 can display a decimal pound to 3 decimal places, as well as fractional or decimal
ounces, and can even display results in a combined lb:oz display.
• Metric Display – For metric use, the Valor 5000 can display results in kilograms or grams with a readability ranging
from 0.5g to 2 g, depending on model.
• Percent Weight – Allows users to compare the weight of a sample as a percentage of a reference weight, useful for
Baker’s Percentages.
• Change Units Quickly – The unit displayed can be changed with a single key press.
• Set It Up and Lock It In – The Valor 5000 can be set to the mode and weighing units required, and then locked-in using
either software or hardware locks. The OHAUS Valor 5000 can be locked to ensure the configuration you choose is the
configuration you use!
TM
• Easy to Calibrate – The Valor 5000’s software menu allows the Valor 5000 to be calibrated to ensure accurate results.
To prevent accidental recalibration, the Valor 5000 also can be configured using software and hardware calibration lockouts.
For Checkweighing Applications, The Valor 5000 Can Be Quickly Configured:
The Valor 5000 can be set to either simply display a weight, or can be set to act as a dedicated, low-profile
checkweigher for portioning and grading:
• Portioning and Prepackaging – With the positive checkweighing mode for packaging, add to the portion on the pan until
you reach the weight you need.
• Portioning Out of the Box – Use the negative checkweighing mode for portioning and pizza making, portioning out of a
container on the pan until the required weight is reached.
• Sorting & Grading – The “zero” checkweighing method is designed for sorting and grading operations, so you can check
portions against preset limits.
• Quickly Set Targets – Target weights can be entered quickly using the dedicated Setpoint key.
• Bright LED’s and Buzzer Speed Use – Progress against weight targets can be indicated with the three LED’s, with
indications for Over, Accept and Under with selectable audible buzzer.
Outline Dimensions
Page 3
Designed for Food Service Use:
Fast, Easy-To-Read Display – The Valor 5000 is designed to clearly and quickly display weighing results:
• Large, backlit LCD display
• Fast display updates – within 2 seconds
• Bright LED indicators for Checkweighing mode
• Text display of weight units – no cryptic unit designations or
hard-to-read annunciators
• Audible buzzer alerts user when limits are reached
• Battery power level indicator
• Bright annunciators for scale stability, center of zero, net and tare weights, checkweighing mode indication
Manual or Auto Tare – The Valor 5000 can be configured to tare three ways:
• Manual taring using the large, dedicated Tare key
• The Valor 5000 can be set-up to automatically tare the first weight placed on the pan
• For hands-free operation, the Valor 5000 can also be tared using the optional foot switch
Checkweighing LED’s
Optional Hard Shell Carry Case
Rubber Pan Supports
Backlit LCD Display
OHAUS Part No. 80251394
Spillproof Front Panel
Checkweighing
Target Key
Dedicated Tare Key
Dishwasher Safe
Stainless Steel Pan
Lockout Switch
Optional Foot Tare Switch
OHAUS Part No. 71169633
AC and Foot Tare
Switch Connections
Adjustable Non-Slip
Rubber Feet
Page 4
Valor
Specifications
Model
Capacity x Default Readability
TM
5000 Compact Portion Scales
V51PH3 V51PH6 V51PH15 V51PH30
3 kg x 0.0001 kg
3,000 g x 0.1 g
6 lb x 0.0002 lb
96 oz x 0.005 oz
96 oz x 1/4 oz
6 lb 0 oz x 0.1 oz
6 lb 0 oz x 1/4 oz
6 kg x 0.0002 kg
6,000 g x 0.2 g
15 lb x 0.001 lb
240 oz x 0.01 oz
240 oz x 1/4 oz
15 lb 0 oz x 0.1 oz
15 lb 0 oz x 1/4oz
15 kg x 0.001 kg
15,000 g x 1 g
30 lb x 0.001 lb
480 oz x 0.02 oz
480 oz x 1/4 oz
30 lb 0 oz x 0.1 oz
30 lb 0 oz x 1/4 oz
30 kg x 0.001 kg
30,000 g x 1 g
60 lb x 0.002 lb
960 oz x 0.05 oz
960 oz x 1/4 oz
60 lb 0 oz x 0.1 oz
60 lb 0 oz x 1/4 oz
Model
Capacity x Default Readability
6 lb:0 oz x 0.1 oz or 1/4 oz
Capacity x Readability
Certified/Approved
Weighing Units
Application Modes Weighing, Checkweighing, Percent Weighing
Display 0.75-in (19mm) high 5-digit, 7-segment backlit blue LCD display
Display Indicators Stability, center of zero, tare or net weight, battery status, checkweigh mode
Checkweighing Indicators 3 LED (yellow, green, red) with configurable operation and alert beeper
Keyboard 4 – button membrane switch
Environmental Protection IP 43
Tare Range Full capacity by subtraction
Stabilization Time < 2 seconds
Auto-Zero Tracking Off, 0.5, 1 or 3 divisions
Overload Capacity 150% of capacity
AC Power 9 VDC 0.5A AC wall adapter 100-120 V AC, 50/60 Hz
Battery Internal rechargeable sealed lead-acid battery with 120 hours continuous use
Calibration User-selectable external span or linearity calibration
Operating Temperature and Humidity Range 14° to 104°F / -10° to 40°C, 10 to 85% relative humidity, non-condensing
Pan Size 8.2 x 8.2 in / 209 x 209 mm
Scale Dimensions WxHxD 9 x 12 x 2.8 in / 300 x 223 x 71 mm
Shipping Dimensions WxHxD 15.8 x 12.6 x 7.3 in / 400 x 320 x 185 mm
Net Weight 5.5 lb / 2.5 kg
Shipping Weight 8.8 lb / 4 kg
V51P3 V51P6 V51P15 V51P30
3 kg x 0.0005 kg
3,000 g x 0.5 g
6 lb x 0.001 lb
96 oz x 0.02 oz or 1/4 oz
3 kg x 0.001 kg
3,000 g x 1 g
6 lb x 0.002 lb
96 oz x 0.05 oz or 1/4 oz
Pound, decimal ounce, 3/4, 1/2, and 1/4 fractional ounce, gram, kilogram,
6 kg x 0.001 kg
6,000 g x 1 g
15 lb x 0.002 lb
240 oz x 0.05 oz or 1/4 oz
15 lb:0 oz x 0.1 oz or 1/4 oz
6 kg x 0.002 kg
6,000 g x 2 g
15 lb x 0.005 lb
240 oz x 0.1 oz or 1/4 oz
combined lb:oz display (either decimal or fractional ounces)
15 kg x 0.002 kg
15,000 g x 2 g
30 lb x 0.005 lb
480 oz x 0.1 oz or 1/4 oz
30 lb:0 oz x 0.1 oz or 1/4 oz
15 kg x 0.005 kg
15,000 g x 5 g
30 lb x 0.01 lb
480 oz x 0.2 oz or 1/4 oz
60 lb 0 oz x 0.2 oz
60 lb 0 oz x 1/4 oz
960 oz x 0.5 oz or 1/2 oz
30 kg x 0.005 kg
30,000 g x 5 g
60 lb x 0.01 lb
960 oz x 0.2 oz
960 oz x 1/4 oz
30,000 g x 10 g
60 lb x 0.02 lb
Physical Features
ABS top and bottom housings, dishwasher safe stainless steel pan, clear in-use cover, backlit LCD display, rubber
user-adjustable leveling feet, front panel leveling bubble, internal rechargeable lead-acid battery, external AC wall
adapter, weight/mode stability/center of zero/net weight/tare weight/text unit indication, 4-bar battery status
indicator with low-battery warning, 3 LED’s and buzzer for use in checkweighing mode, dedicated tare key, audible
buzzer with user-selectable volume control, selectable scale auto-off, sealable scale configuration and calibration
lockout switch.
Operational Features
Selectable environmental averaging settings, backlight control with auto-off option, selectable weighing units,
configurable checkweighing mode, configurable software lockout menu, span or linearity calibration in kg or lb unit
with optional external masses, semi-automatic or automatic tare, selectable auto-zero tracking.
Accessories
Foot switch (p/n 71169633); hard shell carry case (p/n 80251394); flat pan (p/n 80251141); in-use cover (p/n
80251140)
Compliance
• Legal for Trade: Non-H models are NTEP certified (CC No. 08-0651 and Measurement Canada approved
(No. AM-5723).
• Food Service: NSF Listed/Certified to NSF/ANSI 169-2005 Special Purpose Food Equipment and Devices
(formerly NSF C-2); USDA/AMS Accepted to NSF/3-A 14159-1 Hygiene Requirements for the Design of Meat and
Poultry Processing Equipment; meets requirements for HACCP conformity.
• Electrical/Emissions: UL C US listed, meets AS/NZS4251.1 Emission/AS/NZS4252.1 Immunity, FCC Class B Part
15 operation, Industry Canada Class B.
• Quality: OHAUS quality management system registered to ISO 9001:2008
