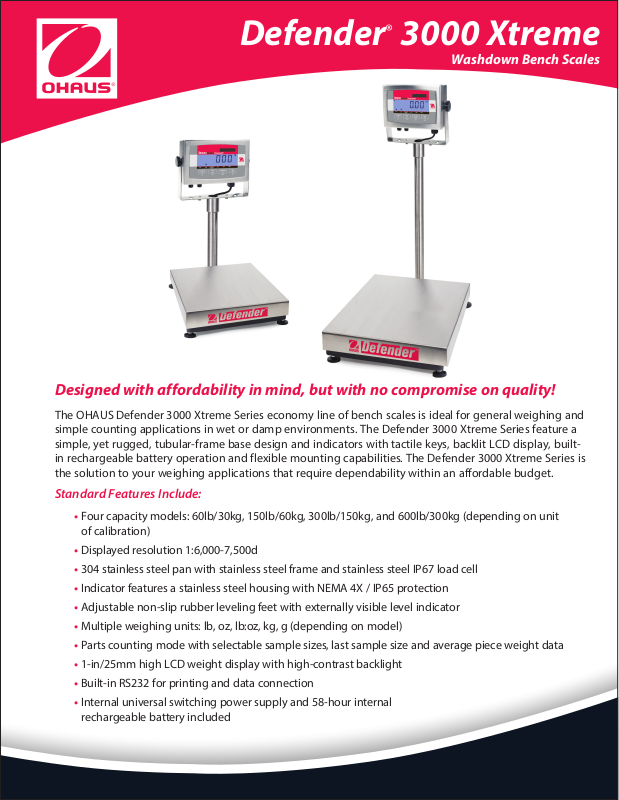

Page 1
Defender
®
3000 Xtreme
Washdown Bench Scales
Designed with affordability in mind, but with no compromise on quality!
The OHAUS Defender 3000 Xtreme Series economy line of bench scales is ideal for general weighing and
simple counting applications in wet or damp environments. The Defender 3000 Xtreme Series feature a
simple, yet rugged, tubular-frame base design and indicators with tactile keys, backlit LCD display, builtin rechargeable battery operation and flexible mounting capabilities. The Defender 3000 Xtreme Series is
the solution to your weighing applications that require dependability within an affordable budget.
Standard Features Include:
• Four capacity models: 60lb/30kg, 150lb/60kg, 300lb/150kg, and 600lb/300kg (depending on unit
of calibration)
• Displayed resolution 1:6,000-7,500d
• 304 stainless steel pan with stainless steel frame and stainless steel IP67 load cell
• Indicator features a stainless steel housing with NEMA 4X / IP65 protection
• Adjustable non-slip rubber leveling feet with externally visible level indicator
• Multiple weighing units: lb, oz, lb:oz, kg, g (depending on model)
• Parts counting mode with selectable sample sizes, last sample size and average piece weight data
• 1-in/25mm high LCD weight display with high-contrast backlight
• Built-in RS232 for printing and data connection
• Internal universal switching power supply and 58-hour internal
rechargeable battery included
Page 2
Defender® 3000 Xtreme Washdown Bench Scales
Models D32XW30VR D32XW60VR D32XW60VL D32XW150VL D32XW150VX D32XW300VX
Capacity x Readability (d)
Capacity x Readability (d)
(Cal unit lb)
66 lb x 0.01 lb
1056 oz x 0.2 oz
66 lb x 0.2 oz (lb:oz)
30 kg x 0.005 kg
30,000 g x 5 g
60 lb x 0.01 lb
960 oz x 0.2 oz
60 lb x 0.2 oz (lb:oz)
27 kg x 0.005 kg
27,000 g x 5 g
132 lb x 0.02 lb
2,112 oz x 0.5 oz
60 kg x 0.01 kg
60,000 g x 10 g
150 lb x 0.02 lb
2,400 oz x 0.5 oz
68 kg x 0.01 kg
68,000 g x 10 g
132 lb x 0.02 lb
2,112 oz x 0.5 oz
60 kg x 0.01 kg
60,000 g x 10 g
150 lb x 0.02 lb
2,400 oz x 0.5 oz
68 kg x 0.01 kg
68,000 g x 10 g
330 lb x 0.05 lb
5,280 oz x 1 oz
150 kg x 0.02 kg
150,000 g x 20 g
300 lb x 0.05 lb
4,800 oz x 1 oz
300 lb x 1 oz (lb:oz)
136 kg x 0.02 kg
136,000 g x 20 g
330 lb x 0.05 lb
5,280 oz x 1 oz
150 kg x 0.02 kg
150,000 g x 20 g
300 lb x 0.05 lb
4,800 oz x 1 oz
300 lb x 1 oz (lb:oz)
136 kg x 0.02 kg
136,000 g x 20 g
660 lb x 0.1 lb
10,576 oz x 2 oz
660 lb x 2 oz (lb:oz)
300 kg x 0.05 kg
300,000 g x 50 g
600 lb x 0.1 lb
9,600 oz x 2 oz
600 lb x 2 oz (lb:oz)
272 kg x 0.05 kg
272,000 g x 50 g
Displayed Resolution
Load Cell Protection
Base Construction
Platform Dimensions
(W x D x min H)
Front View Dimensions
(F1 x F2 x F3 x F4 x F5)
Side View Dimensions
(S1 x S2 x S3 x S4 x S5)
Column
Leveling Component
Safe Overload Capacity
Indicator Construction
Weighing Units
Functions
Weight Display
Keyboard
Stabilization Time
Auto-zero Tracking
Key Zeroing Range
Span Calibration
Power
Interface
Operating Temperature
Range
Net Weight
Shipping Weight
Shipping Dimensions
1:6,000 1:7,500 1:7,500 1:7,500 1:7,500 1:6,000
NEMA 4X / IP65
304 stainless steel pan with stainless steel frame, non-slip rubber leveling feet
12 x 14 x 4.8 in / 305 x 355 x 123 mm 16.5 x 21.6 x 5.4 in / 420 x 550 x 136 mm 19.7 x 25.6 x 5.8 in / 500 x 650 x 147 mm
8.2 x 6.5 x 12 x 4.8 x 3 x 10 in
210 x 166 x 305 x 119 x 75 x 256 mm
22.5 x 18.6 x 14 x 12 x 2 in
572 x 472 x 355 x 306 x 52 mm
13.8 in / 350 mm fixed height, stainless steel 27.6 in / 700 mm fixed height, stainless steel
Externally visible level bubble and adjustable leveling feet with locking nuts
6-digit, 7-segment backlit LCD, 1 inch / 25 mm high digits
100 - 240 VAC/50-60 Hz internal switching power supply with internal rechargeable sealed lead-acid battery (58-hour typical operation with full charge)
14°F to 104°F / -10°C to 40°C, Maximum relative humidity 80 % for temperatures up to 88°F / 31°C,
decreasing linearly to 50 % relative humidity at 104°F / 40°C, non condensing
33 lb / 15 kg 53 lb / 24 kg 60 lb / 27 kg 84 lb / 38 kg
41 lb / 19 kg 61 lb / 28 kg 67 lb / 30 kg 96 lb / 44 kg
25.3 x 19.6 x 8.5 in / 642 x 497 x 212 mm 33.7 x 22.2 x 8.9 in / 857 x 564 x 225 mm 40.2 x 27 x 9.7 in / 1022 x 687 x 247 mm
8.2 x 6.5 x 16.5 x 5.4 x 3.2 x 14.6 in
210 x 166 x 420 x 145 x 80 x 371 mm
36.2 x 26.3 x 21.7 x 19.7 x 2 in
920 x 668 x 550 x 500 x 52 mm
125% of rated capacity
Stainless steel
lb, oz, lb:oz, kg, g
Weighing, Parts Counting
4 function mechanical keys, raised, tactile
Within 2 seconds
Off, 0.5, 1 or 3 divisions
2% or 100% of capacity
5 lb/kg to 100% of capacity, user selectable
Bidirectional RS232C
Features
Stainless steel housing with backlit LCD weight display, tactile membrane switches, built-in bidirectional RS232C
with manual/continuous/interval printing, hardware configuration lockout switch, internal universal switching
power supply and internal sealed lead-acid rechargeable battery. Software included for parts counting mode
with selectable sample sizes, selectable span calibration points, averaging level, auto-zero tracking, power saving
auto-off, Geo Code geographical gravity calibration adjustment and software menu lockouts. Stainless steel pan
with stainless steel tubular frame, non-slip rubber leveling feet with locking nuts, externally visible level bubble,
stainless steel IP67 load cell, down-stops for overload protection, hollow tubular stainless steel columns.
Outline Dimensions
Compliance
• Safety and EMC: EN60950, EN61326,
FCC Class A, CE (AC adapter),
• Quality: OHAUS quality management
system registered to ISO 9001:2008
cULus
8.2 x 6.5 x 19.7 x 5.6 x 3.5 x 17.3 in
210 x 166 x 500 x 154 x 90 x 440 mm
36.2 x 29.1 x 25.6 x 23.2 x 2 in
920 x 740 x 650 x 590 x 52 mm
