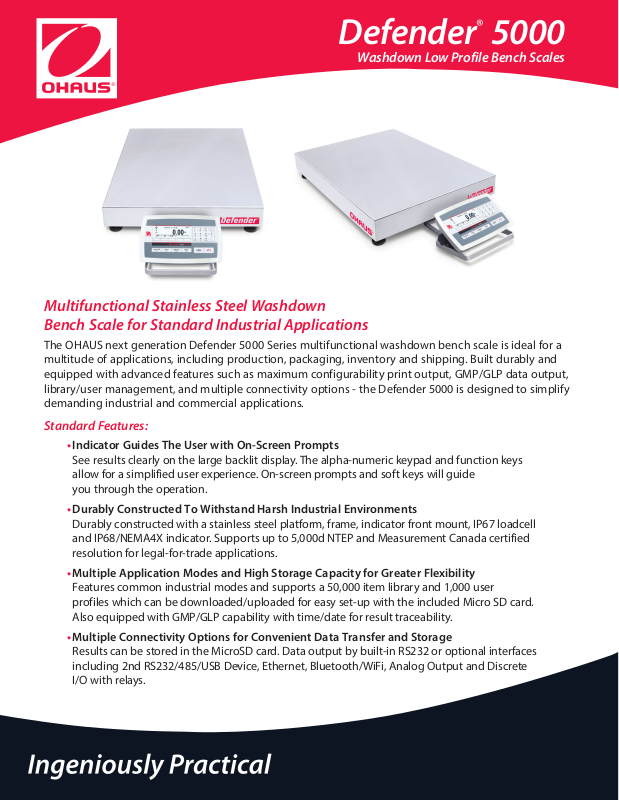

Defender® 5000
Washdown Low Profile Bench Scales
Multifunctional Stainless Steel Washdown
Bench Scale for Standard Industrial Applications
The OHAUS next generation Defender 5000 Series multifunctional washdown bench scale is ideal for a
multitude of applications, including production, packaging, inventory and shipping. Built durably and
equipped with advanced features such as maximum configurability print output, GMP/GLP data output,
library/user management, and multiple connectivity options - the Defender 5000 is designed to simplify
demanding industrial and commercial applications.
Standard Features:
• Indicator Guides The User with On-Screen Prompts
See results clearly on the large backlit display. The alpha-numeric keypad and function keys
allow for a simplified user experience. On-screen prompts and soft keys will guide
you through the operation.
• Durably Constructed To Withstand Harsh Industrial Environments
Durably constructed with a stainless steel platform, frame, indicator front mount, IP67 loadcell
and IP68/NEMA4X indicator. Supports up to 5,000d NTEP and Measurement Canada certified
resolution for legal-for-trade applications.
• Multiple Application Modes and High Storage Capacity for Greater Flexibility
Features common industrial modes and supports a 50,000 item library and 1,000 user
profiles which can be downloaded/uploaded for easy set-up with the included Micro SD card.
Also equipped with GMP/GLP capability with time/date for result traceability.
• Multiple Connectivity Options for Convenient Data Transfer and Storage
Results can be stored in the MicroSD card. Data output by built-in RS232 or optional interfaces
including 2nd RS232/485/USB Device, Ethernet, Bluetooth/WiFi, Analog Output and Discrete
I/O with relays.
Page 2
Defender® 5000 Washdown Low Profile Bench Scales
Simplified Use
Results can be read easily on the Defender 5000’s large transective dot matrix display,
even in bright sunlight. The SmarText 3.0 interface will guide you through all of the
Defender 5000’s unique and advanced features. With ve soft keys, SmartText 3.0 makes
an advanced scale very simple to use, and reduces training time for operators.
Durable Construction
The Defender 5000 can be used for both general and legal-for-trade applications.
For standard industrial applications, the Defender 5000 bench scales oer durable
performance at a practical price.
Simple Operation
Featuring most common applications including Parts Counting with APW optimization,
Checkweighing or Checkcounting, Percent Weighing, and Dynamic Weighing or Display
Hold, the Defender 5000 meets the weighing and measurement needs of practically
every industrial application or manufacturing process. Many application modes
eliminate the need for long and complicated manual calculations. GMP/GLP
with time/date allows for traceability of results.
Equipped with the included Micro SD card, the Defender 5000 can support
storage of up to 50,000 items and 1,000 user proles. Weighing results
can also be stored in Alibi or regular format, addressing all your data
storage needs.
Multiple Connectivity Options
Weighing results can be easily exported through the standard RS232 port. Additional
connectivity options include a second RS232, RS485 or USB device; Ethernet; and WiFi/
Bluetooth interfaces.
Using the Analog Option (either 4-20mA or 0-10V) or the two In/four Out Discrete
I/O, the new Defender 5000 indicator can also be used for systems including PLCs.
Indicator Specications
TD52XW
Construction 304 stainless steel with sand blasted surface treatment
Protection IP68 / NEMA 4X
Weighing Units lb, oz, lb:oz, kg, g, metric ton, short ton, custom unit
Application Modes Weighing, Percent Weighing, Piece Counting with Optimized APW, Checkweighing/Checkcounting, Dynamic Weighing/Display Hold
Display Dot matrix LCD with white LED backlight, 256 x 80 pixels
Keyboard 6 function, 5 quick, 12 alpha numeric membrane switches
Auto-zero Tracking Off, 0.5 d, 1 d or 3 d
Zeroing Range 2% or 100% of capacity
Interface Standard RS232, Optional Ethernet, WiFi/Bluetooth, 2nd RS232/RS485/USB, Analog Output, 2 In/4 Out Discrete I/O
Power 100-240 VAC / 50/60 Hz Universal Power Supply, rechargeable lithium battery (Optional)
Battery Life 20 hours of continuous use
Calibration Zero, Span or 3 point-Linear
Page 3
Defender® 5000 Washdown Low Profile Bench Scales
Front Mount Bench Scale Specications
Model D52XW2WQS5 D52XW5WQS5 D52XW12WQS5 D52XW12WQR5 D52XW25WQR5 D52XW50WQR5 D52XW25WQL5
Capacity × Readability
Maximum Displayed Resolution 1:25,000
Capacity ×
Certified Readability
Min APW (g) 0.005 0.01 0.025 0.05 0.1 0.05
Internal Counting Resolution 1:500,000
Linearity/Repeatability ± 2d
Indicator TD52XW
Mount Stainless steel front-mount bracket with handle
Base Construction Stainless steel removable weighing platform with stainless steel frame, silicon-sealed IP67 stainless steel loadcell
Safe Overload Capacity 150% of maximum capacity
Stabilization Time Within 1 second
Operating Temperature Range 14°F to 104°F / -10°C to 40°C

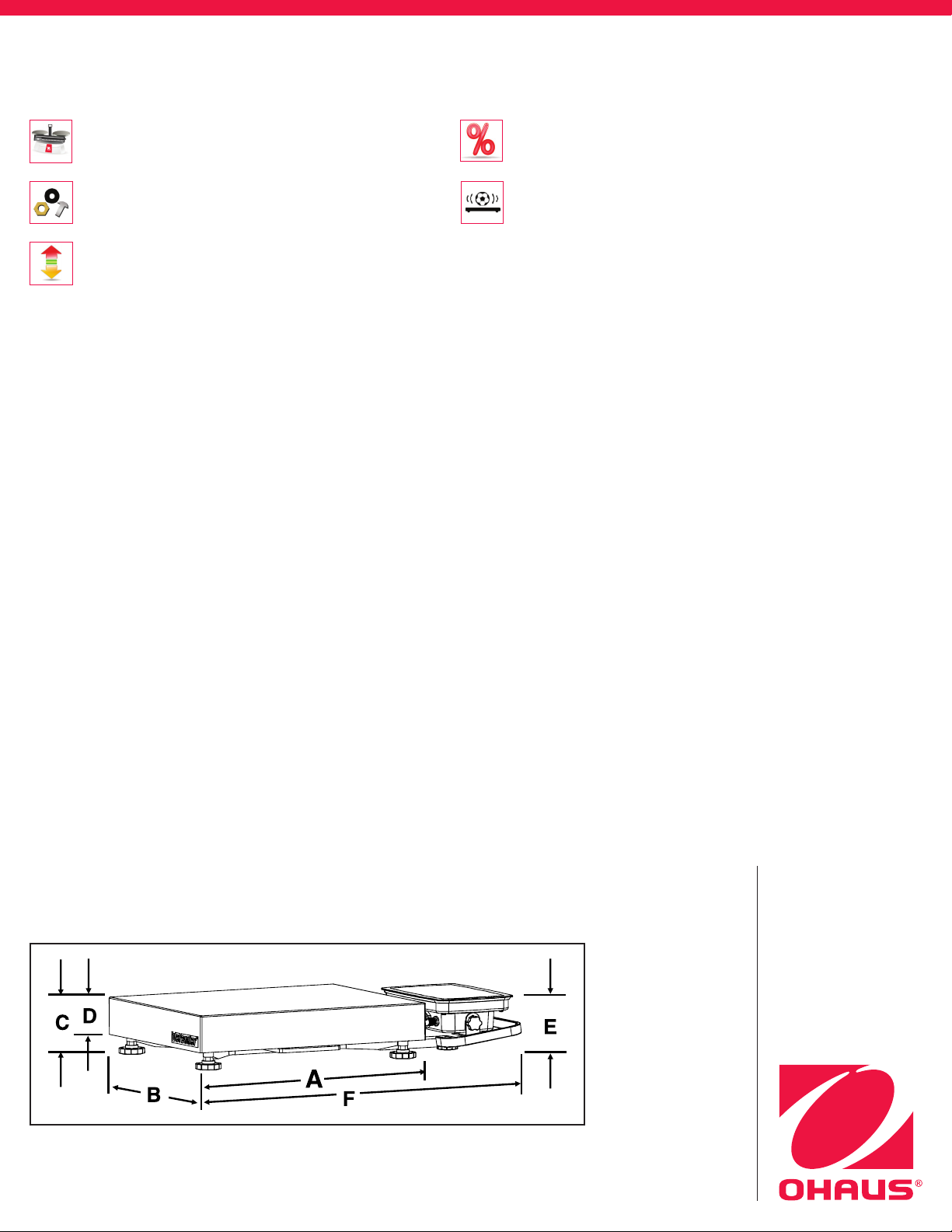

Scale Dimensions
(A x B x C x D x E x F)
Shipping Dimensions
(L x W x H)
Approx. Net Weight 19.8 lb / 9 kg 22.1 lb / 10 kg 37.5 lb / 17 kg
Approx. Shipping Weight 24.3 lb / 11 kg 26.5 lb / 12 kg 41.9 lb / 19 kg
5 lb × 0.0002 lb
2.5 kg × 0.1 g
5 lb × 0.001 lb
2.5 kg × 0.5 g
254 × 254 × 74 × 45 × 118 × 529 mm
10 lb × 0.0005 lb
5 kg × 0.2 g
10 lb × 0.002 lb
5 kg × 1 g
10 × 10 × 2.9 × 1.8 × 4.6 × 20.8 in
25 lb × 0.001 lb
12.5 kg × 0.5 g
25 lb × 0.005 lb
12.5 kg × 5 g
18.9 × 17.5 × 14.3 in
480 × 445 × 363 mm
50 lb × 0.002 lb
25 kg × 1 g
50 lb × 0.01 lb
25 kg × 5 g
12 × 12 × 3.7 × 2.4 × 4.6 × 23.1 in
305 × 305 × 95 × 60 × 118 × 588 mm
100 lb × 0.005 lb
100 lb × 0.02 lb
50 kg × 2 g
50 kg × 10 g
50 lb × 0.002 lb
25 kg × 1 g
50 lb × 0.01 lb
25 kg × 5 g
18 × 18 × 4.3 x 2.8 ×
4.6 × 28.9 in
457 × 457 × 110 x 70
× 118 × 734 mm
39.1 × 26.8 × 9.25 in
994 × 680 × 235 mm
Model D52XW50WQL5 D52XW125WQL5 D52XW50WTX5 D52XW125W TX5 D52XW250WTX5 D52XW50WQV5 D52XW125WQV5
Capacity × Readability
Maximum
Displayed Resolution
Capacity ×
Certified Readability
Min APW (g) 0.1 0.25 0.1 0.25 0.5 0.1 0.25
Internal
Counting Resolution
Linearity/Repeatability ± 2d
Indicator TD52XW
Mount Stainless steel front-mount bracket with handle
Base Construction Stainless steel removable weighing platform with stainless steel frame, silicon-sealed IP67 stainless steel loadcell
Safe Overload Capacity 150% of maximum capacity
Stabilization Time Within 1 second
Operating
Temperature Range
Scale Dimensions
(A x B x C x D x E x F)
Shipping Dimensions
(L x W x H)
Approx. Net Weight
Approx. Shipping Weight
100 lb × 0.005 lb
50 kg × 2 g
100 lb × 0.02 lb
50 kg × 10 g
18 × 18 × 4.3 x 2.8 × 4.6 × 28.9 in
457 × 457 × 110 x 70 × 118 × 734 mm
37.5 lb / 17 kg 61.7 lb / 28 kg 79.4 lb / 36 kg
41.9 lb / 19 kg 68.4 lb / 31 kg 88.2 lb / 40 kg
250 lb × 0.01 lb
125 kg × 5 g
250 lb × 0.05 lb
125 kg × 50 g
100 lb × 0.005 lb
50 kg × 2 g
100 lb × 0.02 lb
50 kg × 10 g
24 × 18 × 5.1 × 3.5 × 4.6 × 34.9 in
610 × 457 × 130 × 90 × 118 × 887 mm
39.1 × 26.8 × 9.25 in
994 × 680 × 235 mm
250 lb × 0.01 lb
125 kg × 5 g
1:25,000
250 lb × 0.05 lb
125 kg × 50 g
1:500,000
14°F to 104°F / -10°C to 40°C
500 lb × 0.02 lb
250 kg × 10 g
500 lb × 0.1 lb
250 kg × 50 g
100 lb × 0.005 lb
50 kg × 2 g
100 lb × 0.02 lb
50 kg × 10 g
24 × 24 × 5.1 × 3.5 × 4.6 × 34.6 in
610 × 610 × 130 × 90 × 118 × 880 mm
45.9 × 30.7 × 9.25 in
1165 × 780 × 235 mm
250 lb × 0.01 lb
125 kg × 5 g
250 lb × 0.05 lb
125 kg × 50 g
Page 4
Defender® 5000 Washdown Low Profile Bench Scales
Application Modes
Weighing: Determine the weight of items
in the selected unit of measure.
Parts Counting: Count samples of uniform weight. Advanced
auto-optimization software recalculates the average piece of
weight as the overall weight increases.
Checkweighing/Counting: Compare the weight/count of
a sample against target limits. Connect with Discrete I/O
and Light Tower Kit for external check lights.
Percent Weighing: Measure the weight of a sample displayed as
a percentage of a pre-established reference weight.
Dynamic Weighing and Display Hold: Weigh an unstable load.
Scale takes an average of weights over a period of time. The
Display Hold feature manually or automatically holds the last
stable weight on the display.
Other Standard Features and Equipment
User-configurable resolution up to 25,000d for general applications and up to 6,250e for legal-for-trade applications (depending on model
and unit of measure), 150% overload capacity protection, checkweighing symbols with selectable operation and audible signal settings, menu
lock switch, multiple selectable operating languages, selectable environmental and auto-print settings, stability indicator, overload/underload
indicators, selectable adjust contrast settings, auto-dim display, auto-off, auto tare, non-slip adjustable rubber feet, a Wheel Kit option is also
available for scales up to 300 kg.
Compliance
• Metrology: Measurement Canada (Indicator: NoA AM-6093, Platforms: NoA AM-6107); NTEP (Indicator: CC 18-065, Platforms: CC 18-077) Class lll
• Product Safety: CAN/CSA C22.2 61010-1; UL61010-1; IEC/EN 61010-1
• Electromagnetic Compatibility: FCC Part 15 Class B; Canada ICES-003 Class B; IEC/EN 61326-1 Class B, basic environments
• Compliance Marks: CE; CSA
Accessories
Battery Kit, Li-ion, TD52 .......................30424405
USB Host for Dongle, TD52 ....................30424406
Light Tower, 3 Colors, 243mm, IP65
(Requires 30097591) ...............................30424021
In-use Cover Kit, TD52P ........................30424022
In-use Cover Kit, TD52XW .....................30424023
In-use Cover set (10), TD52P ...................30469948
In-use Cover set (10), TD52XW .................30469949
Printer Holder Kit, D52 ........................30424025
Wall Mount Kit, SST, TD52XW ..................30424026
Wall Mount Kit, CS, TD52P .....................30424027
LC Extension Cable, 9 meters, D52. . . . . . . . . . . . .30424409
Cannot be used for legal-for-trade applications Only one of them can be used at the same time Only one of them can be used at the same time
M16 Gland with Ferrite, to TD52 ...............30379716
Micro SD Card, 8G .............................30303533
Analog Output Kit, TD52 ......................30424403
Second RS232/RS485/USB Kit, TD52. . . . . . . . . . .30424404
I/O with Relay (2 In/4 Out) .....................30097591
WiFi/BT Dongle, OHAUS (Requires 30424406) ........30412537
Ethernet Kit, D52 ..............................30429666
Wheel Kit, Defender Series
Impact Printer SF40A ..........................30064203
Thermal Printer STP-103 .......................80251992
(For bases up to 300 kg) ...30372146
