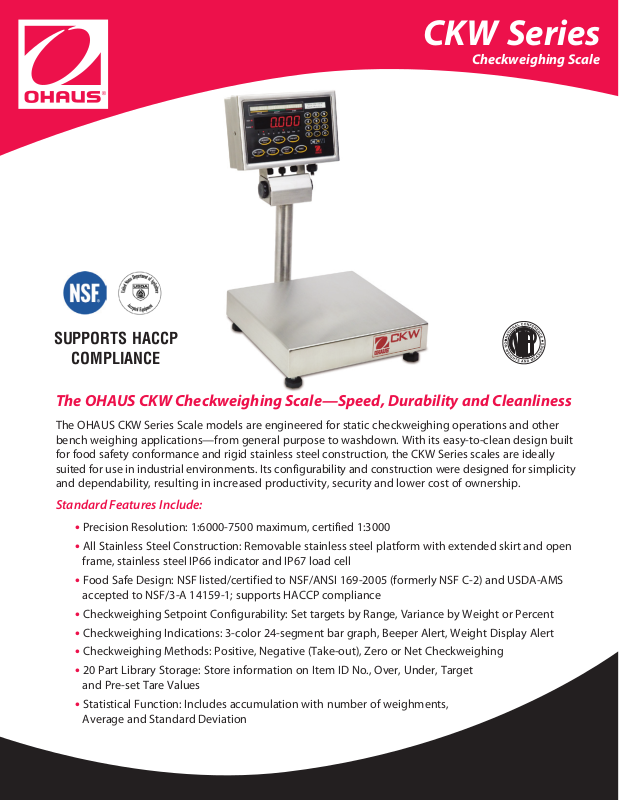

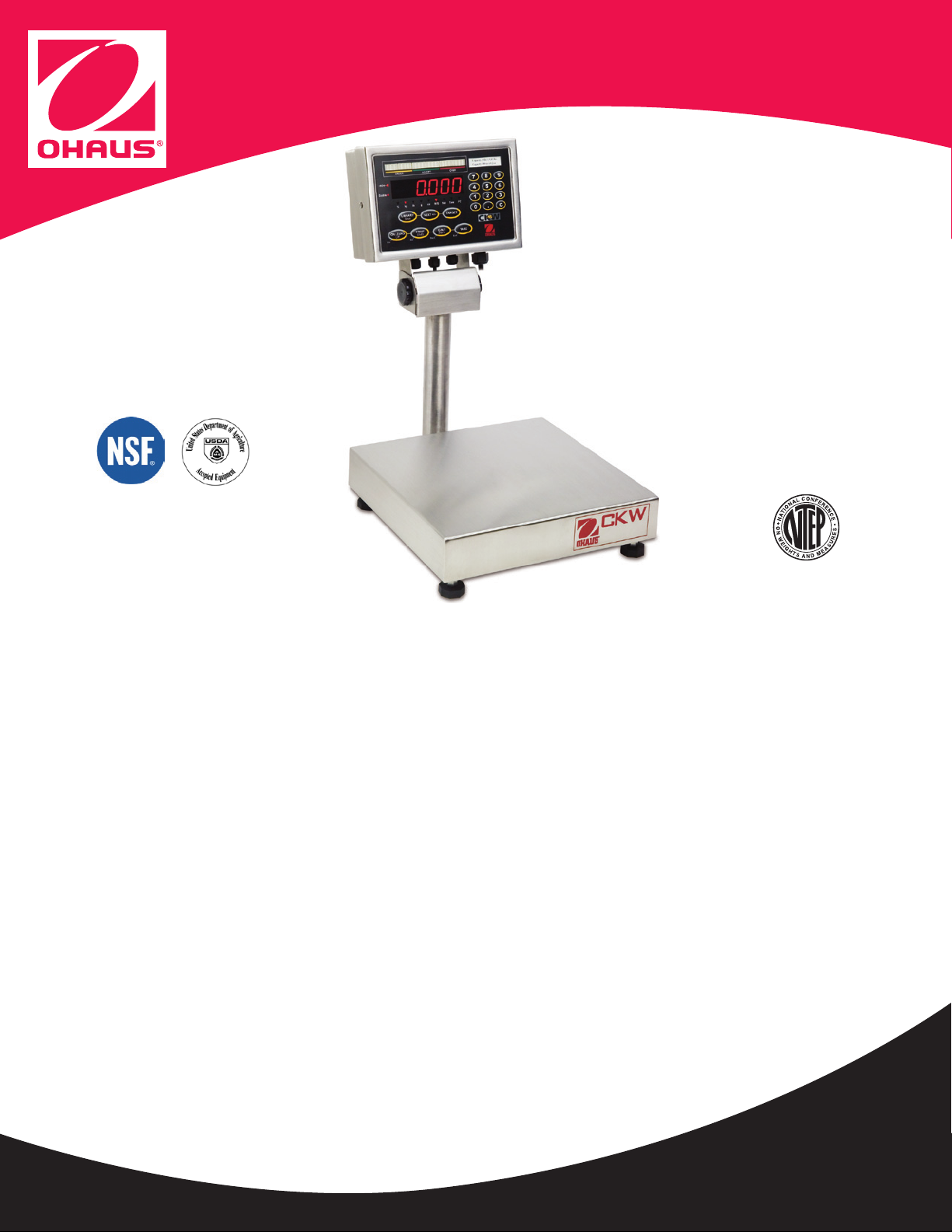

CKW Series
Checkweighing Scale
SUPPORTS HACCP
COMPLIANCE
The OHAUS CKW Checkweighing Scale—Speed, Durability and Cleanliness
The OHAUS CKW Series Scale models are engineered for static checkweighing operations and other
bench weighing applications—from general purpose to washdown. With its easy-to-clean design built
for food safety conformance and rigid stainless steel construction, the CKW Series scales are ideally
suited for use in industrial environments. Its configurability and construction were designed for simplicity
and dependability, resulting in increased productivity, security and lower cost of ownership.
Standard Features Include:
• Precision Resolution: 1:6000-7500 maximum, certified 1:3000
• All Stainless Steel Construction: Removable stainless steel platform with extended skirt and open
frame, stainless steel IP66 indicator and IP67 load cell
• Food Safe Design: NSF listed/certified to NSF/ANSI 169-2005 (formerly NSF C-2) and USDA-AMS
accepted to NSF/3-A 14159-1; supports HACCP compliance
• Checkweighing Setpoint Configurability: Set targets by Range, Variance by Weight or Percent
• Checkweighing Indications: 3-color 24-segment bar graph, Beeper Alert, Weight Display Alert
• Checkweighing Methods: Positive, Negative (Take-out), Zero or Net Checkweighing
• 20 Part Library Storage: Store information on Item ID No., Over, Under, Target
and Pre-set Tare Values
• Statistical Function: Includes accumulation with number of weighments,
Average and Standard Deviation
Page 2
CKW Series Checkweighing Scale
Designed for fast configuration, ease of use and speedy cleaning:
• Precision Resolution — The CKW Checkweigher features 1:6000 or 1:7500 maximum displayed readability with display speeds
of 2 seconds or under. For legal-for-trade use, the CKW Checkweigher supports 1:3,000 operation.
• Fast Target Entry — The CKW Checkweigher features a dedicated Target key and numeric keypad, allowing fast entry of
checkweighing setpoint values.
• Checkweigh Your Way — The CKW can be configured to checkweigh to meet your operational needs:
> Positive checkweighing for portioning and pre-packing
> Negative checkweighing for portioning out of boxes and other containers
> Zero (or Net) Checkweighing for sorting and grading operations
> Target tolerances can be set as weight values or as %
> The CKW Checkweigher can be set-up to tare the weight of containers using the dedicated Tare key on the indicator,
automatically using the Auto-Tare software and/or using an external input like a footswitch (also available from OHAUS).
> The CKW Checkweigher can be set-up in one or more weighing units: lb, oz, lb:oz, g, kg or % of target weight.
The CKW Checkweigher can also be set-up to alert your operators your way:
> The tri-color LED bar graph can be set-up to display each of the 24 segments individually, by color block (yellow,
green and red), as a continuous bar, scaled to the capacity of the target weight, or it can be turned off.
> The LED weight display can also be programmed to show a checkweigh indication of “over”, “under” or “accept”, or it
can be turned off so no weight is displayed at all.
> The CKW Checkweigher has a configurable audible beeper with selectable volume.
> The CKW Checkweigher can drive external devices — such as light bars — using the optional External Relay kit.
• Operator Lock-Out — Once the CKW Checkweigher is configured to your needs, it can be locked so that operators cannot
accidentally change targets and settings.
• Food-Safe Design — Built from food-safe stainless steel, the CKW Checkweigher includes an IP66/NEMA4X indicator, a base
with an open framework that is designed for cleaning in washdown environments. Each base has rounded corners, an external
platform skirt and drain holes to prevent accumulation of matter on the frame. The CKW Checkweigher is NSF listed and
USDA-AMS certified — a design that supports HACCP systems.
• Traceability and Connectivity — The CKW Checkweigher can provide GMP/GLP data (including time, date, and scale ID)
for traceability using the configurable bi-directional RS232 (included), or can be connected to systems using an optional
RS485/422 interface.
Special Features

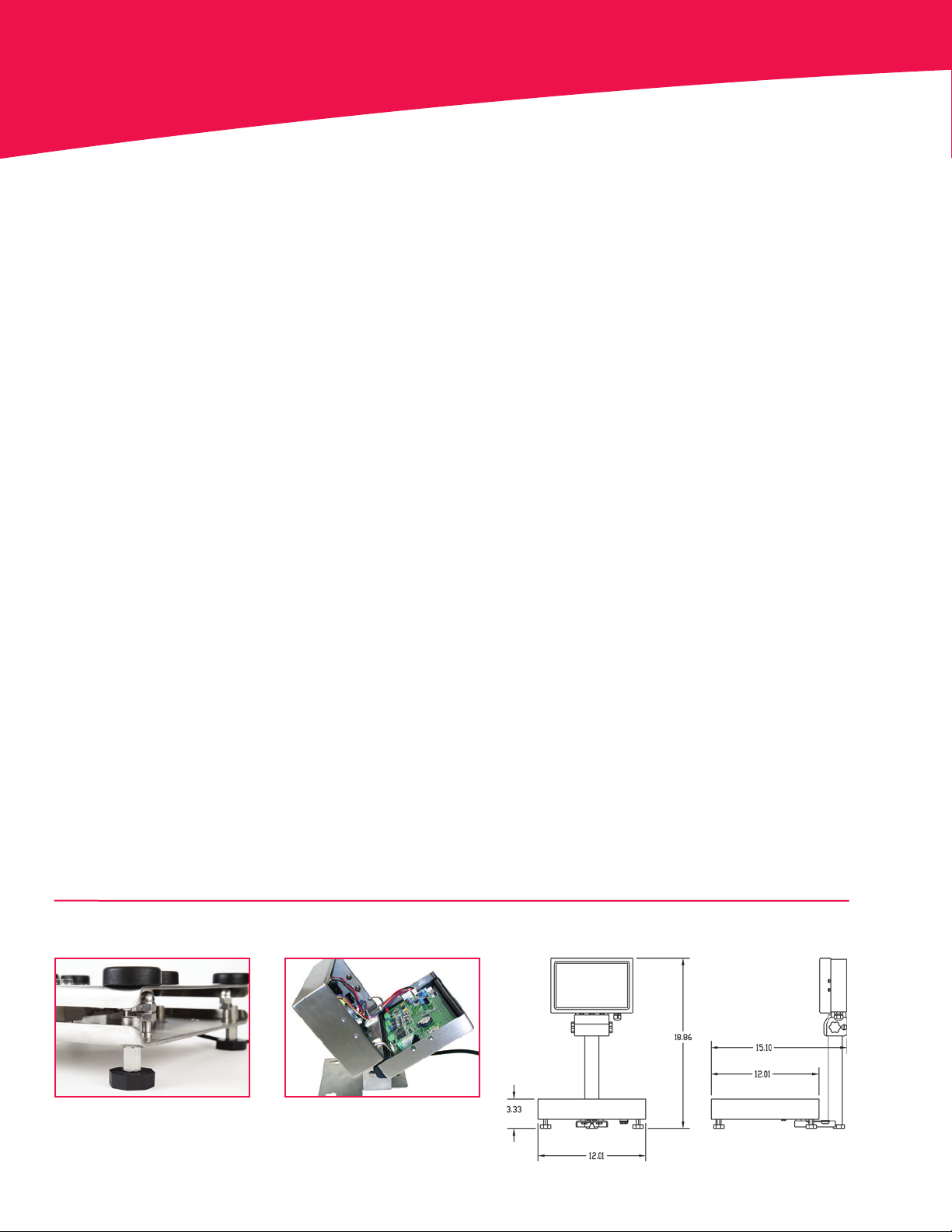

CKW15L Dimensions (inches)
No Threads Visible
Assures conformance to Food
Safety standards and minimized
contamination areas.
Internal Hinge Mechanism
Easy access for option installation
and servicing
See spec table (back page) for
other CKW platform dimensions.
Page 3

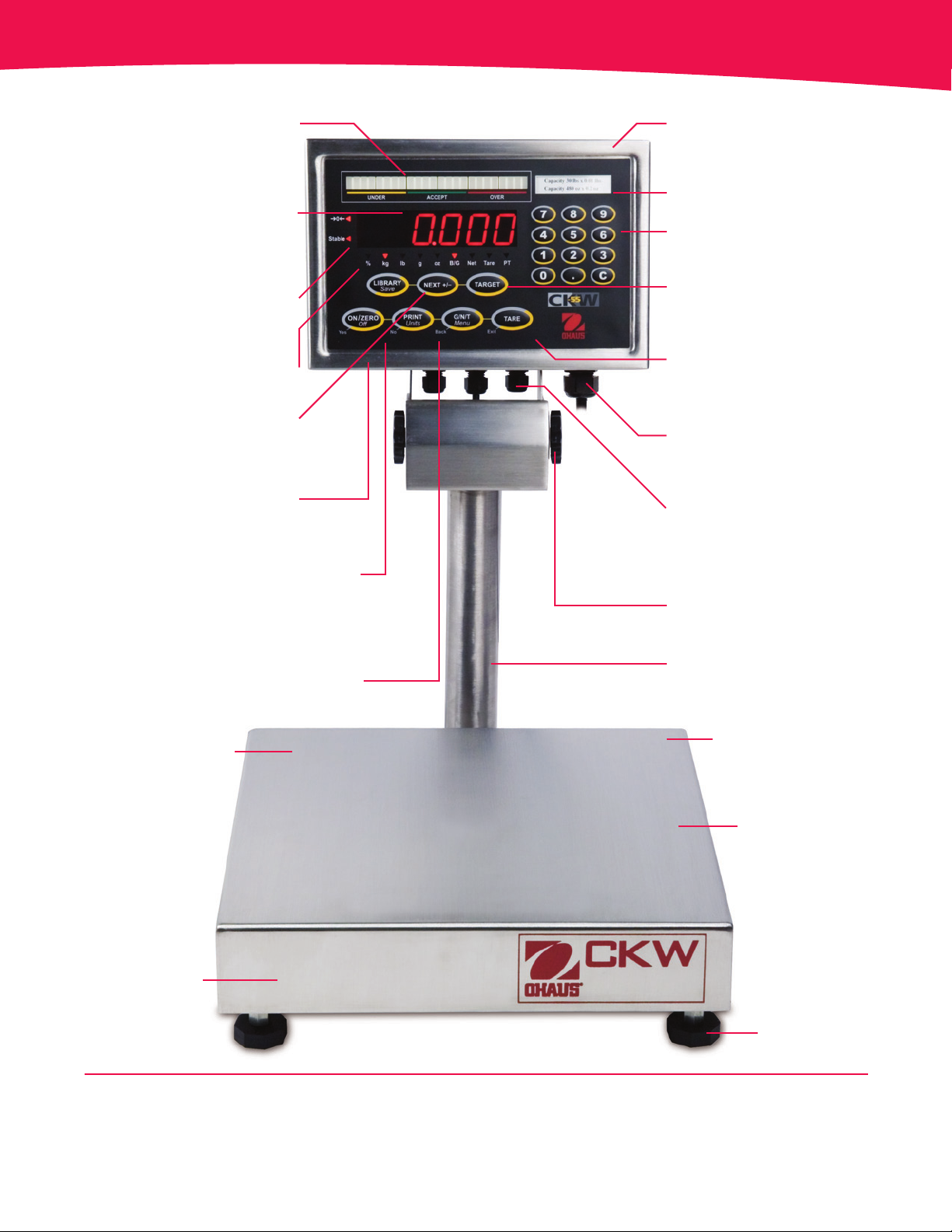

OHAUS CKW Productivity Features
Bar Graph
Configurable 3-color, 24-segment
Checkweighing bar graph
Selectable Display Control
Adjustable-brightness LED display;
configurable to blank out, or flash
within selected checkweigh conditions
Quick Stabilization
Display stable weight under 2 seconds
Multiple Weighing Units
Weigh in: kg, g, lb, oz, lb:oz, %
Negative Value Entry
Allows for Negative and Zero
or Net checkweighing
Audible Alert
Configurable volume beeper alert within
selected checkweighing conditions
Other Features:
Auto-Tare, Auto-Tare on Accept,
configurable data output,
Accumulation with Average
and Standard Deviation
Easy Setup
Menu navigation callouts simplifies user setup
Washdown Design
Stainless steel NEMA 4X / IP66
washdown enclosure
Internal Label Slot
Numeric Keypad
Dedicated Checkweighing
Setpoint Entry Key
Entry by Range, Weight or
Percent Variance from Target
Function Lockouts
Software and Hardware Lockouts
to prevent tampering of settings
Power Supply
100-240 VAC Universal power supply;
optional rechargeable NiMH battery
Connectivity
RS232, External Input;
optional RS422/485,
AC/DC Relay Output kits
Adjustable Indicator
Maximizes viewing angle
Stainless Steel Column
Hollow to minimize food traps
Stainless Steel Platform
304 stainless steel
platform and frame
ensures durability and
cleanability
Added Protection
Extended wrap-around
platform skirt minimizes
entry of water and
contamination into the
frame; added protection
for the IP67 load cell
Accessories and Options
• Foot Tare Switch
• Rechargeable NiMH
Battery Kit
• Rechargeable NiMH Battery
• DC Relay Kit
• AC Relay Kit
Overload Protection
Employs 6 down
stops to ensure safe
overload protection
Space-Saver
Compact footprint
and weighing area
(10x10˝ or 12x12˝ )
contribute to work
space efficiency
Non-Slip Feet
4 adjustable
non-slip
rubber feet
• RS422/485 Kit
• Wall Bracket Kit
Page 4
CKW Series Checkweighing Scale
Specifications
Models CKW3R55 CKW6R55 CKW15L55 CKW30L55
6 lb x .001 lb
Capacity (max) x Enhanced
Readability
96 oz x 0.02 oz
6 lb x 0.02 oz
3 kg x 0.5g
Maximum Displayed Resolution 1:6000 1:7500 1:7500 1:6000
Capacity (max) x
Approvable Readability
6 lb x 0.002 lb
3 kg x 0.001 kg
Approval Resolution 1:3000 1:3000 1:3000 1:3000
Platform Dimensions
(WxDxH)
10 x 10 x 2.3 in /
254 x 254 x 57.5 mm
Load Cell Capacity 6 kg 10 kg 30 kg 50 kg
Safe Overload Capacity 150% of rated capacity
Protection Load Cell: IP67, Indicator: NEMA 4X / IP66
Column Tubular 304 Stainless Steel 300 mm / 11.8 in Fixed Height with Indicator and Base Mounting Brackets
Weighing Units kg, lb, g, oz, lb:oz, %
Weight Display
Checkweigh Indication 24-segment LED (3 color x 8) Bar Graph, Audible Beeper and LED Display with Multiple User Setups
Keyboard Numeric, 7 Function keys with dedicated Tare and Target Entry Buttons, Raised Tactile Membrane Switch
Stabilization Time Within 2 Seconds
Auto-zero Tracking Off, .5, 1 or 3 Divisions
Zeroing Range 2%, 18% or 100% of Capacity
Span Calibration 1 lb / kg to 100% of Capacity
Power 100-240 VAC/50-60Hz Universal Power Supply with Hardwired Cord/Optional: Internal Rechargeable NiMH Battery(10-hour life)
Interface Built-in RS232 and External Remote Input / Optional: RS485/422, Relay Output
Operating Temperature Range 14°F to 104°F / -10°C to 40°C
Net Weight 19.2 lb / 8.7 kg 21.6 lb / 9.8 kg 26.2 lb / 11.9 kg 28.4 lb / 12.9 kg
Shipping Dimensions
(W x D x H)
19.1 x 15.3 x 16.1 in /
485 x 390 x 410 mm
Shipping Weight 24.7 lb / 11.2 kg 27.1 lb / 12.3 kg 32.0 lb / 14.5 kg 34.2 lb / 15.5 kg
15 lb x .002 lb
240 oz x 0.05 oz
16 lb x 0.05 oz
6 kg x 1 g
15 lb x 0.005 lb
6 kg x 0.002 kg
305 x 305 x 57.5 mm
3
/4 in / 20 mm High 6-digit, 7-segment LED
19.1 x 15.3 x 16.1 in /
485 x 390 x 410 mm
19.1 x 15.3 x 16.1 in /
485 x 390 x 410 mm
30 lb x .005 lb
480 oz x 0.1 oz
30 lb x 0.1 oz
15 kg x 2 g
30 lb x 0.01 lb
15 kg x 0.005 kg
12 x 12 x 2.3 in /
60 lb x .01 lb
960 oz x 0.2 oz
60 lb x 0.2 oz
30 kg x 5 g
60 lb x 0.02 lb
30 kg x 0.01 kg
12 x 12 x 2.7 in /
305 x 305 x 69.5 mm
19.1 x 15.3 x 16.1 in /
485 x 390 x 410 mm
Physical Features
Base features stainless steel frame and loadcell, removable stainless steel platform, stainless steel indicator mounting column, rubber
user-adjustable leveling feet and externally-visible leveling bubble, and overload stops to protect loadcell. Indicator constructed
of stainless steel and features hinged front panel for improved access during optional installation. Large LED weight display and
configurable 24 segment high-contrast checkweighing LED’s with brightness controls and power saving options. Audible beeper and
key beep with selectable volume control. On-display annunciators for weight, mode, scale stability, center of zero, net weight, tare
weight and unit. Numeric keypad, dedicated keys for Tare and setting Target values. Configurable external remote input, configurable
RS232 interface. Hardwired internal universal switching power adapter with power saving modes, optional internal NiMH battery
with on-screen low battery display and LED segment battery charging indication. Sealable scale configuration and calibration lockout
switch.
Operational Features
General operation with selectable weighing units, semi-automatic or automatic tare, configurable software setup and keypad
lockout, configurable scale auto-off, adjustable auto-zero tracking, selectable retain zero data on power off, adjustable zeroing range,
choice of display graduations, selectable environmental averaging settings, LED brightness control and beeper volume control.
Configurable checkweighing mode with selectable displays and alerts, one-key target entry, 20 memory Library function with fields
for SKU/over value/target value/under value/tare weight. Accumulation software with display of total number of weighments, total
weight accumulated, average weight, standard deviation of weighments. Geo Factor calibration gravity adjustment, adjustable span
or linearity calibration in kg or lb unit with optional external masses, user-selectable calibration software, calibration test mode.
Selectable print settings and output, including output of menu settings or library data and configurable print commands for print, tare
and zero operations. GMP/GLP output with time, date, user id, project id, scale id and scale name. Selectable scale address (0 to 99)
with RS485 option for systems integration.
Approvals/Listings/Certifications
• Food Processing and Service: NSF Listed/Certified to NSF/ANSI 169-2005 Special Purpose Food Equipment and Devices (for-
merly NSF C-2); USDA/AMS Accepted to NSF/3-A 14159-1 Hygiene Requirements for the Design of Meat and Poultry Processing
Equipment; meets requirements for HACCP conformity
• Electrical/Emissions: cULus, FCC Class B, Industry Canada Class B, CE EN60950, EN55022, EN61326
• Legal-for-Trade:
NTEP CC No. 06-038 (indicator); 06-030 (base)
Measurement Canada Approval No. AM-5632 (indicator); AM-5607 (base)
EC Type approval TC6569 / T5980 (indicator)
OIML R76-1992-NL1-04.19 (indicator); OIML R60 2000-NL1-03.24 / R60 2000-NL-02.14 (load cell)
• Quality: Ohaus quality management system registered to ISO 9001:2008
