Adventurer
Analytical and Precision Balances
TM
Pro

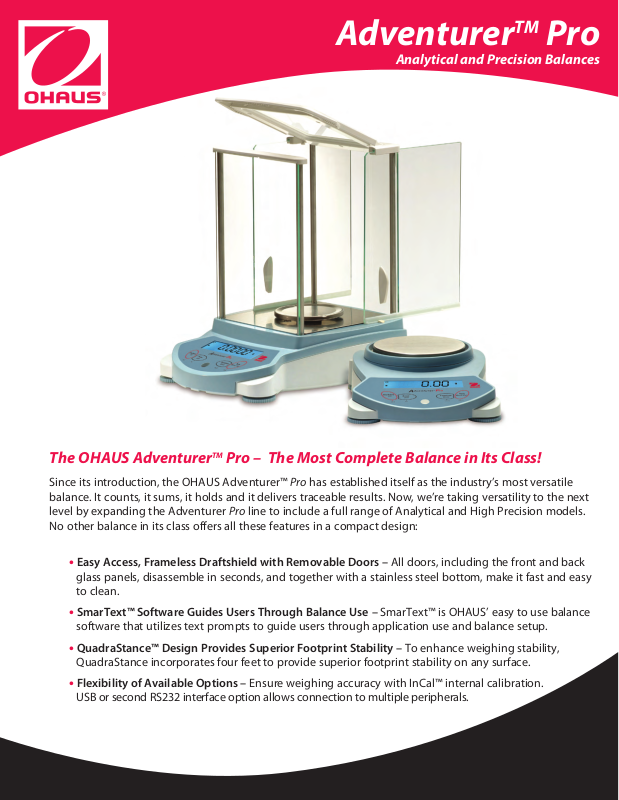

The OHAUS AdventurerTM Pro – The Most Complete Balance in Its Class!
Since its introduction, the OHAUS Adventurer™ Pro has established itself as the industry’s most versatile
balance. It counts, it sums, it holds and it delivers traceable results. Now, we’re taking versatility to the next
level by expanding the Adventurer Pro line to include a full range of Analytical and High Precision models.
No other balance in its class offers all these features in a compact design:
• Easy Access, Frameless Draftshield with Removable Doors – All doors, including the front and back
glass panels, disassemble in seconds, and together with a stainless steel bottom, make it fast and easy
to clean.
• SmarText™ Software Guides Users Through Balance Use – SmarText™ is OHAUS’ easy to use balance
software that utilizes text prompts to guide users through application use and balance setup.
• QuadraStance™ Design Provides Superior Footprint Stability – To enhance weighing stability,
QuadraStance incorporates four feet to provide superior footprint stability on any surface.
• Flexibility of Available Options – Ensure weighing accuracy with InCal™ internal calibration.
USB or second RS232 interface option allows connection to multiple peripherals.
Adventurer
Pro Analytical and Precision Balances
Frameless Draftshield With Removable Doors Provides Convenient Access
Users frustrated by navigating tight spaces will welcome the easy-access
weighing chamber of the Adventurer Pro. The draftshield
is designed without the need of top rails, so users
have unobstructed entry to place or retrieve
materials to be weighed. With such
unobstructed entry, the chance for
accidental spillage is reduced
helping to eliminate waste.
With contamination being a concern
in today’s work environment, all
doors, including the front and back
glass panels are simple to remove
and replace for fast and easy cleaning. Should
breakage occur, within three easy steps, each
replacement door and panel
can be installed in seconds.
TM
SmarTextTM Software Brings Man and Machine Together
SmarTextTM is OHAUS’ easy to use balance software that utilizes
text prompts to guide users through application use and balance
setup. Delivered through a 2-line backlit LCD and clearly marked
buttons, SmarText tells you what is going on and what you have
to do next.
Utilizing the 2-line LCD, SmarText simultaneously displays weight and application
specific information such as percent or count. For example, with one touch of the
Function button, SmarText will display application reference information such as
average piece weight (APW), while displaying a parts count.
QuadraStanceTM Design for Superior Stability
QuadraStance™ incorporates four adjusting feet to provide superior footprint stability on
any surface. QuadraStance helps prevent rocking and tipping, enhancing the weighing
stability of the balance, and keeping the Adventurer Pro level and accurate.
Additionally, Adventurer Pro has been designed with an up-front level indicator eliminating
the need to look behind the balance during the leveling process. A quick glance at the
up-front level indicator helps to ensure that the balance is level prior to each use.
Added Flexibility of Available Options
The Adventurer Pro also now offers InCalTM internal calibration. InCal ensures weighing accuracy by allowing you to calibrate the balance prior to use without the need of external weights.
All Adventurer Pro models come with a built-in RS-232 interface, and for added functionality
can be equipped with either a second RS-232 or USB interface, allowing connections to multiple
peripherals. With full GLP/GMP data output, Adventurer Pro can meet traceability and compliance requirements.
Other Standard Features Include:
Multiple Application Modes Including:
• Animal Weighing Mode – This mode allows the user to weigh small animals and filters
out animal movements to provide a stable weight indication
• Parts Counting with Optimization – This mode allows the user to count based on a
calculated piece weight. With optimization, counting accuracy is improved through
auto re-calculation of the piece weight
• Percentage Mode – This mode allows the user to display the weight of a sample as a
percentage of a reference weight
• Checkweighing Mode – This mode allows the user to check the weight of a sample
against a preset target
• Totalization Mode – This mode allows the user to sum a series of sample weights
• Display Hold Mode – This mode allows the user to hold the highest stable weight on the display until cleared
Selectable Environmental Settings
• Three filter modes and adjustable zero tracking are ideal for working in slow filling applications where sensitivity is
a must. When working in harsh environments, user can adjust balance settings to compensate for vibrations and
other disturbances.
Protective In-Use Cover
The in-use cover is replaceable and offers protection against dust and debris, minimizing the chance of damage to
the display and keypad buttons.
Feature Rich: Adventurer Pro Is The Most Complete Balance In Its Class
Easy to Clean
Connectivity
Adventurer Pro comes with an included
RS232 interface. A second RS232 or
USB interface
is also available
as a user
installed
option
AC and / or Battery Power
Some models offer portability
and can operate on either the
included AC adapter, or on 4
“AA” batteries. An Auto Shutoff
feature helps conserve battery
life
Security
To prevent
unwarranted
movement or
theft, an integrated
security bracket
accommodates the accessory security
device
Easy to View Display
Adventurer Pro features a
2-line alphanumeric LCD
with brilliant backlight.
Portable models include a
backlight auto-off feature to
conserve battery life
Adventurer Pro’s stainless steel platform
and removable
wind ring make
it extremely
easy to clean
Weigh-Below Hook
Adventurer Pro’s integral weigh-below
hook allows density determination
or calculating the
specific gravity of
samples
Multiple Weighing Units
Adventurer Pro features multiple
weighing units including a userdefined custom unit for use in
unique weighing applications
Easy to Use Keypad
Four-button keypad with dedicated
YES, NO, BACK and EXIT functions
simplify menu navigation and
balance set-up
220 mm
3.4 in
90 mm
8.7 in
220 mm
11.8 in
300 mm
General Specifications
Weighing Units*
Application Modes
Milligram, Gram, Kilogram, Ounce, Pound, Carat, Pennyweight, Ounce Troy, Grain, Newton,
Hong Kong Tael, Singapore Tael, Taiwan Tael, Momme, Tical, Baht, Mesghal, Tola, Custom
Weighing, Animal /Dynamic Weighing, Parts Counting with Automatic Sample Recalibration,
Percent Weighing, Checkweighing, Totalization, Display Hold
Tare Range To capacity by subtraction
Operating Temperature Range 50° - 86°F / 10° - 30°C
Calibration
Digital with External Weight (non-”C” models)
Digital with Internal Weight (“C” models with InCal option)
Display Type 2-Line Alphanumeric Backlit LCD Display
Display Size (in/cm) 4 x 1 / 10 x 2.5
* Milligram unit available on 0.1mg to 1mg models
Kilogram and Pound units available on 0.01g to 0.1g models
Technical Specifications, Precision Balances
Models with InCal
Internal Calibration
Models without InCal
Internal Calibration
TM
TM
Not Available AV213C AV313C AV212C AV412C AV812C AV2102C AV3102C AV2101C AV4101C AV8101C
AV53 AV213 AV313 AV212 AV412 AV812 AV2102 AV3102 AV2101 AV4101 AV8101
Capacity (g) 51 210 310 210 410 810 2100 3100 2100 4100 8100
Readability (g) 0.001 0.01 0.1
Repeatability (Std. dev.) (g) 0.001 0.01 0.1
Linearity (g) ± 0.002 ± 0.02 ± 0.2
Stabilization Time (seconds) 2.5 3 1.5* 3 2*
Power Requirements w/ InCal Not Available AC Adapter (Included)
Power Requirements w/o InCal
Draftshield Type with
Height Over Pan (in/cm)
AC Adapter (Included)
or 4 AA Batteries
(Not Included)
Round:
2.75 / 7
AC Adapter
(Included)
Square:
4.5 / 11.5
AC Adapter (Included)
or 4 AA Batteries (Not Included)
AC Adapter
(Included)
None
AC Adapter (Included)
or 4 AA Batteries (Not Included)
Pan Size with InCal (in/cm) Not Available 4.7 / 12 dia. 6.6 x 7.1 / 16.8 x 18
Pan Size without InCal (in/cm) 3.9 / 10 dia. 4.7 / 12 dia. 5.8 x 6.3 / 14.9 x 16.2 6.6 x 7.1 / 16.8 x 18 5.8 x 6.3 / 14.9 x 16.2
Balance Dimensions w/ InCal
W x H x D (in/cm)
Balance Dimensions w/o InCal
W x H x D (in/cm)
Shipping Dimensions w/ InCal
W x H x D (in/cm)
Shipping Dimensions w/o InCal
W x H x D (in/cm)
Not Available
7.6 x 5.7 x 10 /
19.3 x 14.5 x 25.4
Not Available
10.9 x 10.9 x 15.2 /
27.6 x 27.6 x 38.5
8.7 x 7.5 x 11.8 /
22 x 19 x 30
8.7 x 7.5 x 11.8 /
22 x 19 x 30
15.5 x 16 x 19.5 /
39 x 41 x 50
15.5 x 16 x 19.5 /
39 x 41 x 50
7.6 x 2.8 x 10 /
19.3 x 7.2 x 25.4
10.9 x 6.3 x 15.2 /
27.6 x 16 x 38.5
8.7 x 3.3 x 11.8 /
22 x 8.5 x 30
8.7 x 3.3 x 11.8 /
22 x 8.5 x 30
15.5 x 13 x 19.5 /
39 x 33 x 50
15.5 x 13 x 19.5 /
39 x 33 x 50
7.6 x 2.8 x 10 /
19.3 x 7.2 x 25.4
10.9 x 6.3 x 15.2 /
27.6 x 16 x 38.5
Net Weight w/ InCal (lb/kg) Not Available 8.2 / 3.7 5.7 / 2.6 7.5 / 3.4 6.9 / 3.2 7.7 / 3.5
Net Weight w/o InCal (lb/kg) 3.1 / 1.4 7.3 / 3.3 2.6 / 1.2 3.3 / 1.5 6.1 / 2.8 3.5 / 1.6
Shipping Wt w/ InCal (lb/kg) Not Available 14.6 / 6.6 11.9 / 5.4 13.7 / 6.2 13.4 / 6.1 13.9 / 6.3
Shipping Wt w/o InCal (lb/kg) 5.7 / 2.6 13.7 / 6.2 4.8 / 2.2 5.3 / 2.4 12.6 / 5.7 5.5 / 2.5
*Note: Models AV212C, AV2101C, AV4101C and AV8101C have a stabilization time of 3 seconds
Outline Dimensional Drawings, Precision Balances
5.69 in
144.5 mm
Model AV53
2.83 in
72 mm
Models AV212, AV412, AV812, AV2101, AV4101, AV8101
Models AV2102, AV3102
Models AV53, AV212, AV412, AV812, AV2101, AV4101 and AV8101 feature battery capability and a full protective in-use cover
3.4 in
3.4 in
90 mm
90 mm
7.17 in
182 mm
10 in
254 mm
7.6 in
193 mm
Models AV53, AV212, AV412, AV812,
AV2101, AV4101, AV8101
8.7 in
8.7 in
220 mm
11.8 in
11.8 in
300 mm
300 mm
Models AV213, AV213C, AV313, AV313C,
AV212C, AV412C, AV812C, AV2102, AV2102C,
AV3102, AV3102C, AV2101C, AV4101C, AV8101C
Adventurer
TM
Pro Electronic Balances
Technical Specifications, Analytical Balances
Models with InCal
Internal Calibration
Models without InCal
Internal Calibration
Capacity (g) 65 110 260
Readability (mg) 0.1
Repeatability (Std. dev.) (mg) 0.1
Linearity (mg) ± 0.2 ± 0.3
Stabilization Time (seconds) 3
Power Requirements AC Adapter (Included)
Draftshield Type
w/ Height Over Pan (in/cm)
Pan Size (in/cm) 3.5 / 9 dia.
Balance Dimensions
W x H x D (in/cm)
Shipping Dimensions
W x H x D (in/cm)
Net Weight w/InCal (lb/kg) 9.6 / 4.4
Net Weight w/o InCal (lb/kg) 8.7 / 4
Shipping Weight w/ InCal (lb/kg) 16.2 / 7.4
Shipping Weight w/o InCal (lb/kg) 15.3 / 7
TM
TM
AV64C AV114C AV264C
AV64 AV114 AV264
Square: 8.6 / 22
8.7 x 12 x 11.8 /
22 x 30.5 x 30
15.5 x 20.5 x 19 /
39 x 52.5 x 50
Outline Dimensional Drawings, Analytical Balances
11.8 in
300 mm
Other Standard Features and Equipment
Stability indicator, mechanical and software overload/underload protection, low battery indicator, AC adapter, user
selectable span calibration points, auto tare, user selectable printing options, user selectable communications
settings, user selectable data print options, user definable project and user ID’s, software reset menu,
software lockout menu
8.7 in
220 mm
12.0 in
305 mm
(high draftshield)
7.5 in
190 mm
(short draftshield)
Approvals
CE, FCC, CULUS, CCSAUS, NRTL
C Tick
CB Scheme
IP33 (without Power Adapter; with Pan put on)
IP20 (with Power Adapter, with Pan put on)
Options and Accessories OHAUS Number
Dot Matrix Printer ...................................................................................................................... 80252042
Cable kit to connect Dot Matrix Printer to Adventurer Pro ........................................................ 80252571
Paper for Dot Matrix Printer ...................................................................................................... 80251932
Ink Ribbon for Dot Matrix Printer .............................................................................................. 80251933
Thermal Printer .......................................................................................................................... 80251992
Paper for Thermal Printer .......................................................................................................... 80251931
Cable kit to connect Thermal Printer to Adventurer Pro ............................................................ 80252581
Ohaus Collect Software .............................................................................................................. 80500746
TAL Software WinWedge ........................................................................................................... SW12W
RS232 Cable, PC 25 Pin to Adventurer Pro ............................................................................... 80500524
RS232 Cable, PC 9 Pin to Adventurer Pro ................................................................................. 80500525
Density Determination Kit for Adventurer Pro analytical balances (0.1mg) except AV53 .......... 80253384
Security Device for Adventurer Pro ........................................................................................... 76288-01
In-Use Cover for Adventurer Pro (large housing) ...................................................................... 12103879
2nd RS232 Interface Kit for Adventurer Pro .............................................................................. 80850092
USB Interface Kit for Adventurer Pro ......................................................................................... 83033014
Industry Leading Quality and Support
All OHAUS Adventurer
TM
Pro balances are manufactured under an ISO 9001:2008 Registered Quality Management
System. Our rugged con struc tion and stringent quality control have been hallmarks of all OHAUS products for
over a century.
OHAUS CORPORATION
* 7 Campus Drive
Suite 310
Parsippany, NJ 07054 USA
Tel: 800.672.7722
973.377.9000
Fax: 973.944.7177
www.ohaus.com
With offices throughout Europe,
Asia, and Latin America
* ISO 9001
Registered Quality Management System
80774299_D © Copyright Ohaus Corporation
Loading...
