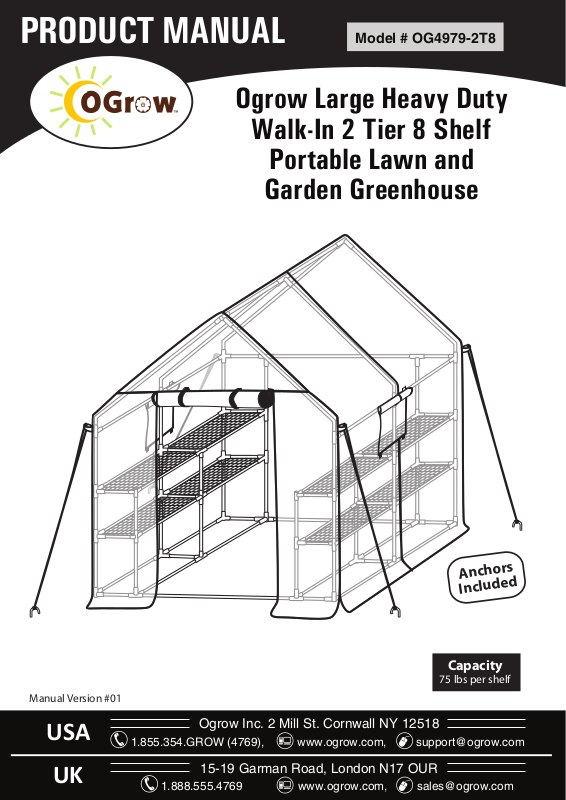

Page 1
PRODUCT MANUAL
Ogrow Large Heavy Duty
Walk-In 2 Tier 8 Shelf
Portable Lawn and
Garden Greenhouse
Model # OG4979-2T8
Manual Version #01
USA
UK
Anchors
Included
Capacity
75 lbs per shelf
Ogrow Inc. 2 Mill St. Cornwall NY 12518
1.855.354.GROW (4769), www.ogrow.com, [email protected]
15-19 Garman Road, London N17 OUR
1.888.555.4769 www.ogrow.com, [email protected]
Page 2
Number
Picture QTY.
QTY.
Number
A
B
C
D
E
F
G
4
6
2
6
26
1
2
4
2
6
7
11
16
X
Y
(25 in.)
(10 in.)
(31 in.)
(17.5 in.)
(35.5 in.)
16
3
20
6
32
30
8
1
4
G
STEP 4
STEP 3
STEP 2
A
11
E
11
E
D
16
X
STEP 5
7
C
E
X
16
E
G
16
A 2
6
16
F
D
E
E
E
A
A
E
16
7
E
B
E
C
B
E
E
E
E
E
D
16
16
STEP 1
11
D
E
16
E
6
2
E
6
D
16
Page 3
STEP
1
4xD 8xE 8x16 2x2 6x6 12x11
Assemble the base with the above parts.
Once base is assembled build upwards using the parts listed in step 2.
STEP
2
STEP
3
STEP
4
STEP
5
STEP
6
8xE 4xB 4x6 12x11 6x6 8x16 4xX
This forms the next level. Once completed build the next level with parts listed in step 3.
8xE 2xB 4x6 8x11 2xD 6x6 8x16 4xX
This forms the next level. Once completed build the next level with parts listed in step 4.
4xA 2xC 2xE 1x2 4x16 2x6 6x7
This forms the next level. Once completed build the next level with parts listed in step 5.
2xG 1xF 2x16
This forms the final level. Once completed, place the cover (Y) over the frame and attach.
In order to have the frame connected you will need to assemble the frame by pushing
downward while connecting two rods at a time, giving it an extra force (when frame is
complete repeat from all angles, as picture shown). This will result in a tighter and smaller
frame enabling the greenhouse cover to slide on easily.
Page 4

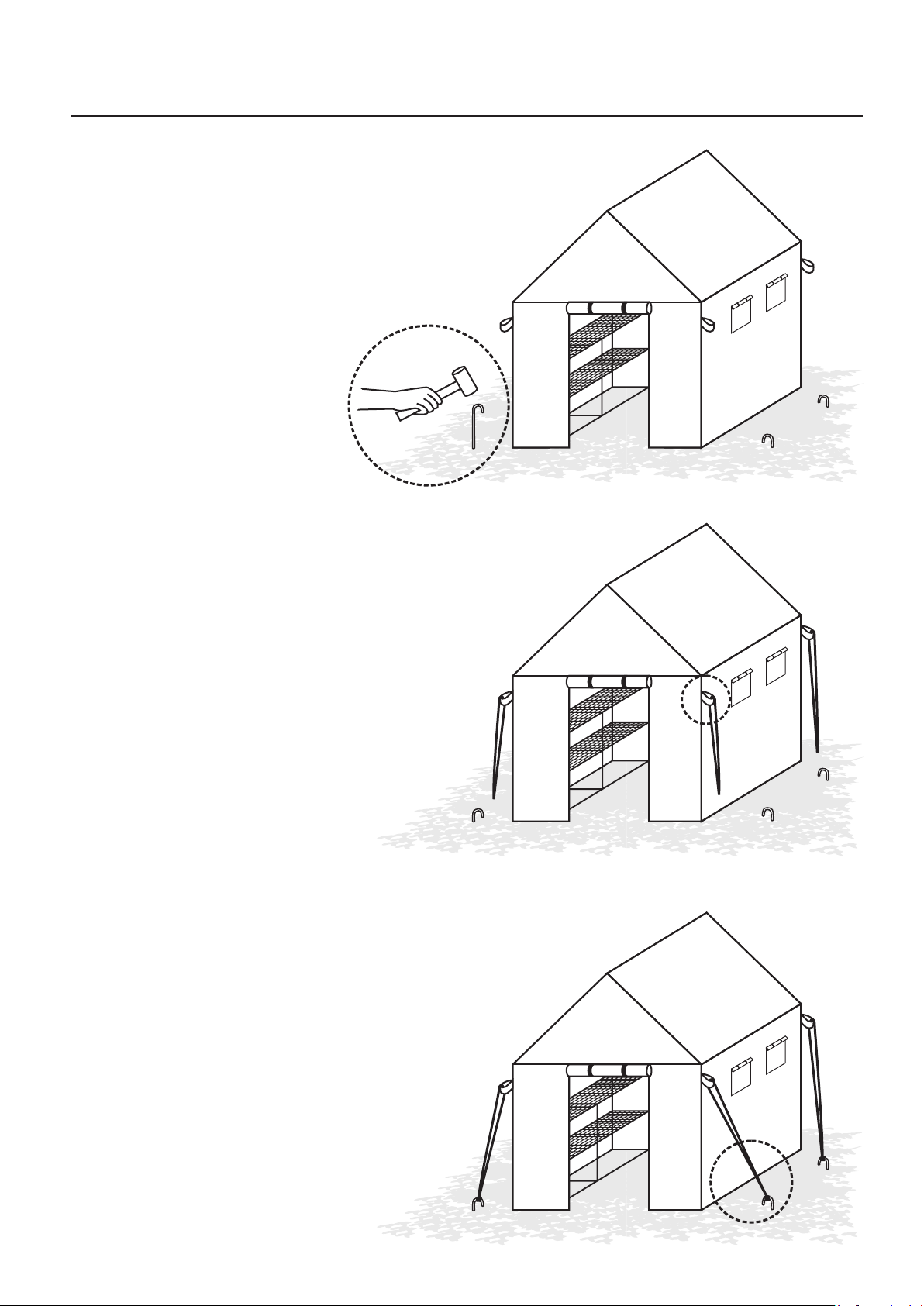

Anchor kit Assembly Instructions
Step 1
Hammer the anchors into the soil,
placing them on all four sides of
the greenhouse.
Step 2
Connect the top end of the rope into
the strap on the top of the greenhouse
for all 4 sides as image shown.
Step 3
Take the other end of the rope and
pass it through the bended side of
anchor as shown in figure.
Repeat the step for all 4 sides.
