54M/150M/300Mbps
USB WIRELESS ADAPTER
User’s Manual
Version 1.8
User’s Manual Wireless USB Adapter
Introduction
Thank you for purchasing the IEEE 802.11b/g or 802.11n Wireless USB Adapter. This
Wireless Adapter is easy to use and easy to setup. If you have been tired of dealing with all
those messy wires to connect a laptop or PC to office or home network, this Wireless adapter is
an ideal access solution for wireless Internet connection.
A typical Internet access application for the USB wireless adapter is shown as the following
figure:
There are two different ways to access Internet:
1. With a wireless adaptor, receiving and transferring signal via a wireless router, then
passed to an ADSL modem, then to local ISP (Internet service supplier) through a
telephone line.
2. With a wireless adaptor, receiving and transferring signal via local AP (Access Point) or
so called Hotpoint directly.
Tips: An 802.11 LAN is based on a cellular architecture where the system is subdivided into
cells, where each cell (called Basic Service Set or BSS) is controlled by a Base Station
(called Access Point, or in short AP).
Package Contents:
z One 54 Mbps 802.11b/g or 150Mbps or 300Mbps 802.11n USB Wireless Adapter.
z Adapter Installation disc.
z User’s Manual.
z Antenna (optional)
Warranty
The warrants for the end user (“Customer”) that this hardware product will be free from defects
in workmanship and materials, under normal use and service, for twelve (12) months from the
date of purchase from its authorized reseller. Information in this document is subject to change
without prior notice.
Page 1
User’s Manual Wireless USB Adapter
Installation
To install the driver of the USB adapter, please use administrator user account to login before
the following steps:
Tips: the latest original drivers can be down loaded from the website of Ralink chipset
manufacturer. The current website is http://www.ralinktech.com/support.php To find a
correct driver, please identify the chipset type applied in the adapter you have.
1. For a 54Mbps 802.11b/g or a 150Mbps or 300Mbps 802.11n adapter, double click
Ralink_***.exe program, which is located in the driver folder in the installation disc. Such
as: G:\WiFi Driver\Windows Driver\ RT2070_RT307X.exe.
Notes: Because Ralink often updates software, the drivers contained in the disc
might be changed without prior notice.
2. Follow the instructions and prompts of the “InstallShield Wizard” to finish the driver
installation:
a. Select the “I accept the terms of the license agreements”, then click the “Next”.
b. There shows a setup type window, you can select “Install driver only” or “Install driver
and Ralink WALN utility” and then click the “Next”.
Page 2
User’s Manual Wireless USB Adapter
Tips:
1).The Windows XP utilizes a "Wireless Zero Configuration( WZC)" Service built into
the operating system. Many wireless network adapter cards utilize this service.
2). Ralink- the chipset manufacturer has developed a utility for setting up wireless
connection. If you select this item, you can switch between the Windows XP’s WZC
service and the Ralink WLAN utility service later.
c. Click the “Install” to confirm the installation, there shows the installation progress.
d. Click “finish” to finish the driver installation.
Page 3
User’s Manual Wireless USB Adapter
Wireless Connection
1. After finishing driver installation, insert the USB adapter to Notebook or PC that
supports USB 2.0/1.1 interface.
Remarks: Make sure to connect the adapter to an USB port on your computer
directly rather than an USB hub. Although it might work when connecting with an
USB hub, the likelihood of configuration problems will be higher.
2. The system shows a wireless utility icon in the Windows system tray, which locates in
the bottom-right corner of your computer screen, and pops up a message that indicates
a new hardware is found and installed, something like this:
Should the service " Wireless Zero Configuration ( WZC)" be applied.
1. Doub le-click the utility icon or right click the icon and then select “View Available
Wireless Networks” to launch the utility, the Wireless Network Connection window
appears and displays your wireless network listed with the SSID you chose.
Notes: Before configuring your WiFi access, you need to have your network’s SSID
(service set identifier), security key and authentication type handy. Check the
documentation coming with your router, ask your network administrator to get the
information.
Page 4
User’s Manual Wireless USB Adapter
2. If you don't see your network, click “Refresh network list” in the upper left corner. If you
are locating within the valid range of hotspots or wireless routers, all available networks
will be recognized and listed automatically. Click your preferred network, and then click
“Connect” in the lower right corner.
3. If the network security key hasn’t been inputted before, Windows XP prompts you to
enter the network’s security key to access the wanted SSID. Type the encryption key
that you wrote down earlier in both the Network key and Confirm network key boxes,
and then click “Connect”.
Tips: If there are free hotspots, simply select the network you want from the list
displayed, then click Connecting. It tries to launch your Internet browser—you should
be connected to the Internet.
If there is a pay hotspot, signing in or up will require either to enter your login
information-if you‘re an existing customer, or to enter your credit card information for
payment, it is just decided by you. Then clicking the Connecting, your default Internet
browser will launch and take you to the service provider’s login page. Most providers
have very simple and step-by-step instructions for you to sign up and then to be
connected. Another way to access the service provider’s login page is to simply
launch your Internet browser, if there’s a pay network available, you’ll be taken
directly to the login page.
Page 5
User’s Manual Wireless USB Adapter
Should the service of Ralink wireless connection utility be applied.
After the installation of Ralink utility, the system shows a special wireless utility icon in the
Windows system tray, which locates in the bottom-right corner of your computer screen:
When an USB wireless adapter is inserted into an USB 2.0/1.1 port of Notebook or PC,
the icon changes colors according to the wireless signal quality.
1. Double-click the icon or right click the icon and then select “Launch Config Utility” to
launch the utility, the RaUI window appears like:
The Ralink wireless utility starts in compact mode as shown above, provides profile
management, the available networks listing, a statistical counter display, Wi-Fi
multimedia (WMM), protected Wi-Fi setup, Cisco compatible extensions (CCX), call
admission control (CAC), radio controls, Ralink driver/utility information, and help
functions. Clicking the expanding icon can change to the full mode as shown
below:

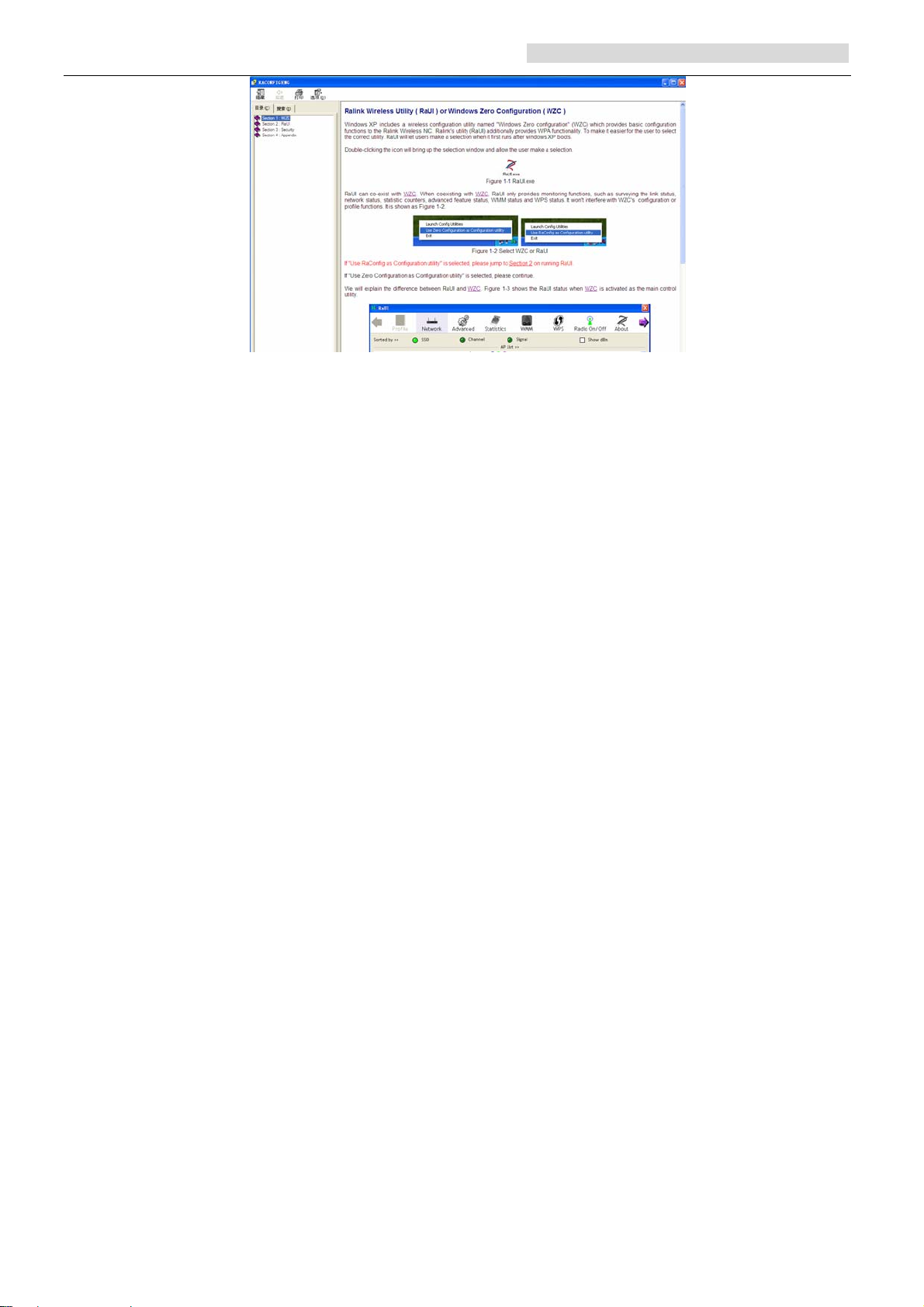

For more details about the RaUI utility, please read the help
information of the utility by clicking the
tap.
Page 6
User’s Manual Wireless USB Adapter
Tips for Wi-Fi users
With a Wi-Fi connection, you can roam about 150 m around the access point (depends on
different environment), so find a spot where you can work without any interruption. Then see
how much work you can do, such as:
z Easily and quickly receive and transmit files within your local network — no problem
for big files.
z Access your email and surf the web with the same speed as that connected with
network cables.
z Synchronize data between devices.
z Take advantage of wireless printing — send files directly from your laptop PC to a
wireless printer over Wi-Fi connection.
Warning
Wi-Fi offers greater speed and range than Bluetooth, but it drains your portable device
batteries a lot faster than Bluetooth does. In fact, if you use a Wi-Fi connection regularly on
your laptop PC, you'll undoubtedly notice that you need to recharge more often. If you need to
conserve battery life — on a long trip for example — turn off your Wi-Fi connection when you
don't actually need it.
Security
Because wireless networks rely on radio signals to transmit data, they are not as secure as
wire network. Wireless networks are susceptible to viruses and breaches like eavesdropping
and need to be protected in order to be secure.
There are many security measures to safeguard wireless networks, protect the data, and
keep unauthorized users out. Hotspots, on the other hand, are often free of standard security
practices in an effort to make it easy for anyone to connect. It may be found that some pay
hotspots administered by service providers offer have some level of security, however, when
using a hotspot, it’s always a good idea to be proactive and to employ security measures of
your own.
Key terms
Wi-Fi: Short for “wireless fidelity,” a generic label that refers to wireless networks or
networking.
Hotspot: A specific geographic location in which an access point provides public
wireless broadband network services to mobile visitors through a WLAN.
Page 7
User’s Manual Wireless USB Adapter
Throughput: The amount of data transmitted in a set amount of time.
Bandwidth: the amount of data that can be carried from one point to another in a
given time period (usually a second).
Chipset: A group of microchips that execute various functions (like memory) to
support the CPU.
Specifications (Typical):
Protocol and
Standards
IEEE 802.11b/g or 802.11n
Interface USB1.1, USB2.0
Frequency Band 2.412~2.4835GHz (Depends on different countries’ regulation)
For 802.11b/g: Peak rate 54Mbps, Peak throughput: 27Mbps.
Data Rate
For 802.11n
1T1R. Peak rate: 150Mbps, Peak throughput: 90Mbps
1T2R. Peak rate: 300Mbps, Peak throughput: Rx 160Mbps
2T2R. Peak rate: 300Mbps, Peak throughput: Rx 260Mbps
Transmit Power (Typical) 802.11b: 19dBm; 802.11g:16dBm ; 802.11n: 15dBm.
Data Security WEP 64/128 , WPA, WPA2, 802.1X
It depends on different adapter models, there are two typical values:
Power Consumption
330mA and 110mA in full Transmit (TX), 290mA and 95mA in full
Receive (RX)
Transmission
Distance
Indoor up to 100m, outdoor up to 300m (Standard transmission
distance, it is affected depending on different environment).
Operating Temperature: 0°C~50°C
Environment
Storage Temperature: -20~70°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
Operating System
It supports :
Windows 2000/XP/Vista/7; (Win CE driver to be offered upon special
requirement); Mac OS X; Linux.
The drivers might be supplied basing on one or two system.
Page 8
User’s Manual Wireless USB Adapter
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
RF warning statement:
The device has been evaluated to meet general RF exposure requirement. The
device can be used in portable exposure condition without restriction. Your USB
WIFI is a radio transmitter and receiver. It is designed and manufactured not to
exceed the emission limits for exposure to radiofrequency (RF) energy set by
the Federal Communications Commission of the U.S. Government. These
limits are part of comprehensive guidelines and establish permitted levels of RF
energy for the general population. The guidelines are based on standards that
were developed by independent scientific organizations through periodic and
thorough evaluation of scientific studies. The standards include a substantial
safety margin designed to assure the safety of all persons, regardless of age
and health. The exposure standard for wireless mobile USB WIFIs employs a
unit of measurement known as the Specific Absorption Rate, or SAR. The SAR
limit set by the FCC is 1.6 W/kg. Tests for SAR are conducted with the USB
WIFI transmitting at its highest certified power level in all tested frequency
bands. Although the SAR is determined at the highest certified power level, the
actual SAR level of the USB WIFI while operating can be well below the
maximum value. This is because the USB WIFI is designed to operate at
multiple power levels so as to use only the power required to reach the network.
In general, the closer you are to a wireless base station antenna, the lower the
power output. Before a USB WIFI model is available for sale to the public, it
must be tested and certified to the FCC that it does not exceed the limit
established by the government adopted requirement for safe exposure. The
Page 9
User’s Manual Wireless USB Adapter
tests are performed in positions and locations (e.g., at the ear and worn on the
body) as required by the FCC for each model. The highest SAR value for this
model USB WIFI when tested for use at the body is 0.440 W/Kg While there
may be differences between the SAR levels of various USB WIFI and at
various positions, they all meet the model USB WIFI when tested for use at the
body is 0.440 W/Kg While there may be differences between the SAR levels of
various USB WIFI and at various positions, they all meet the government
requirement for safe exposure. The FCC has granted an Equipment
Authorization for this model USB WIFI with all reported SAR levels evaluated
as in compliance with the FCC RF exposure guidelines. SAR information on
this model USB WIFI is on file with the FCC and can be found under the
Display Grant section of http://www.fcc.gov/ oet/fccid after searching on FCC
ID: YWTWF5370S1. Additional information on Specific Absorption Rates (SAR)
can be found on the Cellular Telecommunications Industry Asso-ciation (CTIA)
web-site at http://www.wow-com.com. * In the United States and Canada, the
SAR limit for mobile USB WIFI used by the public is 1.6 watts/kg (W/kg)
averaged over one gram of tissue. The standard incorporates a sub-stantial
margin of safety to give additional protection for the public and to account for
any variations in measurements.
Page 10
Loading...
