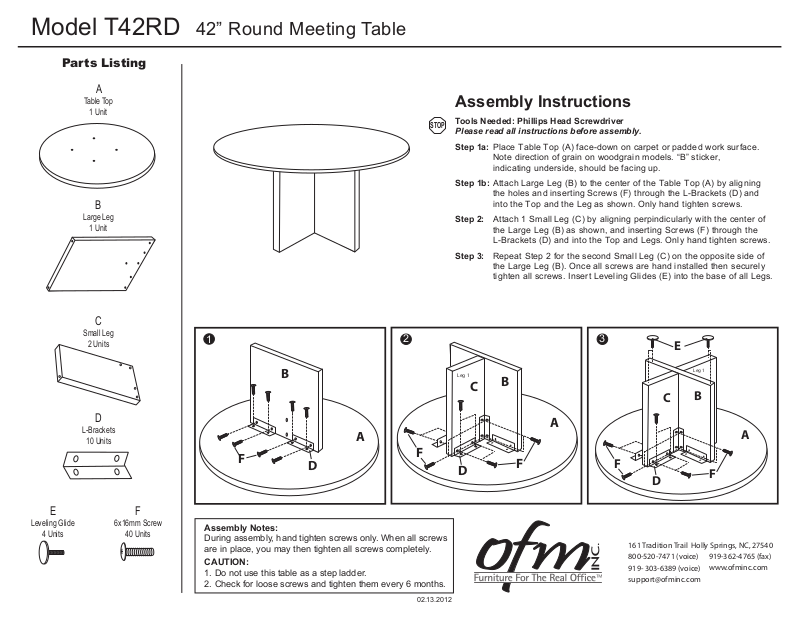

OFM T42RD User Manual

Model T42RD 42” Round Meeting Table

Parts Listing

A

Table Top

1 Unit

B

Large Leg

1 Unit

C

Small Leg

2 Units

1

Assembly Instructions

Tools Needed: Phillips Head Screwdriver

STOP

Please read all instructions before assembly.

Step 1a: Place Table Top (A) face-down on carpet or padded work surface.
Note direction of grain on woodgrain models. “B” sticker,
indicating underside, should be facing up.

Step 1b: Attach Large Leg (B) to the center of the Table Top (A) by aligning
the holes and inserting Screws (F) through the L-Brackets (D) and
into the Top and the Leg as shown. Only hand tighten screws.

Step 2: Attach 1 Small Leg (C) by aligning perpindicularly with the center of
the Large Leg (B) as shown, and inserting Screws (F) through the
L-Brackets (D) and into the Top and Legs. Only hand tighten screws.

Step 3: Repeat Step 2 for the second Small Leg (C) on the opposite side of
the Large Leg (B). Once all screws are hand installed then securely
tighten all screws. Insert Leveling Glides (E) into the base of all Legs.

2

3

E

E

Leveling Glide

4 Units

D

L-Brackets

10 Units

6x16mm Screw

F

40 Units

B

A

F

Assembly Notes:

During assembly, hand tighten screws only. When all screws
are in place, you may then tighten all screws completely.

CAUTION:

1. Do not use this table as a step ladder.

2. Check for loose screws and tighten them every 6 months.

D

F

02.13.2012

Leg 1

D

Leg 1

C

B

C

B

A

A

F

F

D
