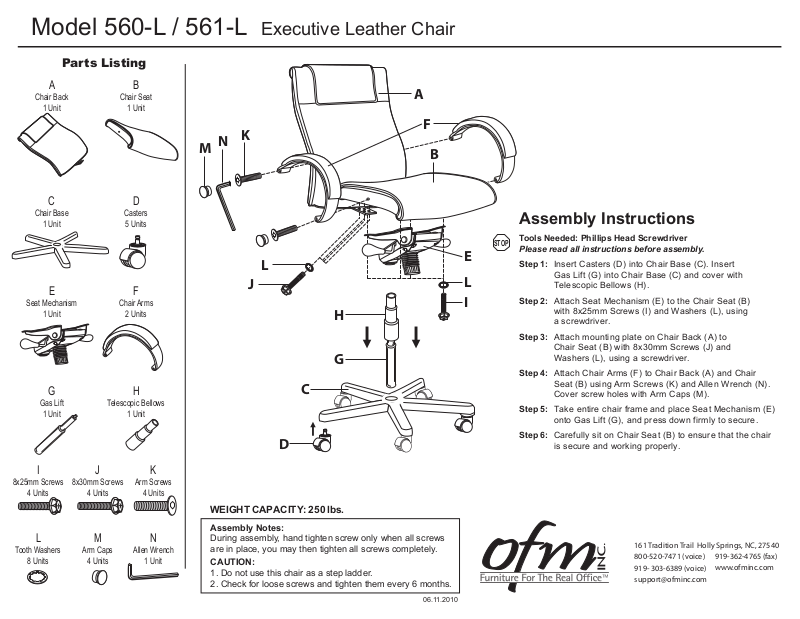

Model 560-L / 561-L Executive Leather Chair
Parts Listing
A
Chair Back
1 Unit
C
Chair Base
1 Unit
E
Seat Mechanism
1 Unit
G
Gas Lift
1 Unit
B
Chair Seat
1 Unit
D
Casters
5 Units
F
Chair Arms
2 Units
H
Telescopic Bellows
1 Unit
M
N
K
A
F
B
Assembly Instructions
Tools Needed: Phillips Head Screwdriver
STOP
L
E
J
L
I
H
G
C
D
Please read all instructions before assembly.

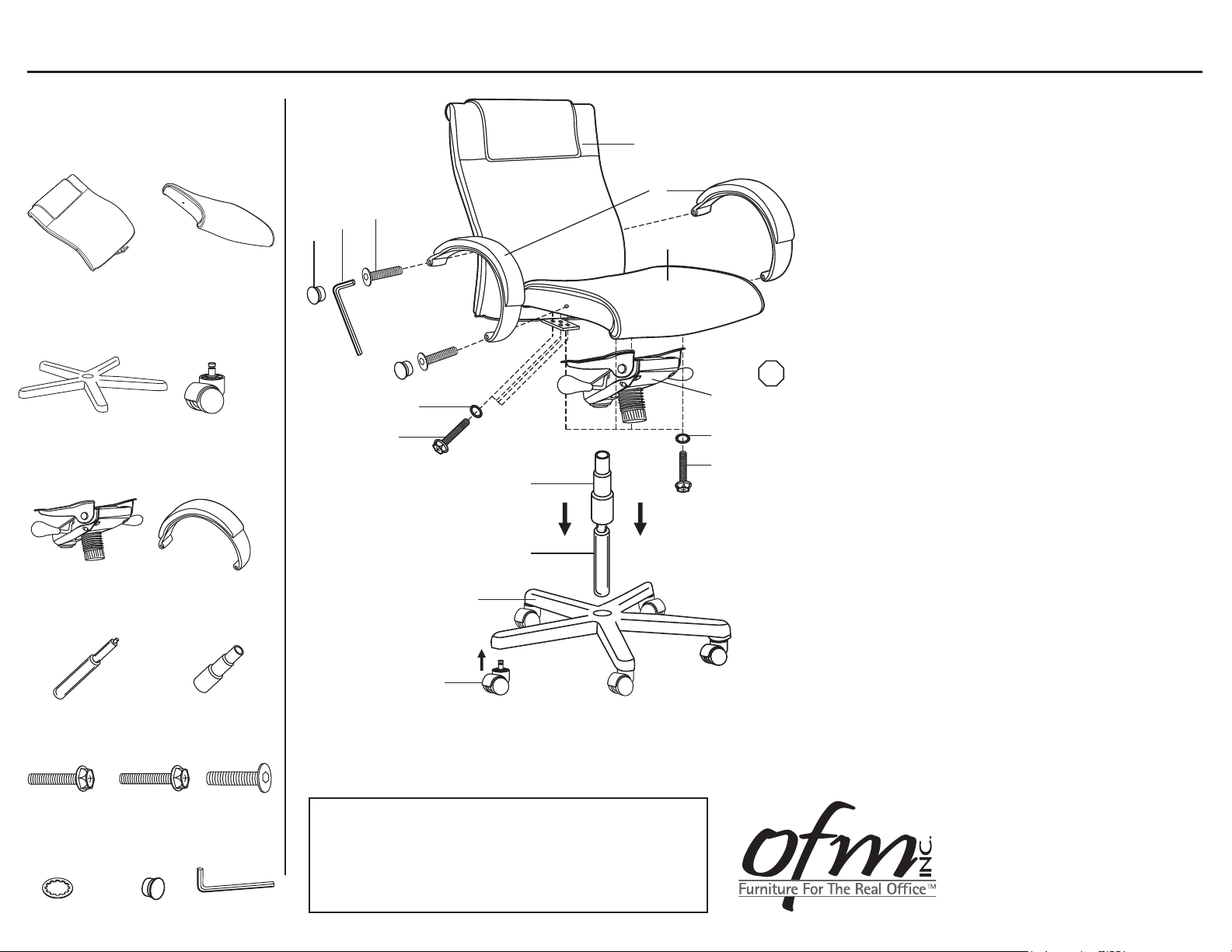

Step 1: Insert Casters (D) into Chair Base (C). Insert
Gas Lift (G) into Chair Base (C) and cover with
Telescopic Bellows (H).
Step 2: Attach Seat Mechanism (E) to the Chair Seat (B)
with 8x25mm Screws (I) and Washers (L), using
a screwdriver.
Step 3: Attach mounting plate on Chair Back (A) to
Chair Seat (B) with 8x30mm Screws (J) and
Washers (L), using a screwdriver.
Step 4: Attach Chair Arms (F) to Chair Back (A) and Chair
Seat (B) using Arm Screws (K) and Allen Wrench (N).
Cover screw holes with Arm Caps (M).
Step 5: Take entire chair frame and place Seat Mechanism (E)
onto Gas Lift (G), and press down firmly to secure.
Step 6: Carefully sit on Chair Seat (B) to ensure that the chair
is secure and working properly.
I
8x25mm Screws
4 Units
L
Tooth Washers
8 Units
J
8x30mm Screws
4 Units
M
Arm Caps
4 Units
K
Arm Screws
4 Units
N
Allen Wrench
1 Unit
WEIGHT CAPACITY: 250 lbs.
Assembly Notes:
During assembly, hand tighten screw only when all screws
are in place, you may then tighten all screws completely.
CAUTION:
1. Do not use this chair as a step ladder.
2. Check for loose screws and tighten them every 6 months.
06.11.2010
