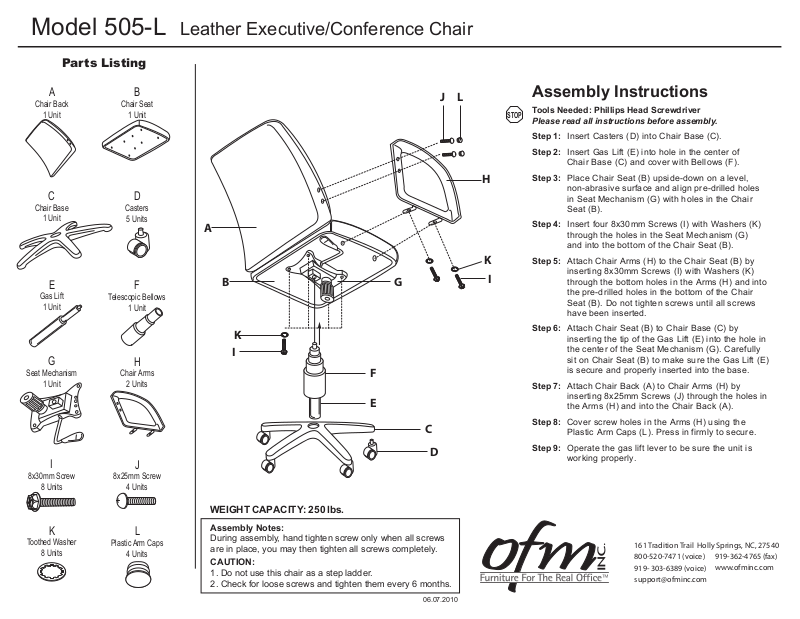

Model 505-L Leather Executive/Conference Chair
Parts Listing
A
Chair Back
1 Unit
C
Chair Base
1 Unit
E
Gas Lift
1 Unit
G
Seat Mechanism
1 Unit
I
8x30mm Screw
8 Units
B
Chair Seat
1 Unit
D
Casters
5 Units
F
Telescopic Bellows
1 Unit
H
Chair Arms
2 Units
J
8x25mm Screw
4 Units
L
J
H
A
K
B
G
I
K
I
F
E
C
D

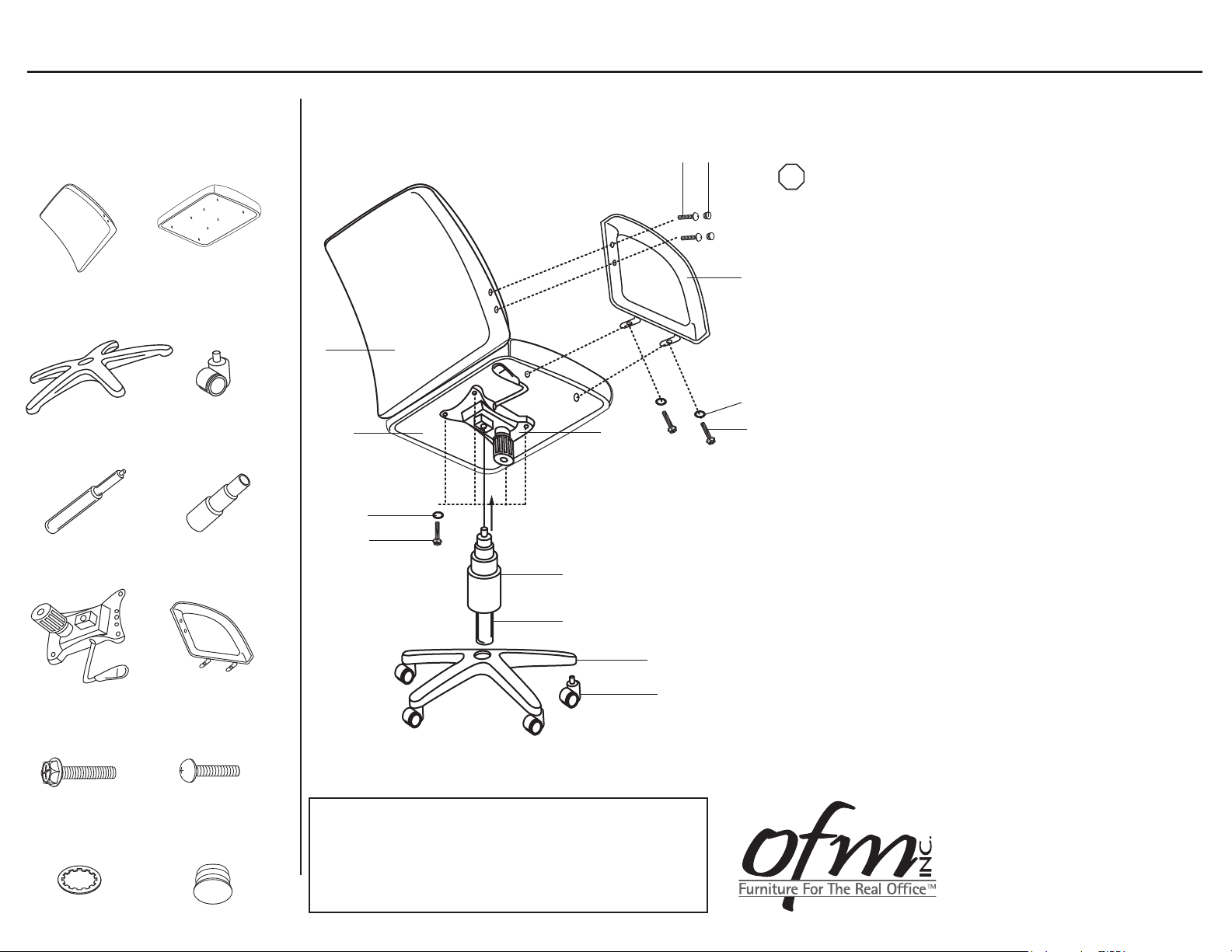

Assembly Instructions
Tools Needed: Phillips Head Screwdriver
STOP
Please read all instructions before assembly.
Step 1: Insert Casters (D) into Chair Base (C).
Step 2: Insert Gas Lift (E) into hole in the center of
Chair Base (C) and cover with Bellows (F).
Step 3: Place Chair Seat (B) upside-down on a level,
non-abrasive surface and align pre-drilled holes
in Seat Mechanism (G) with holes in the Chair
Seat (B).
Step 4: Insert four 8x30mm Screws (I) with Washers (K)
through the holes in the Seat Mechanism (G)
and into the bottom of the Chair Seat (B).
Step 5: Attach Chair Arms (H) to the Chair Seat (B) by
inserting 8x30mm Screws (I) with Washers (K)
through the bottom holes in the Arms (H) and into
the pre-drilled holes in the bottom of the Chair
Seat (B). Do not tighten screws until all screws
have been inserted.
Step 6: Attach Chair Seat (B) to Chair Base (C) by
inserting the tip of the Gas Lift (E) into the hole in
the center of the Seat Mechanism (G). Carefully
sit on Chair Seat (B) to make sure the Gas Lift (E)
is secure and properly inserted into the base.
Step 7: Attach Chair Back (A) to Chair Arms (H) by
inserting 8x25mm Screws (J) through the holes in
the Arms (H) and into the Chair Back (A).
Step 8: Cover screw holes in the Arms (H) using the
Plastic Arm Caps (L). Press in firmly to secure.
Step 9: Operate the gas lift lever to be sure the unit is
working properly.
K
Toothed Washer
8 Units
L
Plastic Arm Caps
4 Units
WEIGHT CAPACITY: 250 lbs.
Assembly Notes:
During assembly, hand tighten screw only when all screws
are in place, you may then tighten all screws completely.
CAUTION:
1. Do not use this chair as a step ladder.
2. Check for loose screws and tighten them every 6 months.
06.07.2010
