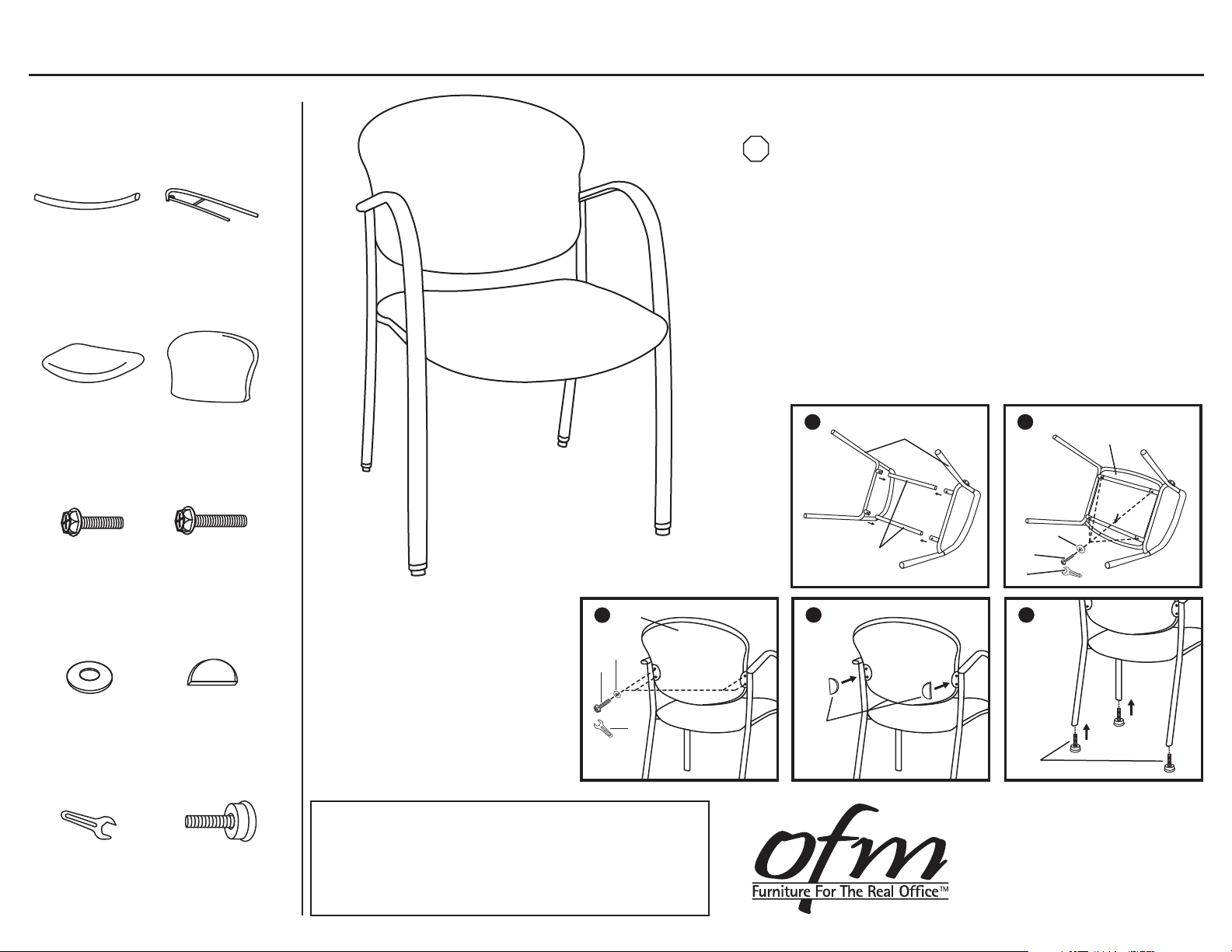

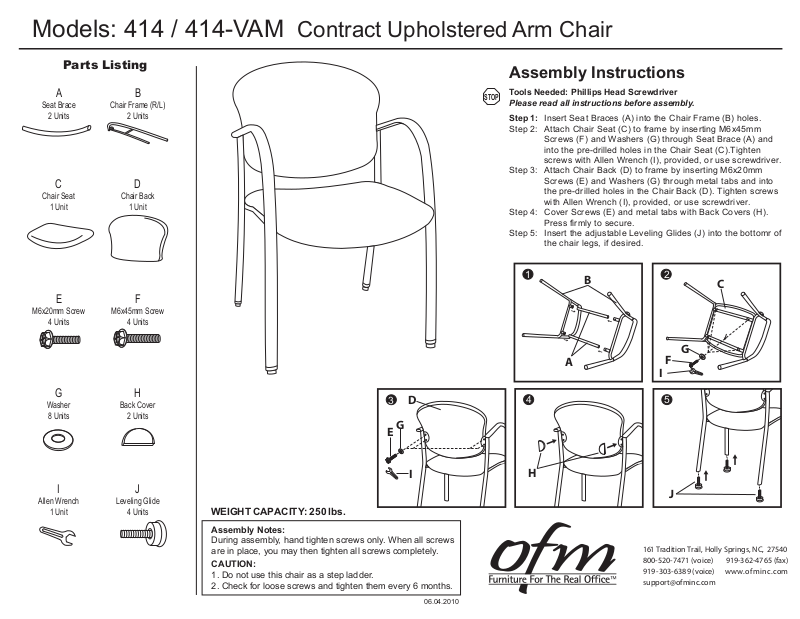

Models: 414 / 414-VAM Contract Upholstered Arm Chair
Parts Listing
A
Seat Brace
2 Units
C
Chair Seat
1 Unit
E
M6x20mm Screw
4 Units
B
Chair Frame (R/L)
2 Units
D
Chair Back
1 Unit
F
M6x45mm Screw
4 Units
Assembly Instructions
Tools Needed: Phillips Head Screwdriver
STOP
Please read all instructions before assembly.
Step 1: Insert Seat Braces (A) into the Chair Frame (B) holes.
Step 2: Attach Chair Seat (C) to frame by inserting M6x45mm
Screws (F) and Washers (G) through Seat Brace (A) and
into the pre-drilled holes in the Chair Seat (C).Tighten
screws with Allen Wrench (I), provided, or use screwdriver.
Step 3: Attach Chair Back (D) to frame by inserting M6x20mm
Screws (E) and Washers (G) through metal tabs and into
the pre-drilled holes in the Chair Back (D). Tighten screws
with Allen Wrench (I), provided, or use screwdriver.
Step 4: Cover Screws (E) and metal tabs with Back Covers (H).
Press firmly to secure.
Step 5: Insert the adjustable Leveling Glides (J) into the bottomr of
the chair legs, if desired.
1
B
A
2
C
G
F
I
G
Washer
8 Units
I
Allen Wrench
1 Unit
H
Back Cover
2 Units
J
Leveling Glide
4 Units
3
D
G
E
I
WEIGHT CAPACITY: 250 lbs.
Assembly Notes:
During assembly, hand tighten screws only. When all screws
are in place, you may then tighten all screws completely.
CAUTION:
1. Do not use this chair as a step ladder.
2. Check for loose screws and tighten them every 6 months.
06.04.2010
4
5
H
J
161 Tradition Trail, Holly Springs, NC, 27540
800-520-7471 (voice) 919-362-4765 (fax)
919-303- 6389 (voice) www.ofminc.com
[email protected]
