OFM 414C-VAM User Manual

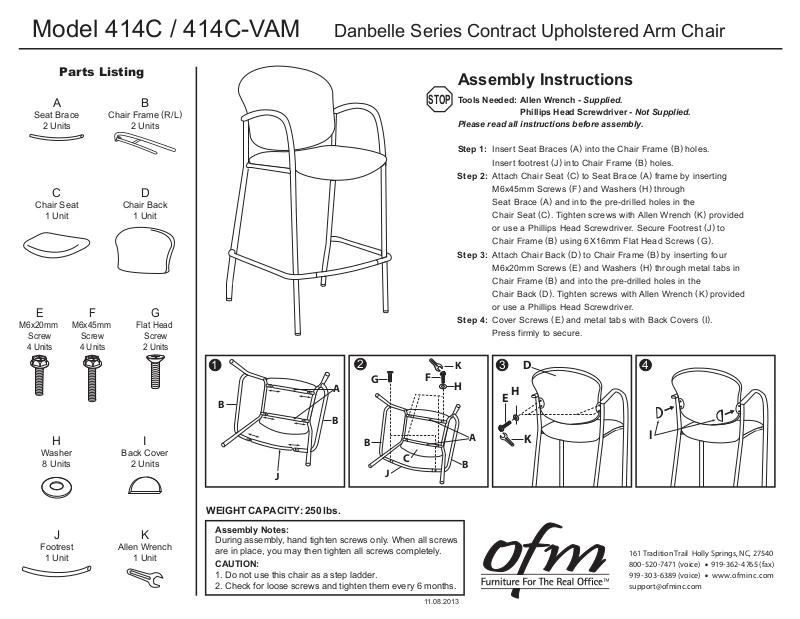

Model 414C / 414C-VAM Danbelle Series Contract Upholstered Arm Chair
A
Seat Brace
2 Units
C
Chair Seat
1 Unit
E
M6x20mm
Screw
4 Units
H
Washer
8 Units
Parts Listing
Chair Frame (R/L
2 Units
Chair Back
1 Unit
F
M6x45mm
Screw
4 Units
Back Cover
2 Units
B
D
G
Flat Head
Screw
2 Units
I
Assembly Instructions
Tools Needed: Allen Wrench - Supplied.
STOP
)
1
2
G
F
A
B
B
B
C
J
J
Phillips Head Screwdriver - Not Supplied.
Please read all instructions before assembly.
Step 1: Insert Seat Braces (A) into the Chair Frame (B) holes.
Insert footrest (J) into Chair Frame (B) holes.
Step 2: Attach Chair Seat (C) to Seat Brace (A) frame by inserting
M6x45mm Screws (F) and Washers (H) through
Seat Brace (A) and into the pre-drilled holes in the
Chair Seat (C). Tighten screws with Allen Wrench (K) provided
or use a Phillips Head Screwdriver. Secure Footrest (J) to
Chair Frame (B) using 6X16mm Flat Head Screws (G).
Step 3: Attach Chair Back (D) to Chair Frame (B) by inserting four
M6x20mm Screws (E) and Washers (H) through metal tabs in
Chair Frame (B) and into the pre-drilled holes in the
Chair Back (D). Tighten screws with Allen Wrench (K) provided
or use a Phillips Head Screwdriver.
Step 4: Cover Screws (E) and metal tabs with Back Covers (I).
Press firmly to secure.
K
H
3
D
H
E
A
K
4
I
B
J
Footrest
1 Unit
K
Allen Wrench
1 Unit
WEIGHT CAPACITY: 250 lbs.
Assembly Notes:
During assembly, hand tighten screws only. When all screws
are in place, you may then tighten all screws completely.
CAUTION:
1. Do not use this chair as a step ladder.
2. Check for loose screws and tighten them every 6 months.
11.08.2013
161 Tradition Trail Holly Springs, NC, 27540
800-520 -7471 (voice)
919 - 303-6389 (voice)
support@ofminc.com
.
919-362- 4765 (fax)
.
www.ofminc.com
