OFM 2014 User Manual
F
A
C
A
B
D

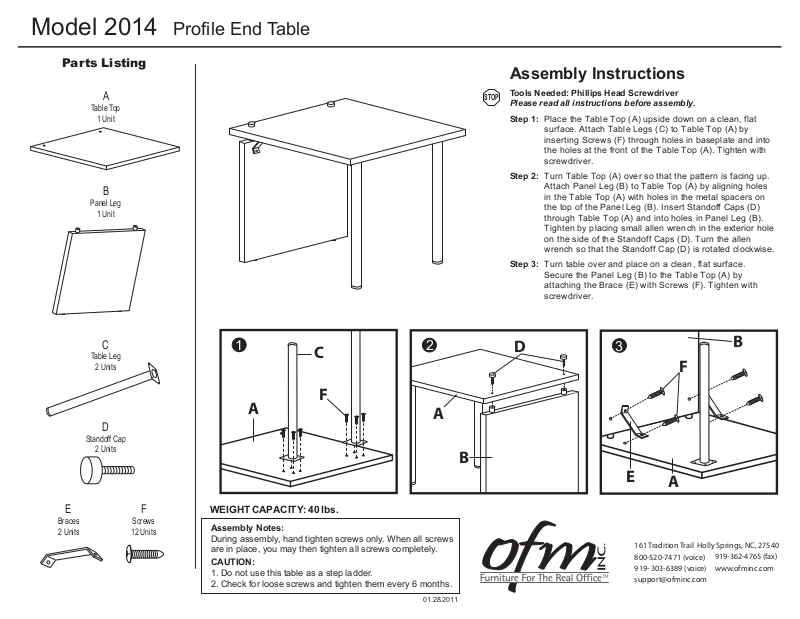

Model 2014 Profile End Table
Parts Listing
A
Table Top
1 Unit
B
Panel Leg
1 Unit
Assembly Instructions
Tools Needed: Phillips Head Screwdriver
STOP
Please read all instructions before assembly.
Step 1: Place the Table Top (A) upside down on a clean, flat
surface. Attach Table Legs (C) to Table Top (A) by
inserting Screws (F) through holes in baseplate and into
the holes at the front of the Table Top (A). Tighten with
screwdriver.
Step 2: Turn Table Top (A) over so that the pattern is facing up.
Attach Panel Leg (B) to Table Top (A) by aligning holes
in the Table Top (A) with holes in the metal spacers on
the top of the Panel Leg (B). Insert Standoff Caps (D)
through Table Top (A) and into holes in Panel Leg (B).
Tighten by placing small allen wrench in the exterior hole
on the side of the Standoff Caps (D). Turn the allen
wrench so that the Standoff Cap (D) is rotated clockwise.
Step 3: Turn table over and place on a clean, flat surface.
Secure the Panel Leg (B) to the Table Top (A) by
attaching the Brace (E) with Screws (F). Tighten with
screwdriver.
Braces
2 Units
E
C
Table Leg
2 Units
D
Standoff Cap
2 Units
F
Screws
12 Units
1
WEIGHT CAPACITY: 40 lbs.
Assembly Notes:
During assembly, hand tighten screws only. When all screws
are in place, you may then tighten all screws completely.
CAUTION:
1. Do not use this table as a step ladder.
2. Check for loose screws and tighten them every 6 months.
2
01.28.2011
3
F
E
161 Tradition Trail Holly Springs, NC, 27540
800-520-7471 (voice)
919- 303-6389 (voice)
support@ofminc.com
A
919-362-4765 (fax)
www.ofminc.com
B
