Officezone FM75, FM76 Operation Manual

FM75/76 Digit

Instruction manual

Before using the machine please carefully read the instructions

DOC. N. FM111021
REV. 0
ED. 01.2001

Index

Chapter 1. Foreword

1.1. Introduction...........................................……...... 1-1

1.2. Performances of packaging machine.......……... 1-1

1.3. Machine identification.........................……........ 1-1

1.4. Weight and dimensions of packed machine…... 1-3

1.5. Machine weight and dimensions.........……........ 1-3

Chapter 2. Machine installation

2.1. Transport and positioning........................……... 2-1

2.2. Environmental conditions........................…….... 2-5

2.3. Electrical connections..............................……... 2-7

Chapter 3. Machine adjustment and setting up

3.1. Adjustment...............................................…...... 3-1

3.2. Film roll insertion......................................…...... 3-9

3.3. Reticulated plate installation....................……... 3-9

3.4. Packaging plate adjustment..................……...... 3-11

3.5. Execution of 1^ film sealing......................…….. 3-11

3.6. Introducing the object to be wrapped........…….. 3-13

3.7. Making up.....................................…….............. 3-13

Chapter 4. Limits and conditions in the use of machine

4.1. Max. packing sizes.....................................…… 4-1

4.2. Items which must not be packed.................…… 4-1

Chapter 5. Film features

5.1. Films to be used..........................................…... 5-1

5.2. Band A calculation......................................…… 5-1

Chapter 6. Safety standards

6.1 Warnings.....................................................…... 6-1

Chapter 7. Ordinary maintenance

7.1. Precautions for ordinary maintenance interventions…………… 7-1

7.2. Sealing blade cleaning................................…… 7-1

7.3. Plastic film and other scrap removal...........…… 7-3

7.4. Machine cleaning........................................…… 7-3

7.5. Rubber and teflon replacement...................…… 7-5

7.6. Changing the sealing wire...........................…… 7-7

7.7. Wiring diagram............................................…... 7-9

7.8. Spare parts…..............................................…... 7-11

7.9. Disassembling, demolition and elimination of residuals.. 7-13

Chapter 8. Guarantee

8.1. Certificate of guarantee...............................…... 8-1

8.2. Guarantee conditions..................................…… 8-1

9.1. EC declaration of conformity......................…… 9-1

Chapter 1. Foreword

1.1. Introduction

You have bought a machine with outstanding features and performance and we thank
you very much for your confidence in

choosing it. The MINIPACK System is unique in its kind and has achieved worldwide

succes with more than 50000 units operating in the field of packaging and wrapping.It is
handy, low-priced and protected by patents at home and abroad. The technological
concept underlining its design, as well as the components and materials used in the
manufacturing and testing process are the best assurance of proper operation and long­lasting liability.

1.2. Performances of packaging machine

Thanks to its particular operating circuit, it can be used both as a sealing and shrinking
machine or as a plain sealing machine
(sealing only). In this case it is possible to pack the object in a soft bag without
shrinkwrapping. Technical grade or food grade films with thickness in the range of 15-50
micron can be used. These products are manufactured and distributed by MINIPACK
Torre S.p.A. The film used in centerfolded execution can be micropunched or not when
running through the micropunches of machine itself. The machine can carry out up to
300 packages/hour.

1.3. Machine identification

In every communication with the Manufacturer, always
mention the model and the serial number specified on
the plate on the rear part of the machine.

1.4. Weight and dimensions of packed machine

FM75

a = mm 1500
b = mm 770
c = mm 750
Weight = Kg 115
Gewicht = Kg 115
Poids = Kg 115
Peso = Kg 115

FM76

a = mm 1250
b = mm 950
c = mm 820
Weight = Kg 148
Gewicht = Kg 148
Poids = Kg 148
Peso = Kg 148

1.5. Machine weight and dimensions

FM75

a = mm 1210
b = mm 680
c = mm 1360
Weight = Kg 93
Gewicht = Kg 93
Poids = Kg 93
Peso = Kg 93

FM76

a = mm 1390
b = mm 800
c = mm 1460
Weight = Kg 116
Gewicht = Kg 116
Poids = Kg 116
Peso = Kg 116

Chapter2. Machine installation

2.1. Transport and positioning
It is recommended to handle with great care during transport and positioning!

Cut strap with scissors and remove
the cardboard.
Remove the cardboard containing
the trolley.
Take away the bobbin support (5).
Unscrew the 4 fastening screws
(A) of the pallet, putting the 4
plates back inside the machine
(B).

Assemble the trolley

Lift the machine and place it on
its trolley, paying attention that
the 4 supports are properly
inserted in their housings.
Remove the upper hood by
cutting the strings.

2.1. Transport and positioning

To place the roll support (5) follow
the instructions below:
Remove the adhesive tape (A) fixing
the guides trolley.
Place the roll support (5) on the
proper guides.

Stride over the blocking device (B)
through a working tool (for example
a screw driver).

2.2. Environmental conditions

Place the machine in a suitable
environment free from humidity, gases,
explosives, combustible
materials. Working environmental
conditions:

• Temperature from + 5°C to + 40°C

• Relative humidity from 30% to 90%, without condensation

Machine safety factor = IP20

The aerial noise made by the machine is lower than 70 dB

2.3. Electrical connections

OBSERVE HEALTH AND SAFETY REGULATIONS!

GROUNDING OF THE UNIT IS OBLIGATORY!

Before executing electrical connections, make
sure the mains voltage matches the one on the
plate on
machine rear and that the earthing contact
complies with the safety rules in force. In case of
doubts about the mains voltage, contact the local
public supply Company.

Chapter 3. Machine adjustment and setting up

3.1. Adjustment
1-

Main switch
Adjusting button

2-

Adjusting button

3-

Temperature warning light

A-

Shrinking warning light

B-

Sealing warning light

C-

Programs selection button

P-

Display

D-

Variables selection switch

S-

3.1. Adjustment
ELECTRONIC BOARD FEATURES

The machine is equipped with 6 selectionable programs:

Program nr. Program features

P1
P2
P3

P4 - P5 - P6

Each program is composed by 3 variables which can be modified:

Variable Field Field features

1. Temperature

2. Sealing

3. Shrinking

4. Shrinking delay

PHASE NR. 1 = SWITCHING
THE MACHINE ON

Turn the main switch (1) into pos. 1. Before using the machine, wait until the adjusting
temperature is reached. This is signalled by the extinction of the warning light (A). The
display (D) turns on and the number of the currently selected program will appear.

PHASE NR. 2 = PROGRAMS
SELECTION

Push button (P) to select the number of the program.

PHASE NR. 3 = VARIABLES
PROGRAMMING

Through button (S) it is possible to look through the variables of the selected program,
while through buttons (2) and (3) the memorized values can be modified. To validate
modifications, press button (S) until the number of the program appears on the display.
The fan delay time after sealing
which is shown with an “r” on the left display, while the right one shows the time which has
been set. At the end of all variables to be adjusted, the display will show the code of the
program just chosen (for example P1).
N.B.: In case during programming the FC limit switch is being pressed, the unit quits the
scheduling, the selected program is executed and the display shows the number of the
program.

PHASE NR. 4 =
PERFORMANCE

Once all adjustments have been made, the machine is ready to start working.

In case of “ANOMALY” the display will show as follows:

Sealing only
Sealing + shrinking
Sealing + delayed shrinking to sealing end
Sealing + shrinking

00 ÷ 99
0 ÷ 2.2

0.0 ÷ 9.9
0 ÷ 9

corresponds to 150.....348°C (2°C each point)-

(medium value 75)
values expressed in seconds
values expressed in seconds
tenth-seconds values

can be modified; there is not a LED indicating this variable

E 1
E 2

E 3

E 4

3.2. Film roll insertion

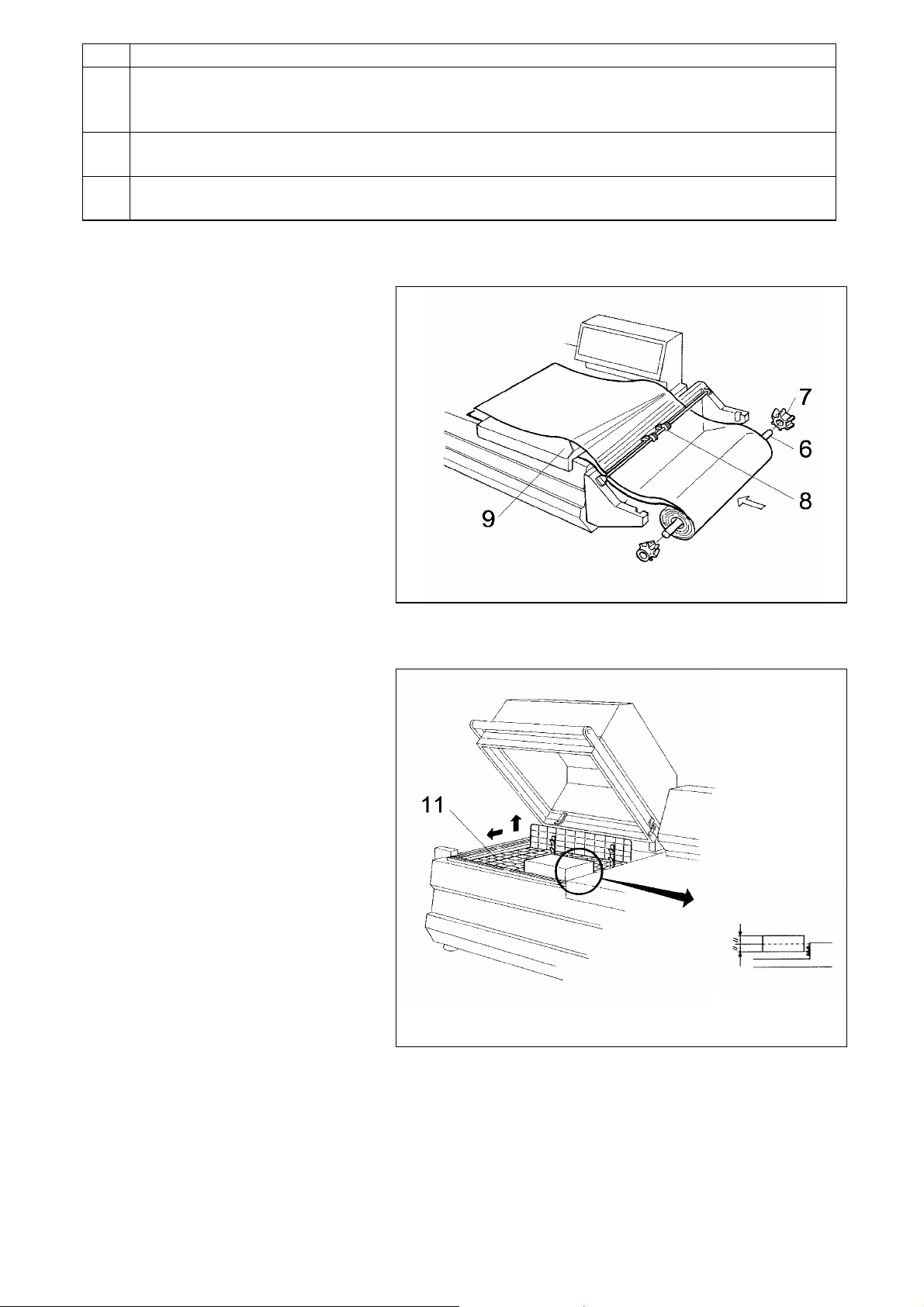

Insert the roll of film on the roller (6)
and block it through the centering
cones (7).
Position the roller on the film roll
support.
Run through the micropunches (8).
Run the film lower layer under the
packaging plate (9).
Run the film upper layer over the
packaging plate (9).

Machine has been switched on when the hood was lowered. Lift the hood up.
Machine has been switched on when the (S) button was pressed. Release the

button. In case the error signalling still persists, check the correct functioning of the
button.
Working temperature hasn’t been reached in the set time (10 min.). Check the
correct positioning of the feeler. Check heater and fuses. Reset through (P) button.
Temperature is higher than 400°C or feeler has been interrupted. Switch the
machine on to reset.

3.3. Reticulated plate installation

The reticulated plate (11) can be
placed according to the height of the
product to pack. To position it follow
this procedure:
Pull the reticulated plate in direction
of the arrows
Remove it from the stops
Position the plate on the stops at the
required height
N.B.: For a proper packaging the
reticulated plate must be
positioned so that film sealing is at
the half of the package height.

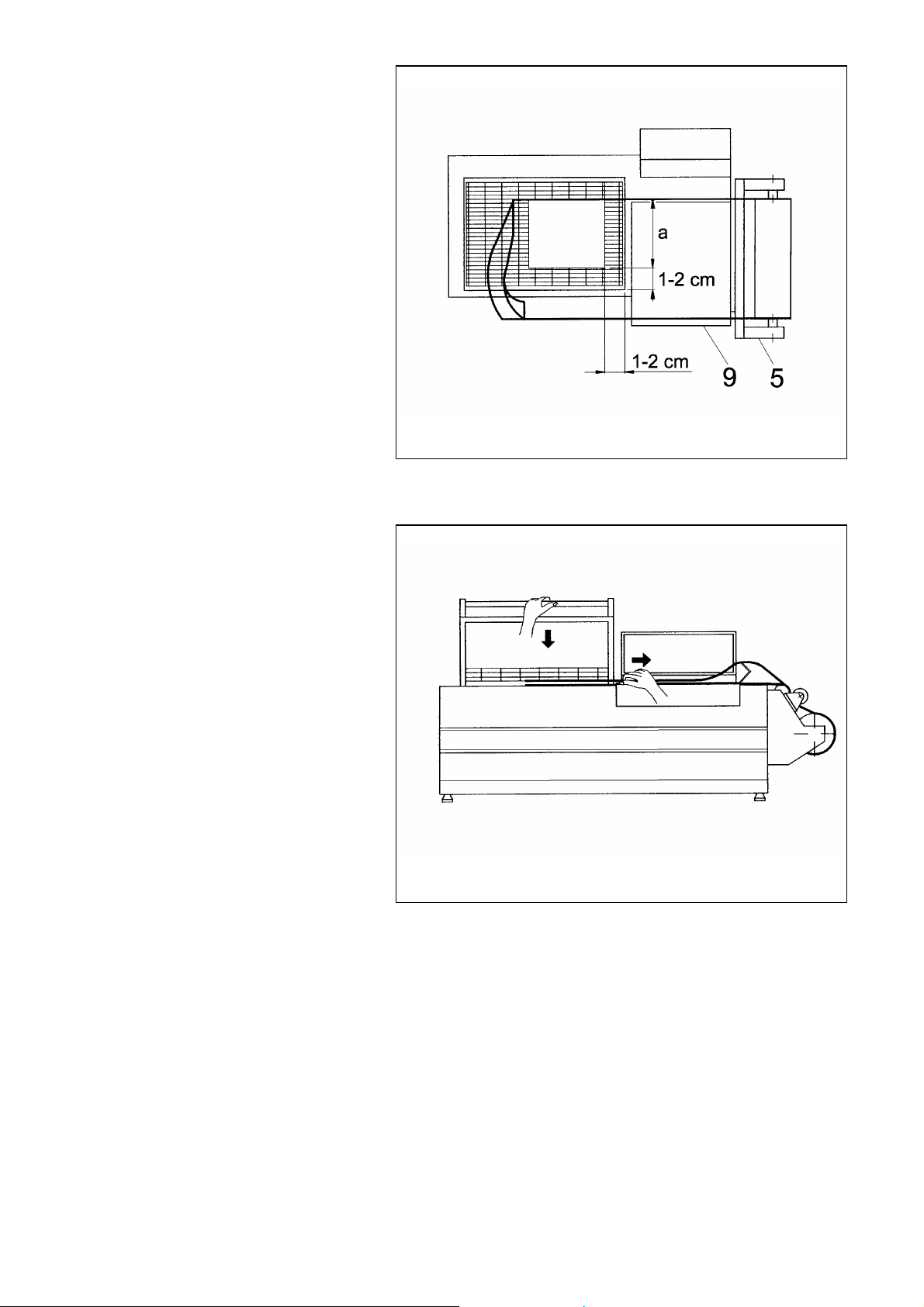

3.4. Bobbins support and packaging plate adjustment

The bobbin support (5) and the
packaging plate (9) must be
adjusted according to the width of
the article to be packaged, leaving
a space of about 1-2 cm between
the article and the welding edge.

3.5. Execution of 1^ film sealing

Place film as shown in the picture
to carry out the first seal.
Lower the handle of the cover with
your left hand and make a
pressure of 10-15 Kg. Machine will
automatically operate and the first
seal will be carried out on the side
of the film. With the right hand
detach the film from the sealing
blade. Film is now ready to carry
out wrapping.

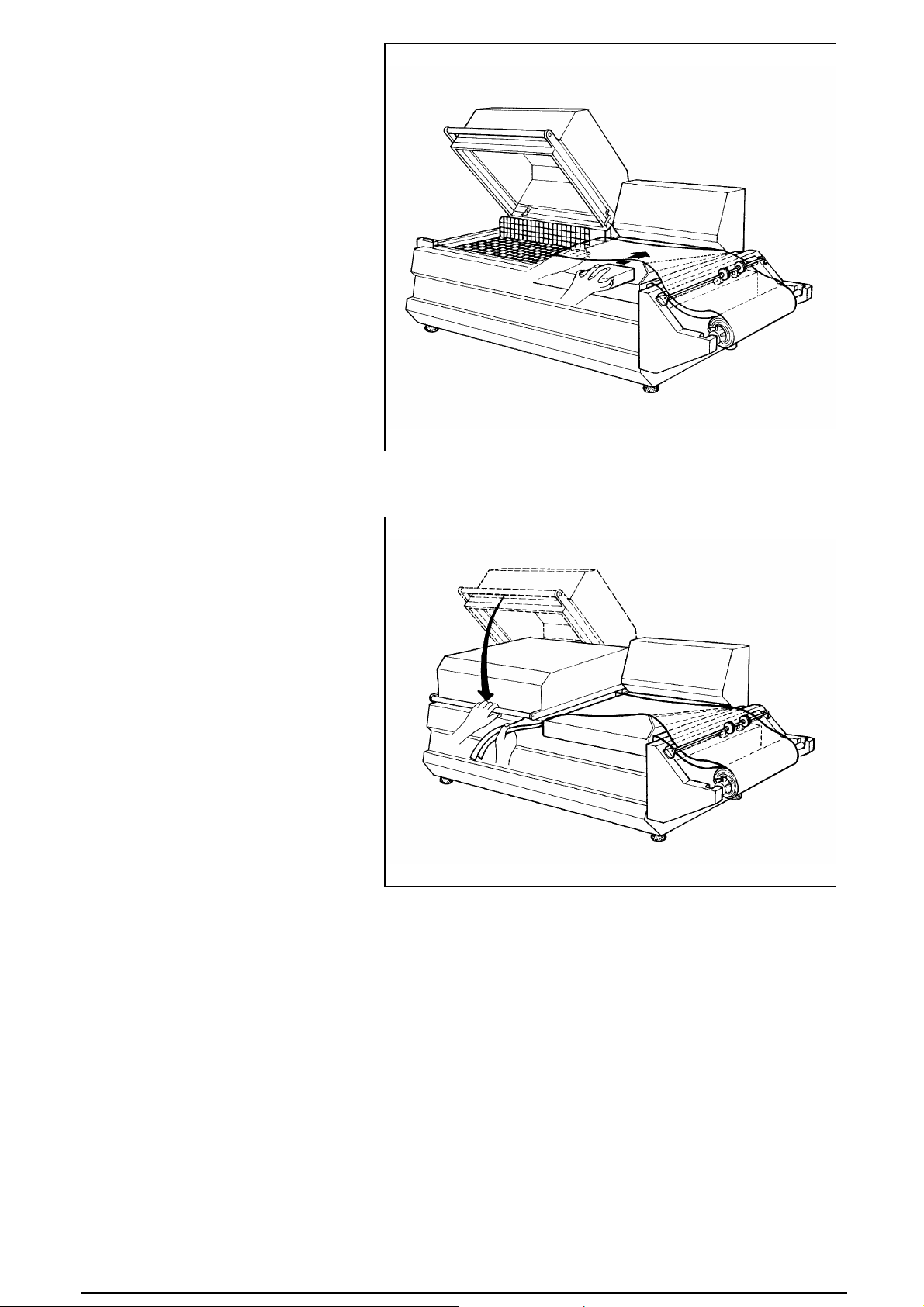

3.6. Introducing the object to be wrapped

With the left hand slide on the
packaging plate the quantity of
film necessary to contain the
product to be packed.
Introduce the product into the
bag using the right hand and
make it slide to the left until it is
layed on the screen leaving a
little space fo about 1-2 cm to
allow the passage of air for
shrinkwrapping.

3.7. Making up

By pushing the cover handle with
a pressure of 10-15 Kg. the
cover rests on the sealing blade;
by pinching the film, it is
automatically sealed on the open
sides (right and front). In case
you have selected the function
“SEALING
+SHRINKWRAPPING” you will
see the film shrink onto the
product. Slightly decrease the
pressure on the cover handle to
allow film detach from the sealing
area on the inside. With the right
and detach the film from the
sealing blade towards the
outside.

Chapter 4. Limits and conditions in the use of machine

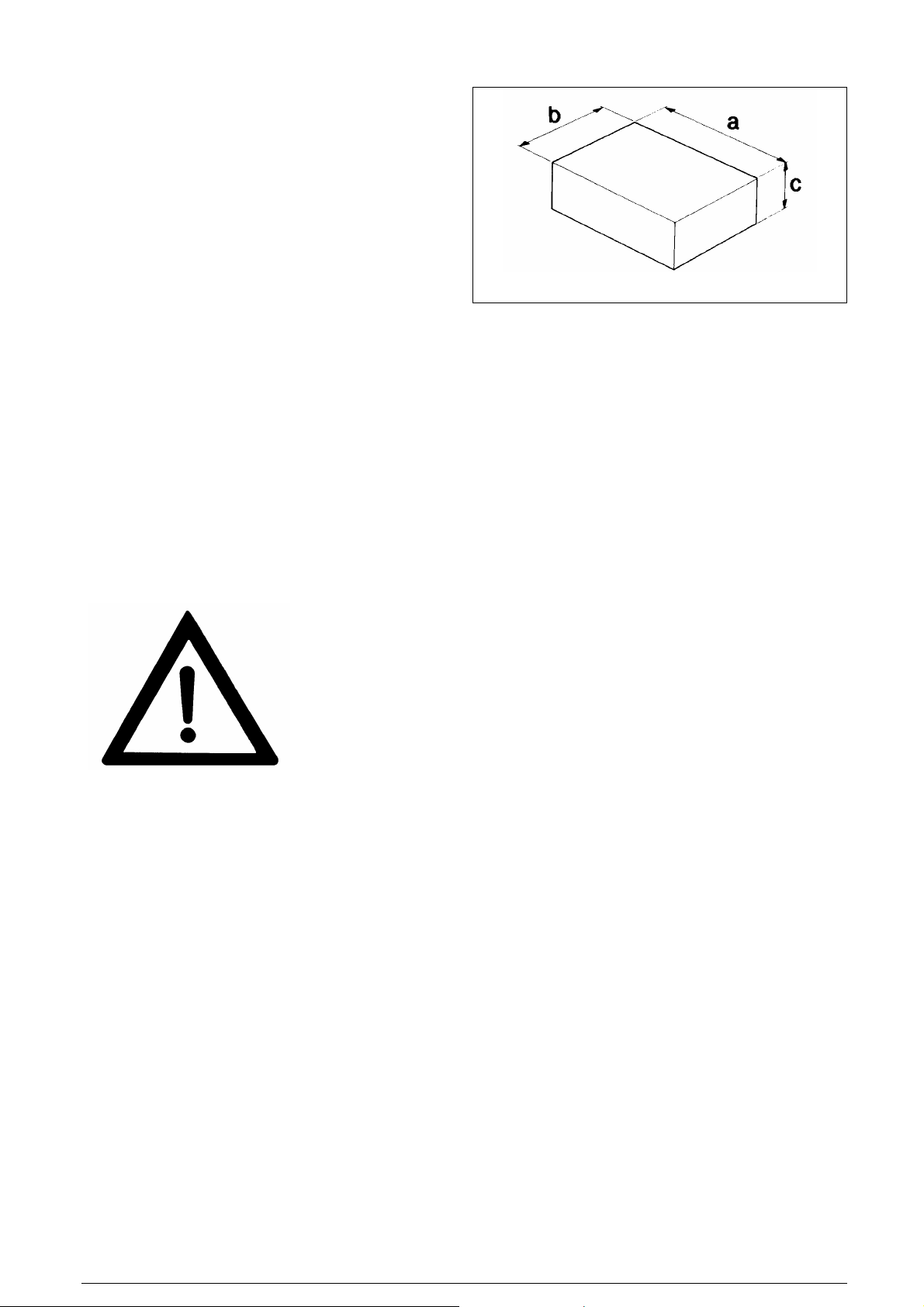

4.1. Max. packing sizes

FM75 Digit

a = mm 400
b = mm 250
c = mm 200

FM76 Digit

a = mm 500
b = mm 380
c = mm 250

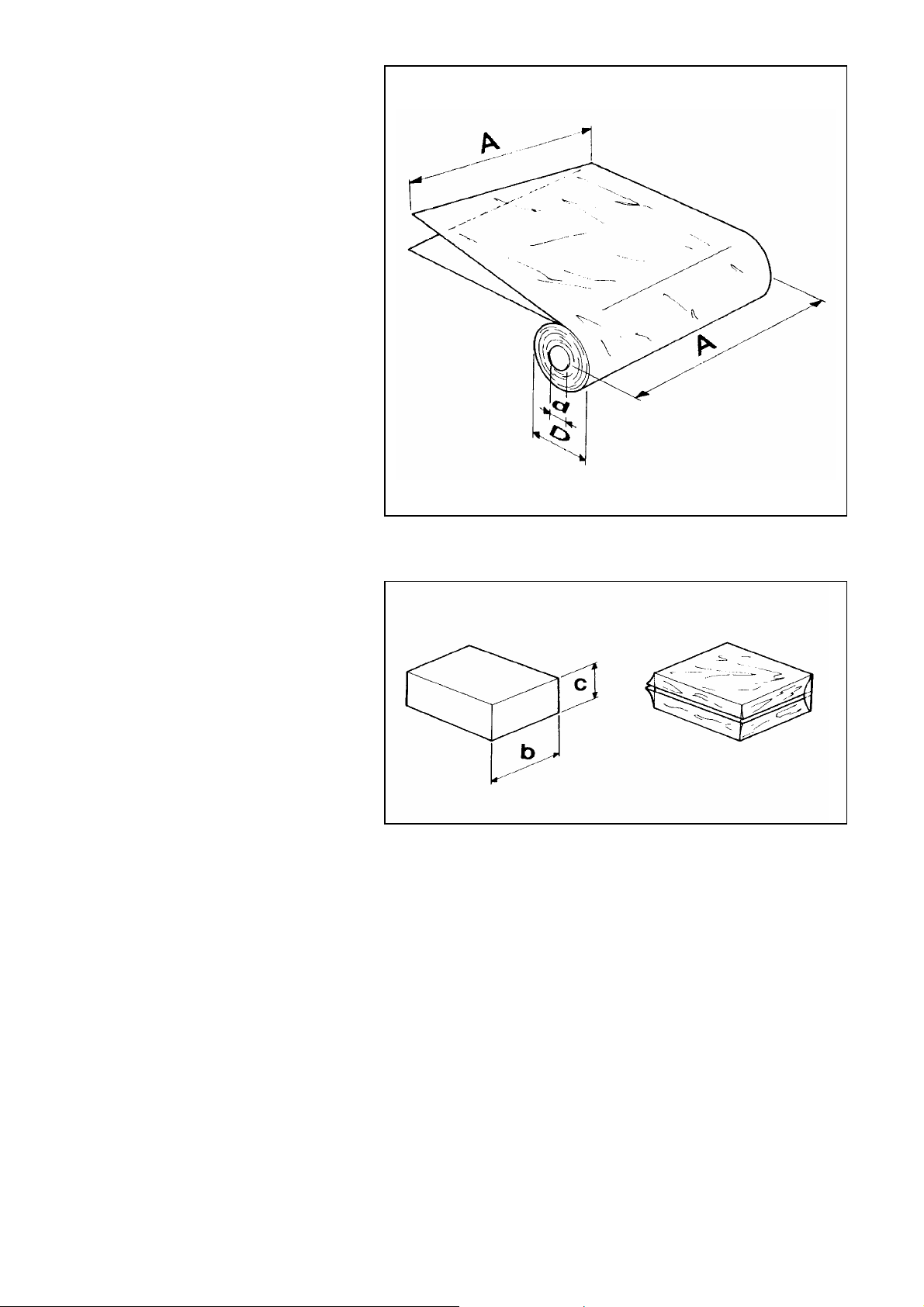

N.B.: max. dimensions shown on above scheme are referring to the max. dimension of the
single package.
Refer to chapter 5.2. to get max. dimension of package (b x c); the addition of (b + c) is
equal to film roll width 100 mm.

4.2. Items which must not be packed

The below listed products must absolutely not be wrapped to avoid damages to the
machine and seroius injuries to
the operator in charge:

Wet and unstable products, liquids of any kind and density in
fragile containers, flammable and explosive materials,
pressurised gas cylinder of any kind, bulk and volatile powders,
bulk materials with grain size smaller than the holes of the
reticulated plate, any materials and products not listed but which
might harm operator and cause damages to the machine.

Chapter 5. Film features

5.1. Films to be used

Machine can work with all
shrinkwrapping films with
thickness 15-50 micron
manufactured by ”MINIPACK­TORRE
S.p.A.”. The special features of
our films (which may be
customized with drawings and
text) assure their outstanding
reliability, with regard both to
compliance with laws in force
and to an excellent machine
performance.

FM75 Digit

A=mm 500 MAX
D=mm 300 MAX
d=mm 77

FM76 Digit

A=mm 600 MAX
D=mm 300 MAX
d=mm 77

5.2. Band A calculation

Band A = b + c + 100mm

Chapter 6. Safety standards

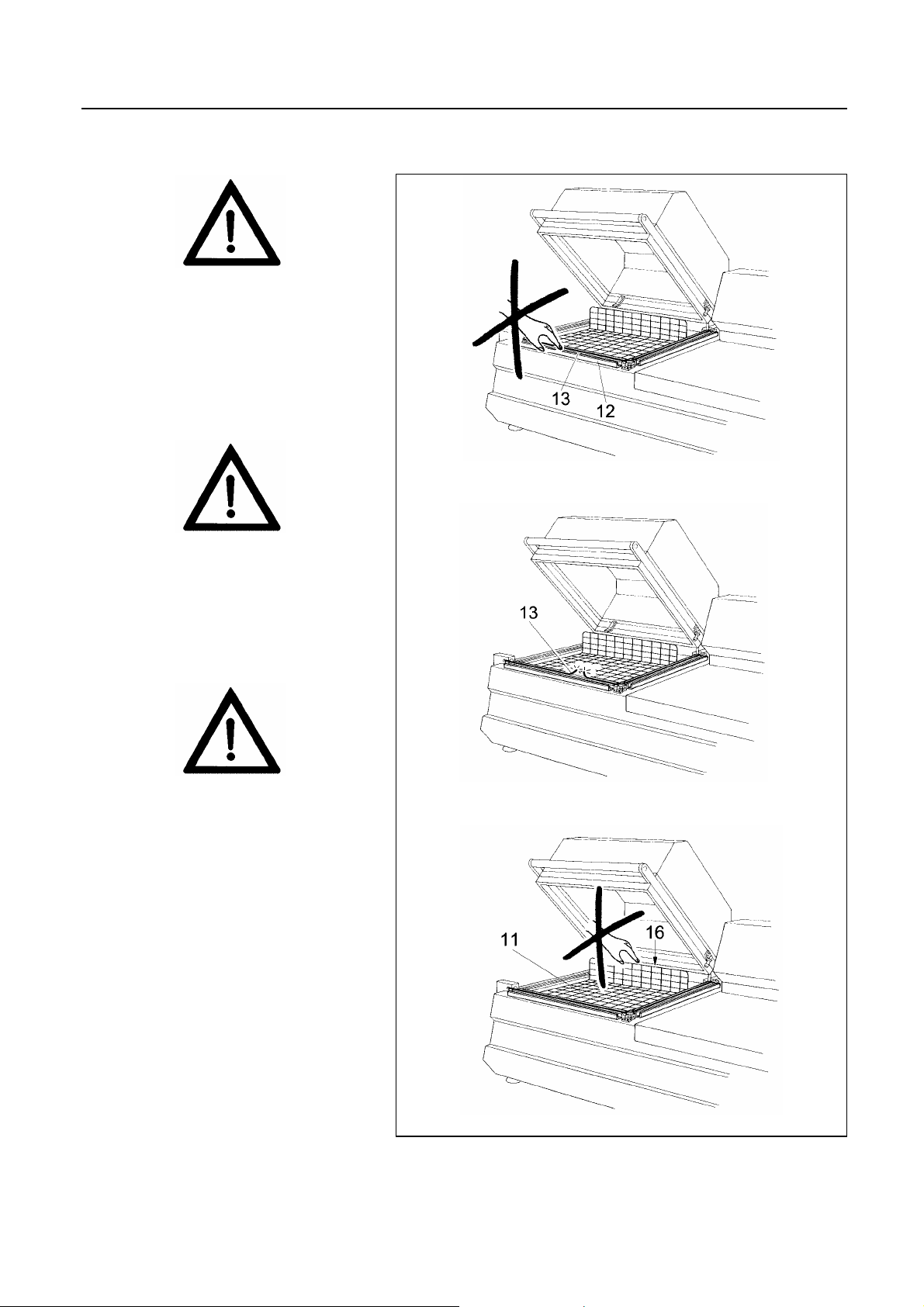

6.1. Warnings

Do not touch the sealing blade
(13) soon after sealing by
reaching beyond the safety guard
(12).

Danger of burns due to residual
heat on the sealing blade.

Do not keep on sealing in case the
sealing blade breaks (13).
Replace it at once.

Do not touch the chamber closing
flap (16) during warm-up function.
Danger of burns.

Do not touch the fan while moving
or using the machine without the
reticulated plate (11).

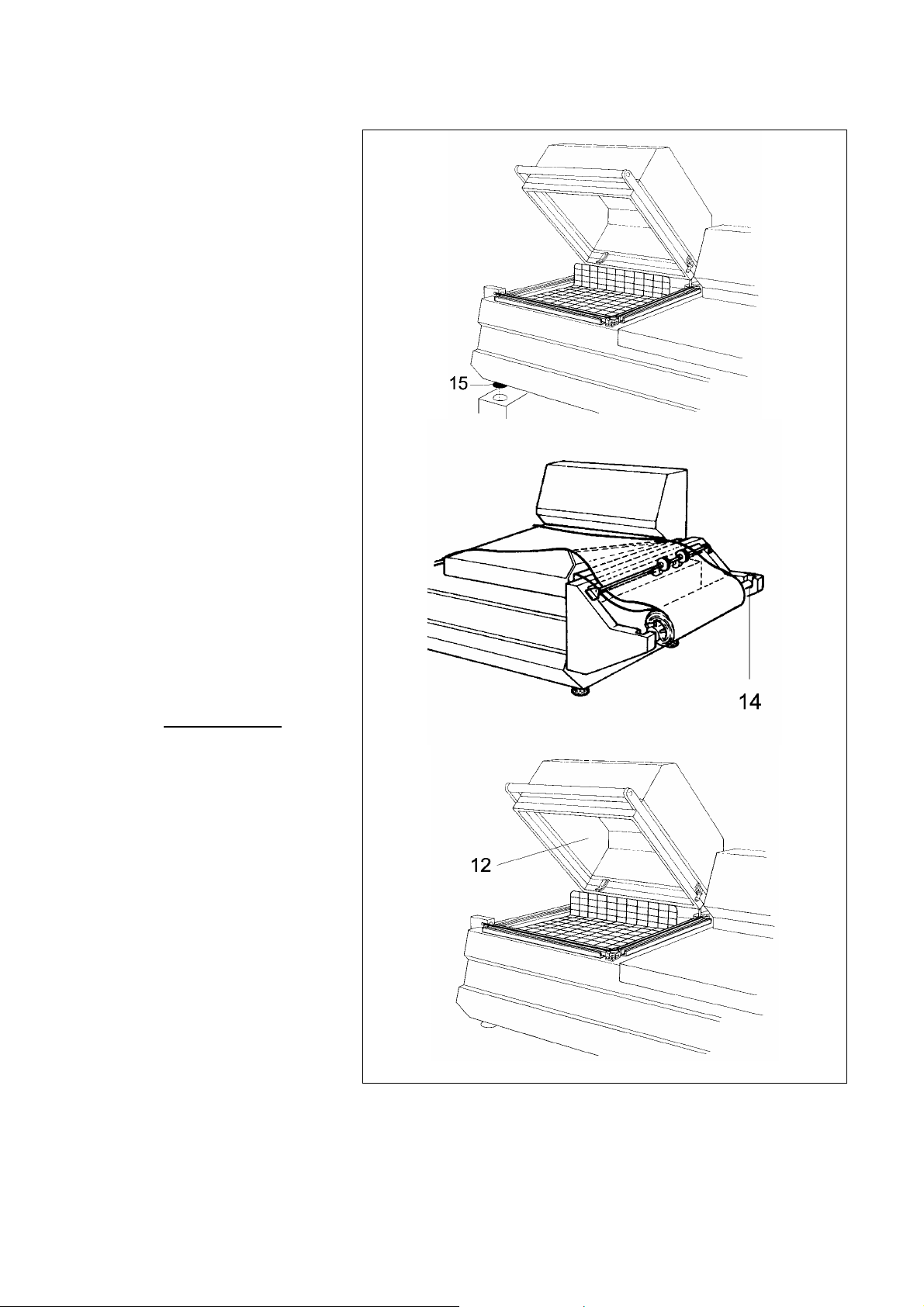

6.1. Warnings

Make sure the rubber feet
(15) of machine are lodged in
the holes of the wheeled
stand.

Make sure the film roll is
properly lodged (14).

ATTENTION !

Every time you turn the
machine off, it is recomended
to leave the upper hood open
(as shown in the drawing).

Chapter 7. Ordinary maintenance

7.1. Precautions for ordinary maintenance interventions
BEFORE PROCEEDING TO MAINTENANCE, SWITCH THE MACHINE OFF AND

DISCONNECT IT BY OPERATING ON THE MASTER SWITCH.

7.2. Sealing blade cleaning

Using a dry cloth, wipe off the
residues clinging to the sealing
wire: do this at once after
sealing since they are easier to
remove when still warm.

Lubricate the welding blade
periodically with the supplied
non-adhesive spray.

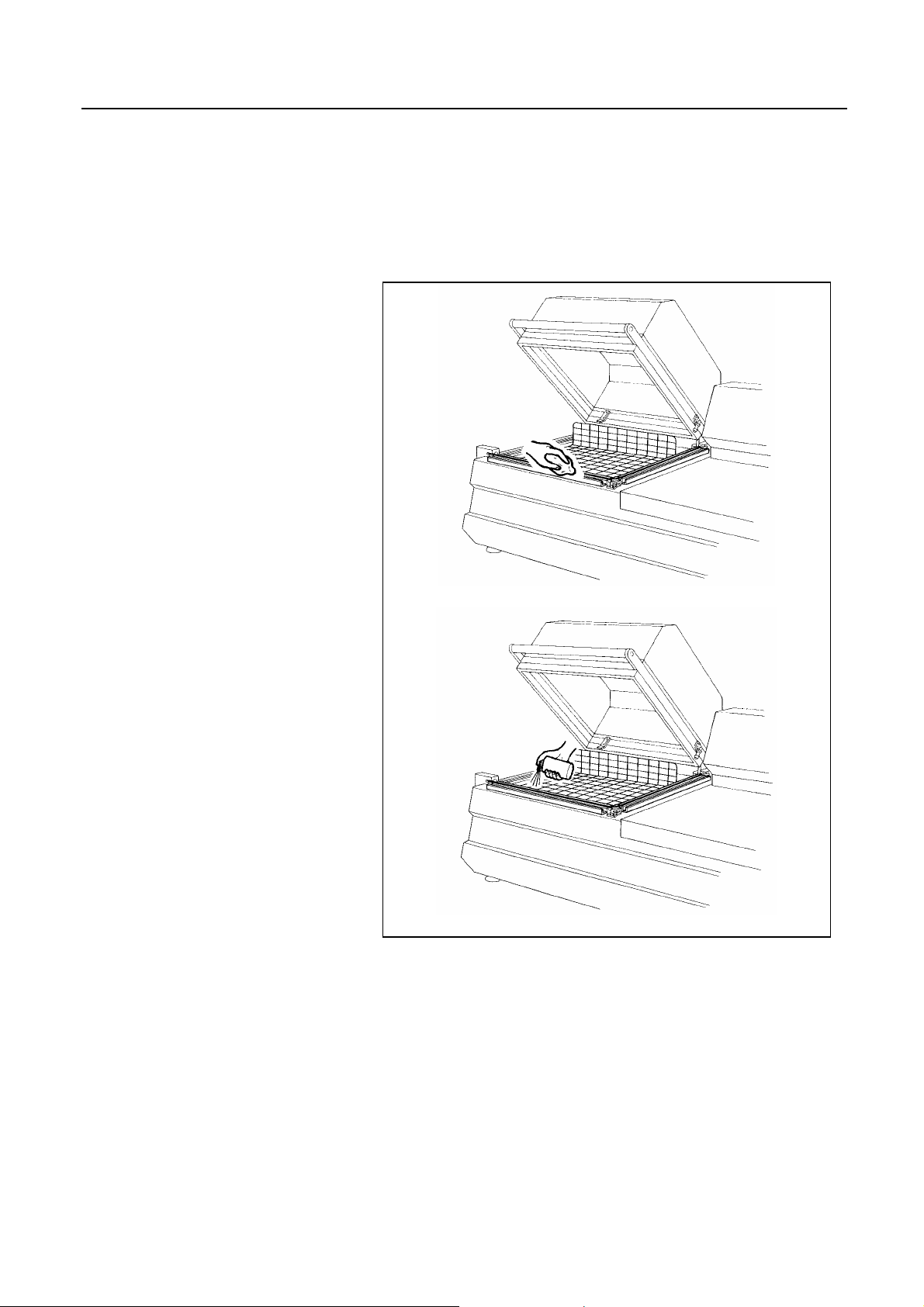

7.3. Plastic film and other scrap removal

Wait for the machine to cool down
completely before removing any
scraps stuck to the hot parts of the
machine (e.g. , on the flaps of the
heat chamber). If the lower cover
requires cleaning (where the fan is
installed), remove the reticulated
plate and take out any pieces that
may have fallen inside.
For a more careful cleaning of
the lower bell we recommend to
use a vacuum cleaner.

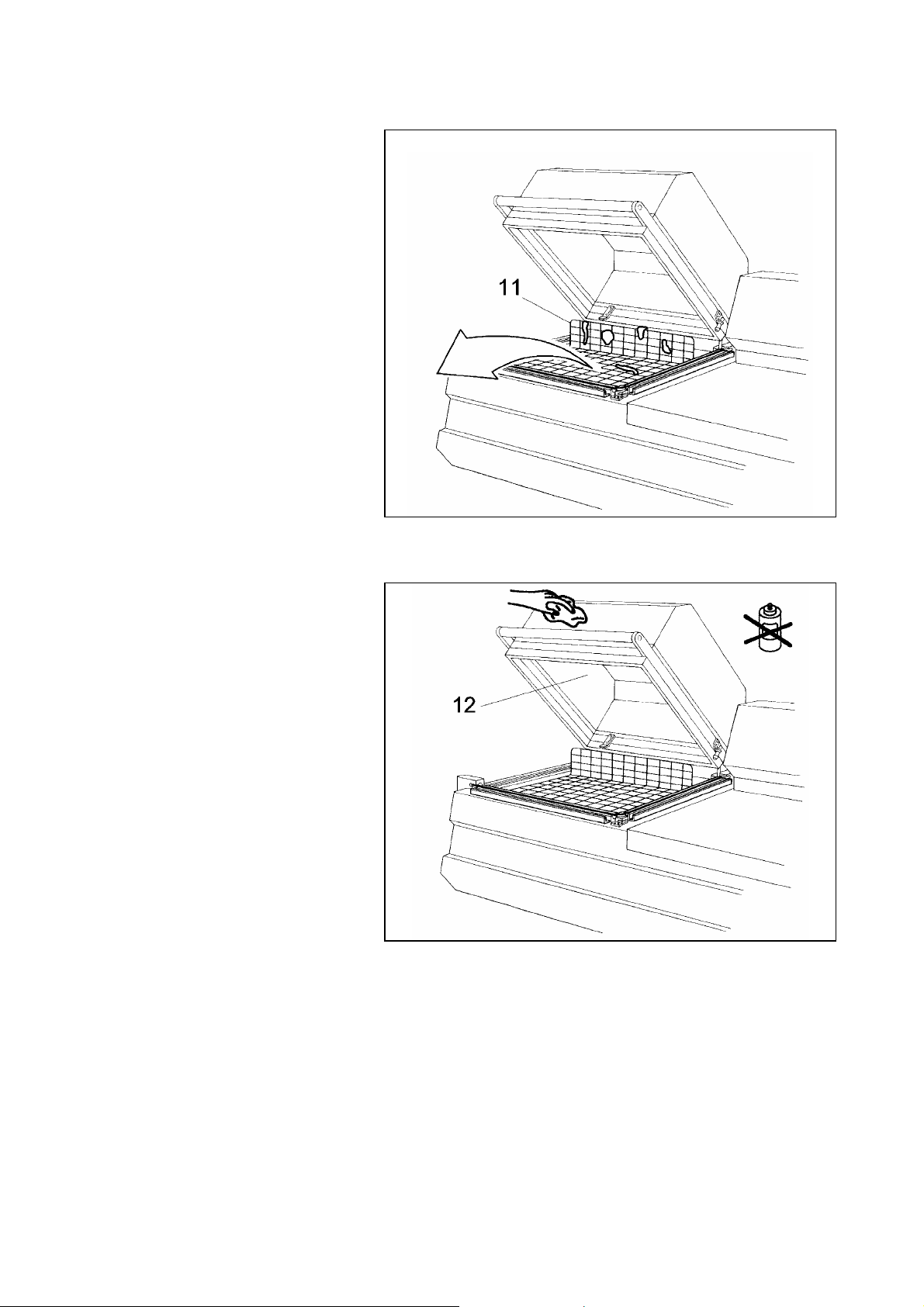

7.4. Machine cleaning

Use a cloth moistened with water
for the cleaning of the machine.
For cleaning the bell (12) inside
and outside we recommend to use
a normal detergent for glass
cleaning.
Do not use any detergents with
solvents which could damage the
bell (12) and reduce the
transparency.

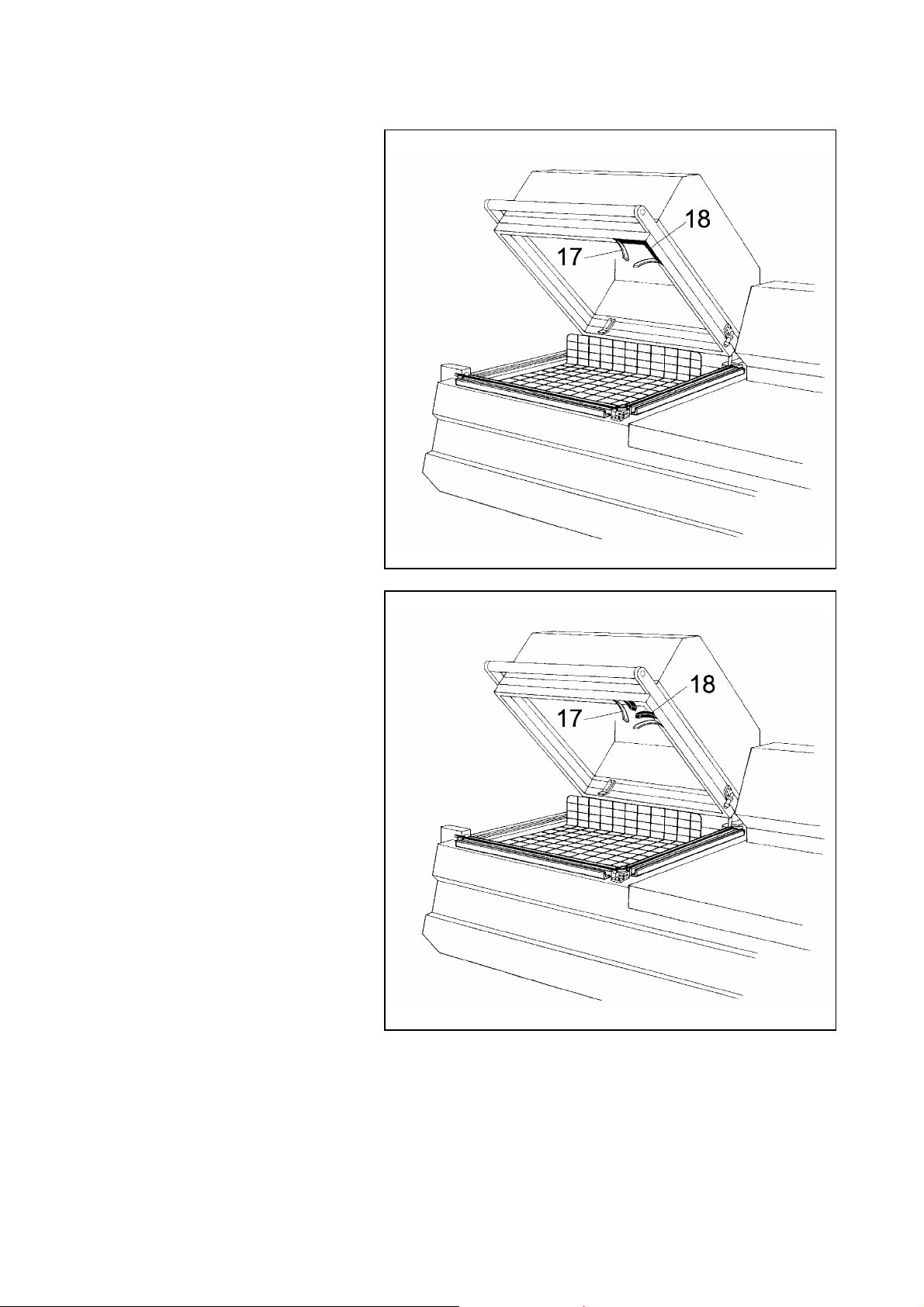

7.5. Rubber and teflon replacement

When the Teflon-strikers (17) are
worn out, replace them with spare
parts, paying attention that the
application is linear and even.
Before applying the Teflon self­adhesive strip clean the rubber
part (18) with a detergent.

If also the rubber (18) is
damaged, replace it as follows:
Remove the old rubber, clean its
housing, apply some drops of
glue in the housing, insert the
new rubber in a linear way, clean
the rubber with a detergent,
apply the self-adhesive Teflon­strip.

7.6. Changing the sealing wire

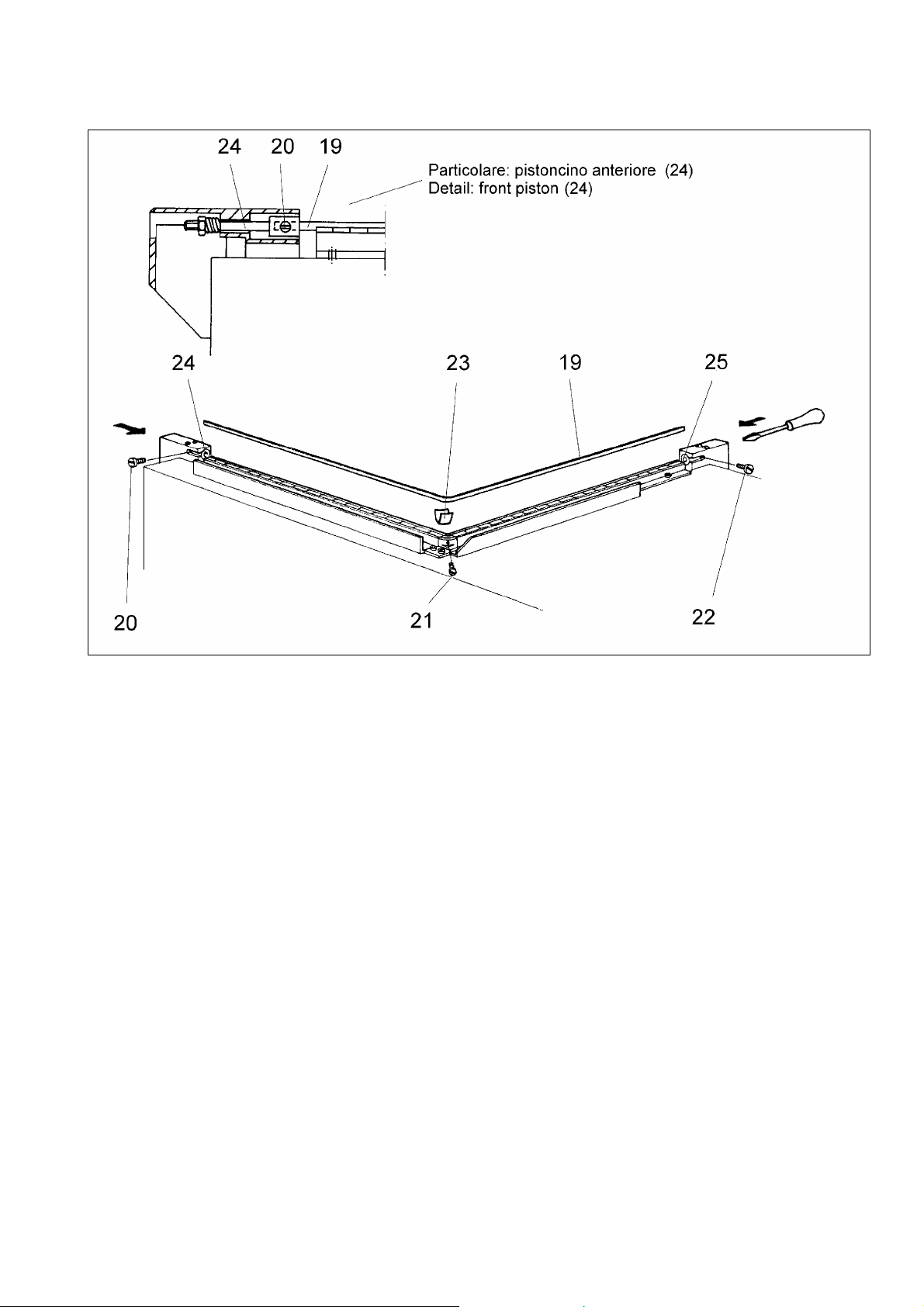

To replace the sealing blade (19) follow this procedure:

• Disconnect power to the machine

• Unscrew the three screws (20), (21), (22)

• Remove the old sealing blade

• Clean the housing and if necessary replace the insulating teflon (23) of the central

clamp

• Insert the new sealing blade starting from the central clamp and tighten the screw (21)

• Trim the new sealing blade according to the holes of the pistons (24) and (25)

• Complete the insertion if the sealing blade in the whole housing

• Push the rear piston completely onwards (25) towards the sealing blade to make it enter

the hole of the piston itself and then tighten screw (22)

• Push the front piston (24) completely onwards towards the sealing blade to make it

enter the hole of the piston itself and then tighten screw (20)

• Trim the teflon projecting from the central clamp

• Make sure that the sealing blade (19) is well positioned and in tension

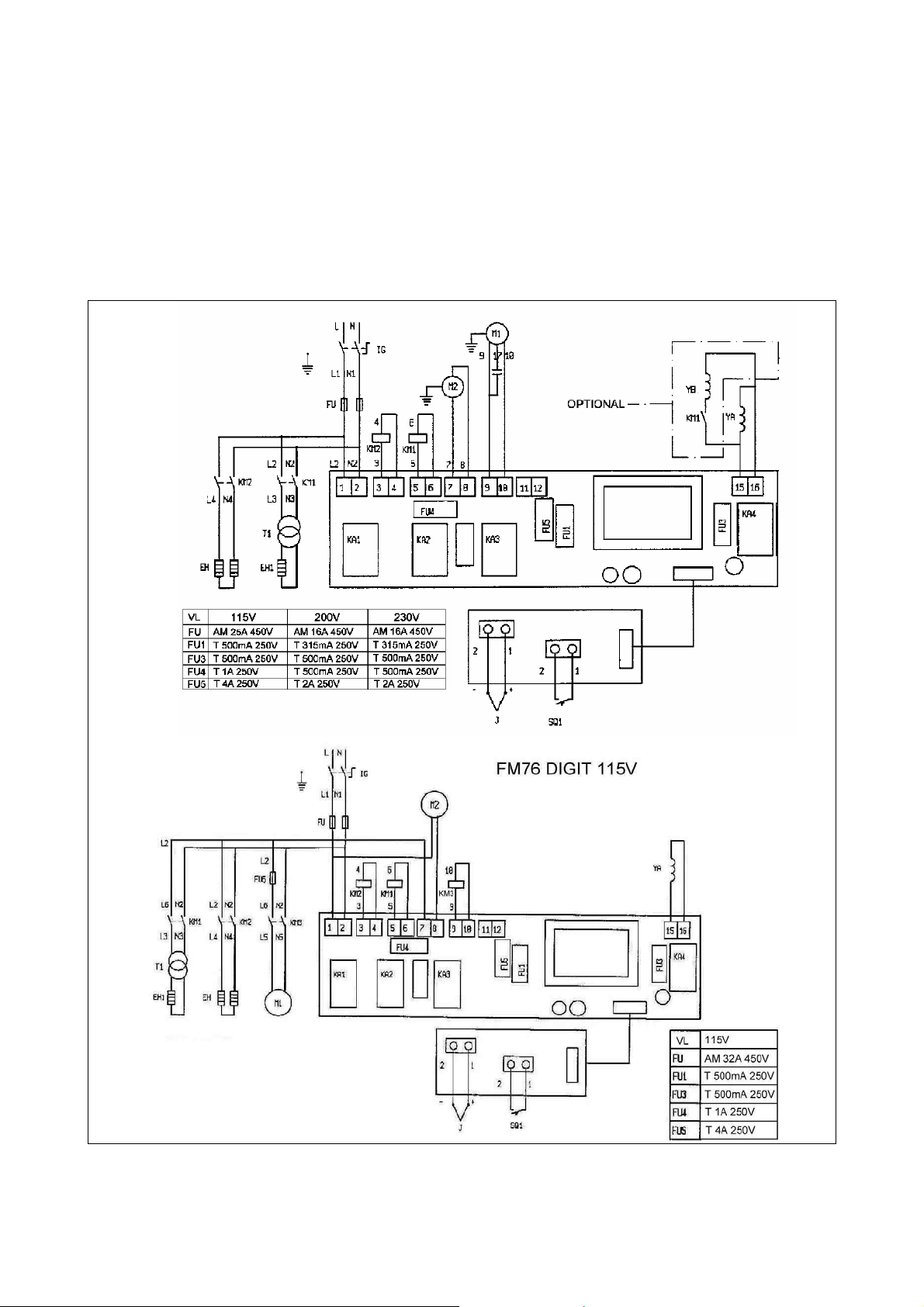

7.7. Wiring diagram
IG Main switch M1 Fan motor

FU Line fuse 10.3X38 M2 Fan motor
FU1 Board fuse 5X20 J Thermocouple
FU3 Magnet fuse 5X20 SQ1 Machine cycle limit switch
FU4 Auxiliary plug fuse 5X20 YA Shrinking magnet
FU5 Motor fuse 5X20 YB Sealing magnet

EH Oven resistors KM1 Sealing blade contactor

EH1 Sealing blade heater KM2 Heaters contactor

T1 Cutting transformer KM3 Fan motor contactor

7.8. Spare parts

Code FM75 Code FM76 Item description

S01A0404 S02A0404 Teflon liner
FE385601 FE385602 Sealing blade
FM350008 FM350009 Upper neoprene rubber
S0K00306 S0K00306 Blade holder complete clamp
FE241011 (230V)
FE241012 (115V)

FM130001 FM130002 Reticulated plate
FM080038 FM080037 Upper hood
FM170001 FM170002 Torsion bar
S0K00604 S0K00604 Complete slotted microperforator
S0K00605 S0K00605 Complete needles microperforator
FE381001+FE38100
2 (230V)
FE381003+FE38100
4 (115V)

S01A0602 S02A0602 Roll holder complete tube
S0K01111 S0K01110 Fan
FM195011 FM195012 Glass wool panel
FE440602 (230V)
FE440601 (115V)

7.9. Disassembling, demolition and elimination of residuals

Proceed as follows:

1. disconnect machine from power mains

2. disassemble components

All wastes must be treared, eliminated or recycled according to their classification
and to the procedures in force established by the laws in force in the country the
equipment has been installed.

FE240019 (230V)
FE240029 (115V)
FE240023 (200V)

FE381011+FE381012
(230V)
FE381013+FE381014
(115V)
FE381019+FE381020
(200V)

FE440612 (230V)
FE440611 (115V)
FE440612 (200V)

ATTENTION!

All operations about disassembling and demolition must be done by
qualified personnel with mechanical and electrical expertise required to
work in security conditions.

Motor

Resistors

Transformer

Chapter 8. Guarantee

8.1. Certificate of guarantee

Model and Serial Number:
Equipment manufactured by minipack-torre is warranted to be free of defects in parts and

craftsmanship for a period of one (1) year from the date of installation, or 15 months from the
invoice, whichever occurs first, minipack-america's exclusive obligation under this warranty
is limited to repairing or, at its option, replacing any minipack-torre part that is determined by
minipack-america to be defective. The warranty is for the original purchaser of new equipment.

Component subsystems manufactured by minipack-torre carry the warranty as stated herein.
The warranty does not apply to subsystem component parts which are not manufactured by
minipack-torre. Subsystem component parts not manufactured by minipack-torre shall be
subject to any warranty of its manufacturer.

This warranty shall not apply to damage resulting from installation, modification, or repair by
anyone other than a minipack-america authorized distributor/dealer. Nor shall it apply to any
equipment which has been subject to accident, alterations, neglect, misuse or improper
maintenance.

In the event of highly corrosive or high moisture applications, special protective coatings or
stainless steel construction might be needed.

minipack-torre and minipack-america shall not be liable if minipack-torre equipment or
components are used with accessory equipment not manufactured by minipack-torre.

Representations and/or warranties, by whomever made (even if made by minipack-america
authorized distributors/dealers), which are inconsistent with the terms herein shall not
constitute a term of the mininpack-torre or minipack-america express warranty and shall not be
binding on minipack-torre or minipack-america.

THE LIMITED WARRANTY SET FORTH ABOVE IS THE SOLE AND ENTIRE
WARRANTY PERTAINING,TO THE PRODUCT AND IS IN LIEU OF AND EXCLUDES
ALL OTHER WARRANTIES OF ANY NATURE WHATSOEVER, WHETHER
EXPRESSED, IMPLIED OR ARISING BY OPERATION OF LAW, INCLUDING, BUT
NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. THIS WARRANTY DOES NOT COVER OR
PROVIDE FOR THE REIMBURSEMENT OR PAYMENT OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY TYPE, MANNER OR DEGREE, AND ANY
LIABILITY BY MINIPACK-TORRE OR MINIPACK-AMERICA FOR SUCH
INCIDENTAL OR CONSEQUENTIAL DAMAGES IS HEREBY DISCLAIMED. Some
states do not allow this exclusion or limitation of warranties and/or damages, so the above
limitations and/or exclusions might not be applicable to you. This warranty gives you specific
legal rights, and you might also have other rights that vary from state to state.
